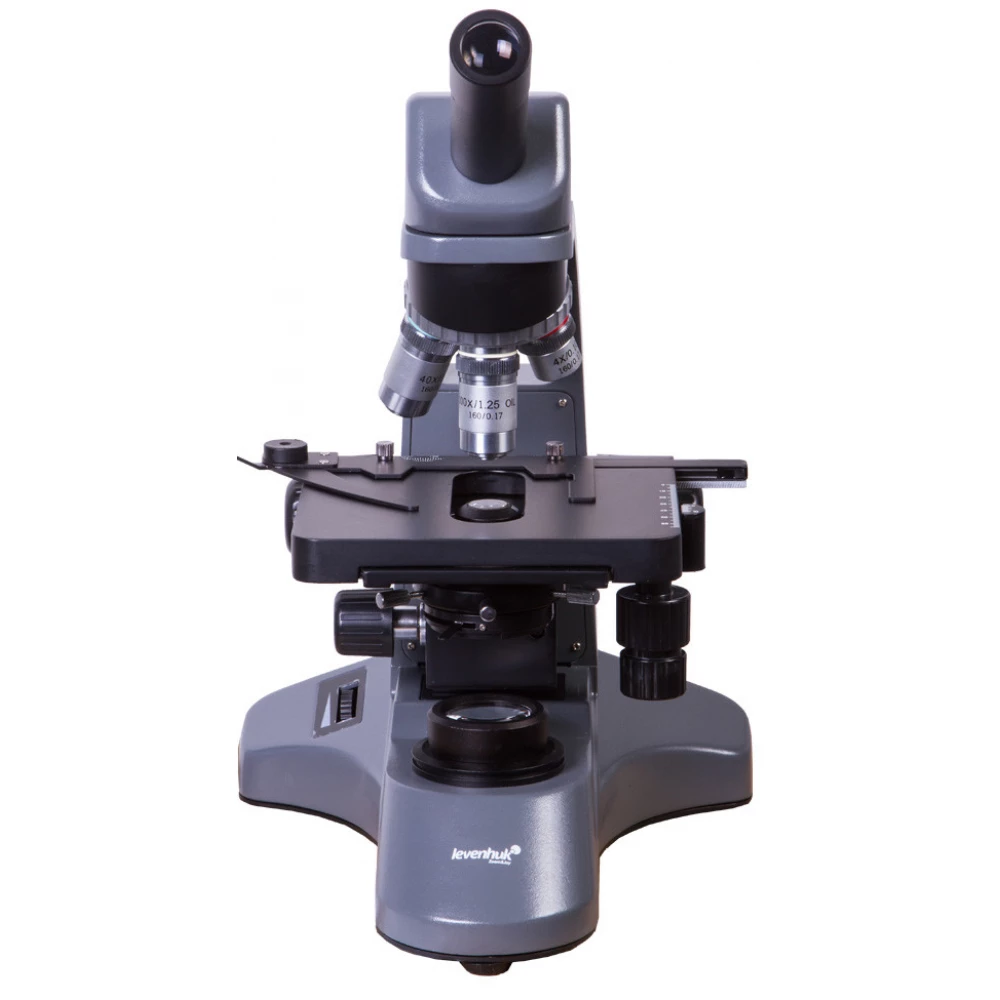

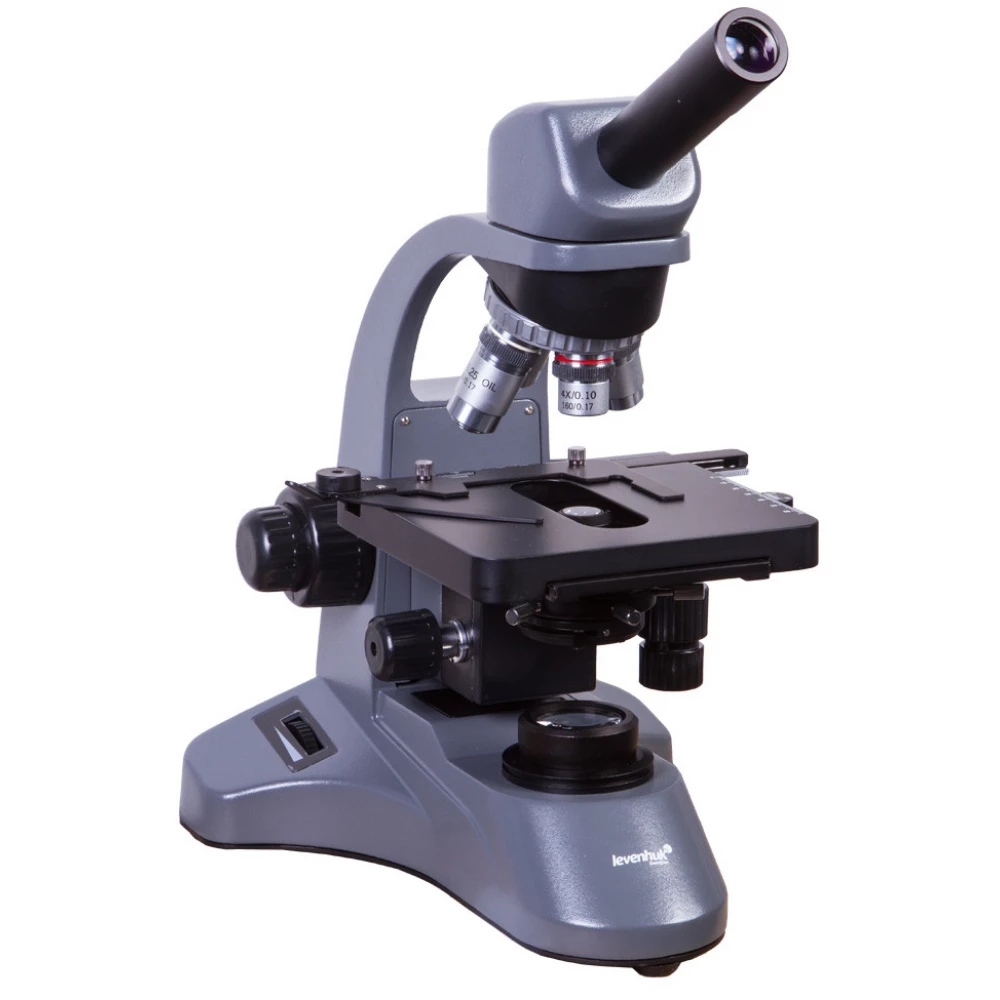

LEVENHUK 700M monocular microscope

Levenhuk 700M monocular microscope – a biological microscope with a metal frame, developed for the study of transparent samples in transmitted light. The microscope can be used for both learning and hobby; it can be used for medical and clinical research, and can also be used for the study of bacteria and cystoscopy. The Levenhuk 700M microscope will find its rightful place in the home laboratory, as well as in the educational or medical institution.

The microscope has a turret head with 4 objective lenses. The package contains achromatic objective lenses with different magnifications; one of them is an immersion type lens. The use of immersion oil greatly increases the brightness of observed microscope samples and also extends the magnification limit. The package also includes two wide-field eyepieces - a 10x eyepiece and a 20x Huygens eyepiece - they complement each other perfectly and allow for an extremely wide range of visual observations. The full magnification range of the microscope is between 40 and 2000 times.

The monocular head part can be tilted at 45°, which is especially important for long-term observations. This position reduces the strain on the neck muscles and provides maximum comfort during observation. To make group work convenient, the head part of the microscope can be rotated around its own axis. You don't need to rotate the entire device to show your observed patterns in detail to your colleagues or students.

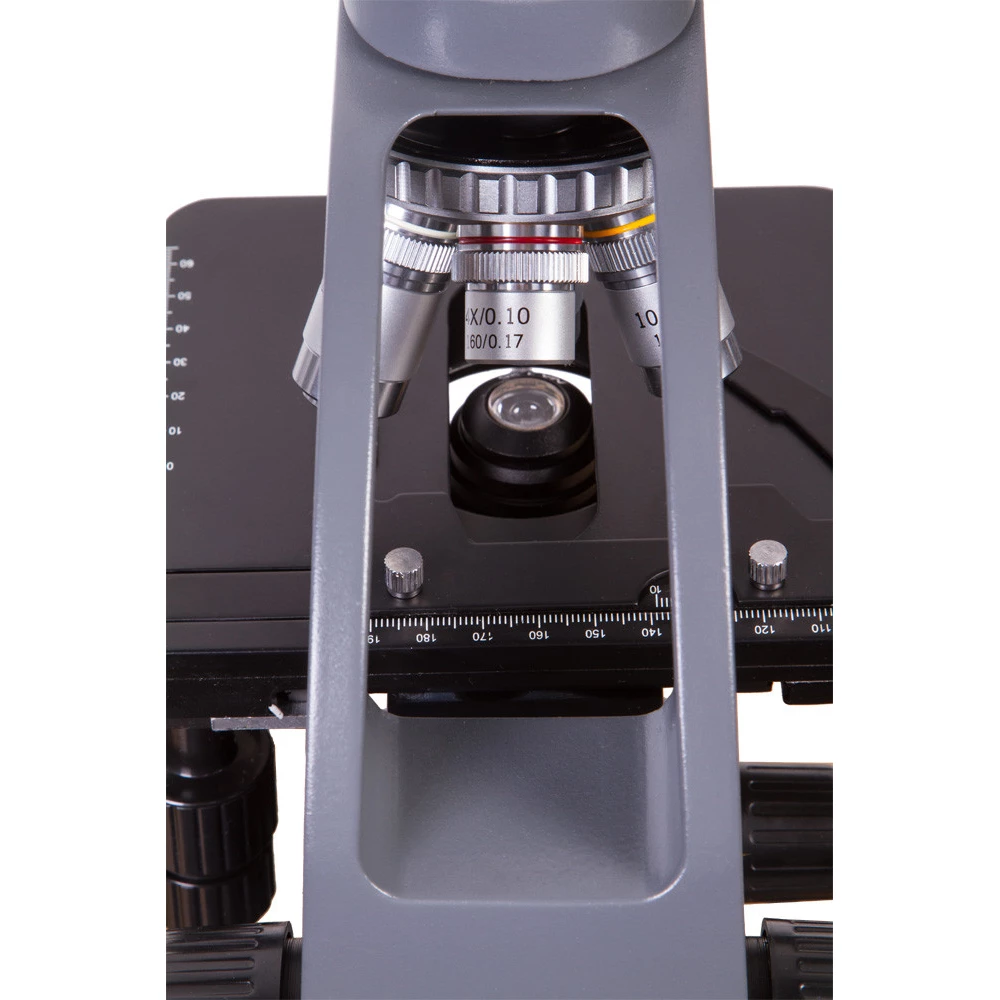

The stage of the microscope moves both vertically and horizontally - precisely because of this, samples can be comfortably observed even at maximum magnification. The coordinate scales on the stage help to determine the accuracy of the movement along the axis. The stage can be controlled manually. Focusing allows for two types of settings: coarse and fine focusing.

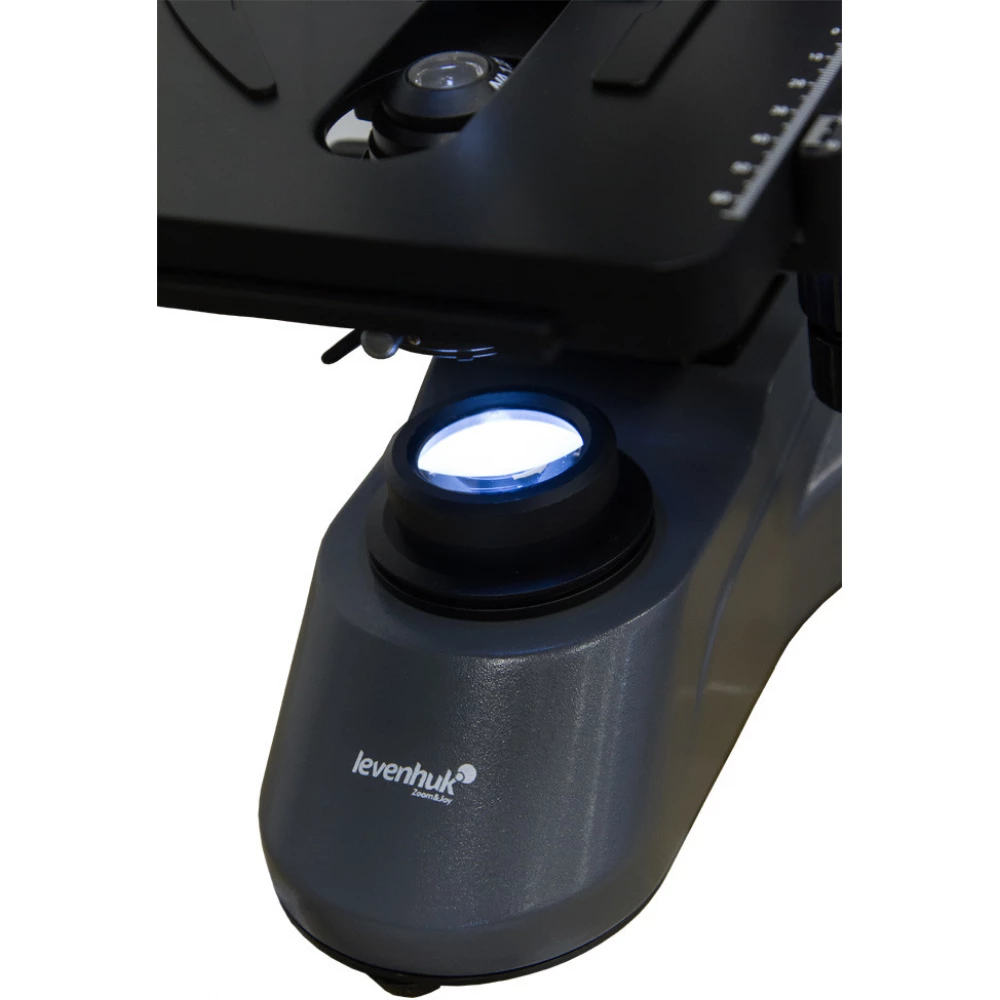

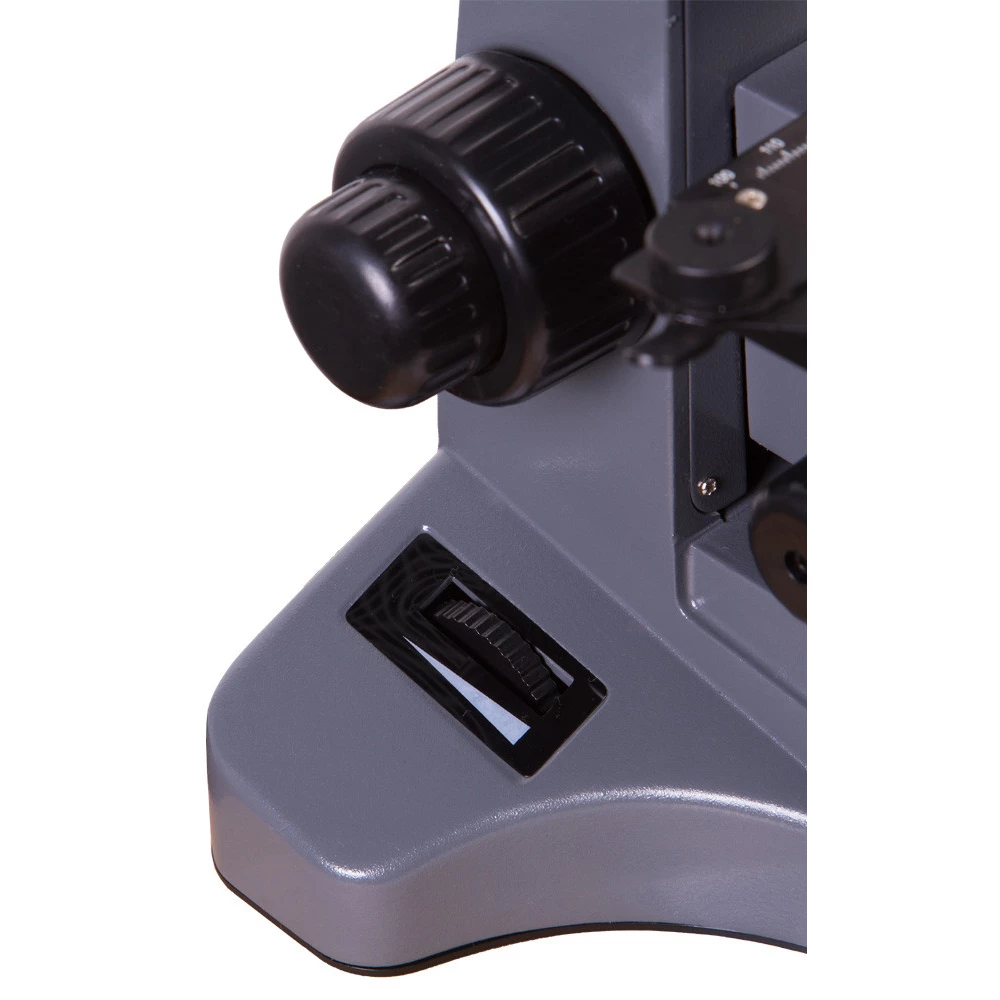

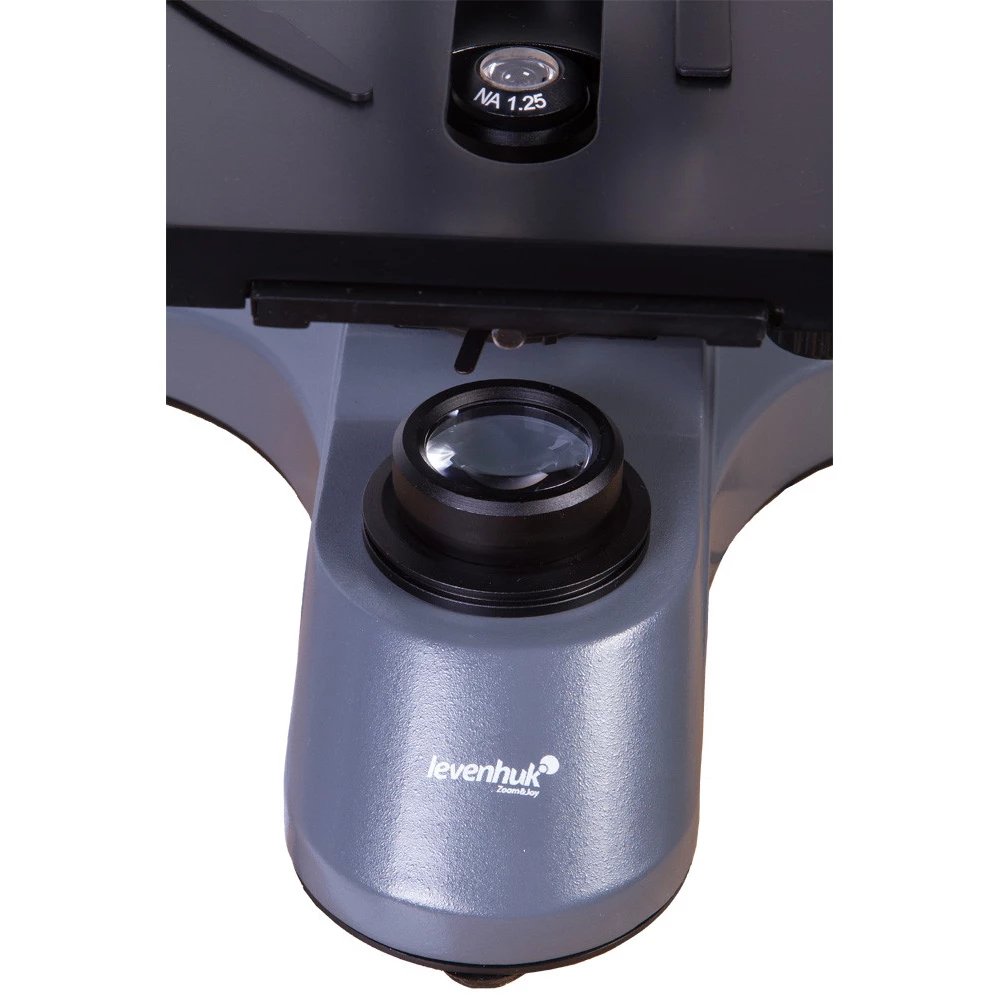

The adjustable brightness lighting is located under the specimen table. Thanks to the Abbe condenser with an iris diaphragm, the observed samples receive even more illumination. This directs the light exactly to the sample being examined. The condenser is equipped with special centering screws. Lighting is provided by a socket; the power cable is included in the package.

Features:

- Degree of magnification: 40–2000x
- Achromatic lenses
- Oil immersion
- Abbe condenser
- Two-axis stage
- Rotatable head
- Coaxial coarse and fine focusing structure
- LED lighting
- Mains power supply

The kit includes:

- Microscope stand with base
- Single eyed head piece
- Achromatic objective lenses: 4x, 10x, 40xs and 100xs (oil)
- Eyepieces: WF10x, WFH20x
- Filters (blue, yellow, green)
- A bottle of immersion oil
- Dust cover
- Network Adapter
- Allen key
- Backup fuse
- User's Guide

Caution: Please refer to the technical description for the correct voltage and never attempt to connect a 110V device to a 220V outlet (and vice versa) without using a converter. Note that the mains voltage in the US and Canada is 110V, while in most European countries it is 220-240V.
