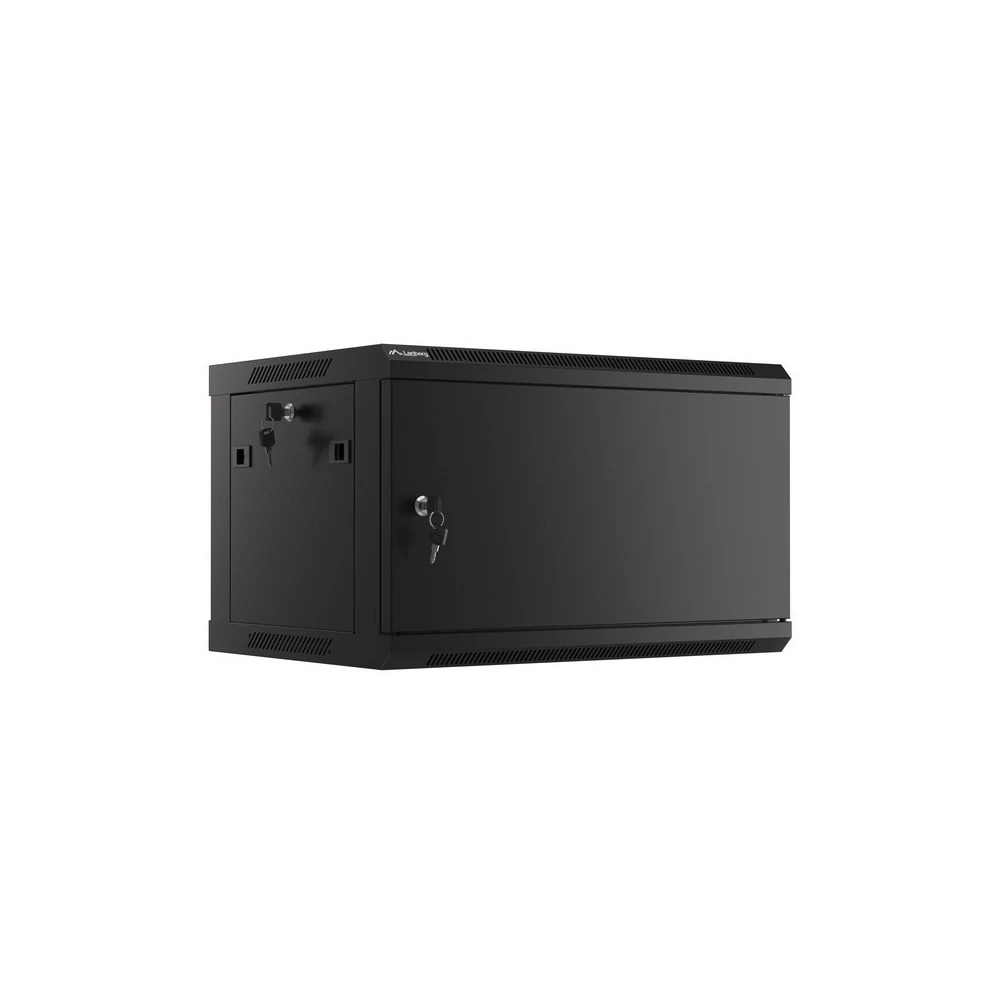

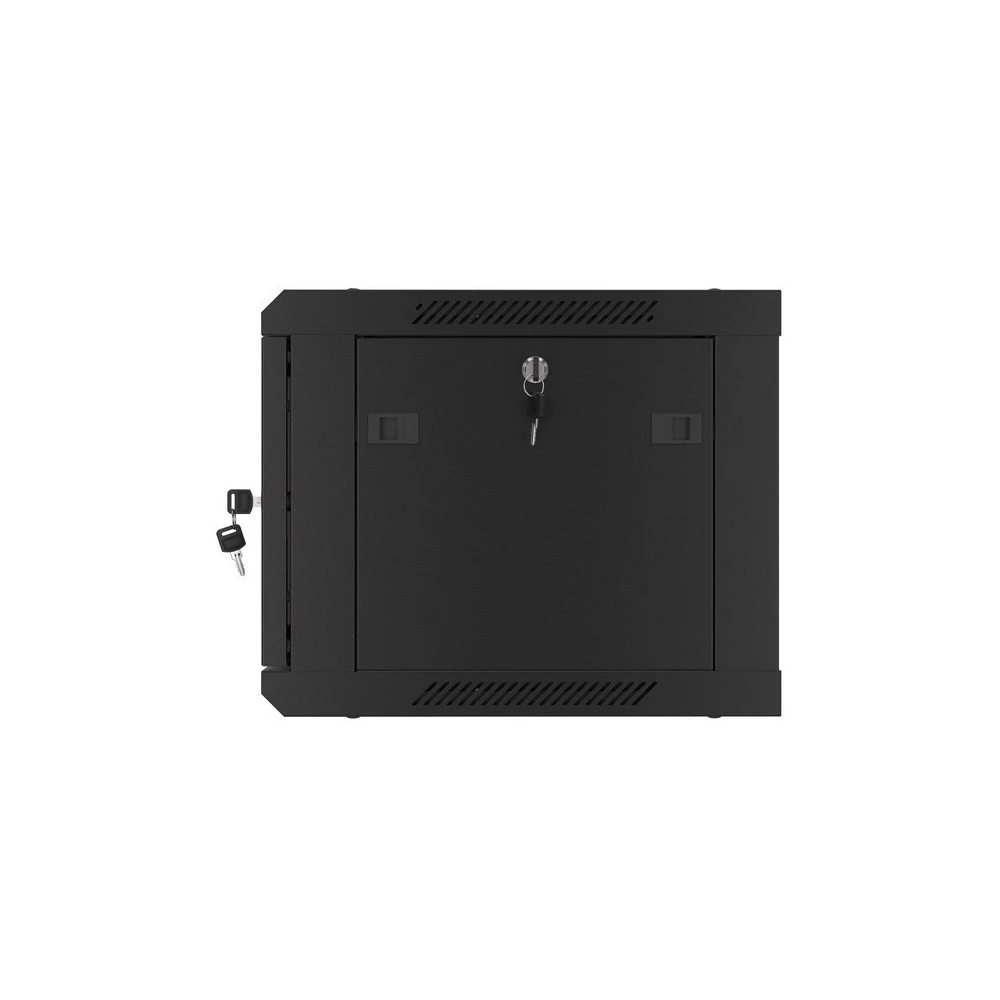

The Lanberg WF01-6406-00B wall cabinet is a solution designed for network expansion, cabling and equipment installation in 19" size with a maximum load capacity of 60 kg. It can be used in networks, server rooms, small and medium-sized enterprises. It can also work in low voltage systems such as cable TV networks, alarm systems, fire protection systems and access control systems, CCTV and IP surveillance systems. The appropriate design allows the cabinet is characterized by IP20 protection, with a 180° rotatable front door (locks included). This product is made of high-quality cold-rolled steel, which makes it easy to install on a rail. M6 nuts and blind entry panels.

- Manufacturer: Lanberg,
- Manufacturer code: WF01-6406-00B,
- Cabinet type: Wall,
- Housing color: Black RAL9004,
- Height: 6U,
- Cabinet dimensions (W x D x H): 600x450x379 mm,
- Height (upper panel lower panel): 370.5 mm,
- Height (top panel earthing with screws): 379 mm,
- Internal width between rack rails: 450 mm,
- The width of the distance between the holes of the rack rails: 475 mm,
- External width between rack rails: 495 mm,
- Load capacity: max. 60 KG,
- Protection: IP20,
- Type of doors: Metal entrance door,
- Standard: ANSI/EIA RS-310-D, IEC297-2, DIN41494; PART1 and PART7, ETSI,
- Material: High-quality cold-rolled steel, powder-coated,
- Fan mounting holes: Yes, 120 mm, 110V or 230V,
- Door thickness: 1.0 mm,
- Plate thickness: vertical mounting rails 1.50 mm; mounting profile 1.50 mm; other 1.00~1.20mm; top, bottom and side panels 1.00 mm,
- Cable entry panel: Upper, lower,
- Accessories: Accessory bag, grounding kit (studs, grounding cable, nuts and fixing washers), front door lock, two side panels with locks, 12 M6 cage nuts.
