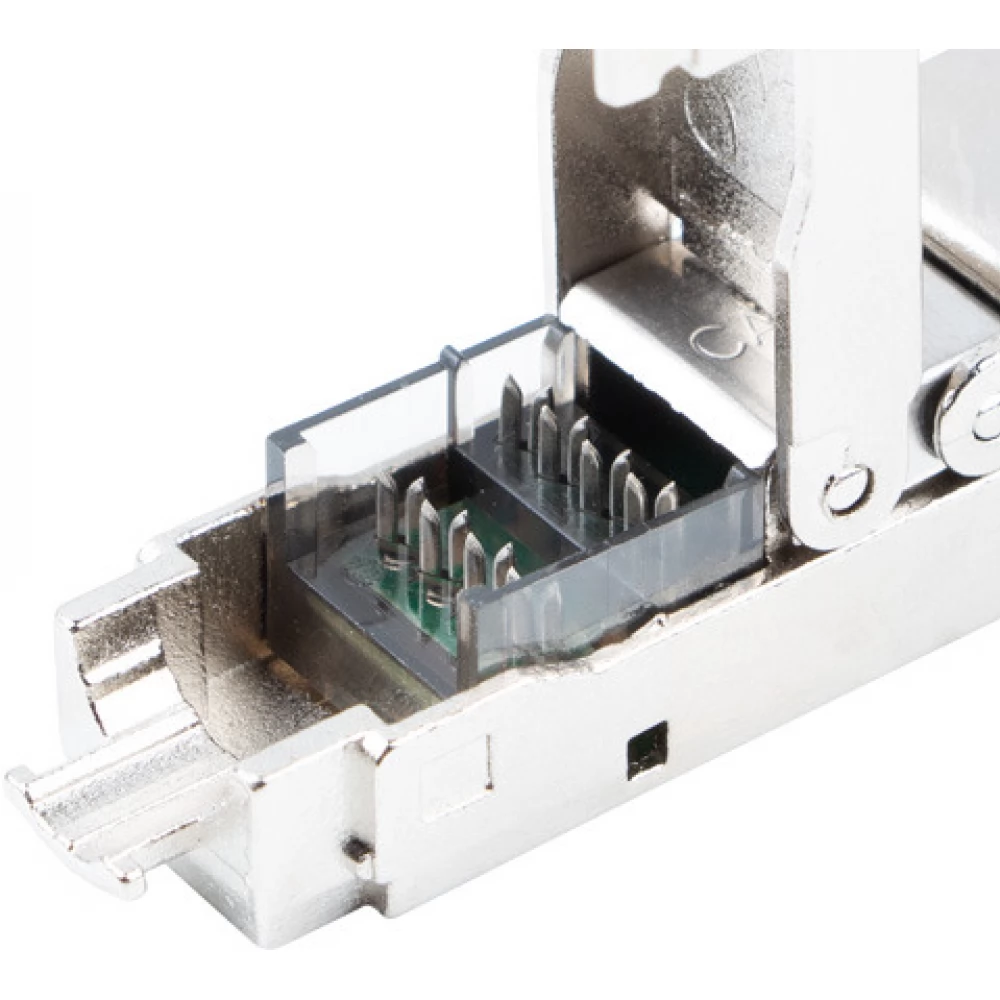

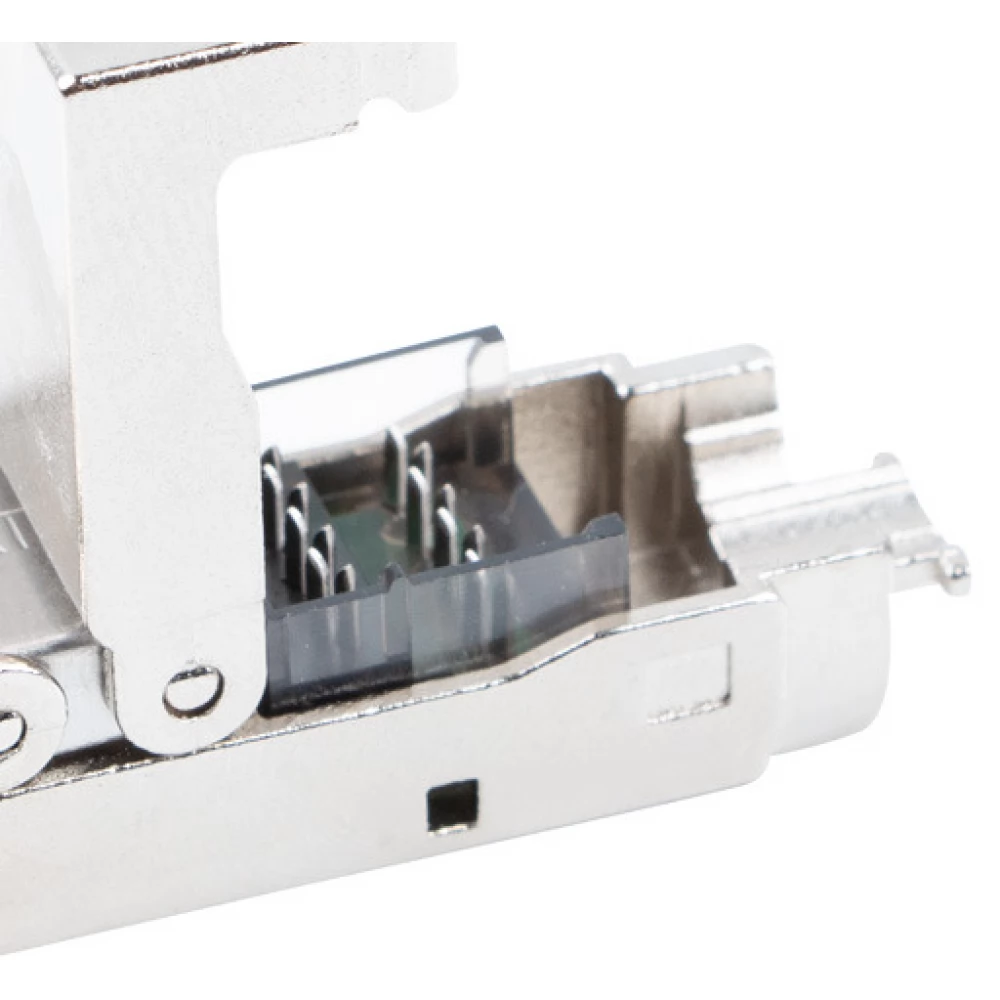

The self-closing connector is designed for quick insertion on the wire and twisted pair. The tool-free design allows quick assembly without tools. The connection point is secured against blood vessels slipping out of the supports. Conductor, color sticker, cable cover - all this makes cabling easier.

- Easy to assemble without special tools.
- Suitable for solid wire from AWG 26/1 to AWG 22/1.
- Compliance with class E ISO/IEC 11801 Ed.2.2.2011-06,DIN EN 50173-1:2011-09 10 GB IT suitable according to IEEE 802.3an
- Adjustable strain relief, suitable for cable jacket with a diameter of 6.0-9.0 mm.
- Load bar for faster and easier closing of the wire pattern.
- Reusable design.
- 3µ gold-plated phosphor bronze pin, durability: 750 cycles.
- Operating temperature: -25-68, relative humidity:
- 85%, air pressure: 70-106 KPa.
- Intermediate resistance: 20M at normal atmospheric pressure (bulk resistance not included).
- Insulated resistance: 1000M at normal atmospheric pressure.
- Withstanding voltage: DC 1000V (AC 700V), no puncture or spark in 1 minute.
- Strength: 7.7 kg between the socket and the connector.
