Removable M.2 NVMe SSD - PCIe 5.0 x4 mobile rack housing / adapter for PCIe expansion slot.

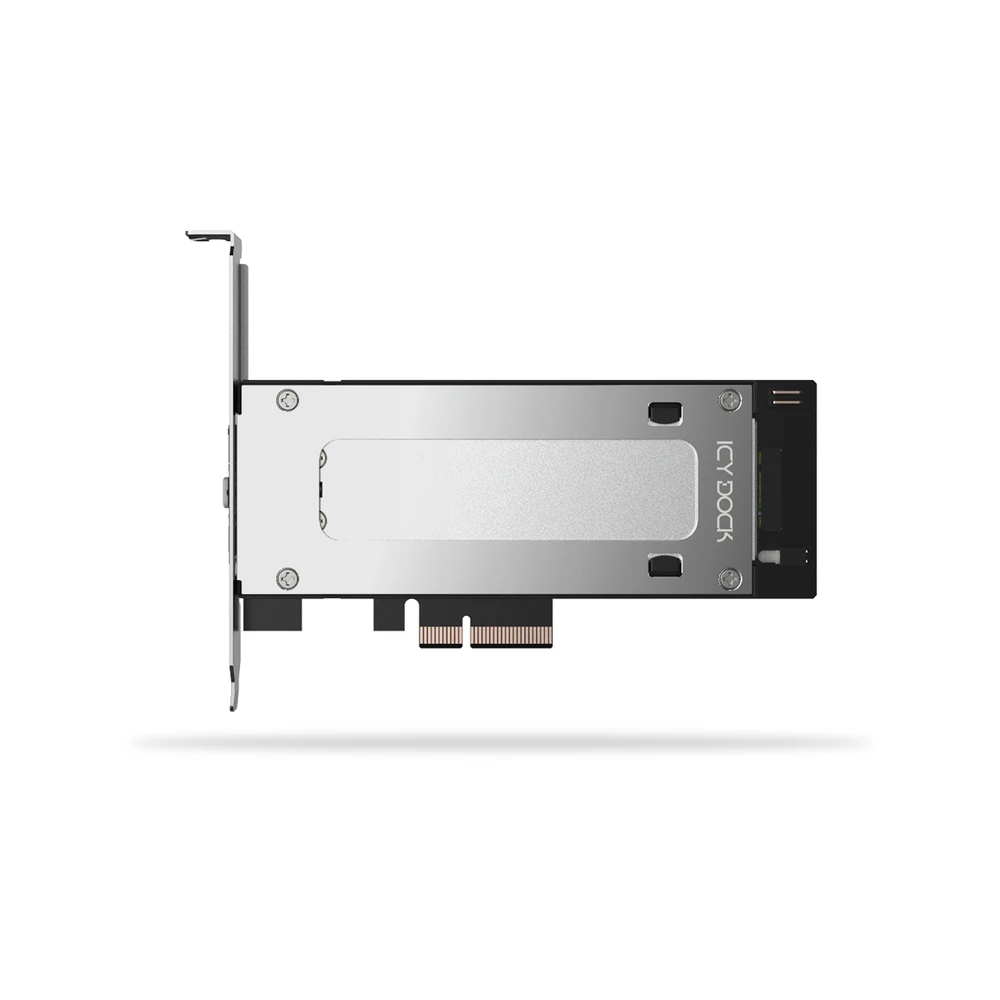

The ExpressSlot Elite MB840M5P-B converts a PCIe 4x, 8x, or 16x expansion slot into a removable M.2 NVMe SSD slot, enabling quick and easy SSD replacement without opening the computer case.

The MB840M5P-B is designed to harness the power of PCIe 5.0, offering lightning-fast transfer speeds of 128 Gbps – twice the bandwidth of PCIe 4.0 (64 Gbps) and more than 20 times faster than SATA (6 Gbps). Designed for PCIe 5.0, 4.0 and 3.0 x8/x16 slots, the high-speed NVMe solution provides maximum flexibility for enterprise workstations, high-performance computing, artificial intelligence training and data-intensive applications. It uses a direct PCIe connection to eliminate bottlenecks, reduce cable clutter, and deliver ultra-low-latency storage performance for next-generation workloads.

A traditional M.2 SSD installation requires the drive to be mounted on the motherboard or a riser card, secured with a small screw—an often cumbersome and time-consuming process. The MB840M5P-B simplifies this by using a PCIe expansion slot, making M.2 SSD installation and removal quick and hassle-free thanks to the removable drive tray design.

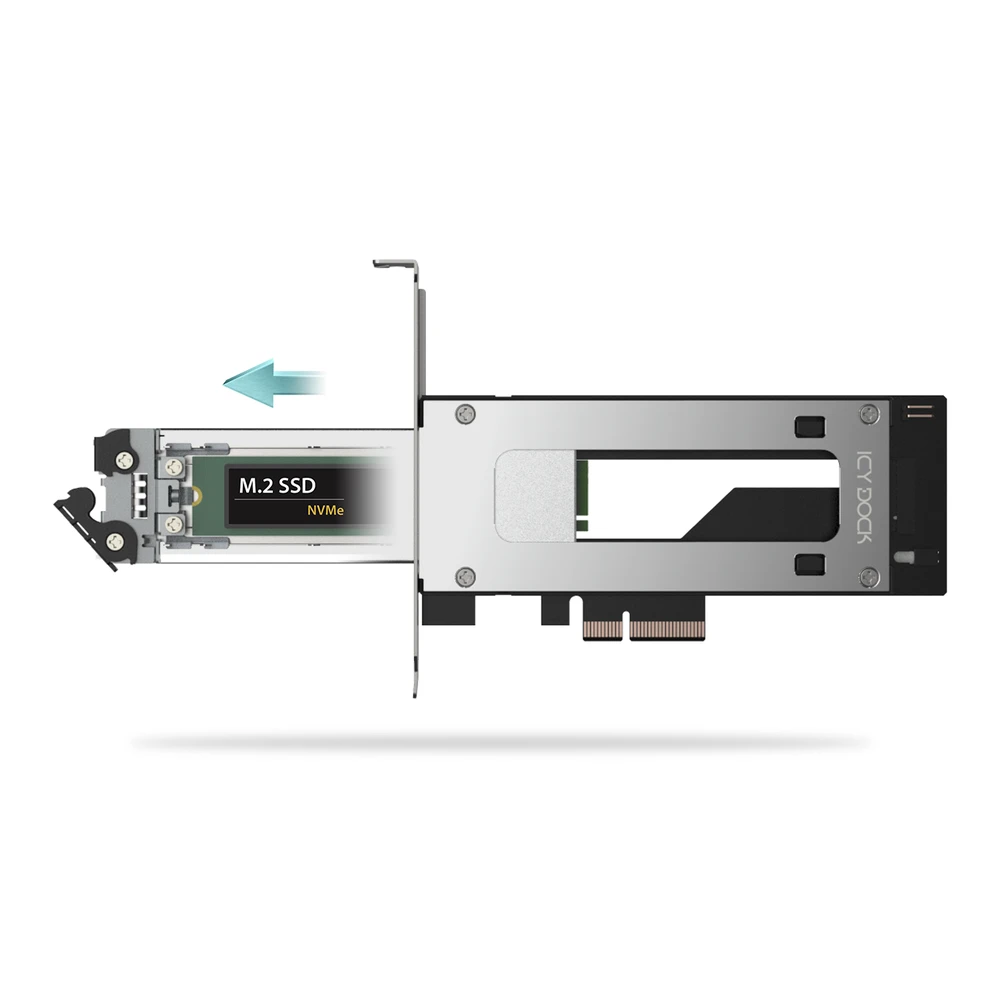

Thanks to ICY DOCK's innovative tool-free design, installing or replacing an M.2 NVMe SSD takes less than five seconds, eliminating the hassle of handling small screws. This high-tech mechanism provides a smooth and efficient workflow for drive maintenance.

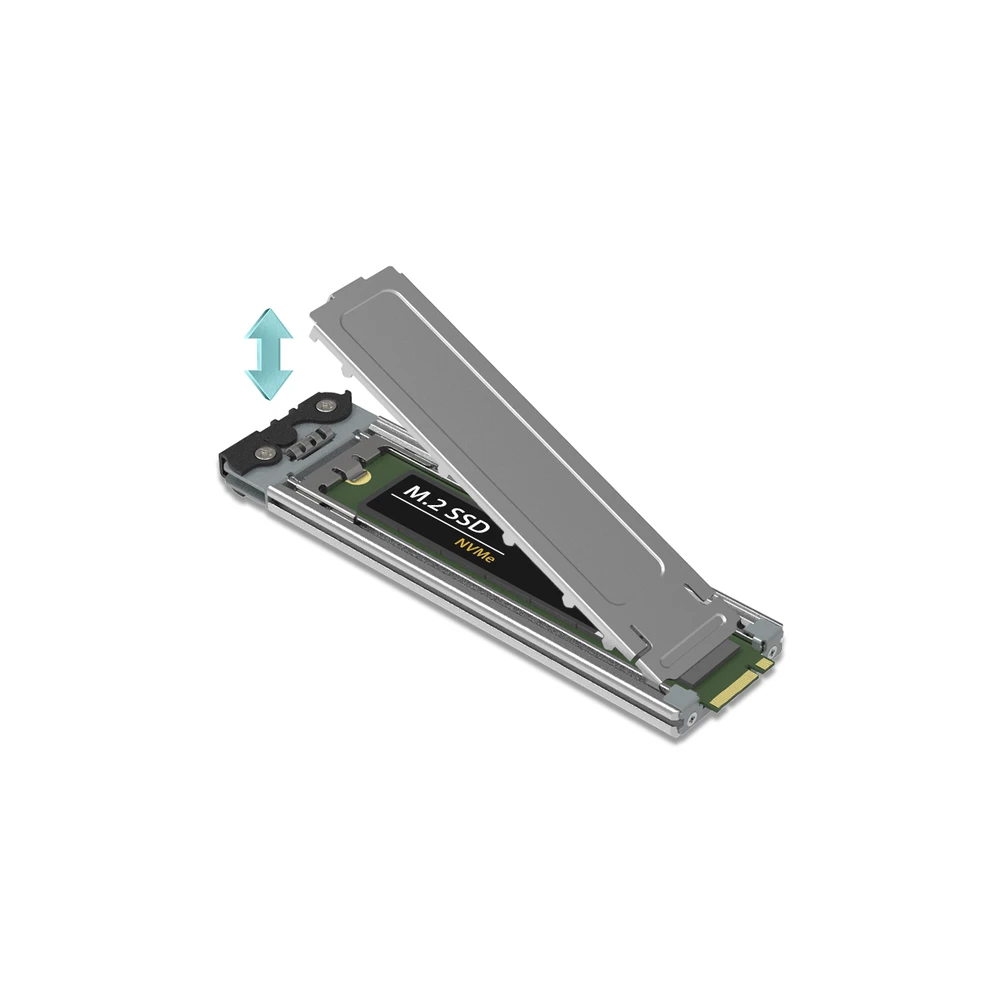

Removable M.2 NVMe SSD tray (MB840TP-B) supports standard M.2 sizes including 2230, 2242, 2260, 2280 and 22110, ensuring maximum SSD compatibility.

Designed with heat dissipation in mind, the MB840M5P-B's aluminum tray acts as a built-in heatsink, effectively dissipating heat away from the SSD.

The included thermal pad fills the gaps between the SSD and the metal case, ensuring optimal contact and efficient heat transfer. This design allows the airflow to dissipate heat more efficiently, maintaining the SSD's peak performance.

Frequent SSD replacement carries the risk of electrostatic discharge (ESD) damage. The MB840M5P-B prevents this with built-in EMI grounding technology. With our M.2 lock, which can be adjusted without tools, the moment the SSD is attached, it is automatically grounded, providing continuous protection against electrical damage.

The MB840M5P-B is designed to take full advantage of PCIe 5.0, 4.0 and 3.0 x8 and x16 slots, ensuring broad compatibility across a variety of enterprise and high-performance computing platforms. With an ultra-fast data transfer rate of 128 Gbps, this high-tech storage solution is designed for demanding applications such as 4K/8K video processing, where smooth handling of uncompressed video footage is essential. It also excels in artificial intelligence and machine learning workloads, providing the high-speed data transfer required for deep learning models and real-time inference processing. In addition, the MB840M5P-B enhances high-performance cloud computing, enabling rapid storage scaling of virtual machines and maximum data center efficiency. For researchers and data analysts, this PCIe 5.0-enabled solution accelerates scientific computing and data mining operations, ensuring faster simulations and efficient handling of massive data sets.

Designed for harsh environmental conditions, the MB840M5P-B features an all-metal construction including housing, drive tray and mounting bracket. A vibration dampening mechanism is built into the case to protect the SSD from shocks and external damage.

The MB840M5P-B is equipped with a drive activity LED on the tray that shows the drive performance and activity. The LED will automatically turn off when no driver is installed to save power.

- Fits 1 x M.2 PCIe NVMe SSD in all drive lengths including 2230 (30mm), 2242 (42mm), 2260 (60mm), 2280 (80mm) and 22110 (110mm)
- PCIe 5.0 x4 interface (backwards compatible with PCIe 4.0/3.0 standards)
- Fits both full and half-height PCIe expansion slots
- Removable drive tray with tool-less drive installation design for easy drive maintenance
- Compact design that allows multiple compartments to be installed next to each other
- Eagle hook mounting system secures the drive
- EMI grounding technology protects SSDs from static damage
- Anti-vibration technology (AVT) minimizes noise and shocks
- Active Power Technology (APT) reduces power consumption when there is no SSD in the drive
- PCIe powered design eliminates unnecessary cables
- Attached heat conductor
