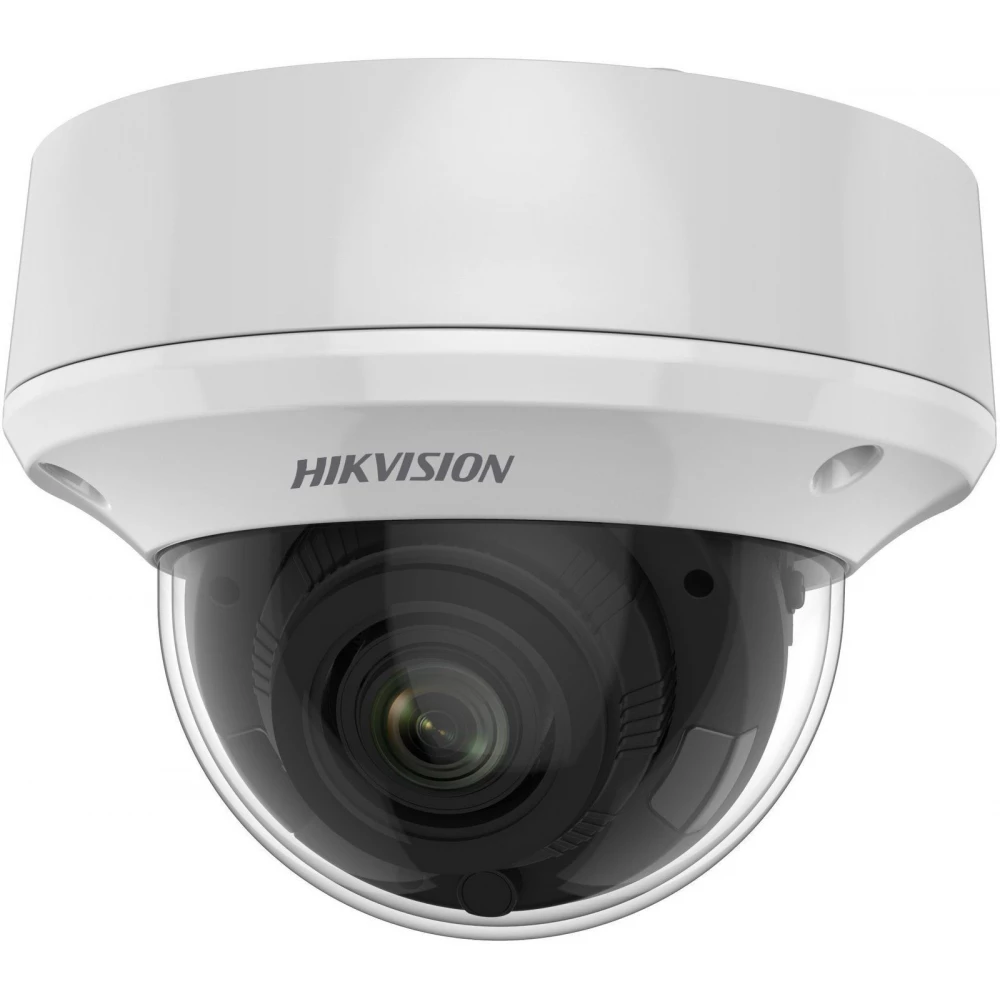

HIKVISION DS-2CE5AU7T-AVPIT3ZF

8 megapixel Dome camera

- 8.29 megapixel high performance CMOS
- Automatic focusing
- 3840x2160 resolution
- 2.7 mm ~ 13.5 mm motorized vari-focal lens
- 4 in 1 video output (switchable TVI/AHD/CVI/CVBS)
- EXIR 2.0, intelligent IR, up to 60 meters IR distance
- OSD menu, 3D DNR, 130dB true WDR
- IP67, IK10
- The coax up (HIKVISION-C)

Specifications
- Image sensor: 8.29 megapixel progressive scan CMOS
- Signal system: PAL/NTSC
- TVI: 8 Megapixel @ 12.5 fps, 8 Megapixel @ 15 fps, 5 Megapixel @ 20 fps, 4 Megapixel @ 25 fps, 4 Megapixel @ 30 fps, 2 Megapixel @ 25 fps, 2 Megapixel @ 30 fps
- CVI: 8 Megapixel @ 12.5 fps, 8 Megapixel @ 15 fps
- AHD: 8 Megapixel @ 12.5 fps, 8 Megapixel @ 15 fps
- CVBS: 960H PAL/NTSC
- Resolution: 3840x2160
- Minimum illumination: Color: 0.003 Lux @ (F1.2, Automatic gain control on), 0 Lux with IR
- Shutter speed: PAL: 1/12.5 s ~ 1/50000 s, NTSC: 1/15 s ~ 1/50000 s
- Lens: 2.7 mm ~ 13.5 mm motorized varifocal lens
- Viewing angle: horizontal: 108.1° ~ 45.6°
- Day and night: IR cut filter
- Synchronization: Internal synchronization
- Wide dynamic range: 130 dB
- Automatic gain control
- Day/night mode: automatic/color/black-and-white
- White balance: automatic/manual
- Backlight compensation
- Wide dynamic range
- Functions: Brightness, Sharpness, 3D digital noise reduction, Mirror, Smart IR
- Video output: 1 HD analog output
- Switch button: TVI/AHD/CVI/CVBS
- Operating temperature: -40°C ~ +60°C
- Operating humidity: 90% or less
- Power supply: 9.6 V DC ~ 14.4 V DC, 19.2 V AC ~ 28.8 V AC
- Energy consumption: Max 8.2 W
- Protection: IP67, IK10
- Material: metal
- IR range: Up to 60 meters
- Communication: Coax up, Protocol: HIKVISION-C (TVI output)
- Size: 145 mm x 111.3 mm
- Weight: 860 g
