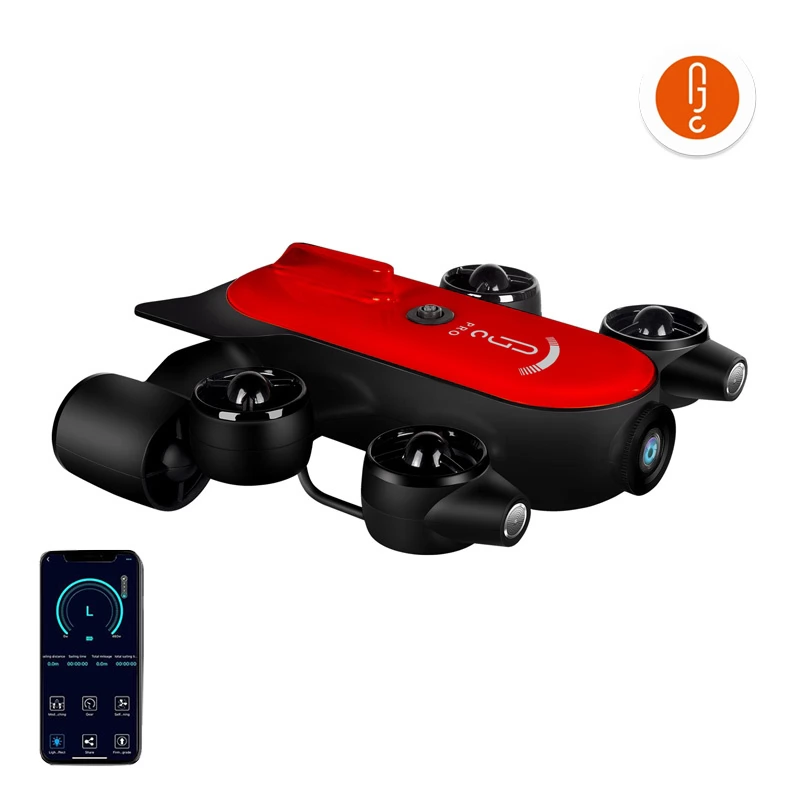

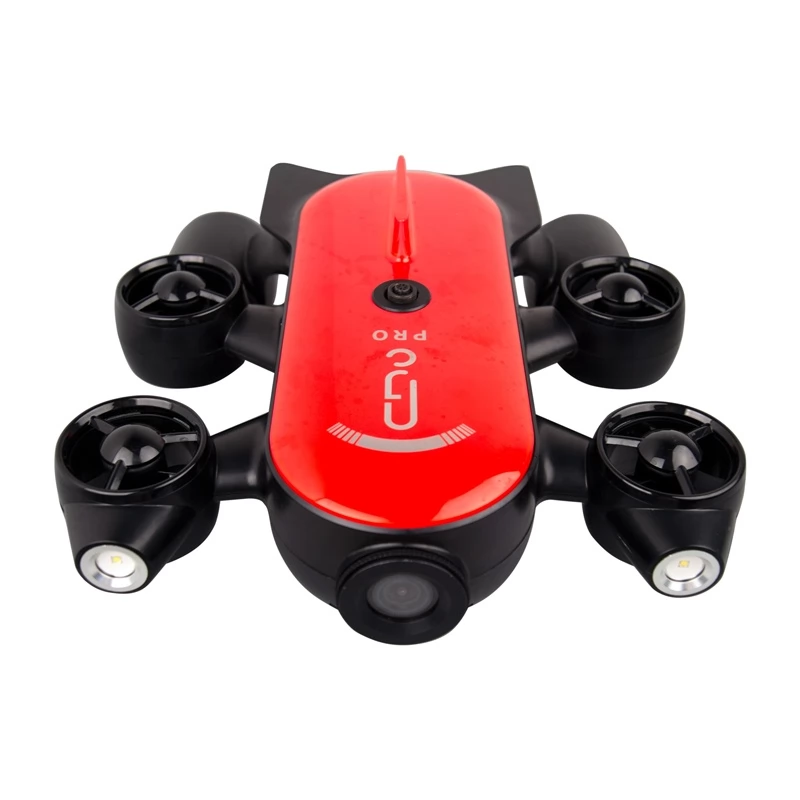

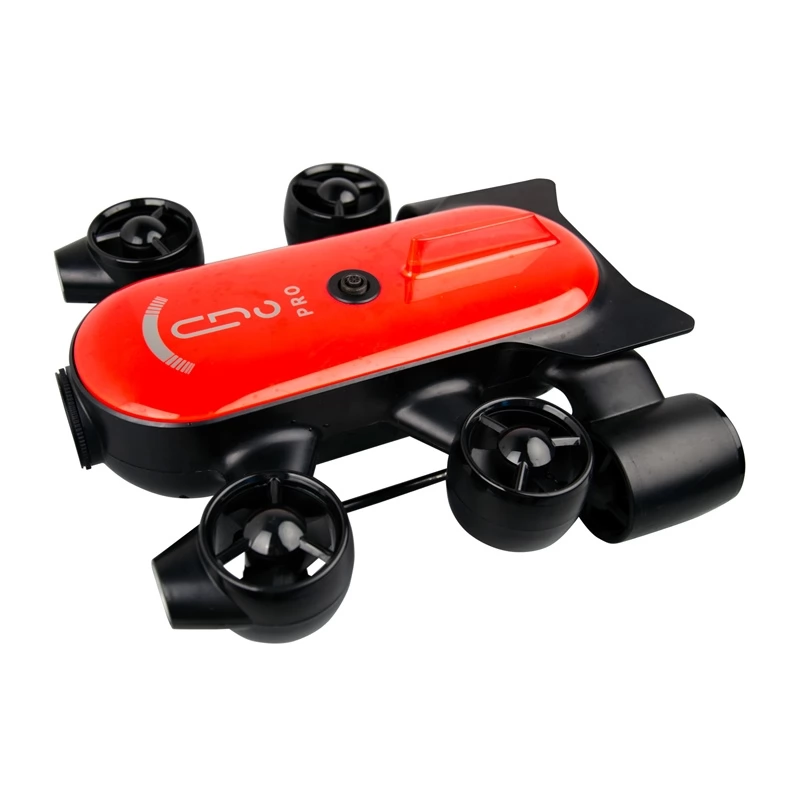

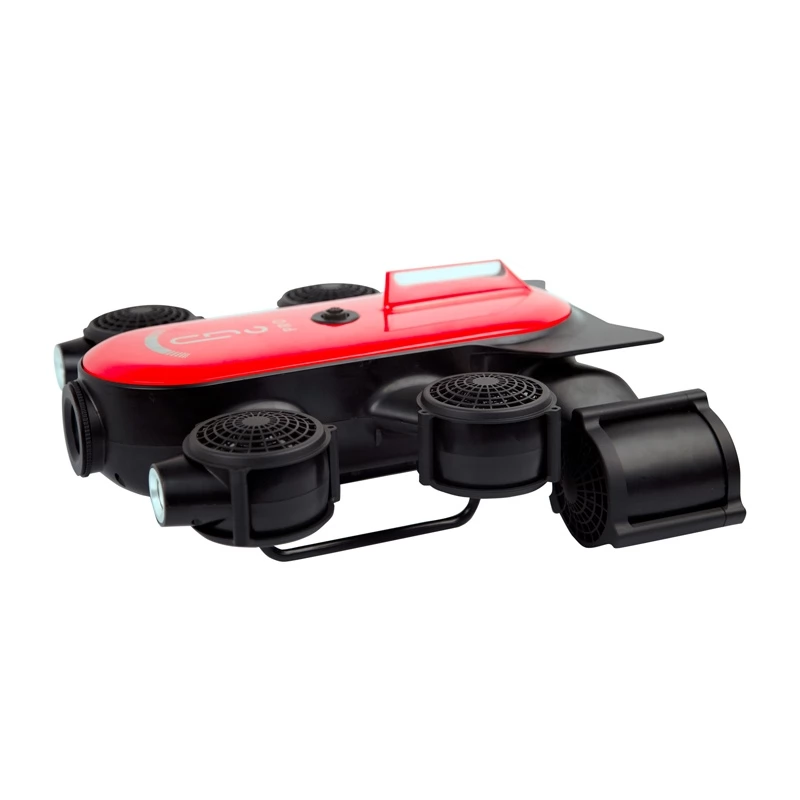

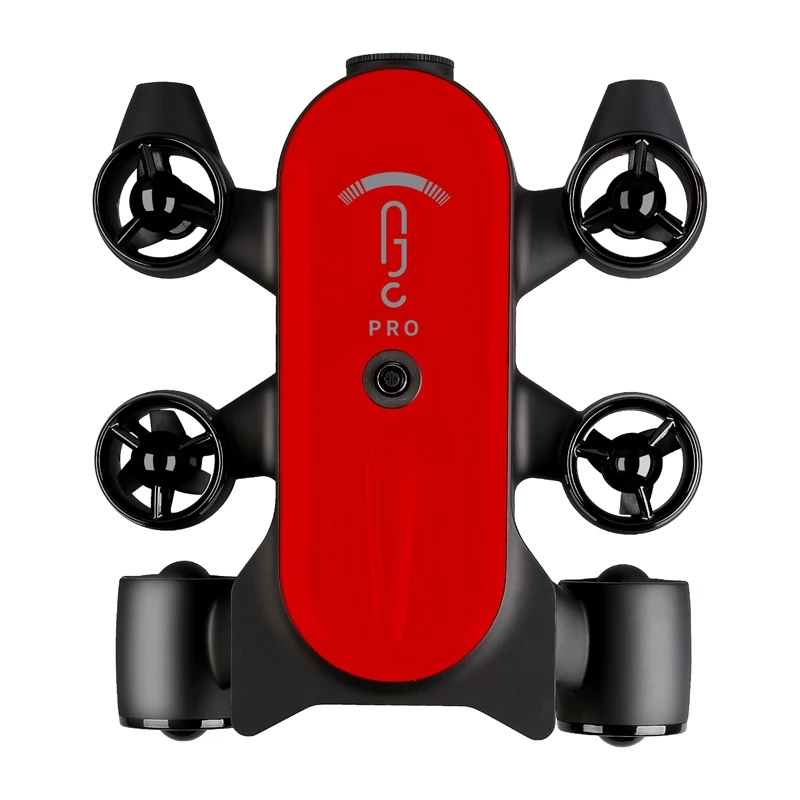

Geneinno T1-Pro is a versatile underwater drone designed for professional and research tasks. The device, which can dive up to 200 meters and a robust device, is to investigate ideal hulls, explore wreckage, aquaculture monitoring, or seabed research. The unique azimutal control system provides stability and accurate maneuvering even in strong currents of up to 4 knots.

High quality 4K video and accurate pictures
The drone is equipped with a 4K camera based on a 1/2.3 "Sony CMOS sensor, which captures a 4,000 x 3000 pixel video at a speed of 30 frames per second and photographs at 12 mp. T1-PRO supports JPEG, RAW and DNG formats for advanced post-image editing.

Advanced sensors and application versatility
The Geneinno T1-Pro is equipped with an IMU sensors with an acceler meter, acceler meter and 3-axis compass for accurate control at 6 levels of freedom. The depth sensor operates with a precision of ± 0.05 m and the temperature sensor is ± 0.5 ° C. The drone also supports optional extensions such as the 360 ​​° sonar, underwater grab, water quality sensor or external camera to monitor the buttocks.

Long -term battery
The Geneinno T1 Pro provides a spacious 9000 mAh battery for up to 4 hours. With an external battery package, this time can be increased to 8 hours, so you can complete long missions without frequent reloading. It takes only 3 hours to complete the battery pack.

Smart lighting and durable cable
The drone is equipped with two 1,500 lumen LED headlamps each and is possible to connect up to 6,000 lumens of brightness external lighting. The angle of light is 60 ° and the color temperature is 4500k, which provides a natural color rendering underwater. The 4.5 mm cable, which can withstand up to 100 kg, allows safe excavation up to 200 meters and extended up to 300 meters.

Intuitive operation and live broadcast
The Geneinno T1-Pro can be controlled with a dedicated 2.4GHz controller that allows real-time views on smartphone or tablet in Full HD 1080p quality. Users can track the exact route of the drone and receive notifications of their condition. The built-in 5 GHz and 2.4GHz Wi-Fi provides a stable connection of up to 50 meters and the wireless relay allows more than 10 hours.

Optional extensions for greater functionality
The drone can be fitted with a number of additional accessories, such as 1dof underwater grab, omni scan sonar, for better maneuverability with side thrust, water quality sensor, laser scanner or external camera. A special geneinno Flight Case can be used for transportation and storage.

Technical data
- Weight: 5kg
- Dimensions: 380 348 168 mm
- Maximum depth: 200m
-Operating temperature range: -10 ℃ ~ 50 ℃
- Maximum travel speed: 2 m/s
- Maximum rise/sinking rate: 1.5 m/s
- Flow resistance: 4kn 2m/s
- Battery capacity: 9000mAh/97.2Wh
- Maximum dive time: 4 hours with external battery 8 hours
- Filling time: 3 hours
- Maximum inclination: +60 °
- Expanding interface: Yes
- Certificates: forward/back, rising/slope, turn left/right turn, roll, tilt (with additional propeller, variable speed) 6 DOF

Camera
- cmos: 6.17 mm x 4.55 mm Sony Cmos
- Iris: f2.5
- FOV (field of view): 160 °
- Lock opening time: 1/30s
- Image size: 4000 x 3000 12m
- Photo Format: JPEG/RAW/DNG
- Video resolution: 4K: 4000 x 3000 30fps
- FHD: 1920 x 1080 60fps
- Live mediation resolution: 480/720/1080p
- Maximum video transfer speed: 2 Mbps (live) 12 Mbps (video)
- Video format: MP4 (MPEG-4 H264/H265)
- Memory: 128g
- Recruitment time: 4 ~ 8 hours
- Anti -shake lens protection: EIS anti -shake

Light
- Lumen: 21500 lm, external: 6000lm
- Angle of light: 60 °
- Temperature: 4500k

Cable
- cable diameter: 4.5 mm
- Cable operating strength: £ 220
- Cable length: standard 200 m; optionally 300 m

Application
- sharp transmission: Yes
- Operating systems: iOS 9.0 +/ Android 5.0 +

Sensor
- IMU: 6 -axis gyroscope and acceler meter + 3 axis compass
- Depth sensor precision: +/0.05m
- Temperature sensor accuracy: +/0.5 ℃
- Account of tilt/tilt detector: +/1 °
- accuracy of the axle distinction sensor: +/1.5 °

Wireless relay
- Weight: 0.45 kg
- Dimensions: 109 x 99 x 53 mm
- Battery capacity: 3200 mah/34.56 WH
- Maximum operating time:> 10 h
- Water resistance: IP57
- WiFi Frequency: 5g Hz + 2.4 GHz
- Maximum wifi distance: 50m
- Filling time: 3 hours
