GEDORE R46003232 1/4" - 1/2" Socket stock 232 parts
Product description
Professional quality and reliability characterize this 232-piece socket wrench set, which is an indispensable accessory for every repair shop.
- For controlled and manual loosening and tightening of bolts, nuts and spark plugs
- Easy post-tightening of screws by means of the toggle ratchet with 2-component handle for integrated right and left tightening
- Socket wrenches: 6-angle, metric, short, design according to DIN 3124, ISO 2725
- Screwdriver inserts 1/4'' and bits 5/16'', grooved Philips, Pozidriv, TX design
- Secure connection by connecting square according to DIN 3120, ISO 1174, with ball locking
- Secure connection by internal square drive according to DIN 3120, ISO 1174, with ball bearing groove
- Robust plastic case with metal hinges and metal lock
- The arrangement and fastening of the socket wrench inserts is ensured by clamping clips
- Chrome-vanadium steel, matt chrome-plated

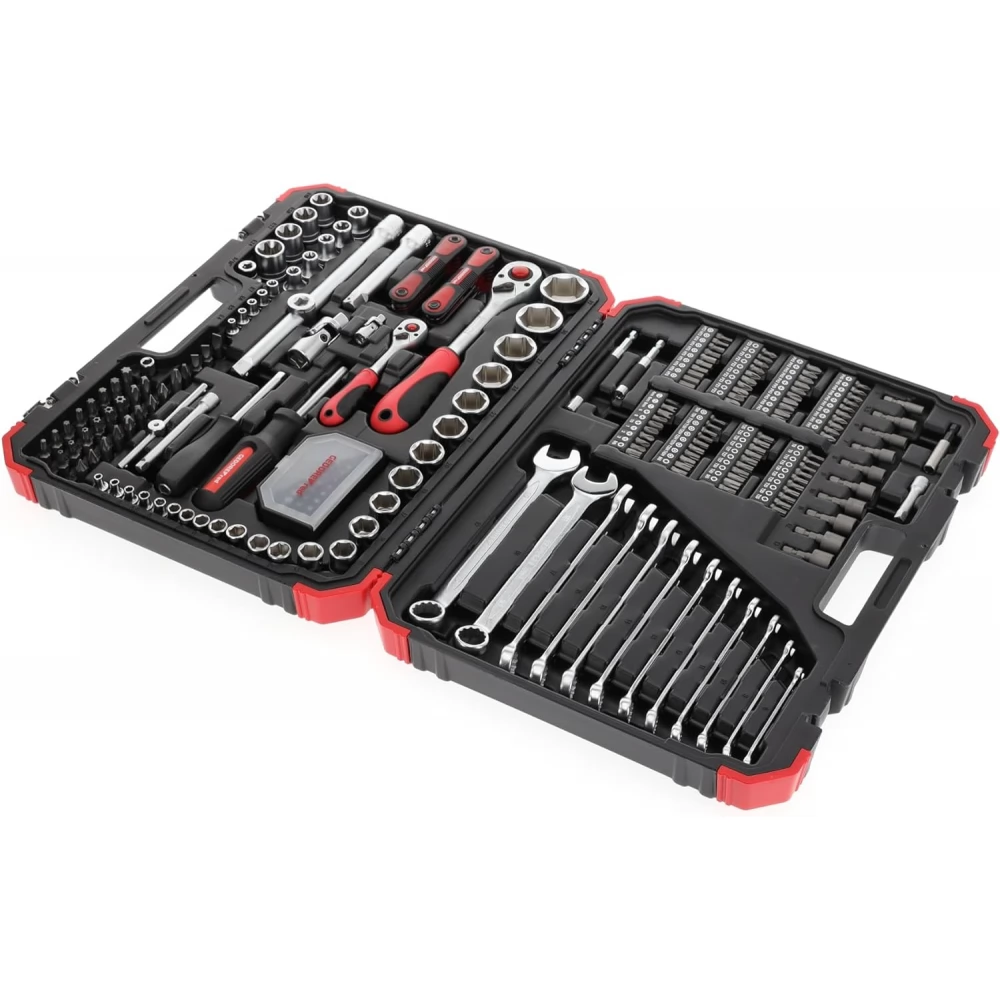

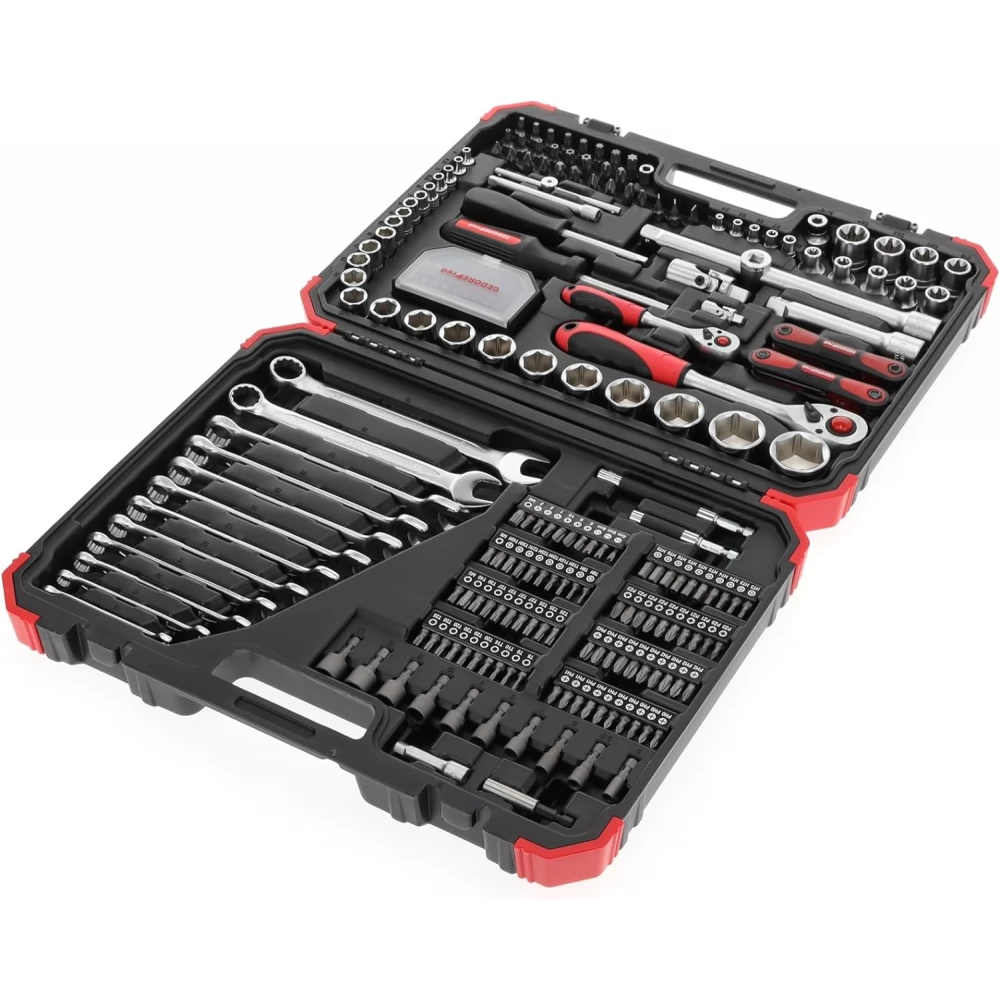

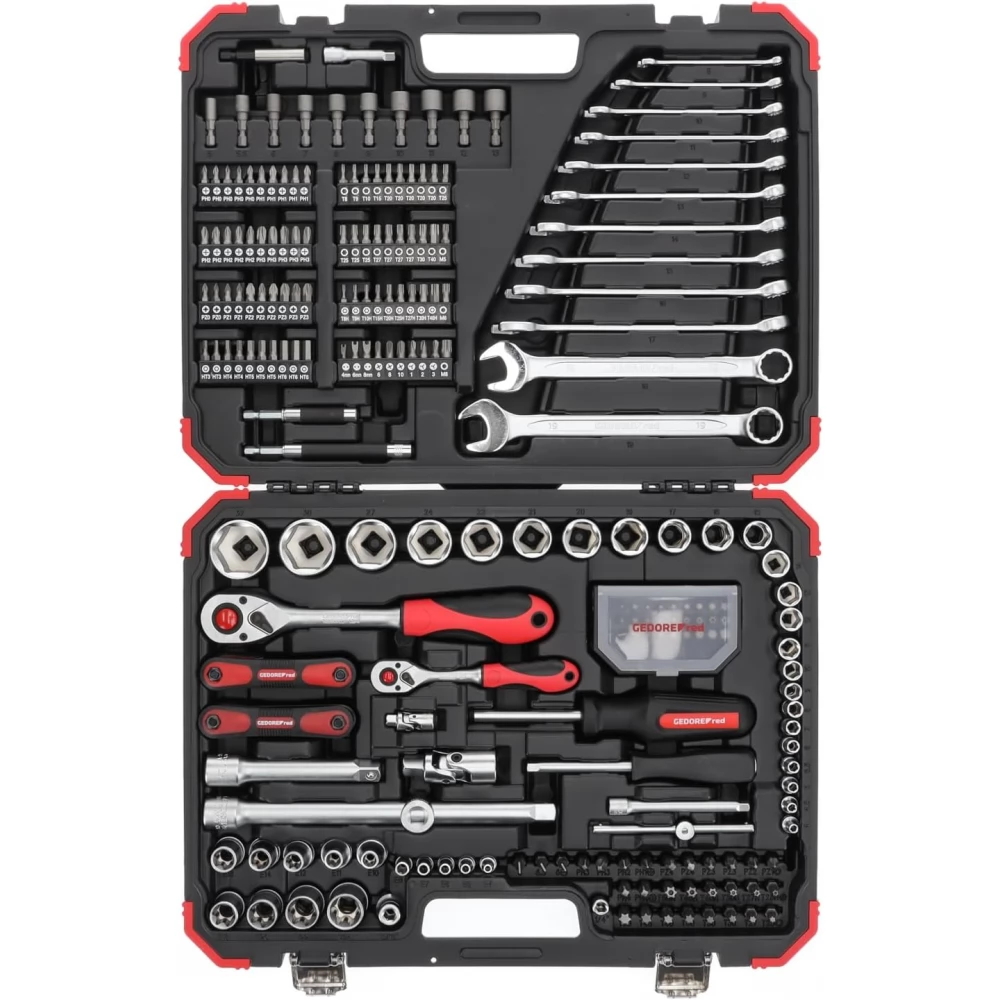

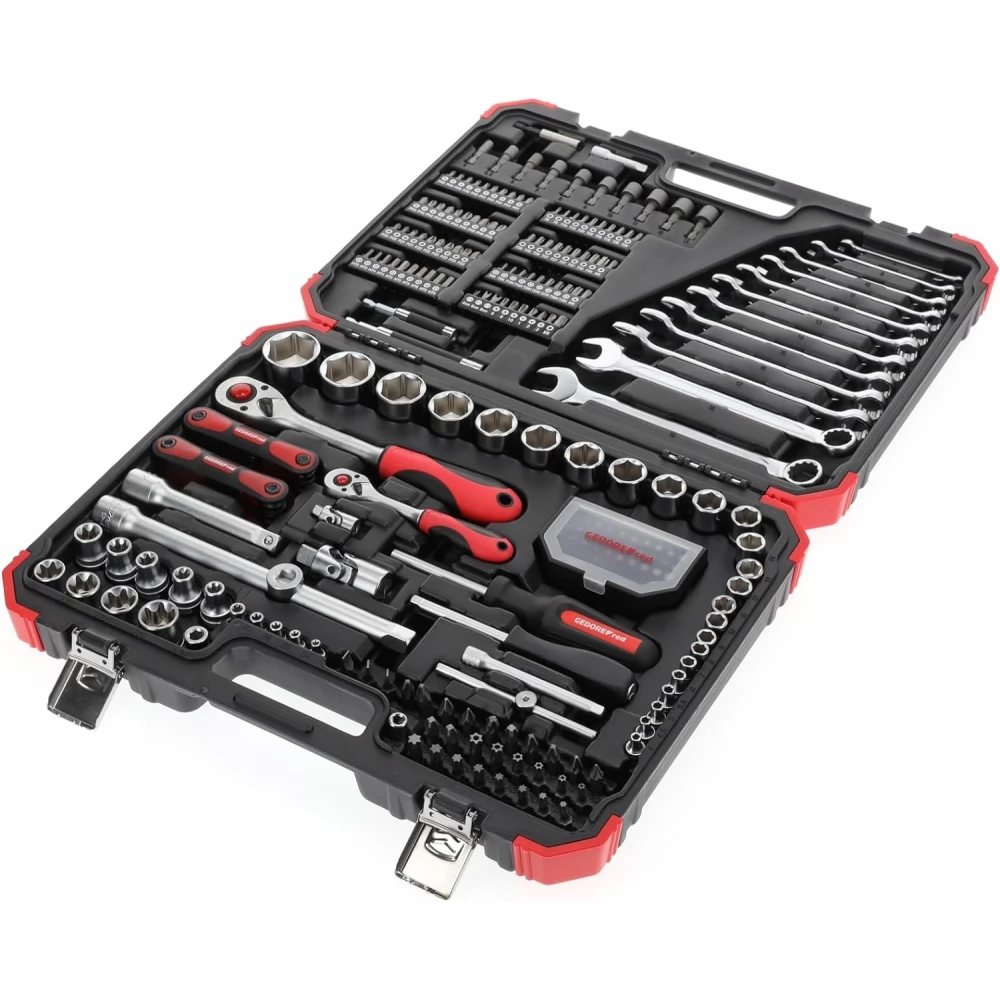

Contents of the set
- 1/4 Reversible ratchet drive shaft with 2-component handle 150 mm, 72-tooth ratchet (5°)
- 1/2 Reversible ratchet drive shaft with 2-component handle 250 mm, 72-tooth ratchet (5°)
- 1/4 Socket wrenches, (hex) SW 4 4,5 5,5 6 7 8 9 10 11 12 13 14 | 25 mm
- 1/2 Socket wrenches, (hex) SW 15 16 17 19 20 21 22 24 | 38 mm
- 1/2 Socket wrenches, (hex) SW 27 30 32 | 42mm
- 1/4 Fixed crank with sliding part
- 1/4 extension legs 50 mm, 100 mm
- 1/2 extension legs 125 mm, 250 mm
- 1/4 universal joint 33 mm
- 1/2 cardan joint 66 mm
- 1/4 drive shaft 165 mm
- 1/4 Socket wrenches Torx E4 E5 E6 E7 E8 | 25mm
- 1/2 Socket wrenches Torx E10 E11 E12 E14 E16 E18 E20 | 38mm, E22 40mm, E24 41mm
- Extension/sliding adapter 3/8 x 1/2,
- 1/2 bit adapter square x 5/16 hexagon
- 1/4 bit screwdriver 100 mm
- 1/4 bits hexagon 38 mmm 5 5.5 6 7 8 9 10 11 12 13 mm,
- 1/4 bit collets 60 80 120mm
- Open-end wrench SW 6 8 10 11 12 13 14 15 16 17 18 19 mm
- Allen key set 1.5 2 2.5 3 4 5 6 8 mm,
- Torx key set TX T9 T10 T15 T20 T25 T27 T30 T40
- Insert holder 1/4 4kt x 1/4 6kt 25mm
1/4 bits 25 mm
- Allen key 3 4 5 6 mm
- PH 5x 0 1 2 3
- PZ 2x 0 1 3x 2 3
- Torx T8 T9 T10 T15 T20 T25 T27 T30 T40
- TXB T8 T9 T10 T15 T20 T25 T27 T30 T40
- Tensioner 5 6 8
- XZN 4 6 8
- TRI-WING 1 2 3
- Torque 6 8 10
Bit box with 30 1/4 bits 25 mm
- Hexagon 2 3 4 5 5.5 6 mm
- Flat 4 5.5 6 mm
- PH 1 2 3
- PZ 1 2 3
- Torx T10 T15 5xT20 4xT25 4xT27 T30 T40, TXB T10 T15 T20 T25 T27 T30 T40
5/16 bits 30 mm
- Flat 6 6.5 8
- PH 1 2 all 2x3 4
- PZ 1 2 all 2x3 4
- Torx T25 T27 T30 T40 T45 T50
- TXB T 25 T27 T30 T40 T45 T50
