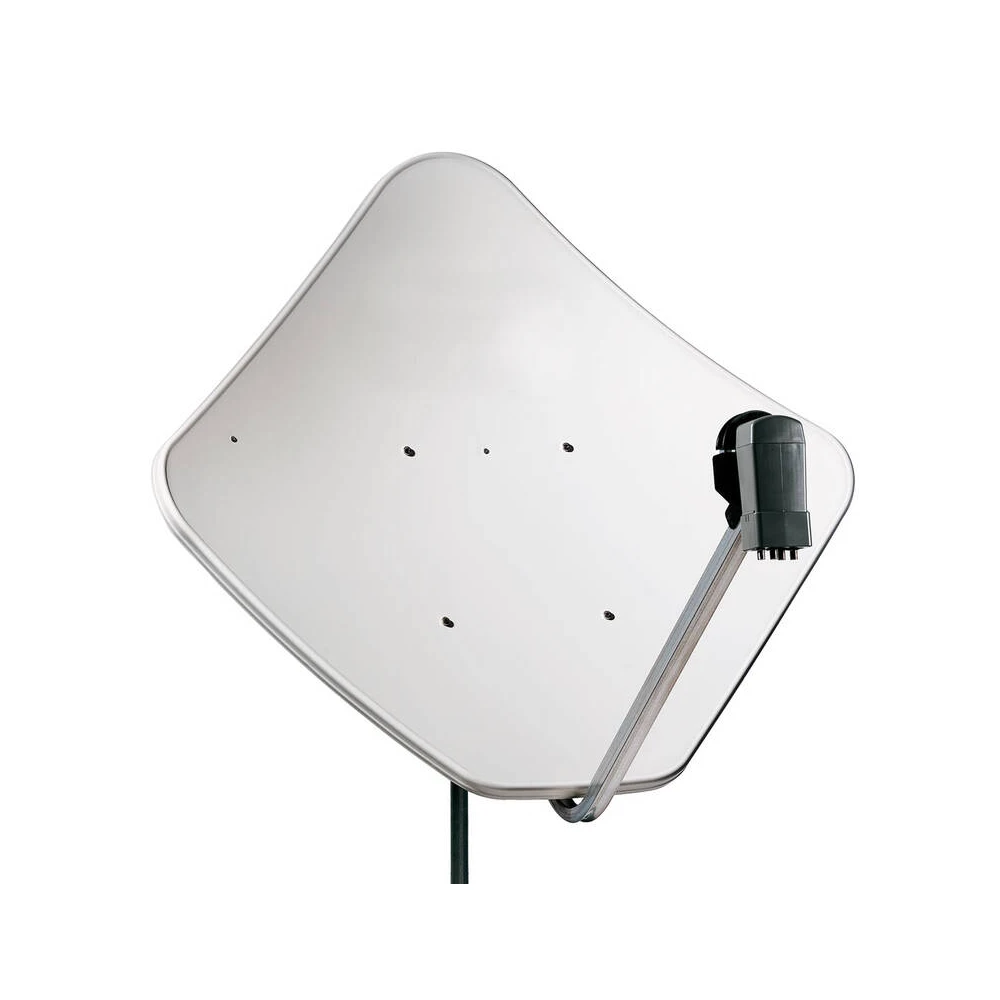

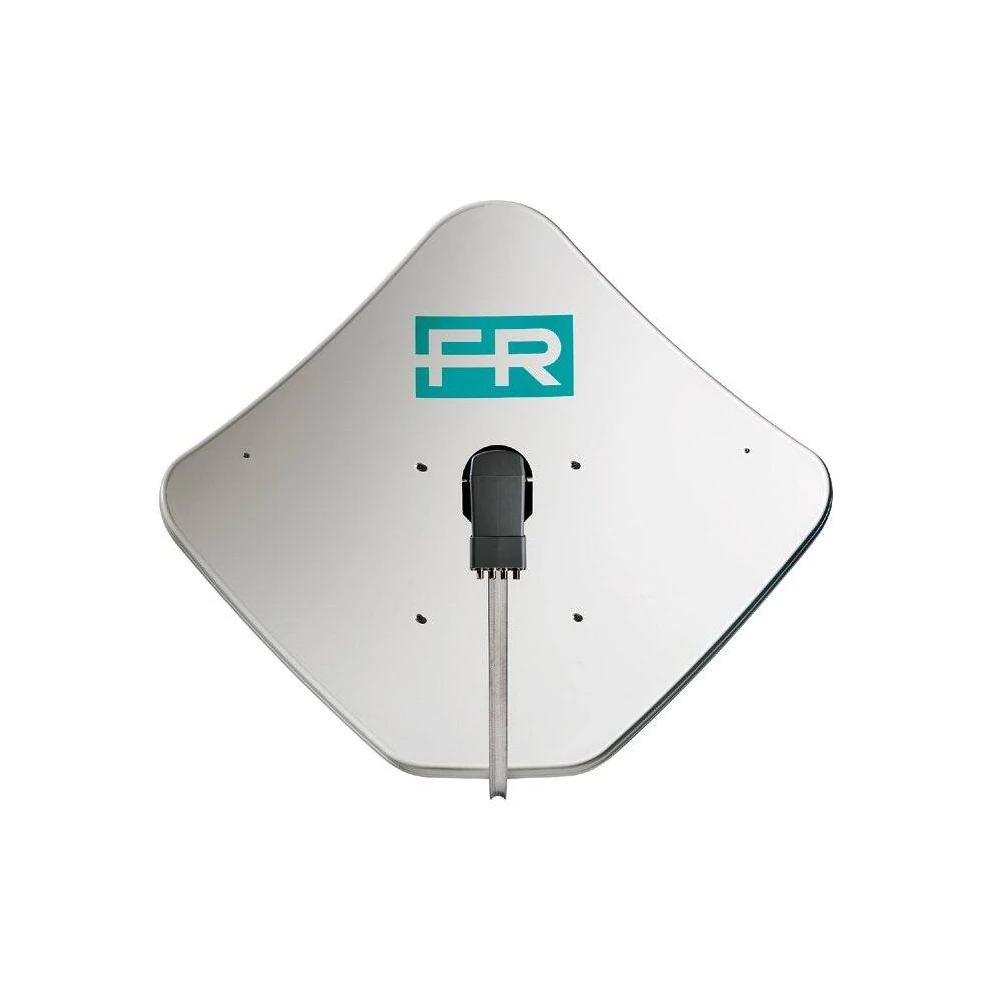

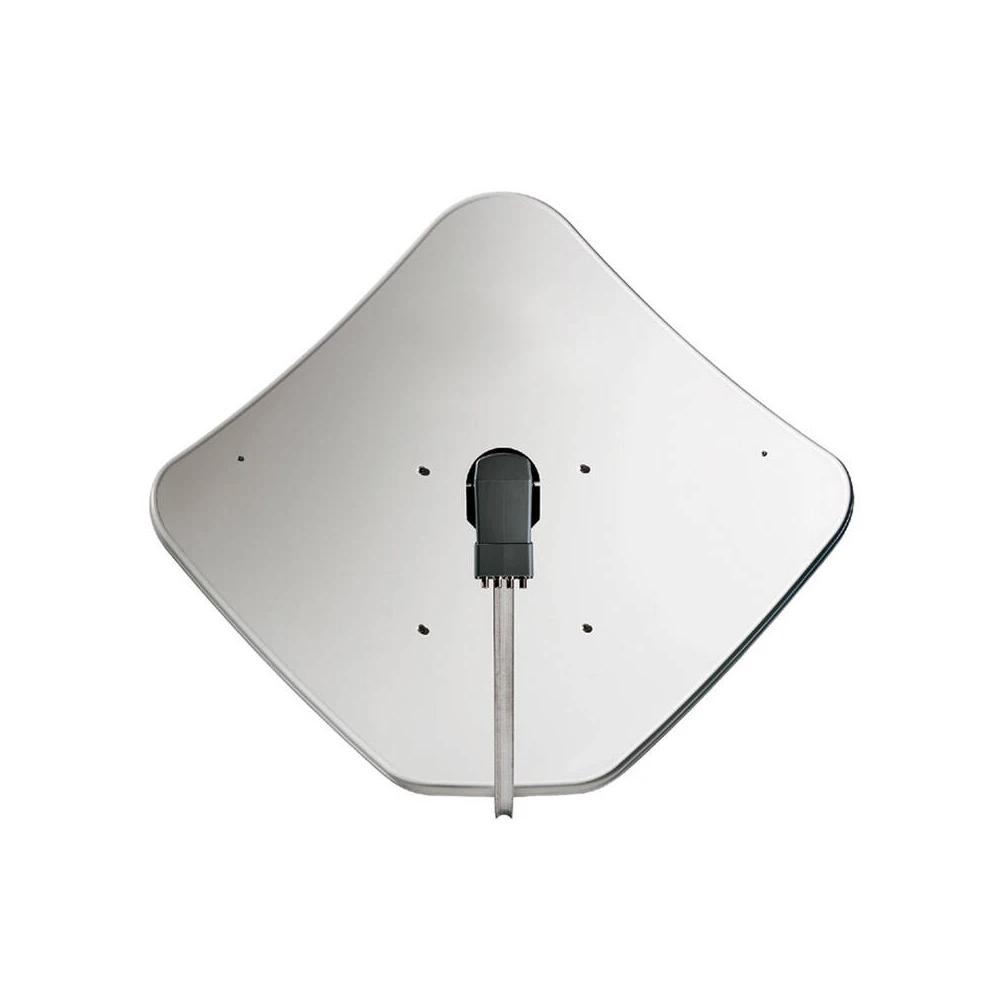

The product is made of sheet steel, which is treated with a layer of aluminum and zinc to ensure a long service life. The double LNB signal capture guarantees trouble-free operation with outstanding signal quality, so the experience is perfect even when receiving high-definition programs. In addition, excellent insulation against cross-polarization ensures stable and reliable operation under all conditions. It is extremely easy to install, the necessary installation kit is included with the single-pack models.

Description:

- Lateral radiation: below -32 dB
- Offset angle: 22.3 degrees
- Noise temperature: 40 k
- Forward/backward ratio: 0.7 dB
- Beam width (3 dB): 3 degrees
- Angle of inclination: maximum 60 degrees
- LNB clamp: compatible for 23-28mm, 40mm and 60mm diameters
- Column clamp: fits columns with a diameter of 35–80 mm
- Dual feed: manage two LNBs at the same time DFPDIGIT (211003)
- Assembly kit: included (ZNCDGT)
- Frequency range: 10700-12750 MHz
- Efficiency: minimum 70 %
- Gain at 10.95 GHz: 36.5 dB
- Cross polarization: above 37 dB
- Dimensions: 62.4 x 62.4 cm
- Diameter: 68 cm
- Material: steel
- Color: white
- Manufacturer number: 211104
