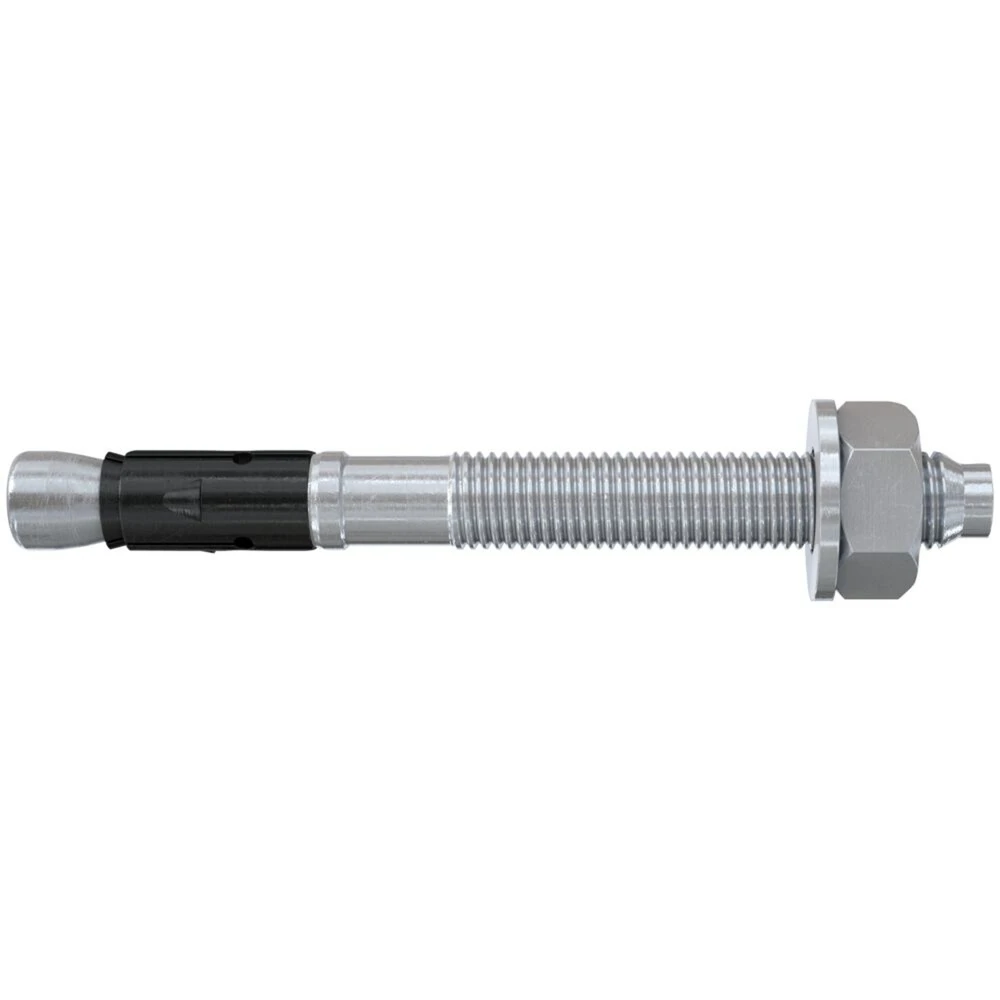

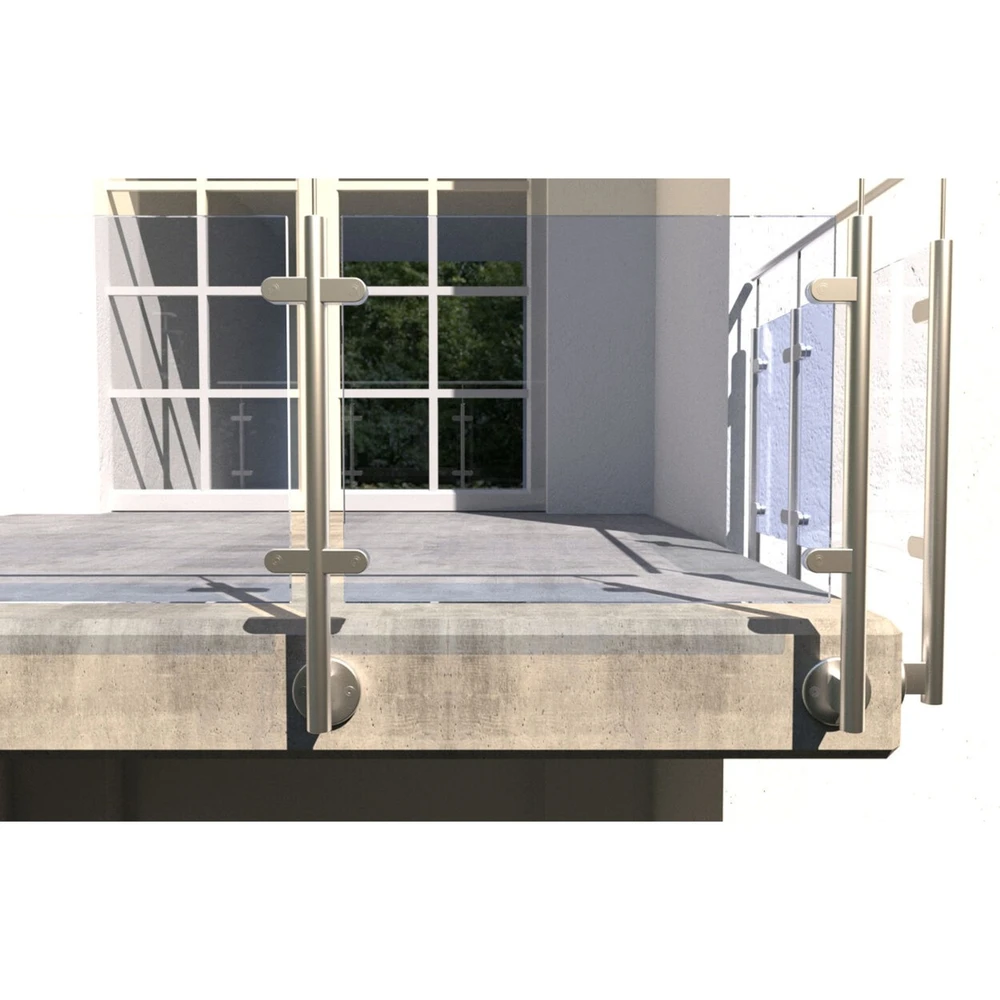

The FAZ II Plus fischer screw anchor is a steel anchor that meets the highest demands, now with an even greater transverse load capacity. The steel anchor is used to fix large loads in concrete. The proven expansion clamp guides loads safely into the concrete and allows for a high load-bearing capacity that can be loaded immediately. The steel anchor is ideal for fixing railings, cable trays and brackets, for example.

Significant increase in transverse load capacity thanks to new classification (ETA) Fewer anchor points and smaller anchor plates save time and money

- Thanks to the variable mounting depth, it adapts to the loads with millimeter accuracy
- The first M6 screw anchor with ETA classification 1: for safe and approved fixings

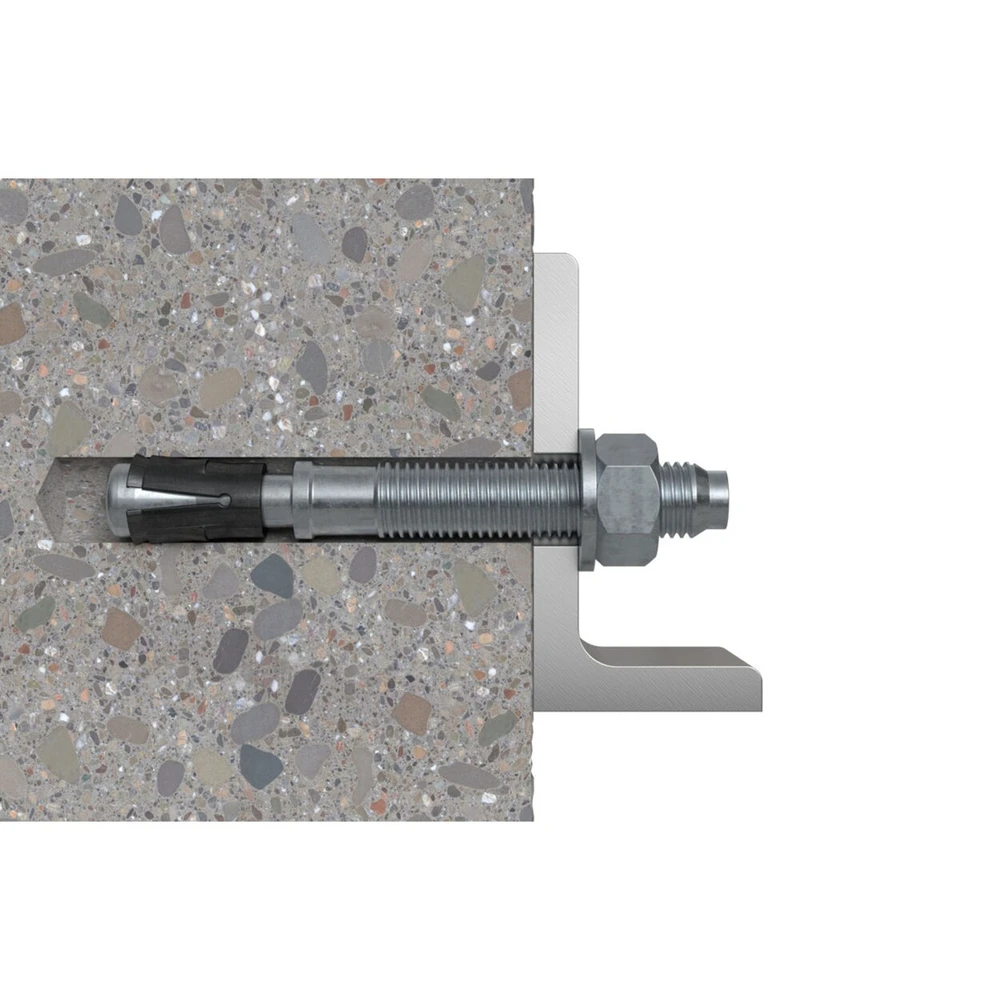

- The well-proven spreader clamp provides maximum load capacity, even with M6 size

Technical data
- FAZ II Plus series

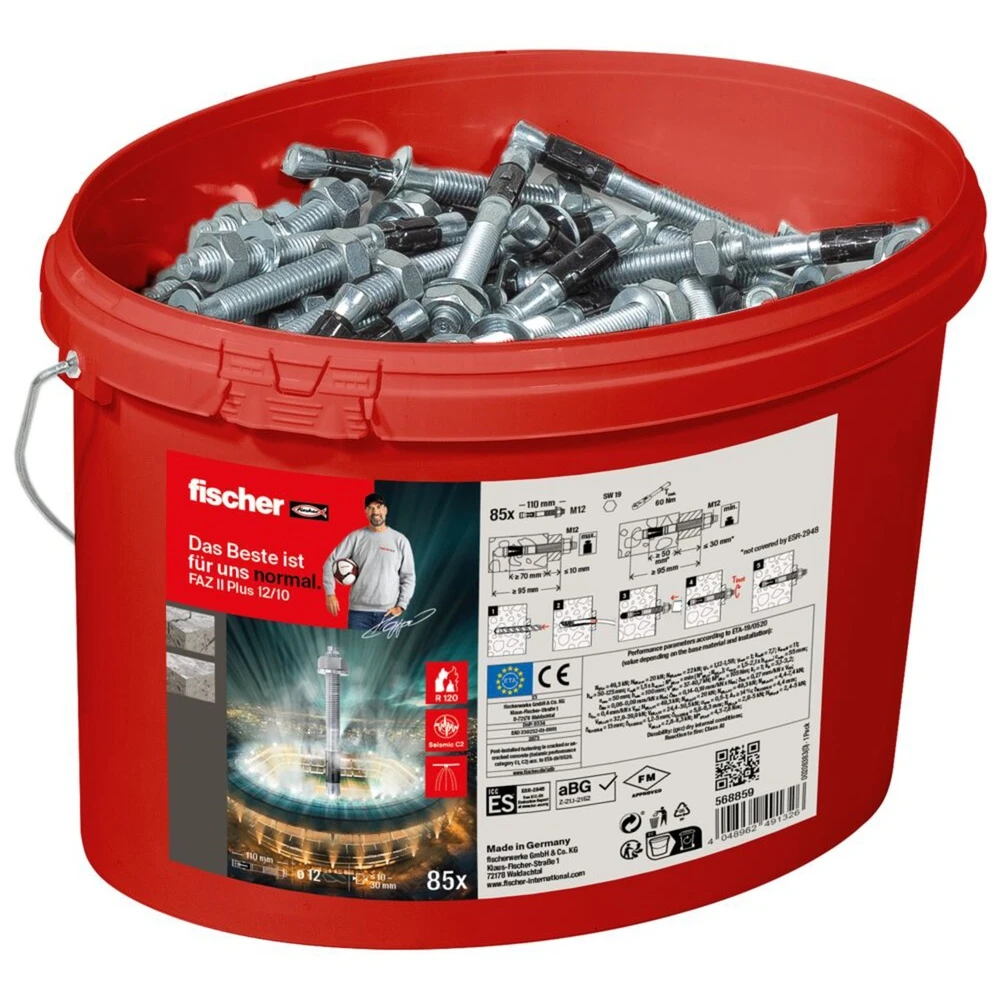

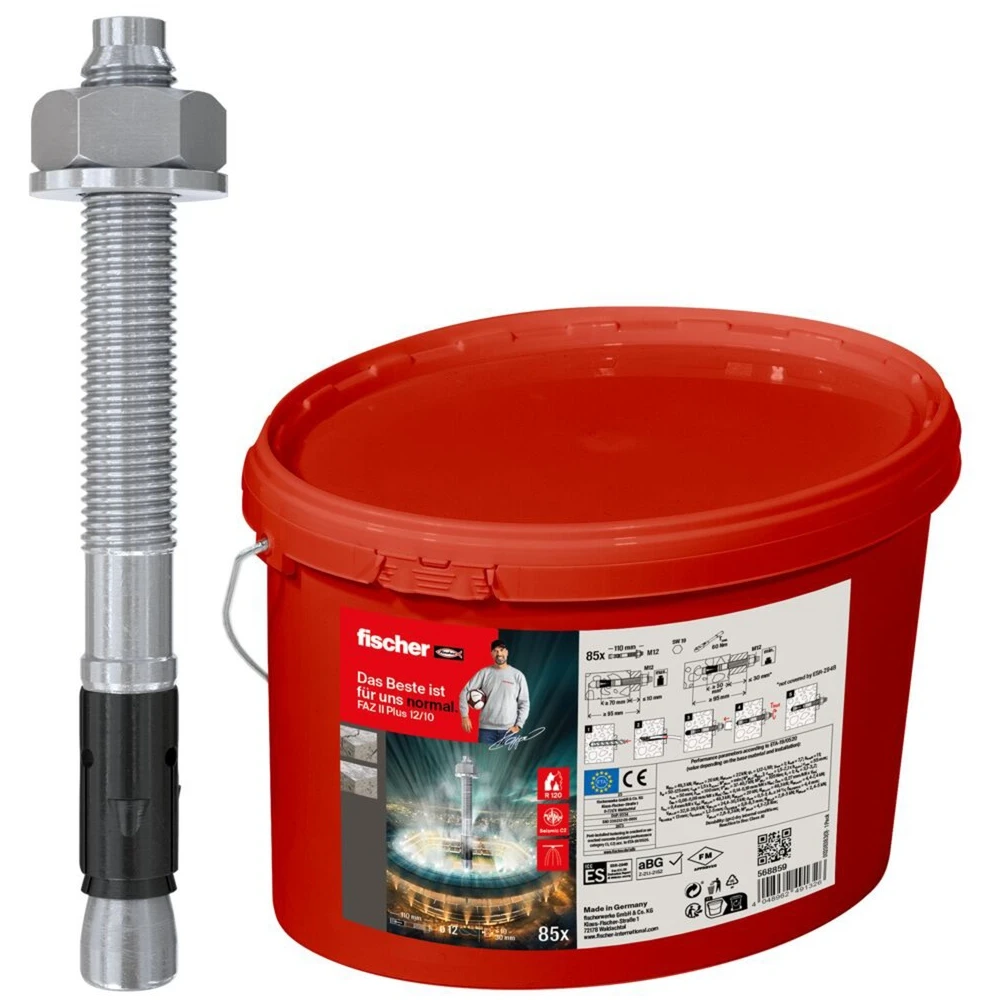

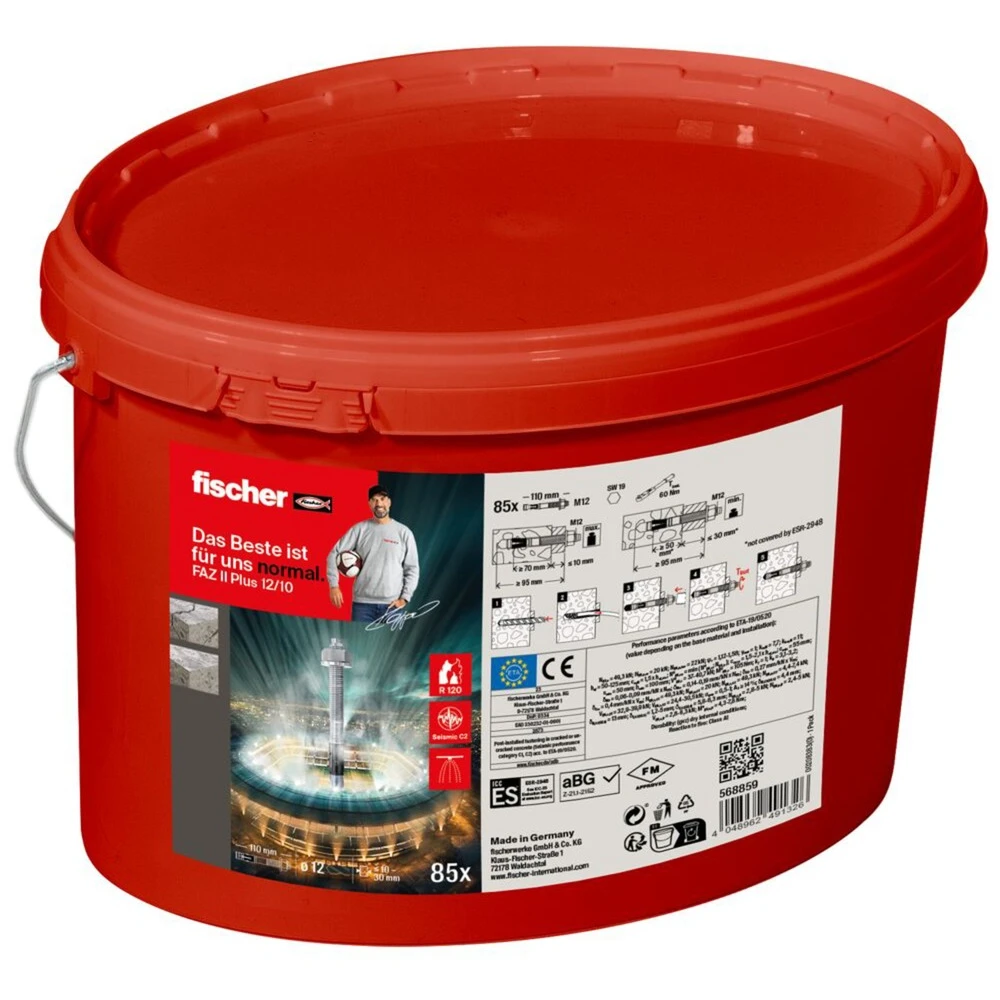

- Quantity: 85 pieces
- Material: Galvanized steel
- Dimensions: Drill head diameter: 12 mm
- Pin length: 110 mm
- Minimum drilled hole depth: 98 mm
- Minimum screw-in depth:
