EATON 9SX 3000I (9SX3000I)

- Topology: Online, double conversion, power factor correction (PFC) system
- configuration: tower
- Power: 3000 VA/2700 W
- Size: 346 x 214 x 412 mm
-Input connection: 1 piece IEC-320-C14
- Optional input voltage: 190 V ~ 276 V without reducing (up to 120 V ~ 276 V)
- Nominal voltage: 200/208/220/230/240 V
- Frequency: 50/60 Hz Automatic Selection
- Frequency range: 40 Hz ~ 70 Hz

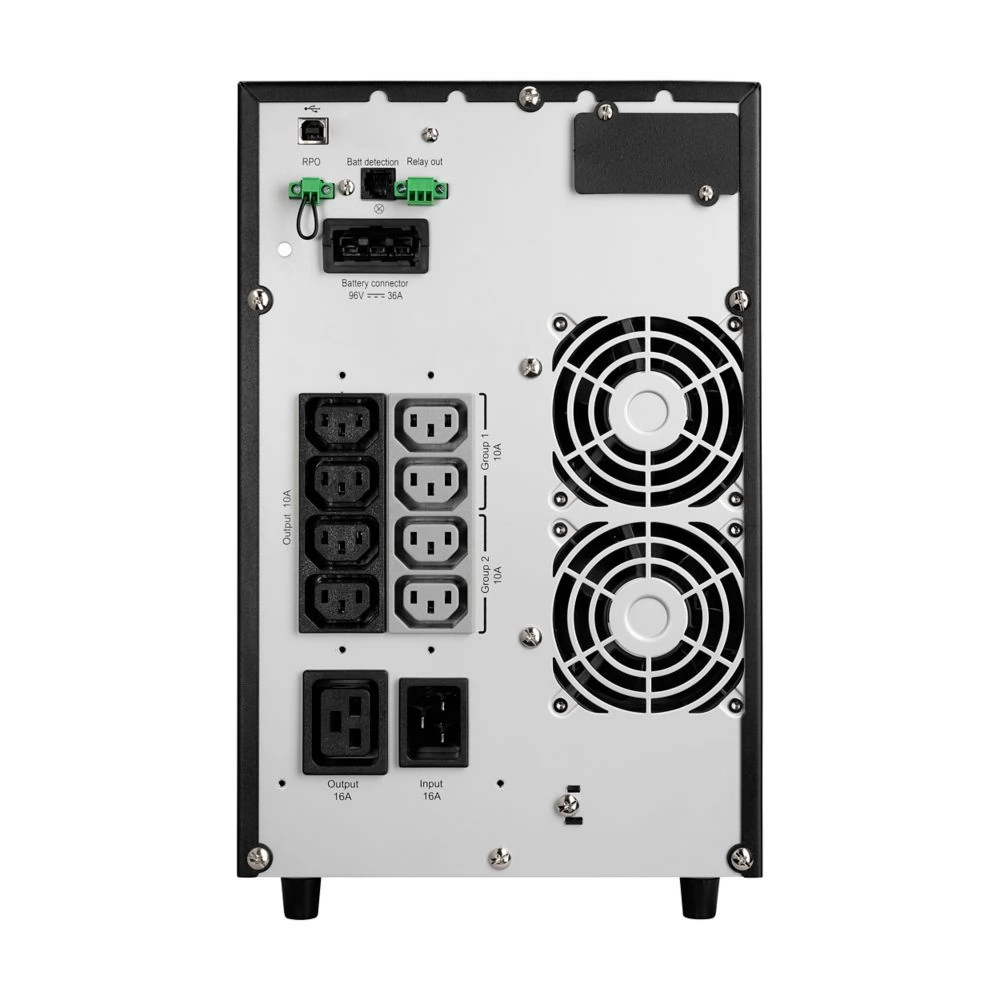

-Output sockets: 8 pieces IEC-320-C13, 1 piece IEC-320-C19
- Output frequency: automatic selection of 50/60 Hz, frequency inverter mode
- Battery Management: ABM and temperature-compensated charging mode (user selectable), automatic battery test, deep discharge protection, external battery enlargement modules automatic detection
- Extended battery capacity: EBM
- User interface: Multilingual graphics LCD display
- Communication ports: 1 piece of USB port, 1 RS232 line port, 1 mini terminal for remote on/off, 1 mini terminal for remote off, 1 mini terminal for output relay
-Communication card site: 1 piece of socket Network-MS card, modbus-ms or relay-ms card
- audible noise:
