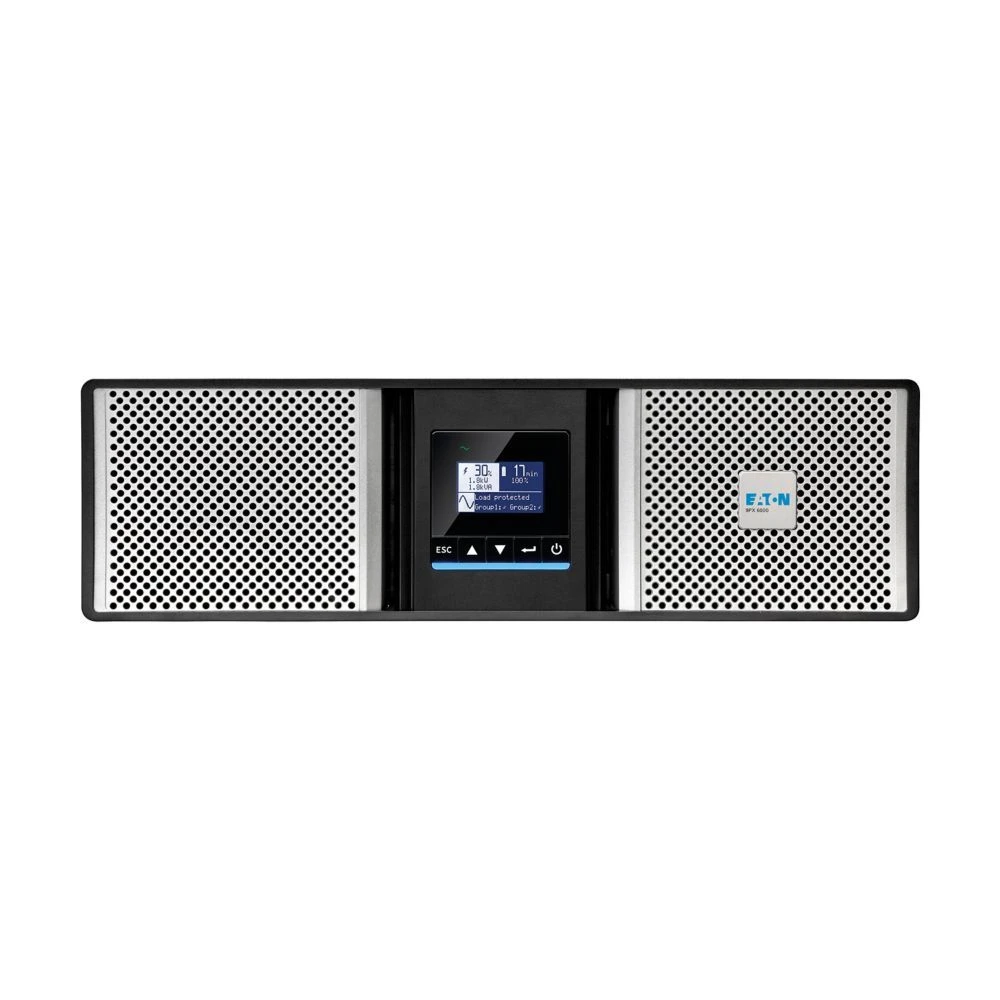

EATON 9PX 5000W RT3U 9PX5KIRTNG2

The Eaton 9px 5000Va is a high -performance online (dual conversion) uninterruptible power supply designed for professional environments, data centers, server rooms and critical systems. With its high energy efficiency (up to 96.7%, 99%in ECO mode) and its entirely sinusoidal output waveform, it is also an ideal choice for protecting the most sensitive equipment. The 3U rack/tower unit has a unit (1.0) power factor to provide maximum active performance.

The system continuously regulates the output voltage and frequency, and the internal bypass function ensures the smooth power of the power in the case of UPS failure. The graphical, multilingual LCD display provides a clear user interface, and the built -in network card provides remote monitoring and control. UPS compatible with the most popular virtualization environments, supports the Eaton Brlightlayer software package, and has a power consumption measurement feature.

The internal, interchangeable closed lead-acid batteries (12 V / 5 AH) provide up to 9.4 minutes of operating time over half load and it is possible to connect external battery units. The connectors include 6 C13, 6 C39 and a wired output. The device is attached to a rack assembly kit, tower holders, USB cable, network card and all necessary accessories.

Properties:

General features:
- Topology: online / double conversion
- Formula: rack cabinet / tower
- Rack size: 3U
- Structure: 19 inches (482.6 mm)
- Color: black / silver
- Nominal power: 5000 VA / 5000 W
- Power factor: 1.0
- Graphics LCD display: Yes
- Measurement of energy consumption (UPS level): Yes
- Virtual Environment Compatibility: Yes
- Automatic Downtime Function: Yes
- ABM+ Battery Management: Yes
- In case of UPS failure, power supply: internal bypass
- energy efficiency: 96.7% (normal) / 99% (ECO mode)

Input:
- Input voltage: 230 V (200/208/220/230/240 V can be set)
- Input voltage range: 176-276 V (100-276 V power reduction)
- Frequency range: 40-70 Hz
- Nominal frequency: 50/60 Hz
- Input power factor:> 0.99
- Connection: Wired/fixed connection

Output:
- Output voltage: 230 V (adjustable: 200/208/220/230/240 V)
- Output voltage range: 200-240 V
- Output frequency: 50/60 Hz
- Output waveform: Pure sinus
- Output connectors: 6x C13, 6x C39
- 1x wired
- Type of power: AC

Battery:
- Type: closed lead-acid
- Classification: 12 V / 5 Ah
- Removable during operation: Yes (both internal and EBM battery)
- Automatic Test, Deep Deep Protection: Yes
- external battery units: automatically recognizes
- extended battery capacity: Yes
- Operational time at 50%load: 9.4 minutes
- Maximum number of battery packs: 12

Communication and Control:
- USB port (Hid-compatible)
- Rs-232 serial dust
- Mini terminals: Remote on/off
- Voltage -free contacts (2 pieces)
- Potential -free switch contacts: Yes
- Ethernet interface: Yes
- Network Card: standard equipment
- Software: Eaton Brightlayer
- Protocol: SNMP

Physical and environmental characteristics:
- Noise level: <40 pieces (1 meter)
- Temperature: 0 - 40 ° C
- Nominal BTU: 563 BTU/H (online plant)
