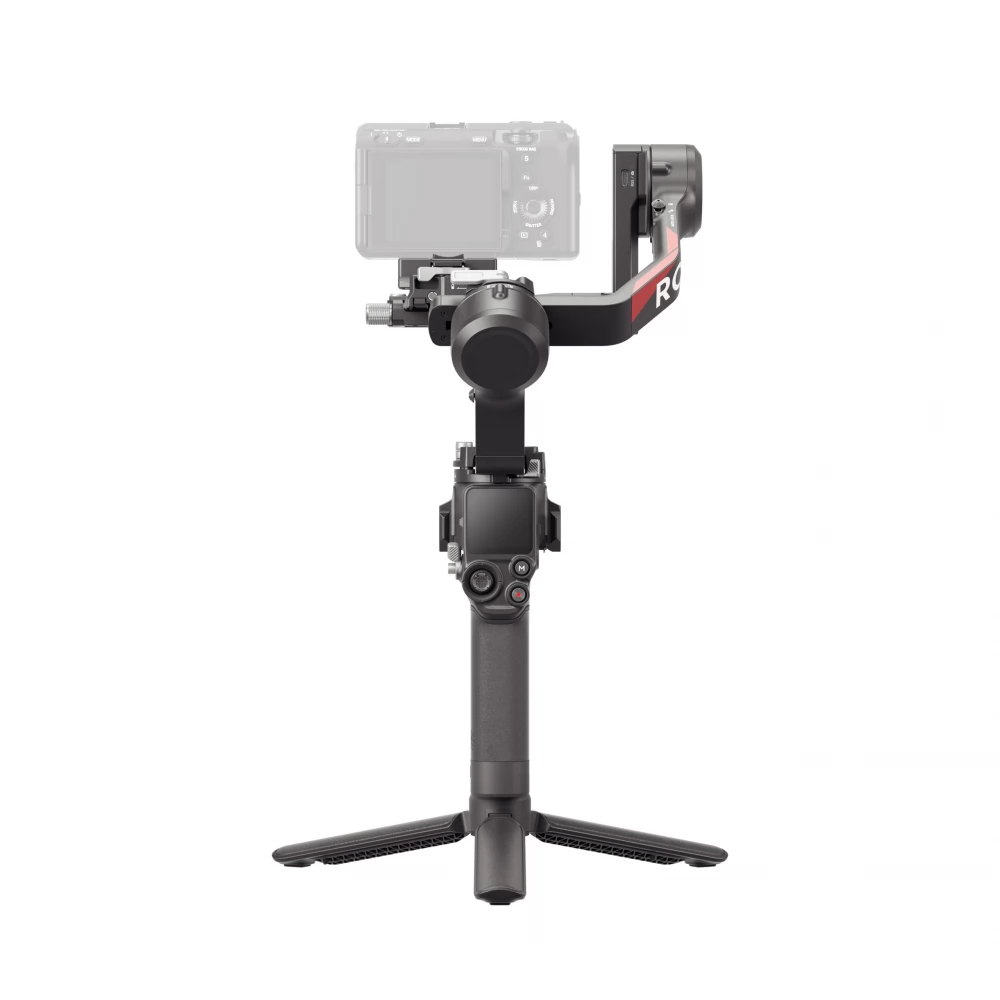

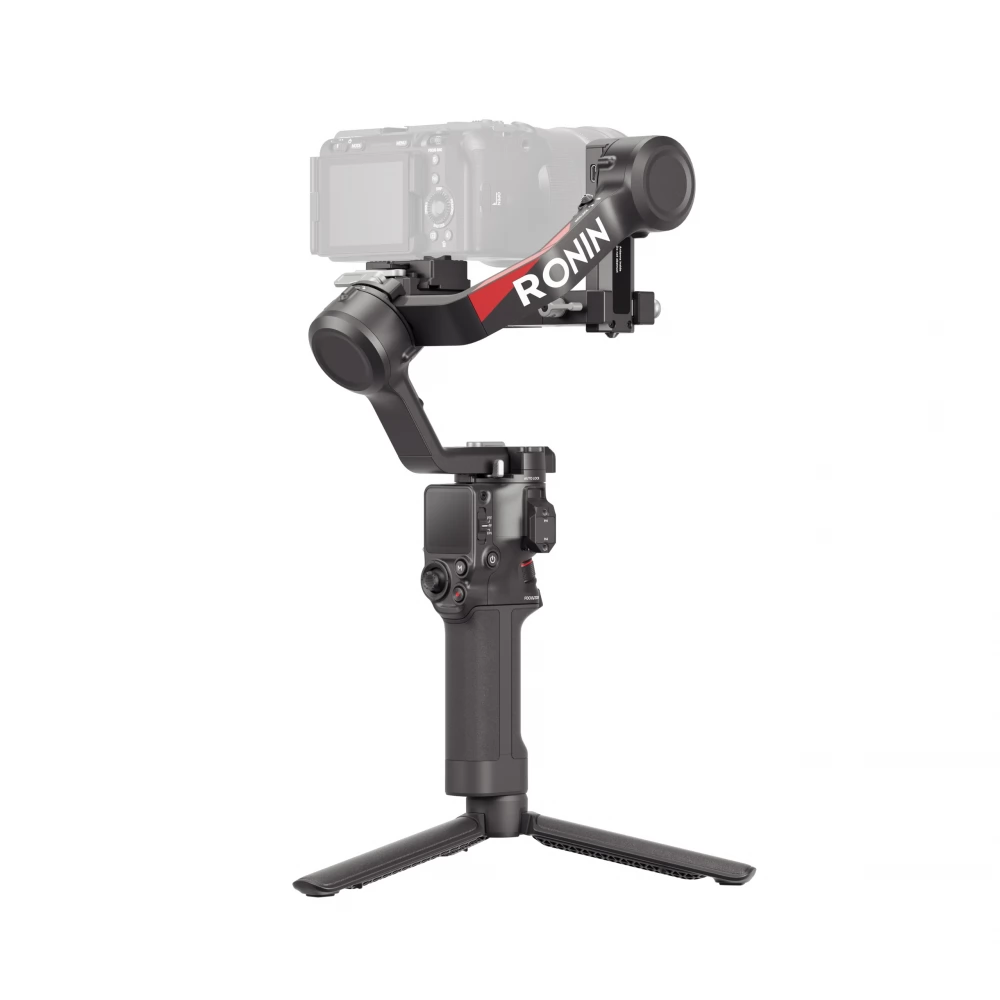

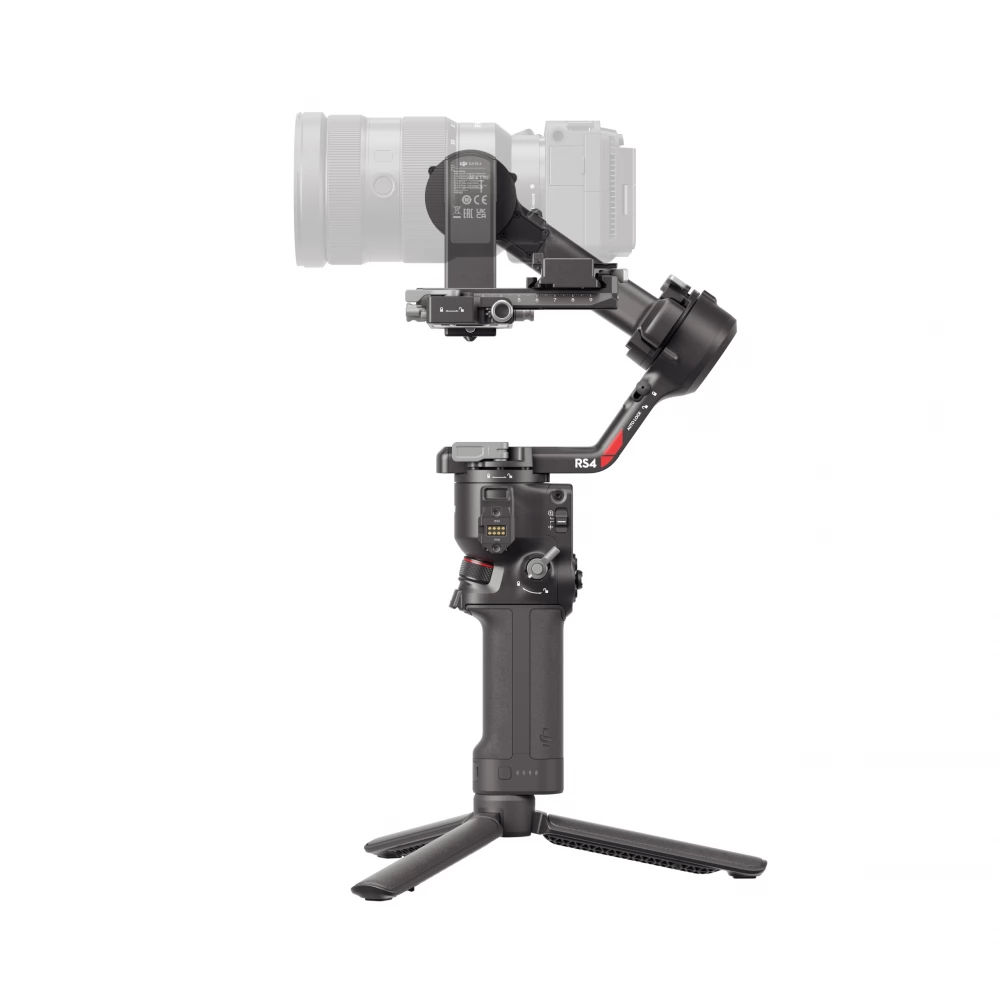

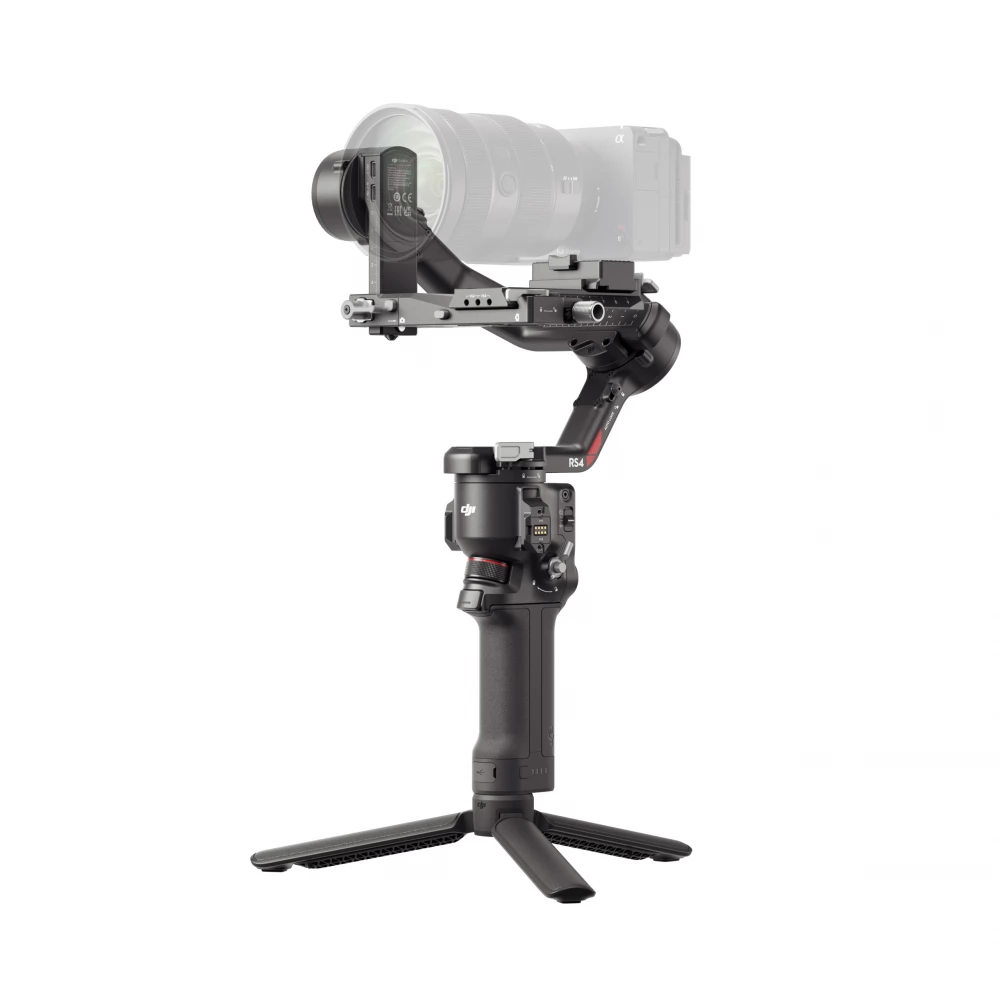

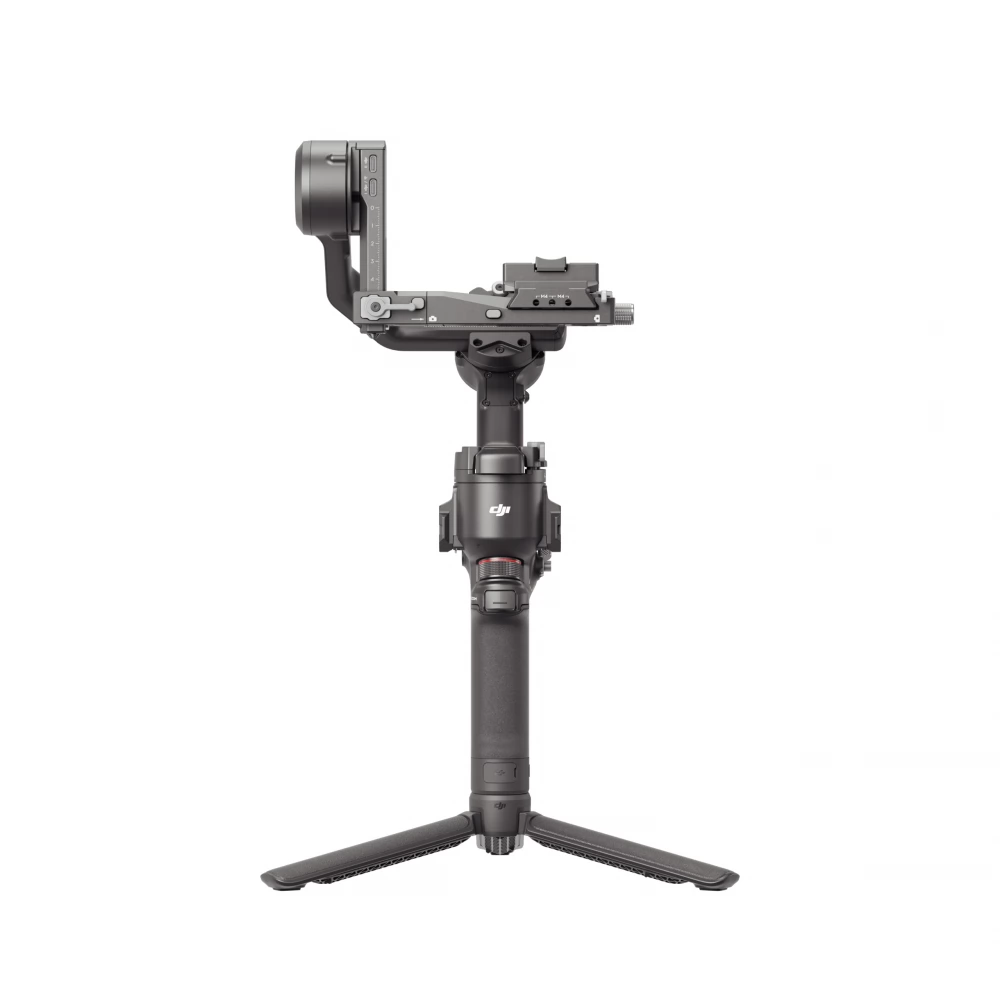

DJI RS 4 is a next-generation professional stabilizer for filmmakers and videographers. It has improved stabilization performance and an expanded accessory ecosystem. It also supports native vertical recording. Extremely light, only 1 kg.

2. Generation native vertical recording
Designed with a completely new horizontal plate, the RS 4 Pro enables second-generation native vertical recording for faster and simpler operation. For efficient vertical video production, the operator can simply release the horizontal plate and fix it in a vertical position without any special tools, so you can easily switch to vertical recording. [2]

2. Generation automatic axle locks
Thanks to the automatic axis locks, the RS 4 can quickly go into ready-to-use or sleep mode, which significantly improves the efficiency of recording, mode switching and storage. In addition, the axis locks operate with even less backlash when closed, which further reduces gimbal shaking during recording.

The smoothest balancing experience yet
All three axes of the DJI RS 4 are Teflon™ coated, resulting in less friction and smoother balancing. When changing cameras or lenses, you can use the fine-adjustment button on the tilt axis to move the camera forward or backward, so you can achieve precise, millimeter-accurate balancing. In order to secure the camera, the top quick-release plate has an adjustable position deflector.

Automatic screen lock
The OLED touchscreen includes a new automatic screen lock feature. When the screen is locked, it displays the current gimbal and joystick modes in low brightness. This not only prevents accidental touches, but also saves battery power.

Excellent load capacity
The lightweight body boasts a load capacity of 3 kg. It is capable of carrying the more common mirrorless camera and lens combinations, so in addition to its robust performance, it can comfortably handle the necessary load. Compared to the previous generation, the tilt axis of the RS 4 is 8.5 mm longer, so it offers even more space for balancing. This allows for the more common mirrorless camera and lens combinations, as well as other accessories, e.g. Installation of ND filters, which provides even wider creative possibilities.

4. Generation RS stabilization algorithm
The next-generation RS stabilization algorithm has been optimized in all respects for different uses. It balances the strength of stabilization with the tactile feel of camera movement, providing superior stabilization performance and enhanced user experience. In addition, the RS 4 provides significantly more stability when shooting vertically, making it easy to stabilize dynamic shots such as running or low-angle perspectives.

Bluetooth wireless control
Thanks to Dual-Mode Bluetooth technology, the DJI RS 4 can remotely control the camera's shutter button and lens zoom. In zoom control mode, the operator can use the joystick to control the Power Zoom and Clear Image Zoom [3] functions designed for PZ lenses. The camera only needs to be paired once, after which it reconnects smoothly and automatically.

DJI Focus Pro engine support
Pairing the DJI RS 4 with the new DJI Focus Pro motor [4] allows you to control the focus of the lens with the control ring or control the zoom of the lens with the joystick. This smooth operation enables effective lens control.

Customize the function of the shutter button
The trigger button can also be set to initiate FPV mode, when holding the trigger button will cause all three axes of the gimbal to follow the direction of movement of the Grip. This is especially useful for rotating shots or point-of-view simulations.

Gimbal mode switch
Using the mode switch, you can instantly switch the gimbal mode between PF, PTF and FPV. In order to use the RS 4 with precision and according to individual shooting needs, instead of FPV mode, you can also set 3D Roll 360 mode or Custom mode.

Specifications
- Battery: BHX711-3000-7.2V
- Battery type: LiPo 2S
- Battery Capacity: 3000 mAh
- Energy: 21 Wh
- Maximum operating time: 12 hours (According to the measurements, the gimbal is balanced, horizontal and stationary. If the gimbal is in motion, the operating time is reduced).
- Charging time: About 2.5 hours (measured with a charger that supports 18 W fast charging. It is recommended to use chargers that support the PD protocol).
- Bluetooth: 5.1
- Ronin App Requirements: iOS 11.0 or later, Android 8.0 or later
- Languages ​​supported by touch screen: English, Simplified Chinese, Traditional Chinese, German, French, Korean, Japanese, Spanish, Portuguese (Brazil), Russian, Thai
- Tested load capacity: 3 kg
- Mechanical range: Pan axis: 360° continuous rotation, Rotation axis:
