DIGITUS DS-55358 Video Wall Controller

The video wall controller enables the stunning display of a video wall consisting of up to four 4K UHD displays. Flexible display formats (1x1, 2x1, 3x1, 4x1, 1x2, 1x3, 1x4, 2x2) allow you to customize your settings – ideal for professional presentations, advertising displays or surveillance applications. High-resolution signal processing provides a maximum input resolution of 4K/60Hz via HDMI (DMI 2.0) or USB-C (DP 1.2a) connector. The video wall is displayed in 4K/30Hz resolution via HDMI, guaranteeing razor-sharp images. The integrated audio output allows the audio signal to be output separately via a 3.5mm analog stereo or digital S/PDIF connector – perfect for external speakers. Thanks to the 180° image rotation, the video wall can also be used for ceiling installations, while the intuitive control with the remote control directly on the device or via the RS232 interface ensures maximum user comfort. The resolution of the displays can also be easily changed. The compact design and wall mountability make the controller an ideal solution for versatile applications in the professional sector.

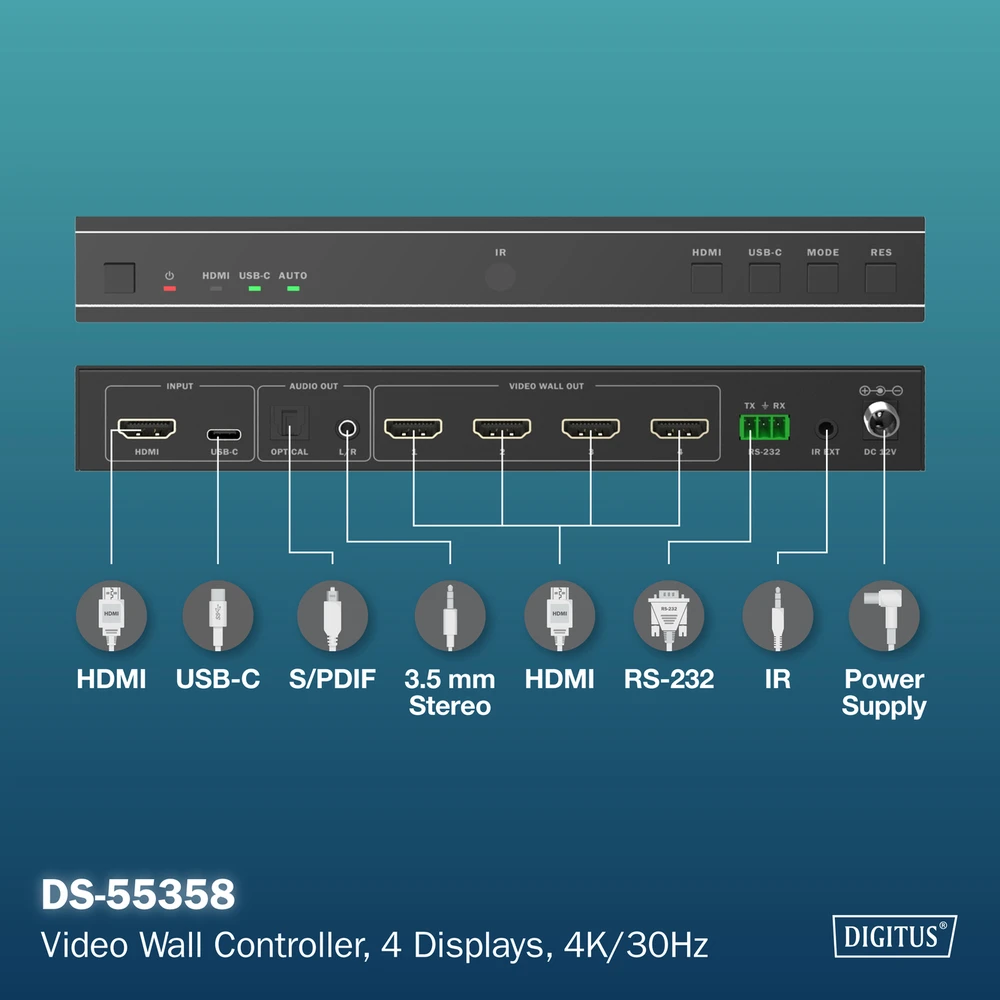

- Input signal via HDMI (DMI 2.0) or USB-C (DP 1.2a), maximum 4K/60Hz resolution

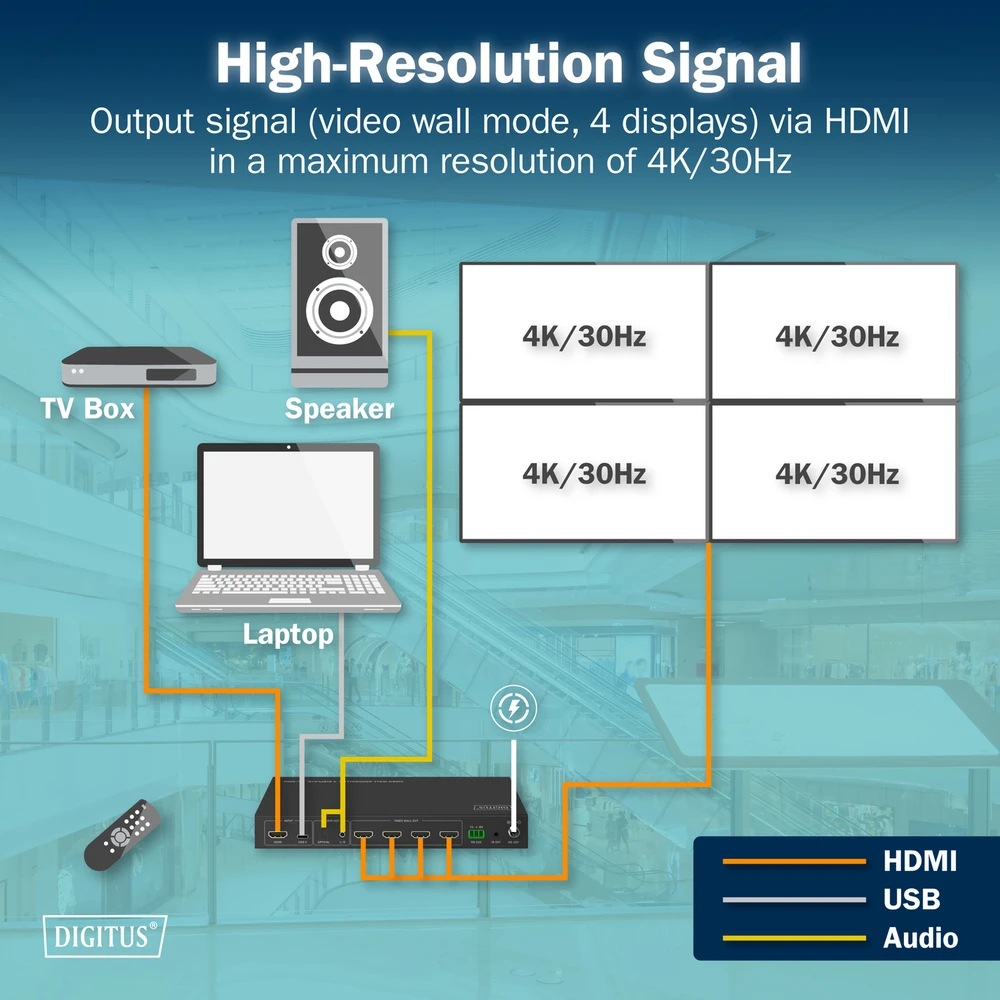

- Output signal (video wall mode, 4 displays) via HDMI, maximum 4K/30Hz resolution

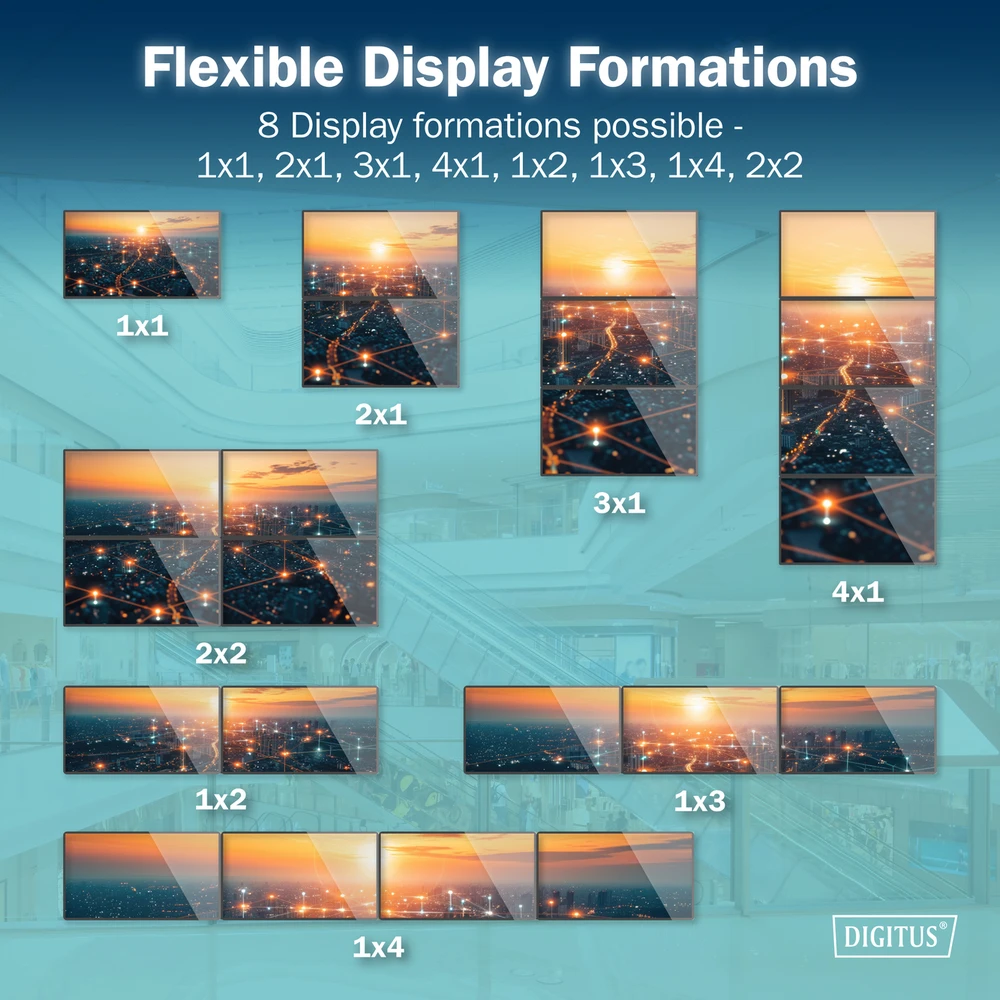

- 8 possible display formats 1x1, 2x1, 3x1, 4x1, 1x2, 1x3, 1x4, 2x2
- Sound extractor allows the audio signal to be separated, played through separate speakers via an analog 3.5 mm stereo or digital S/PDIF connector
- Supports 180° image rotation (easy switching with remote control) perfect for ceiling installations for example

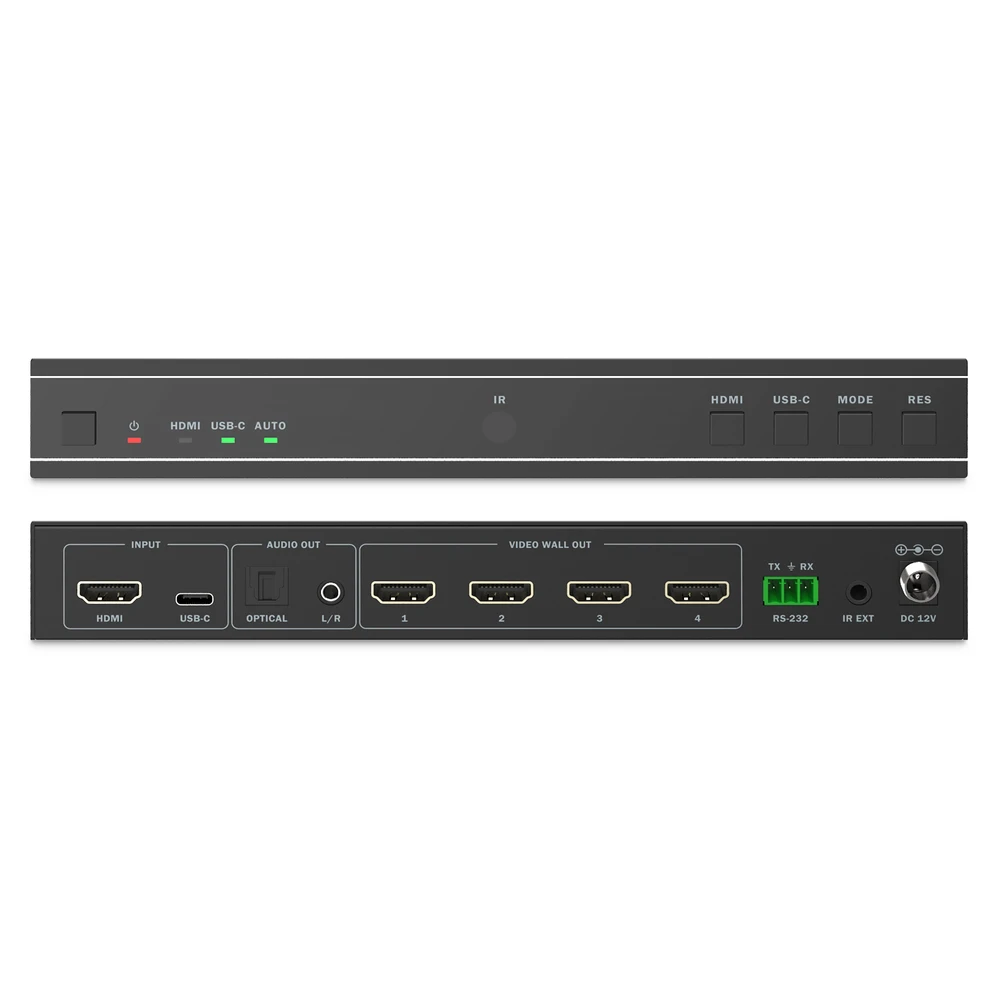

- Convenient control options control with remote control, on the device itself (front panel buttons) or via RS232
- Convenient switching of the resolution of the 4 output displays on the device and with the remote control
- Frame adjustment Conveniently move the image frame in video wall mode with a remote control
- Can be mounted on the wall
