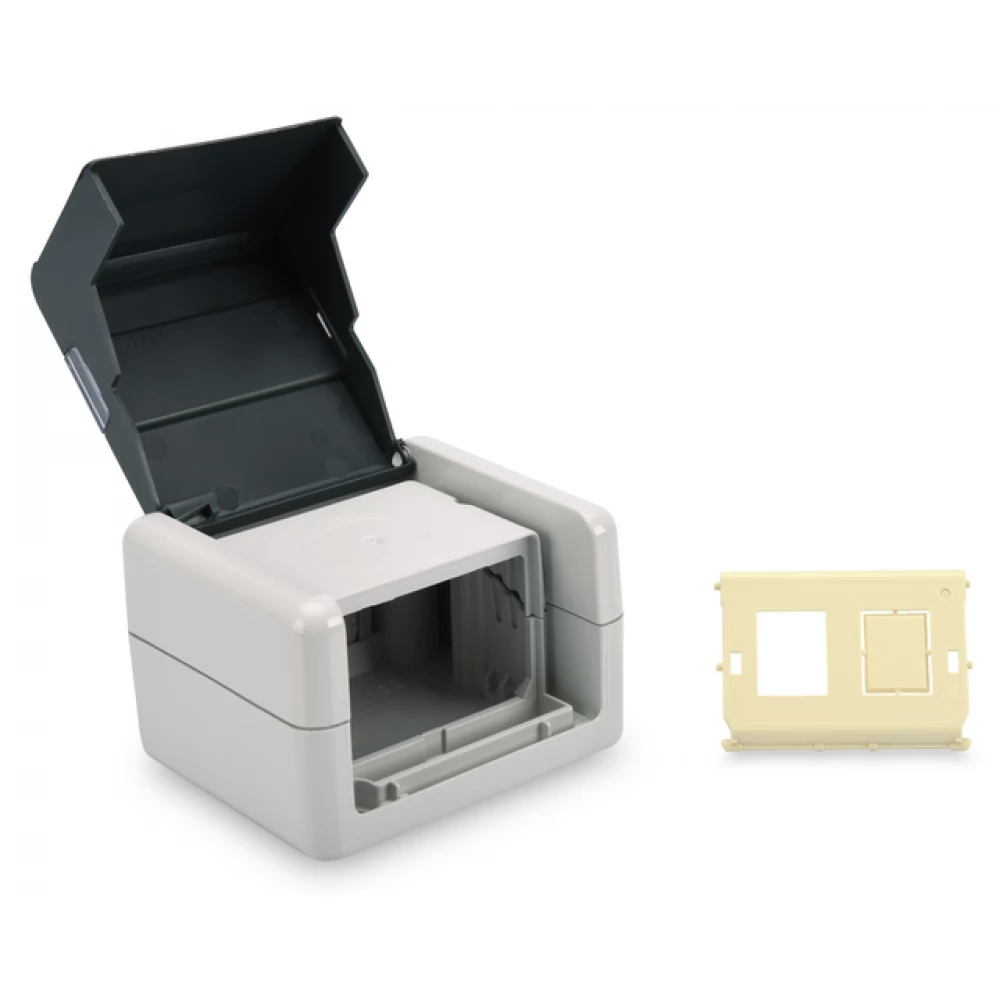

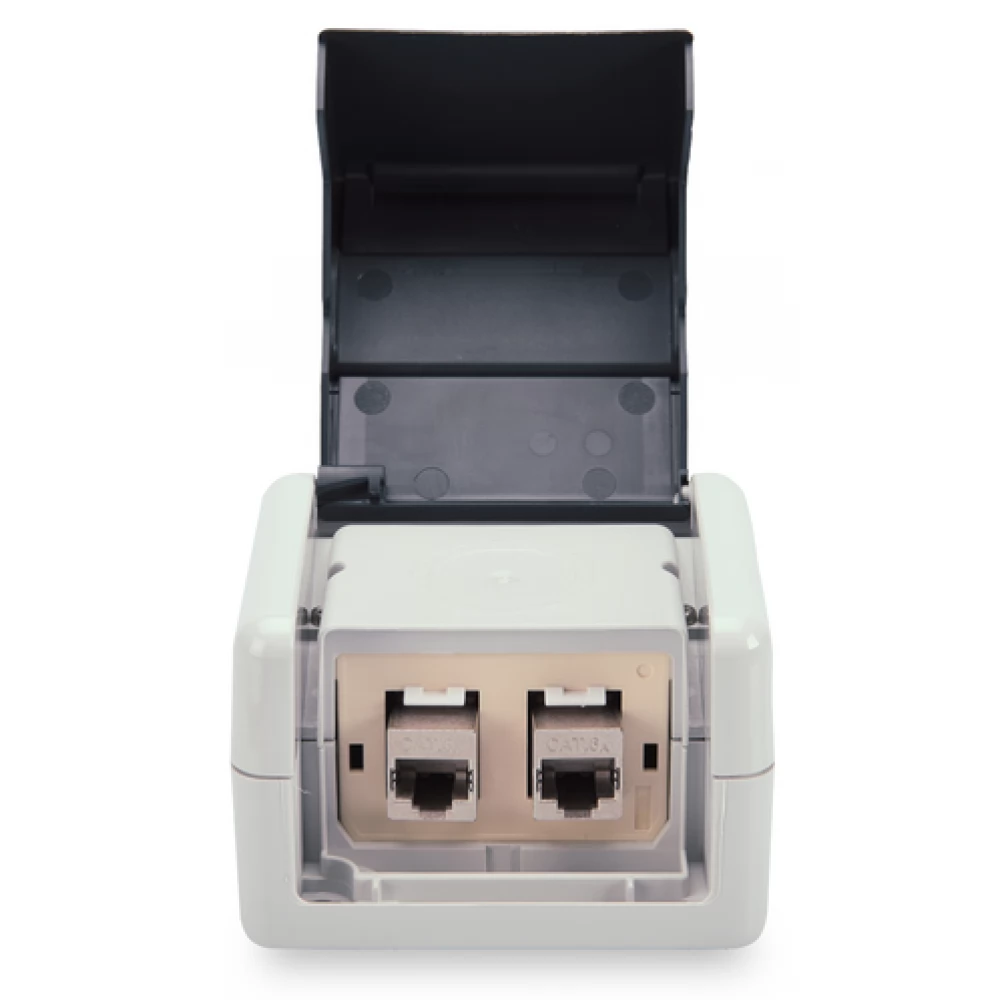

Outdoor Surface Mount Box IP44, surface mount, hinged lid, incl. inlet for 2x Keystone Modules

Set consists of a data socket (DN-93844-OD) & use for 2 Keystone Modules (DN-93844-OD-1)

- Suitable for outdoors
- Suitable for surface mounting
- Halogen-free, LSZH, UL 94V-0
- Protection type: IP44
- 2 port mounting use for two Keystone Modules (including dust protection)
- Hinged lid with labeling field (without print)

The IP44 data socket for Keystone Modules boasts an easy installation process thanks to screw fastening and a vertical outlet for the data cable. The Keystone Module connections are protected by a hinged lid. An integrated labeling field enables individual markings. A mounting inlet (DN-93844-OD-1) for the Keystone Modules is included in this set. This set is suitable for outdoor use and surface mounting. The housing is halogen-free (LSZH) and can be used in temperature ranges of -20° to +70°C (ABS, thermoplastic).

Technical Details

- Execution Keystone Accommodation: 90° outlet
- General properties:
- Suitable for outdoor and industrial environment use, IP44
- Integrated hinged lid
- Plastic labeling field
- Design compatible with common switch ranges made by switch manufacturers
- Technical features:
- Housing material: Thermoplastic, ABS UL 94V-0
- Lid material: Thermoplastic, ABS UL 94V-0
- Mounting inlet material: Thermoplastic, ABS UL 94V-0
- Physical properties:
- Operating temperature: -20° C to +70 °C (ISO/IEC 11801, EN 50173-1, ANSI/TIA/EIA 568 C)

Package content

- Data socket (DN-93844-OD)
- Use for 2 Keystone Modules (DN-93844-OD-1)
