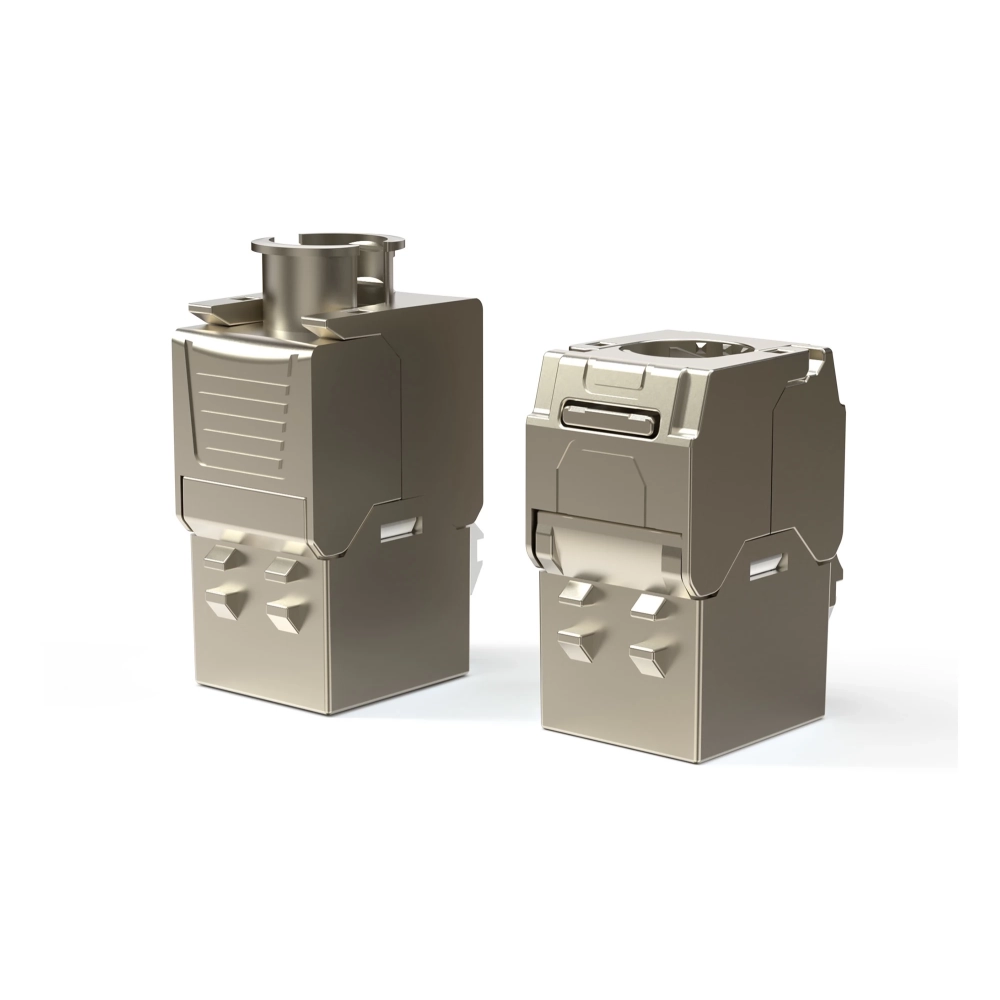

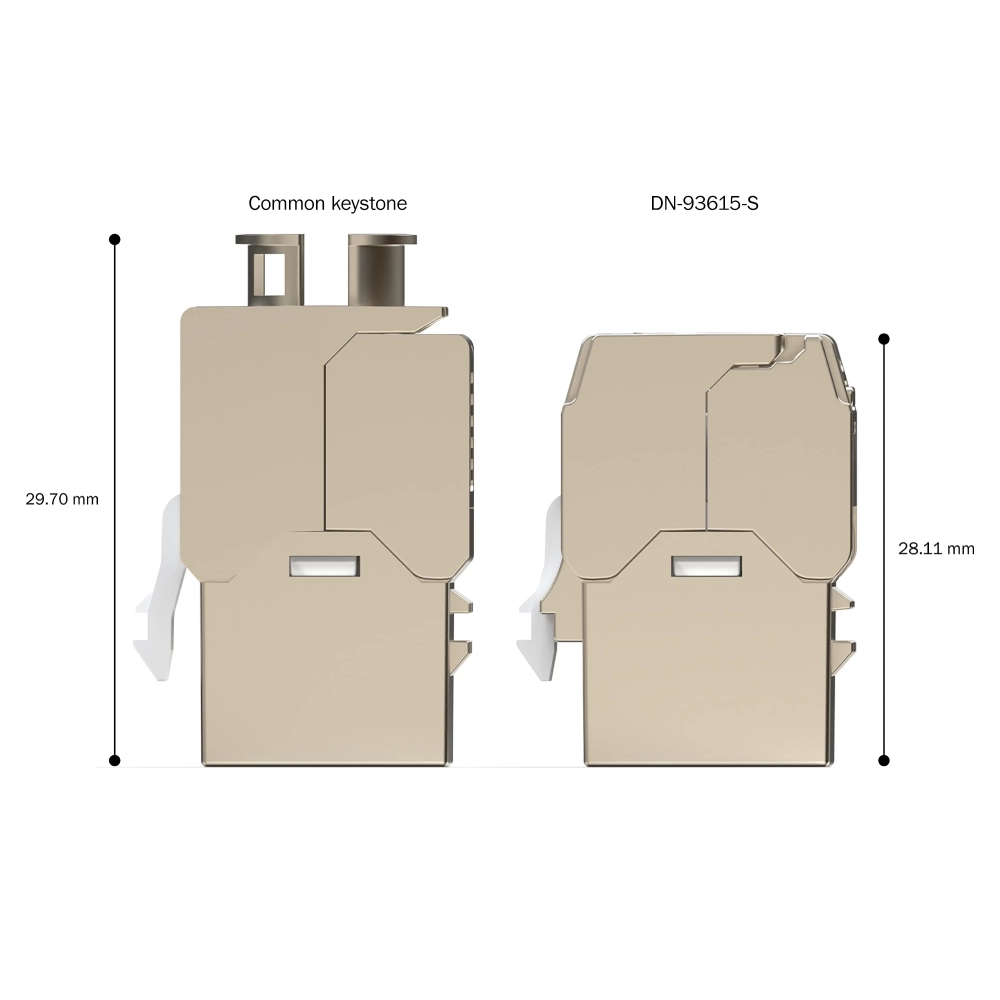

The Digitus® Shaded CAT 6A DN-93615 Short Trap Distorting Module is impressed with future-oriented standards and high-quality network. The compact design allows serial assembly to 48 mm (19 ") 1U panels. Tool-free assembly is done through LSA tapes, with color code according to EIA/TIA 568 A & B. Thanks to its compact design, the module also fits into modular connection boxes corresponding to design.

- Category 6a 10GBASE, 500 MHz
- ISO/IEC 11801 3, EN 50173-1
- Suitable for POE/POE+/4PPOE (IEEE 802.3AF, 802.3AT, 802.3BT)
- Suitable for distribution panel and distribution box
- RJ45 substrate, 8p8c

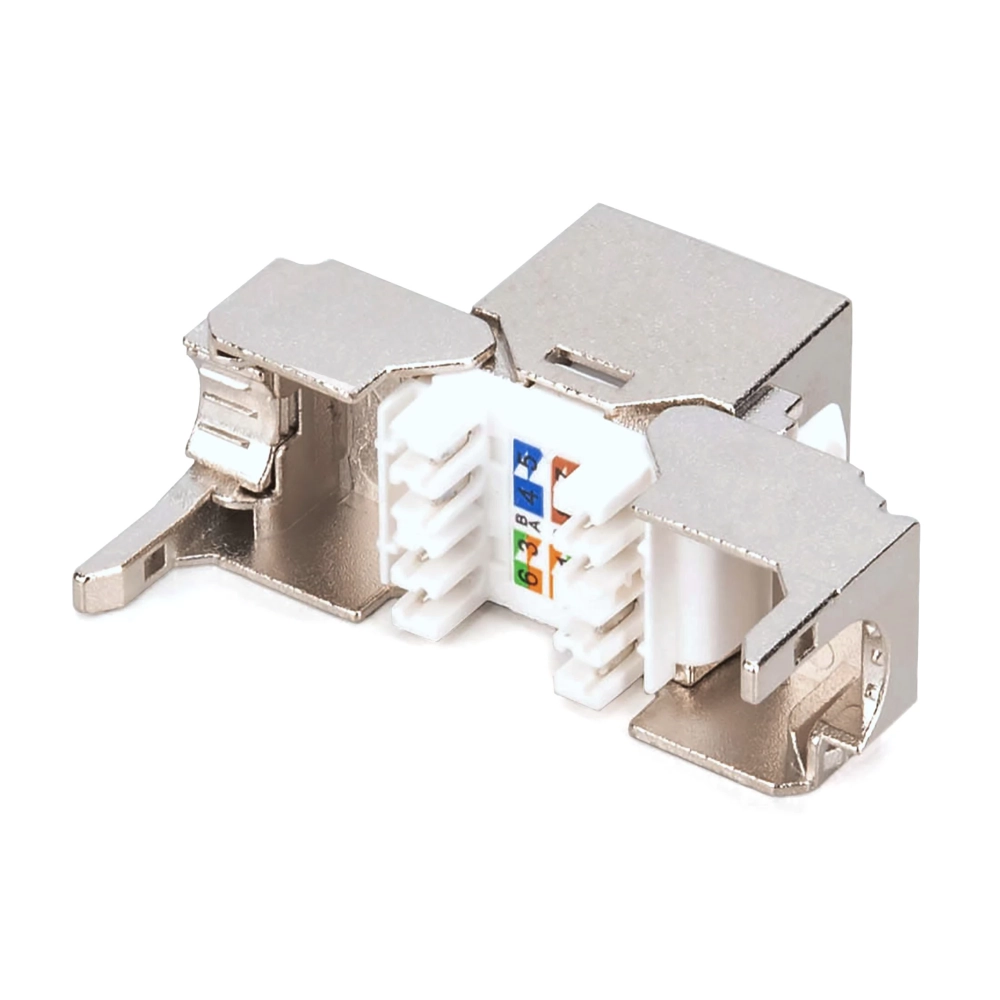

- Cable assembly via insulation-swollen connectors with color code according to EIA/TIA 568 A and B
- Drawing and cable recording with cable harnesses
- Tool -free assembly connection
- 360 ° shield contact
- House Mater
- contact material: phosphorgebronz
- Coating contacts: Nickel, gold plated 0.5 μ
- Paste force: max. 30N (according to IEC 60603-7-51)
- Holder power: 7.7 kg between the socket and the plug
-Operating temperature: -20 ° C to +70 ° C (ISO/IEC 11801, ANSI/TIA 568 C.2)
-Mating cycles: ≥ 750 (ISO/IEC 11801, IEC 60603-7-51)
- Copper conductor diameter: AWG (26/7 22/1), twisted and compact wire
- AWG 22/1 tested with solid cable
-(Digitus® DK-174x-A-VH-X; AWG 22/1 Cat.7A installation cable)
- Dielectric strength: 1000 VDC (contact/contact), 1500 VDC (contact/land)
- Tool -free assembly with LSA insulated offers, color code according to EIA/TIA 568 A & B
- Intelligent Cable Manager (Re -Close)
- Weight: 22 g
