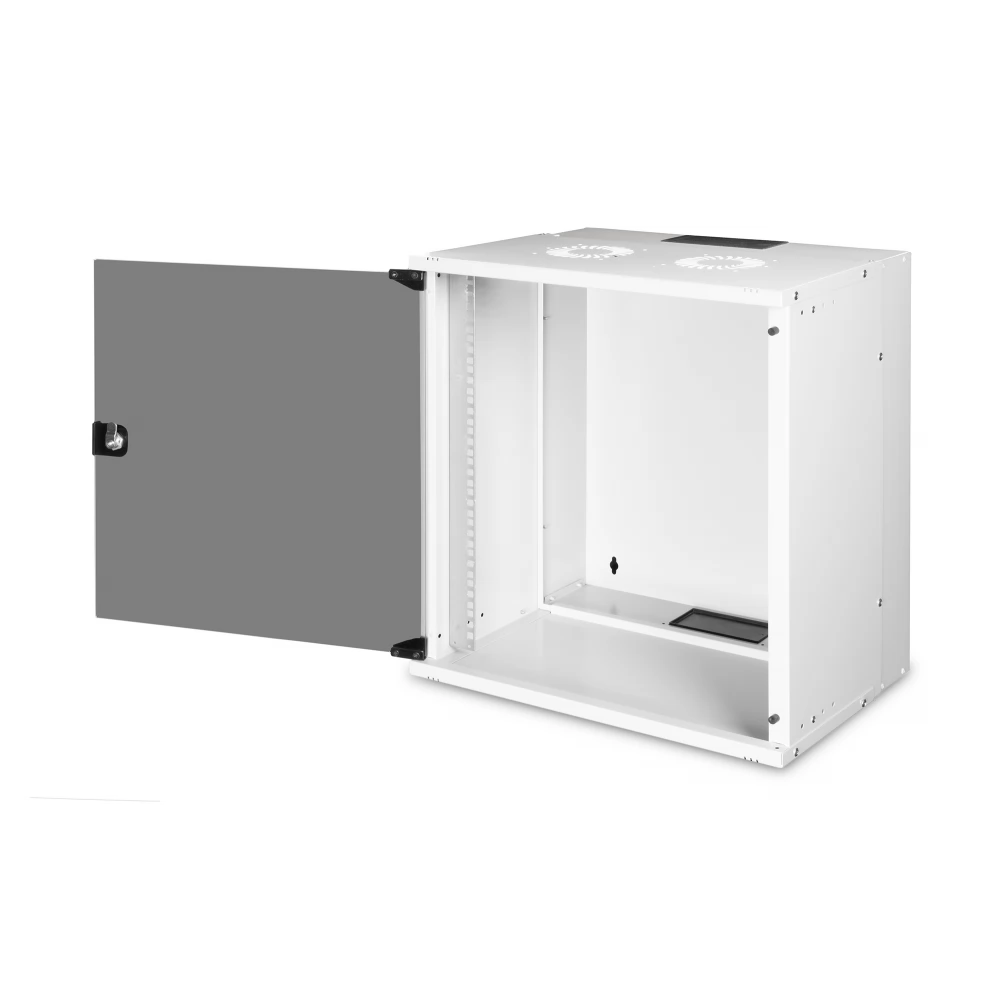

DIGITUS DN-49206 Wall Mounting Cabinet

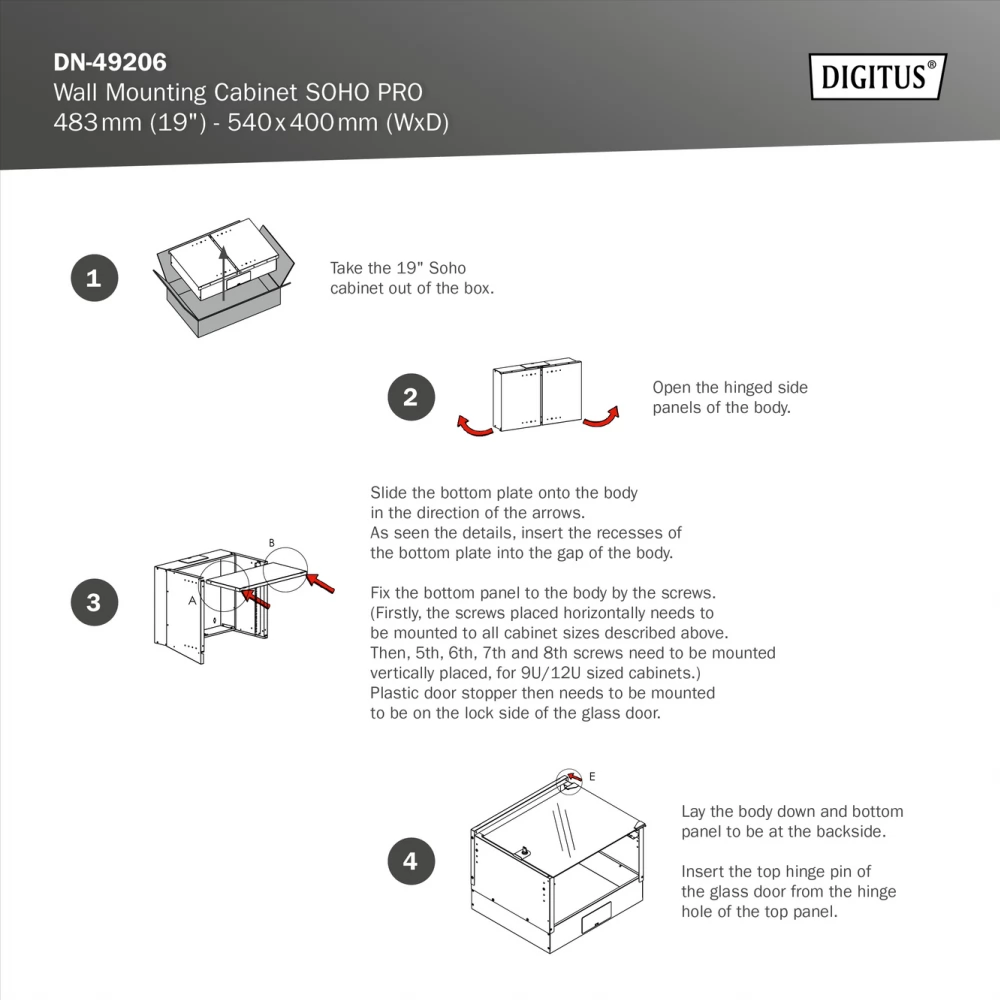

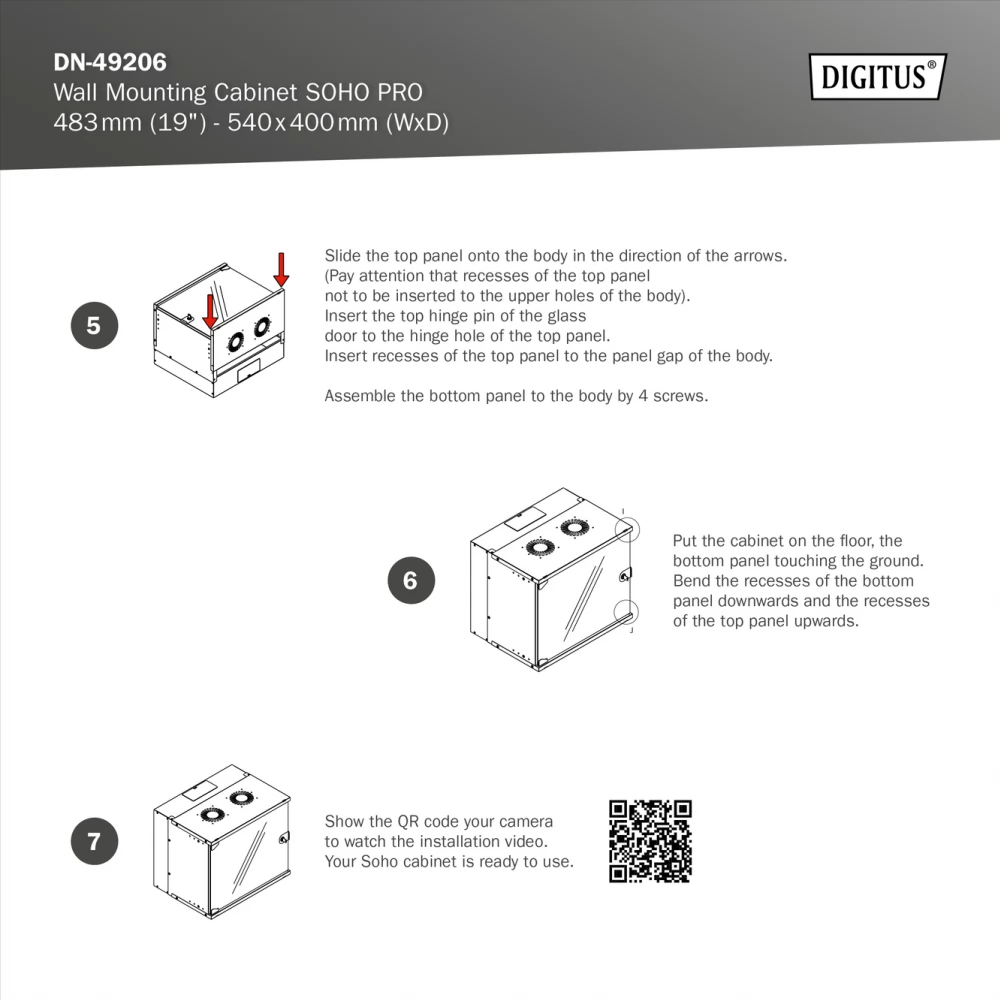

Whether it's a private area, an office or distribution units with limited space: With the compact, 483 mm (19”) solutions of the SOHO PRO series, you can install your network anywhere. Available in four rack units (4 rack units, 7 rack units, 9 rack units, 12 rack units), the wall housings are installed with full glass doors and cable entry on the roof and floor. Inside is a pair of galvanized 483mm (19”) profile rails fitted with legible rack units. Their depth is adjustable. All cabinets have a robust steel construction, made from sheet steel up to 1.5 mm thick. The coloring is done with electrostatic powder coating in standard gray (RAL 7035) or jet black (RAL 9005). The door hinges are replaceable. The network is disassembled during delivery, in optimized flat packaging. Installation takes just a few steps and is super easy thanks to the included step-by-step instructions.

- IP20 protection class
- Lockable safety glass door
- 200° door opening angle

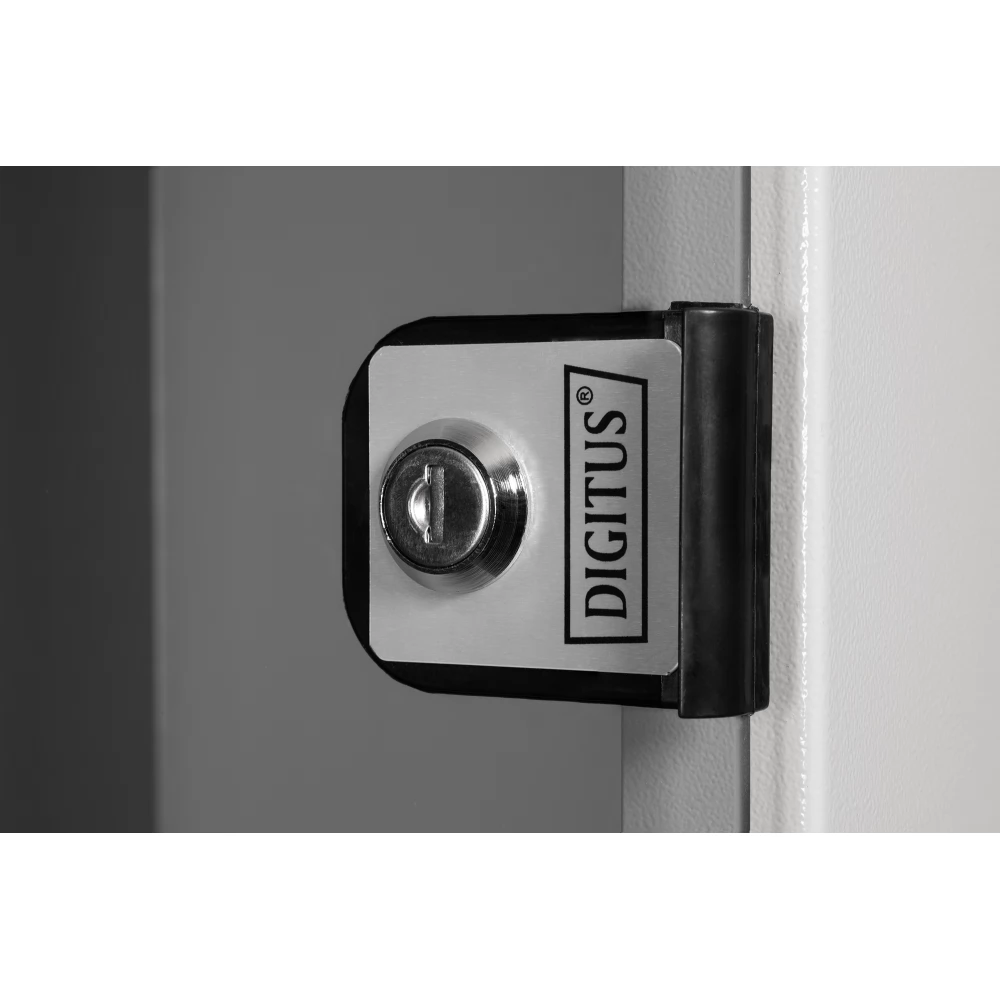

- 1 point lock on the front door

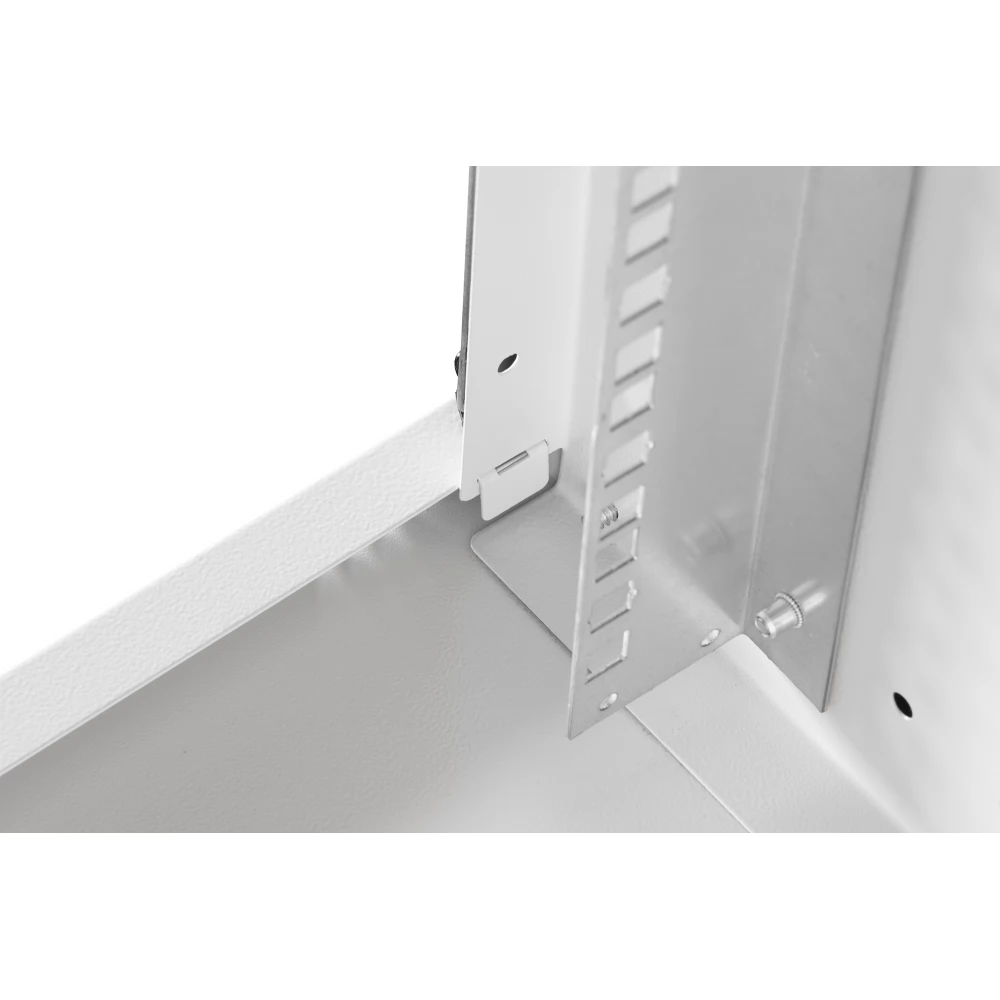

- 483 mm (19”) profile rails at the front, front mounted inside the cabinet, galvanized
- The depth of the 483 mm (19”) profile rails is adjustable
- 1.1 1.5 thick steel plate with high load capacity, powder coated

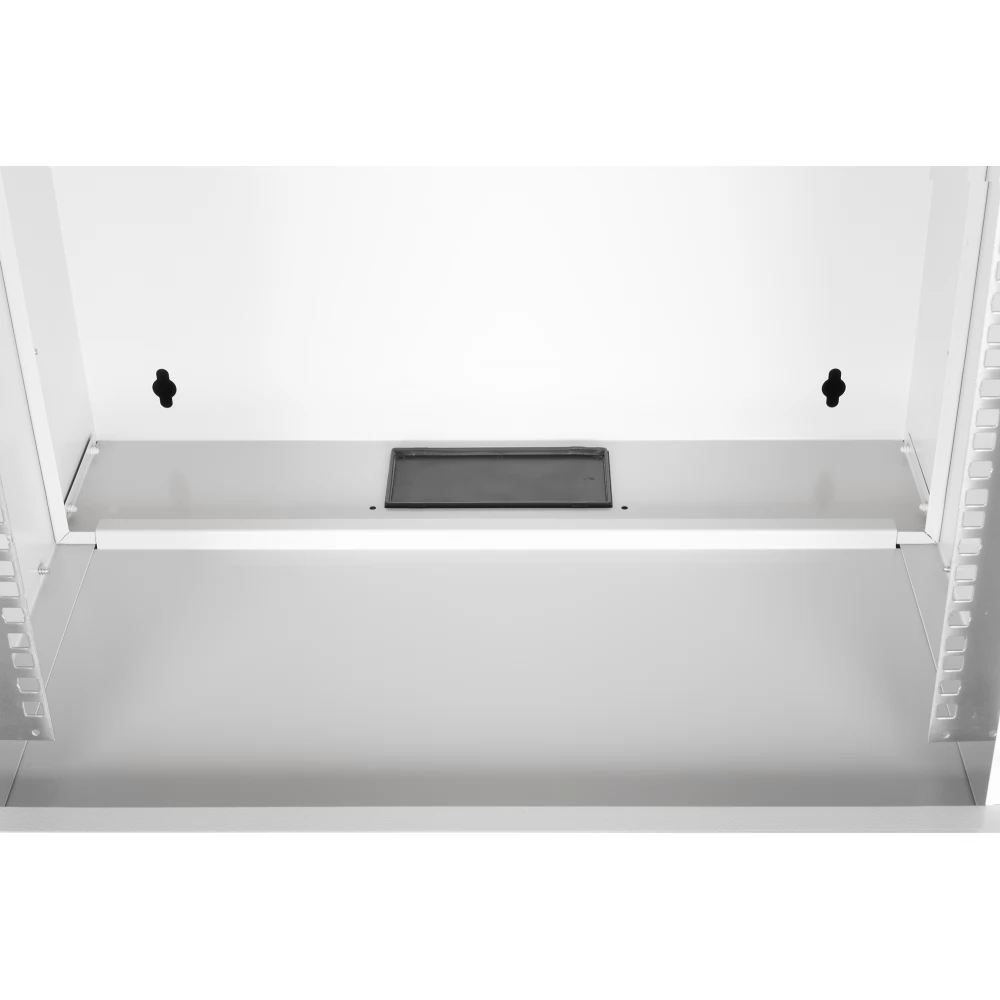

- Cable entry with plastic cover on the roof and floor

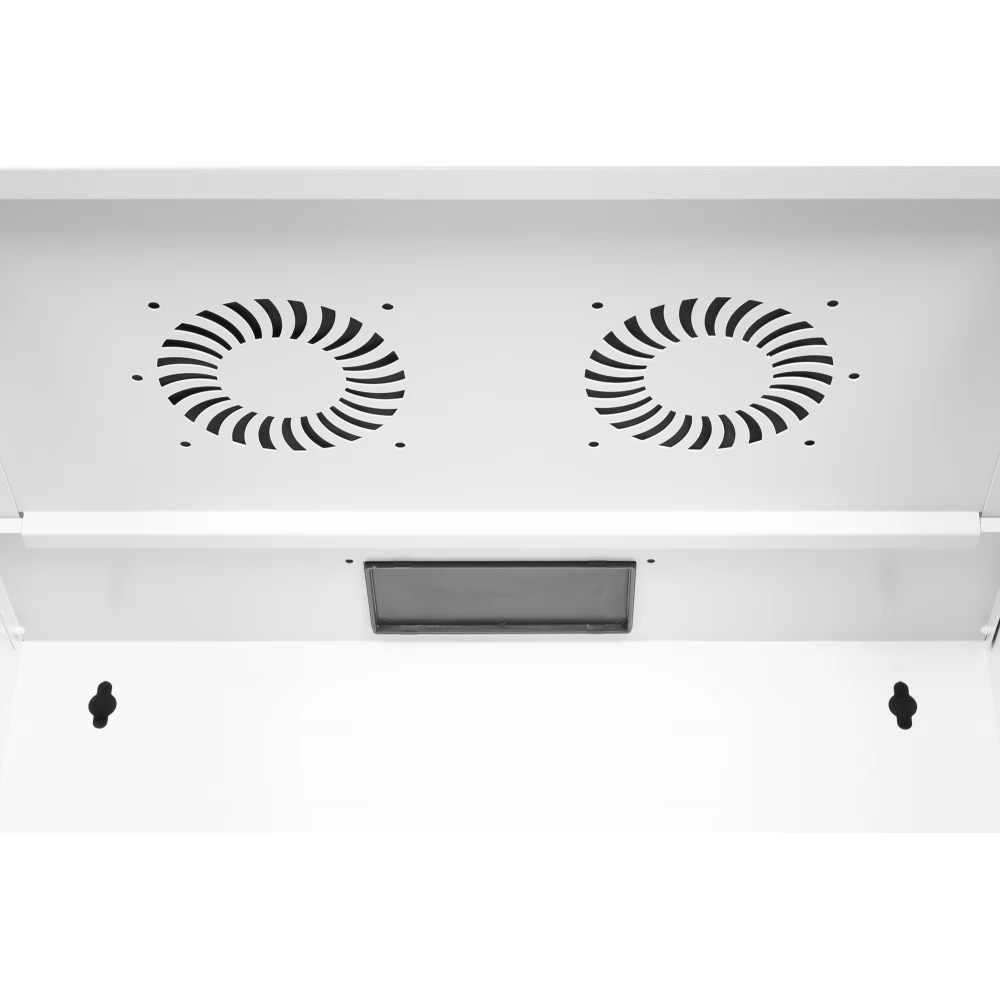

- Vents for active and passive ventilation
- Installation depth for components max.: 327 mm
- Product dimensions (H x W x D): 460 x 540 x 400 mm
- Cabinet type: Wall-mounted cabinet
- Color: light grey, RAL 7035
- Depth: 400 mm
- Entrance door: Glass door, with one opening
- Load capacity: 60 kg
- Side panels: Both sides
- Units: 12
- Width: 540 mm
- IP protection class: IP20
- Installed: no
