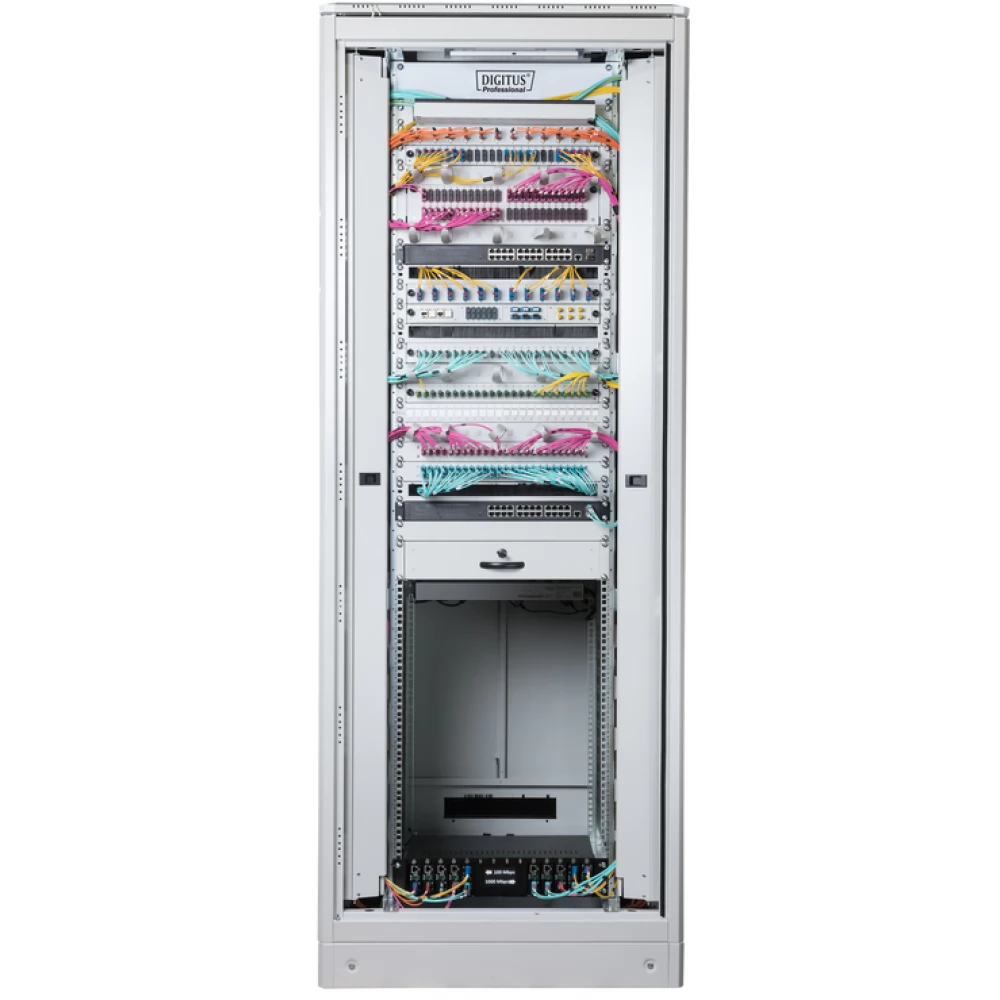

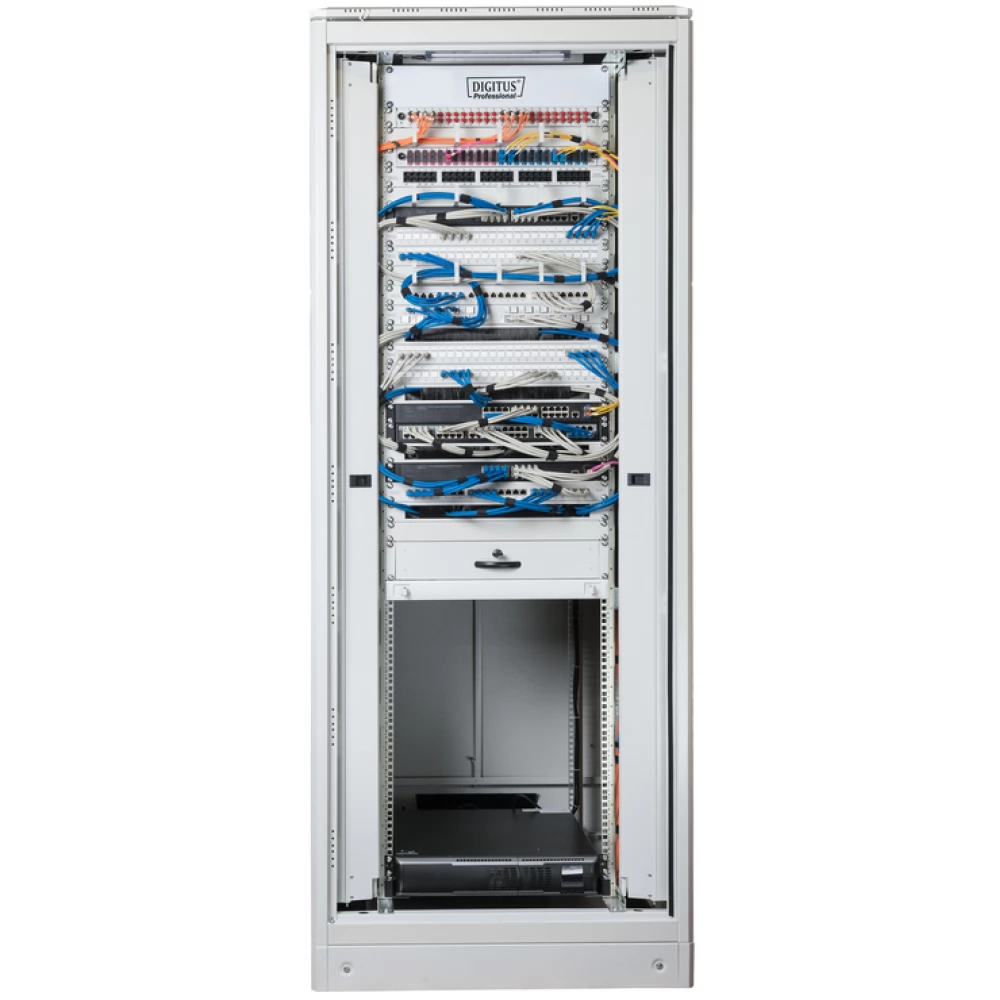

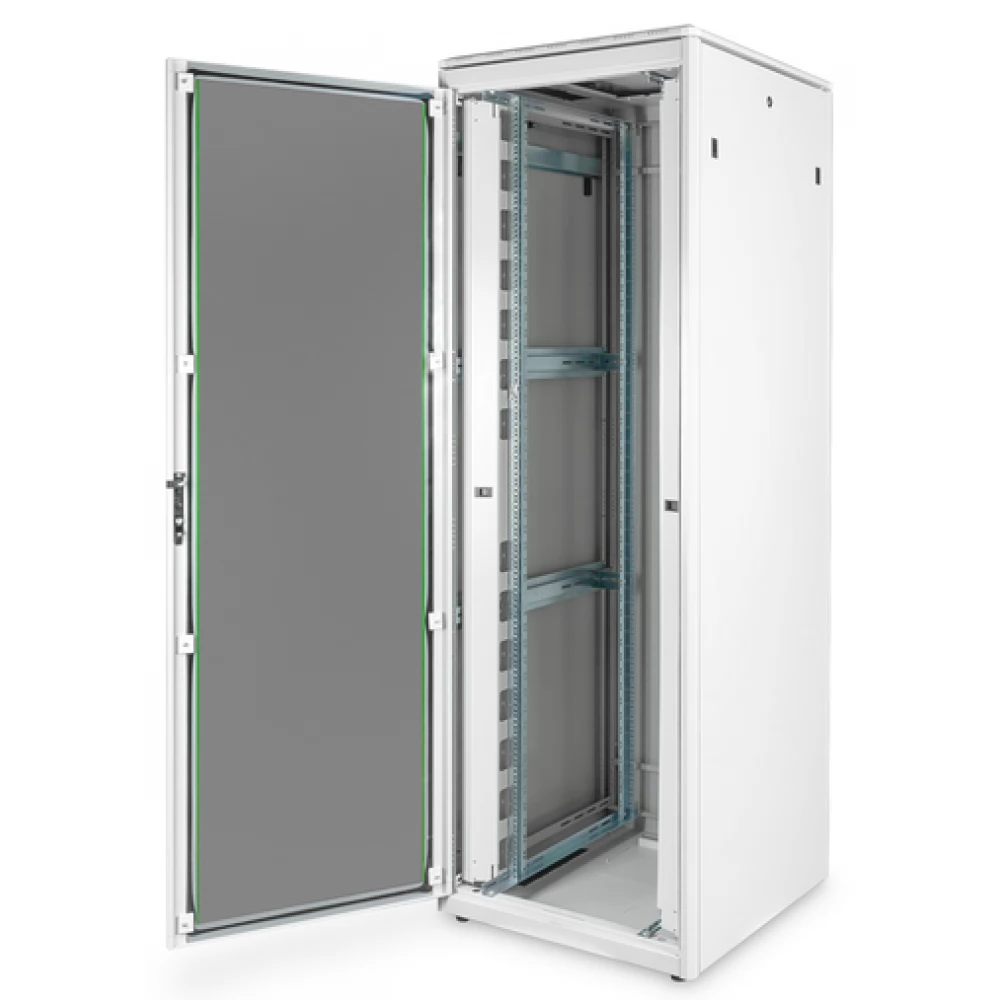

DIGITUS DN-19 47U-8/8-1 Network Rack

47U network rack, Unique 2276x800x800 mm, color gray (RAL 7035).

- Safety class rating IP20

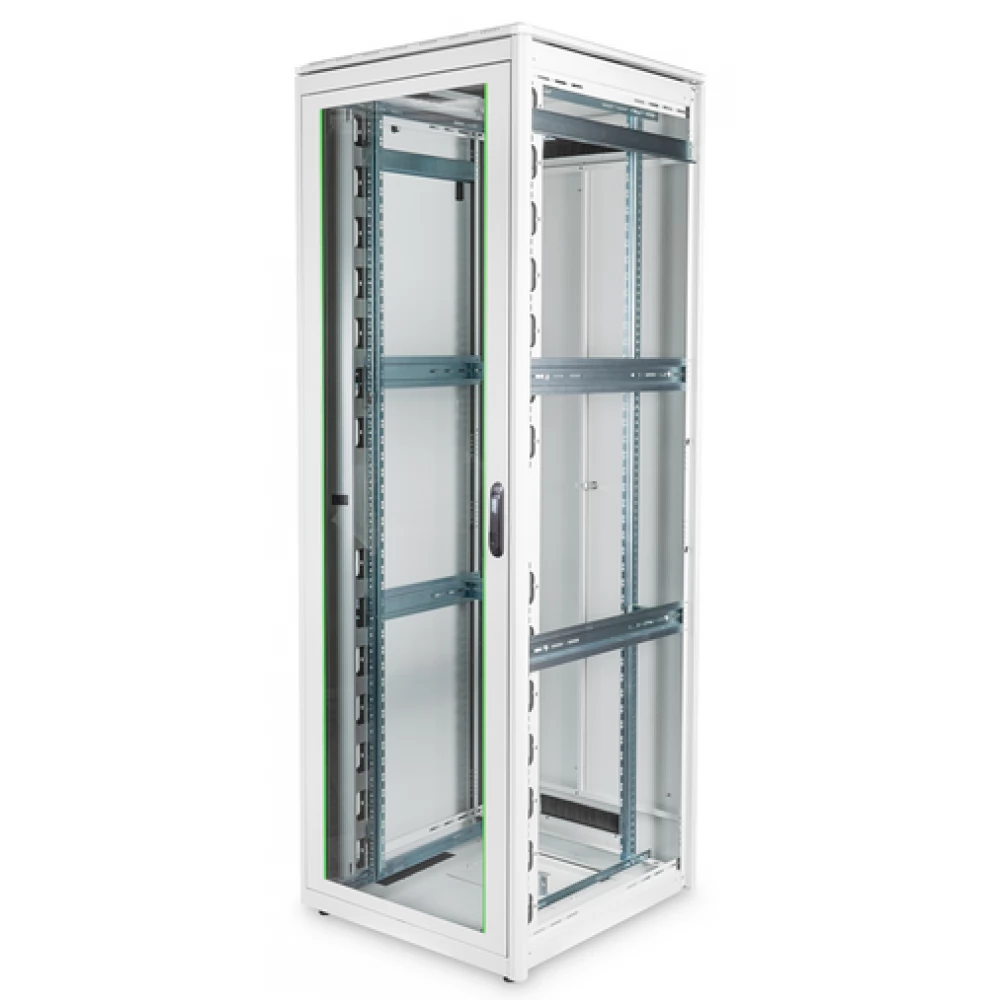

- Complete metal frame front door with safety glass
- Lock system with pivot lever on front door (ready for profile half cylinder; adapter included)

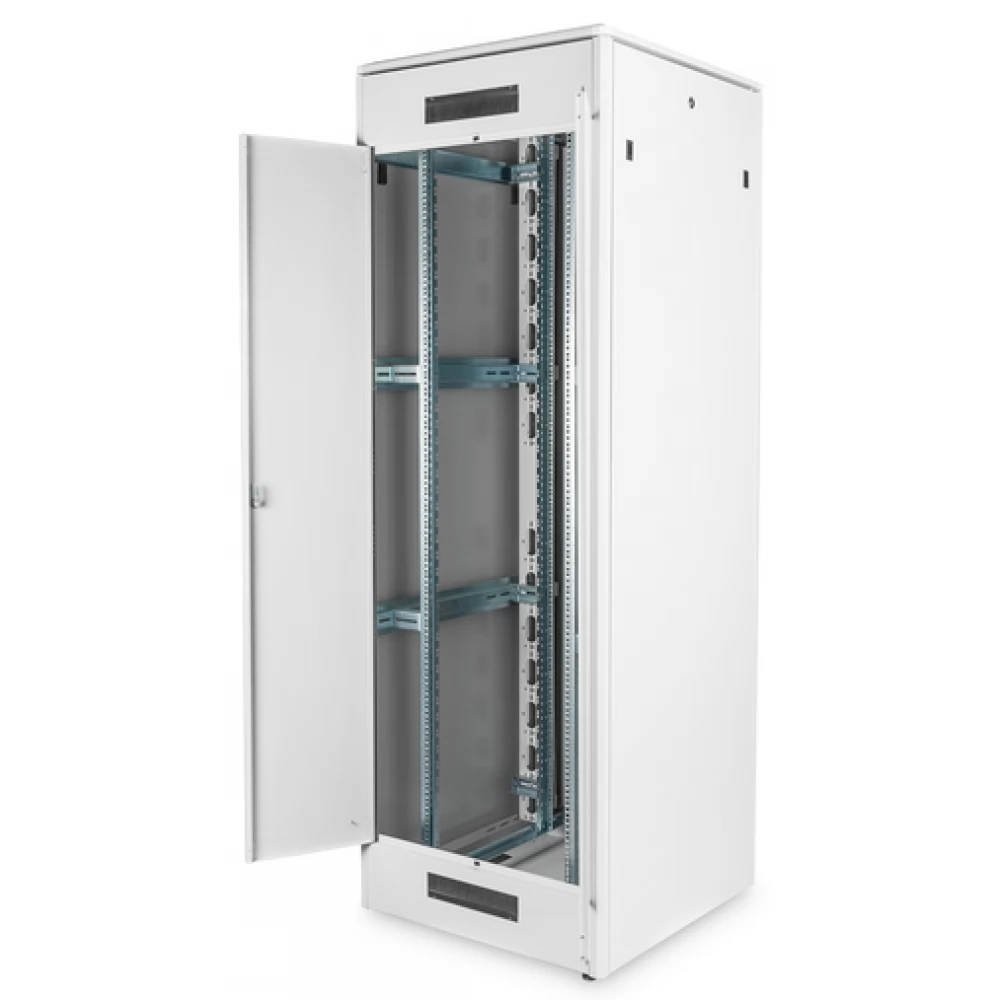

- 120° door opening angle on front and rear doors

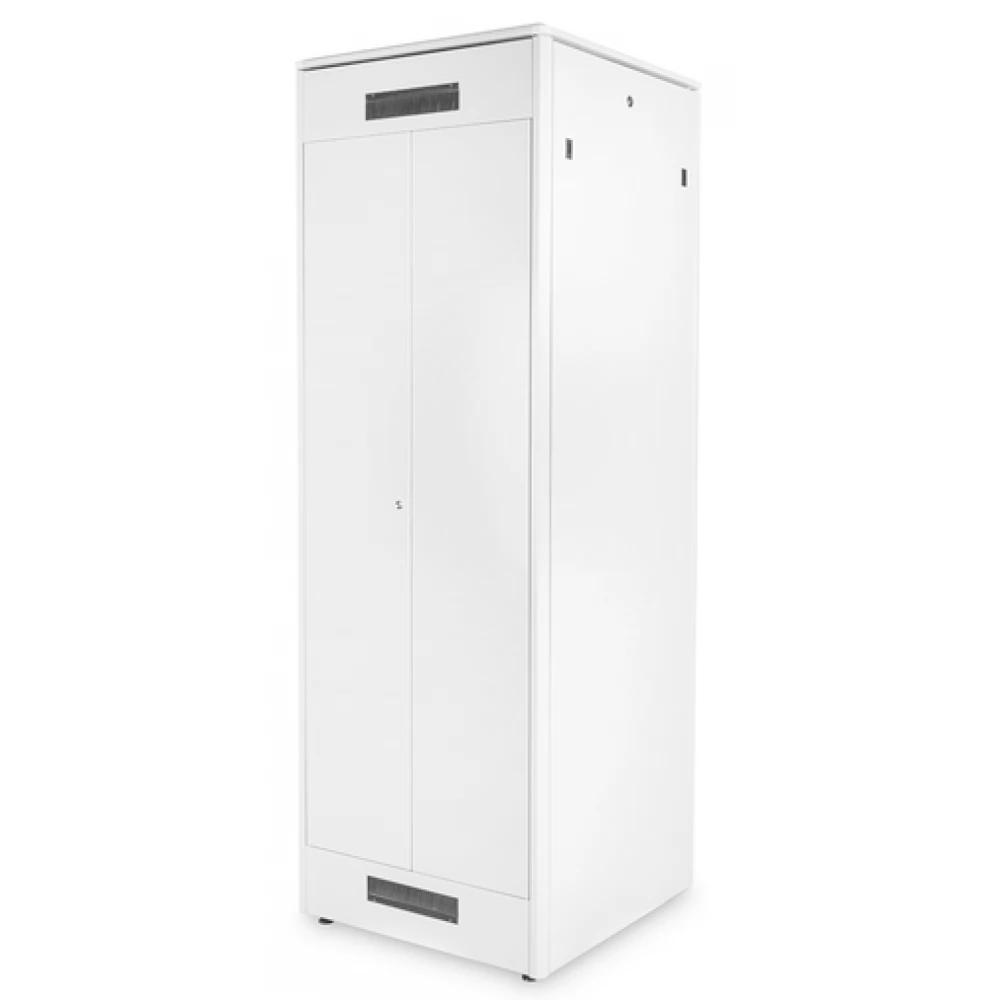

- Double wing opening rear door
- 1-point-locking-mechanism on all doors
- Side panels are lockable and removable
- Incl. 4 pieces of leveling feet already pre-configured under the rack

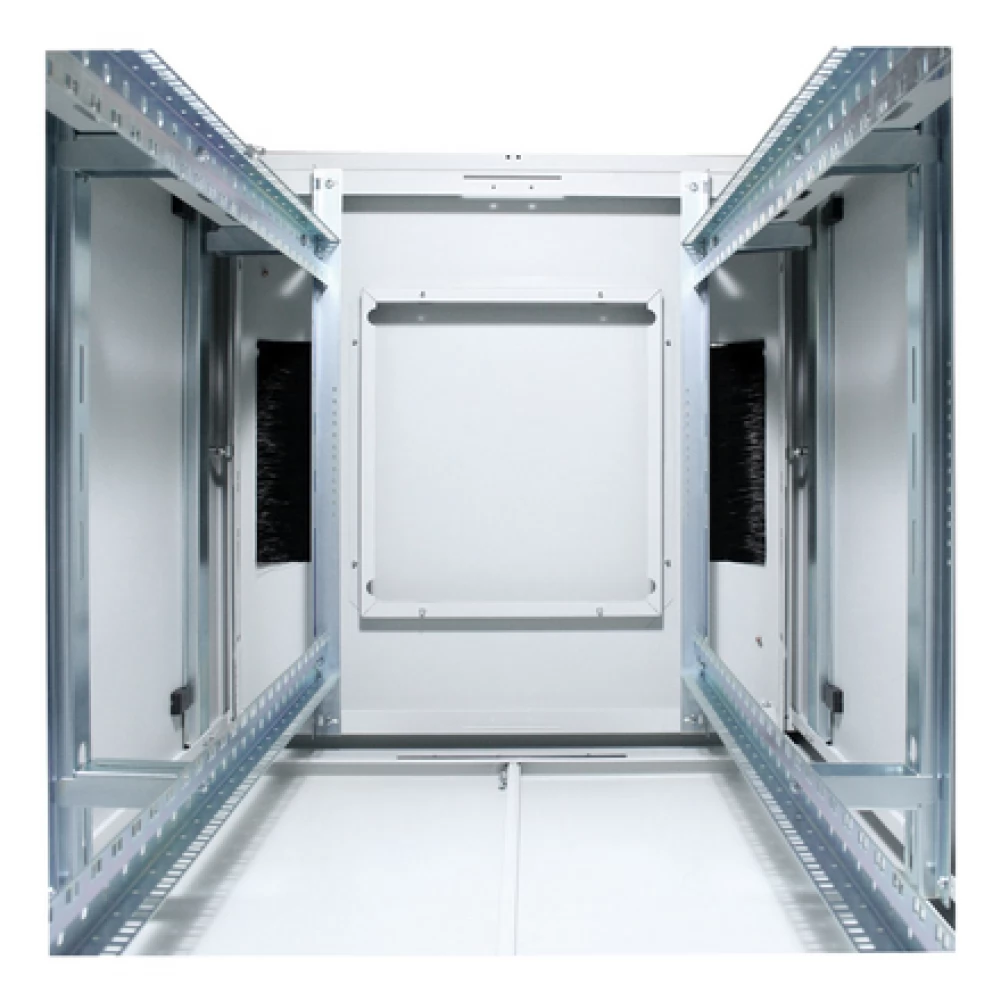

- 483 mm (19“) profile rails mounted on the front and rear side inside of the rack, galvanized
- 483 mm (19“) profile rails are adjustable in depth and with height unit marking
- Built-in depth support bars for more stability
- Sliding cable entry with rubber sealing on the base

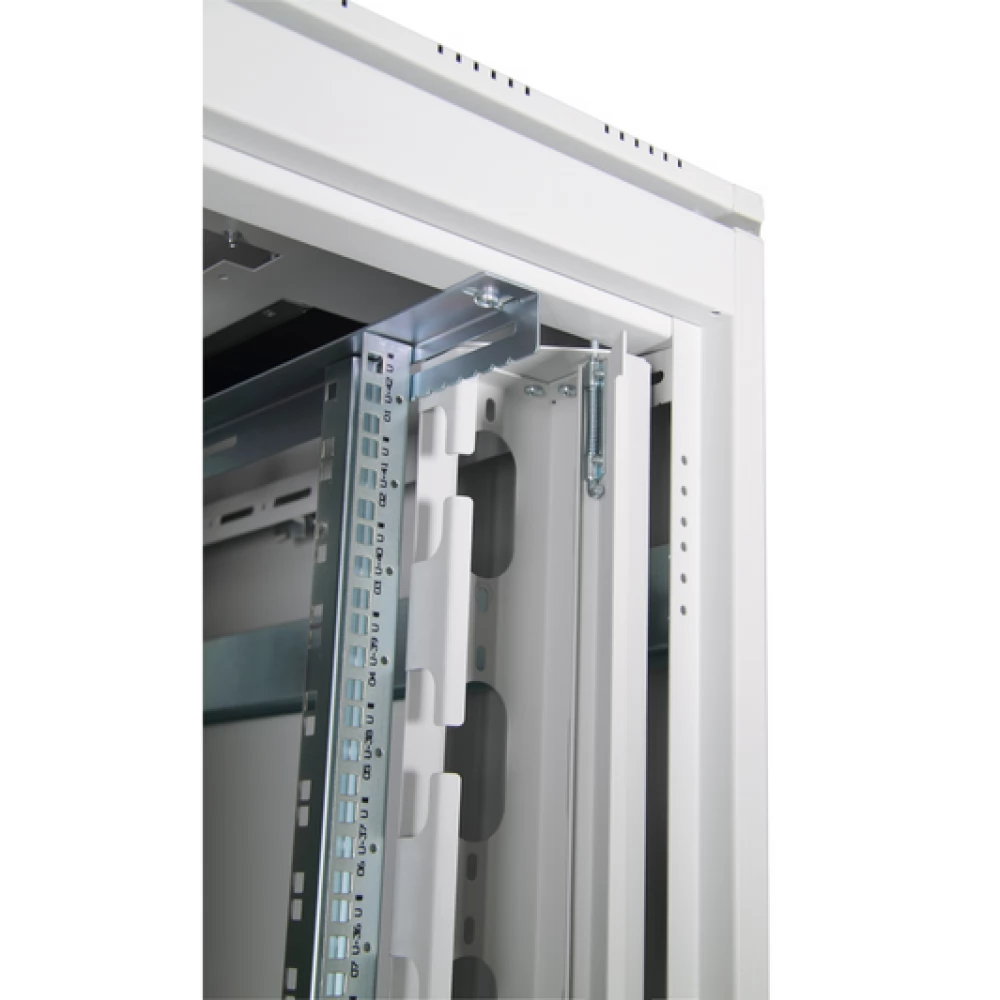

- Vertical cable management ducts in the front

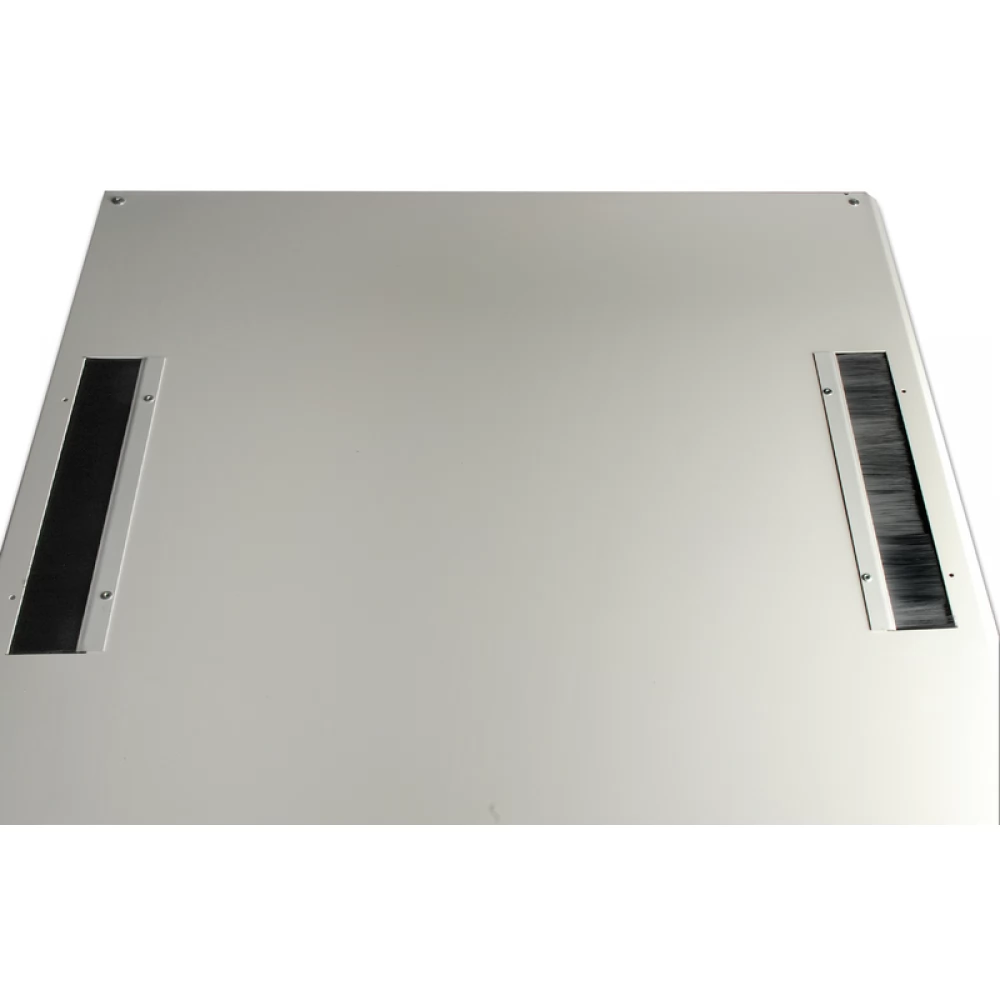

- Cable entry with brush strip at the top and bottom of the cabinet rear side
- Special roof construction for fan unit with added lid which can be unmounted
- Several earthing points for rack components
- Incl. installation set (screws, cage nuts, washers)
- Rack is completely mounted
- Equipment mounting depth min.-max.: 563-743 mm
- IP protection class: IP20
- Color: light grey, RAL 7035
- Depth: 800 mm
- Front door: Glass door, single opening
- Units: 47
- Load capacity: 800 kg
- Mounted: yes
- Rear door: Steel door and cable entry, double opening
- Side panels: Both sides
- Cabinet type: Network cabinet
- Width: 800 mm
