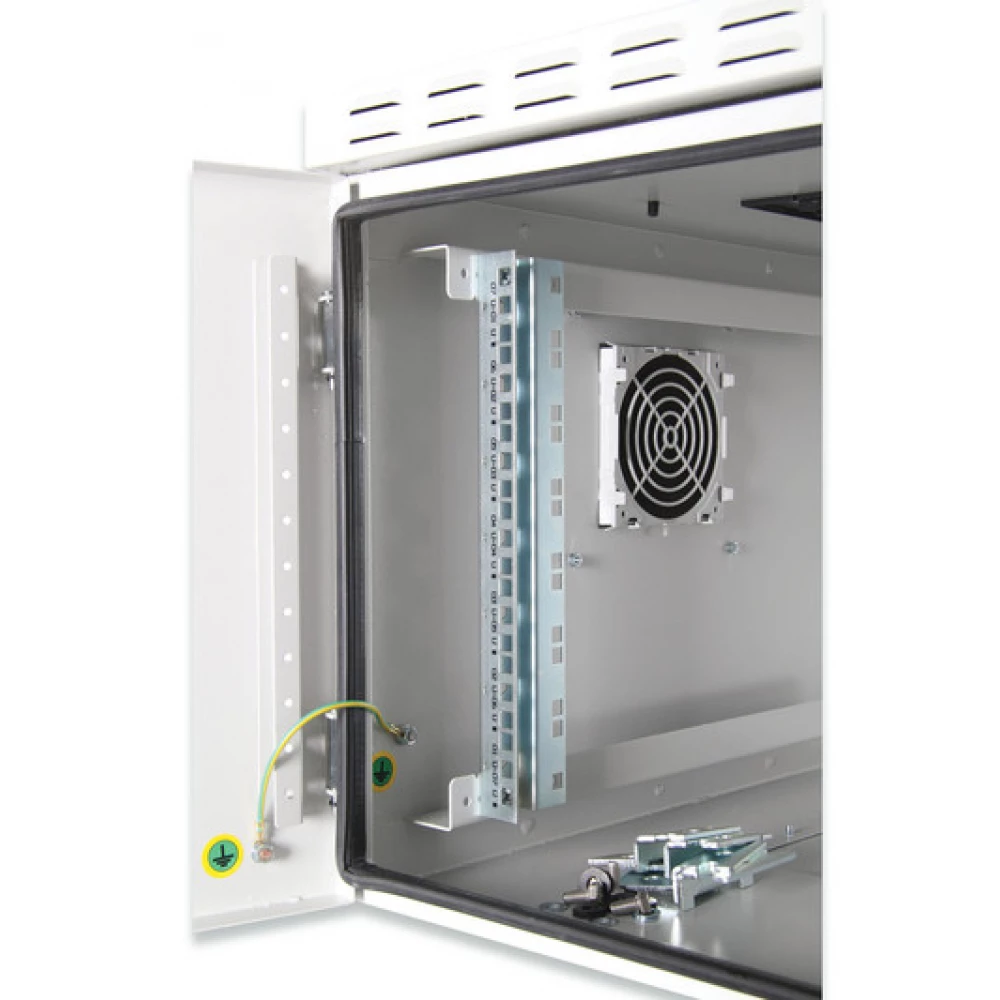

DIGITUS DN-19 12U-6/6-I-OD Professional Wall Mounting Cabinets IP55

12U wall mounting cabinet, outdoor, IP55 713x600x600 mm, color gray (RAL 7035).

- Safety class rating IP 55
- Lockable steel front door with pivot lever
- 140° door opening angle
- 3-point locking mechanism on the front door
- Front door with earthing lead and two welded, strengthening bars in U-shape as well as gasketing system
- 483 mm (19“) profile rails mounted on the front side inside the cabinet, galvanized
- 483 mm (19“) profile rails are adjustable in depth and with height unit marking
- 1.5 mm strong sheet steel with a high loading capacity, powder coated
- Single welded housing for more strength
- Cable entries in base: 2x M32, 1x M63, 2x PVC blind cap (with diameter of 28 mm)
- Roof canopy offers protection for suitable fan units and takes care of deaeration and hot air
- Integrated air ventilation inlets ensure the entry of fresh air
- Incl. 4 pcs. mounting brackets, 3 mm strong, as well as suitable screws and washers, for wall mounting
- Mounting level: Front side
- Type of profile rail: Crank
- Number of doors: 1
- Type of ventilation: Passive
- Width: 600 mm
- Height: 713 mm
- Depth: 600 mm
- Modular spacing: 482.6 mm (19 inches)
- Number of height units: 12
- With roof plate: yes
- With earthing: yes
- With front door: yes
- With rear door: no
- With sidewall: yes
- With socket: no
- Material: Steel
- Type of surface: With powder coating
- Colour: Grey
- Model: With permanent frame
- RAL number: 7035
- Demountable: no
- Degree of protection (IP): IP55
