DELOCK External USB Type-C house 1 x M.2 NVMe SSDs offer as well as 1 x 2.5″ klón function SATA SSD / HDD

This Delock housing adapted for gaming has several ventilation openings, which allow the parallel operation of an M.2 NVMe SSD in 2280, 2260 and 2242 format and the operation of a 2.5″ SATA HDD or SSD via the USB Type-C™ connection interface.

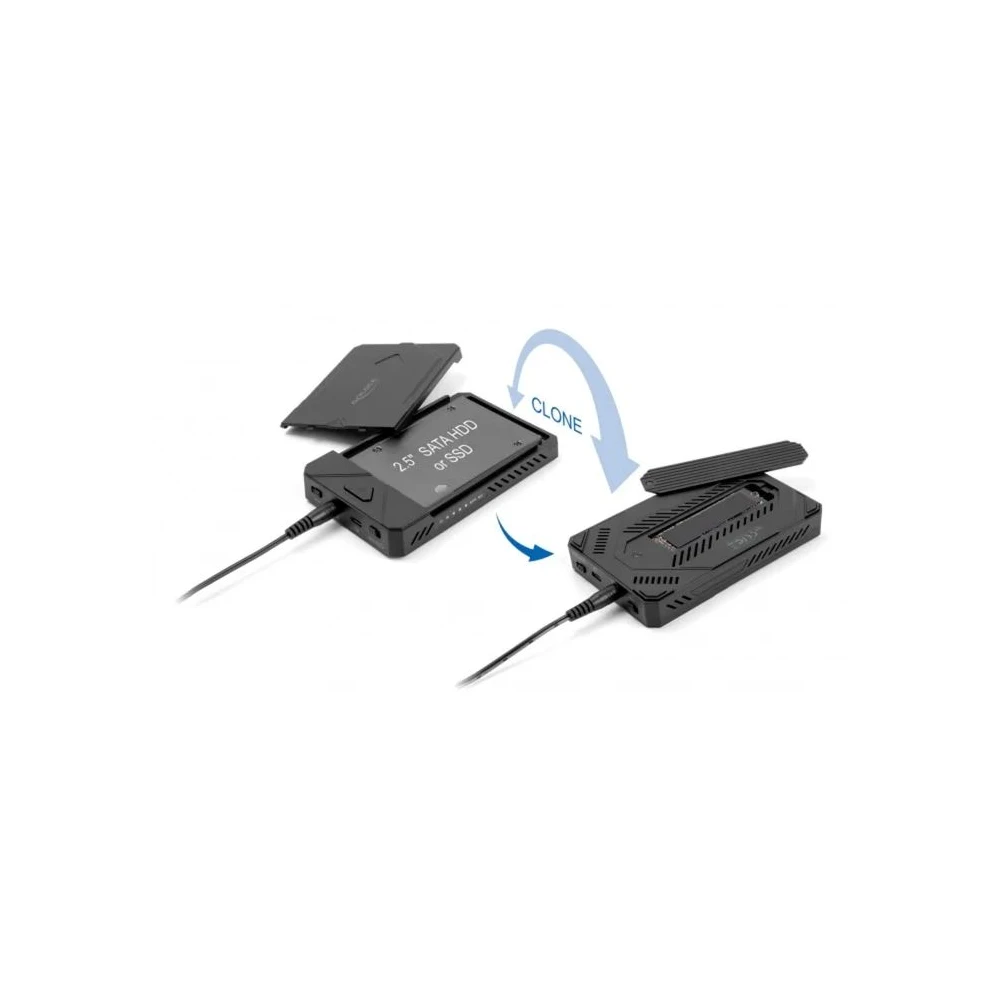

Cloning function without computer
The built-in clone function allows you to clone memory without using a computer. It is possible to clone from NVMe to SATA and from SATA to NVMe.

Increased connectivity
Thanks to the specially designed adapter, the Delock housing can be easily and quickly connected to the A-type USB port. Thus, it can be easily connected to new devices that have a USB Type-C™ female connection interface and also to older devices that only have a USB Type-A connector. The adapter is located directly on the cable and thus cannot be lost.

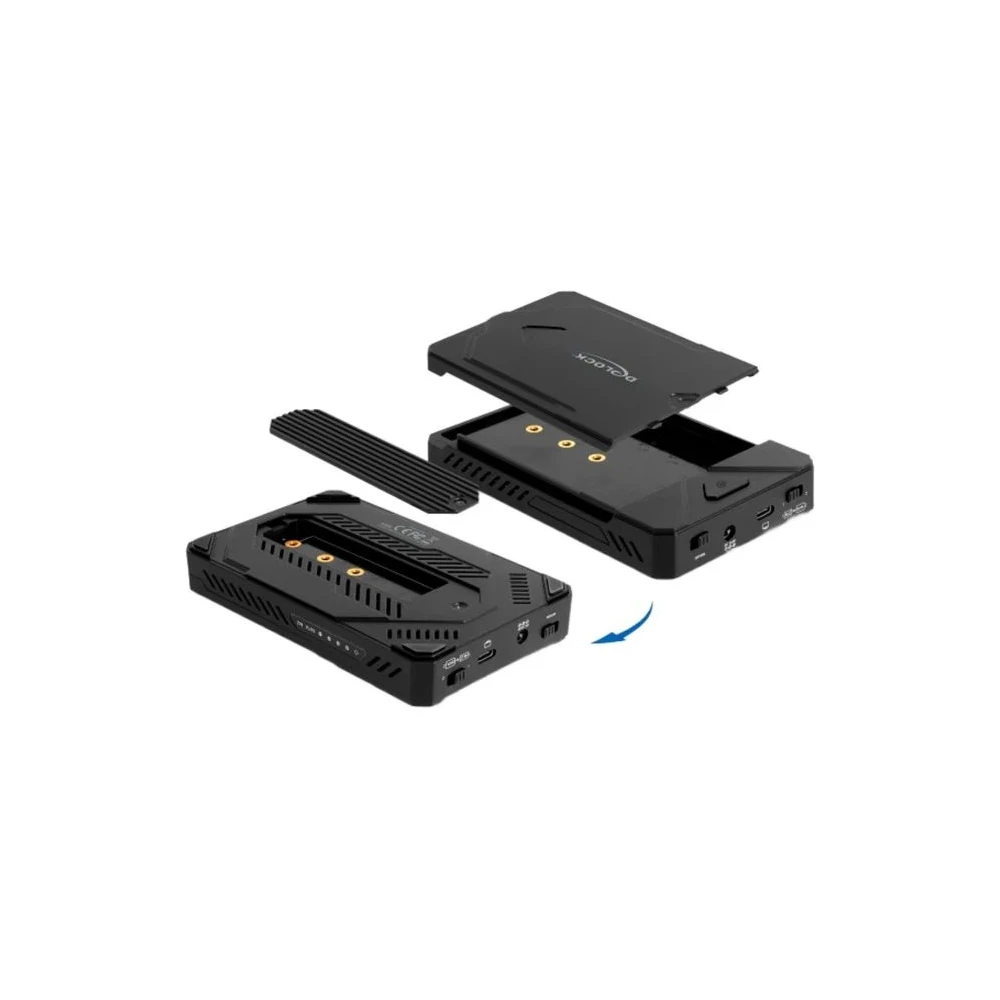

SSD installation

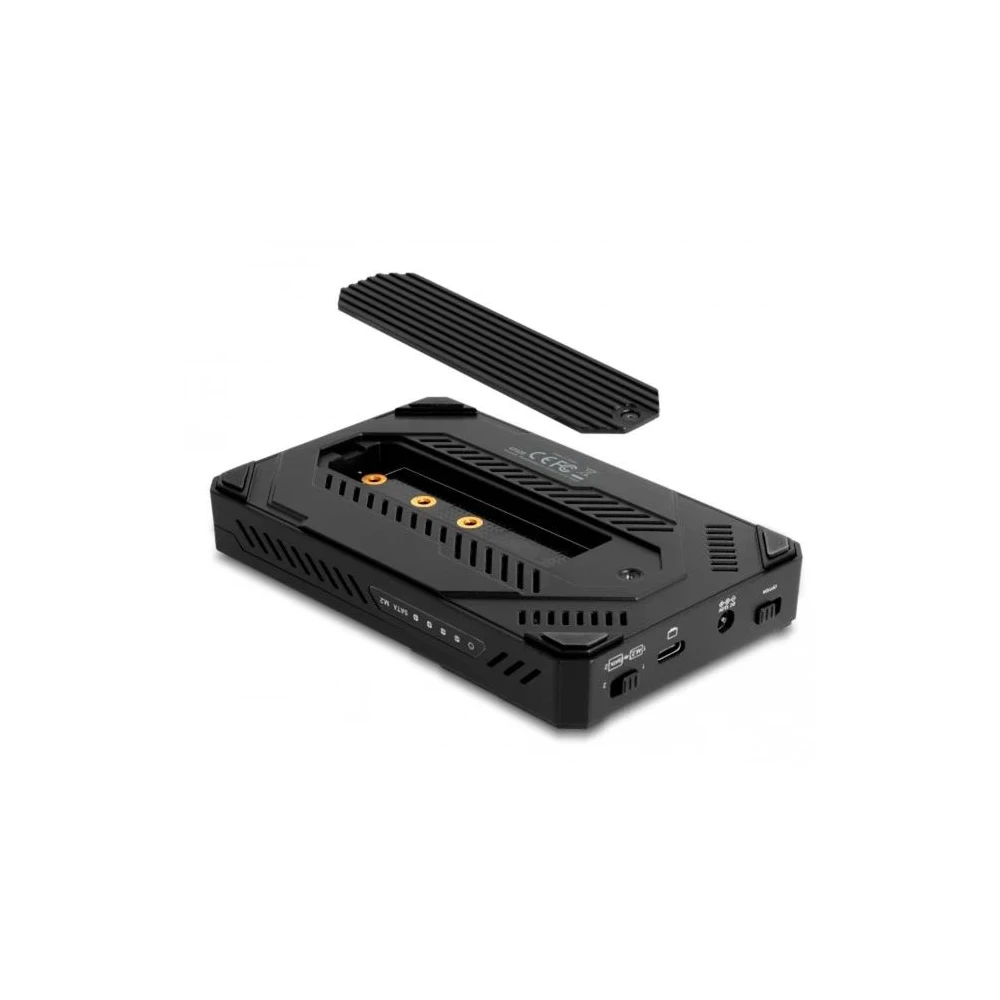

The M.2 SSD is attached to the bottom, only the included heatsink needs to be removed.

Technical data
- Connector: 1 x USB 10 Gbps USB Type-C™ socket, 1 x M.2 M-key slot, 1 x 22-pin SATA 6 Gb/s socket, 1 x DC socket
- Chipset: JMicron JMS581D
- Supports the use of M.2 modules in format 2280, 2260 and 2242 with PCIe (NVMe) based M or B+M key
- Maximum height of components on the module: 1.5 mm application of double-sided assembled modules is supported
- Suitable for 2.5" HDD / SSD
- Supports the use of NVM Express (NVMe).
- Supported by S.M.A.R.T. use
- Supports the use of TRIM
- Supports Native Command Queuing (NCQ) technology
- Up to 10 Gbps data transfer
- Supports the use of UASP
- 7 x LED indicator lights for power, access and copy status
- Suitable for booting
- Function button: 1 x clone button, 1 x main switch, 1 x switch for clone mode
- There are ventilation openings on the sides and bottom
- Dimensions (LxWxH): approx. 140 x 87 x 21 mm
- Hot Plug, Plug & Play

Technical data of the power supply
- Wall power supply
- Input: AC 100 ~ 240 V / 50 ~ 60 Hz / 0.6 A
- Output: 12 V / 2 A
- Ground outside, positive inside
- Size inside: ø approx. 2.5 mm
- Outside dimensions: ø approx. 5.5 mm
- length: approx. 10 mm

System requirements
- Android 11.0 or later
- Chrome OS
- Linux Kernel 5.11 or higher
- Mac OS 11.2.3 or later
- Windows 8.1/8.1-64/10/10-64/11
- iPad Air (4th generation) or later
- iPad Pro (3rd generation) or later
- Surface Pro 7
- PC or notebook computer with a free USB A-type connector
- You are a device with a free USB Type-C™ port or a free Thunderbolt™ 3 port
- A device with a free USB4™ port or a free Thunderbolt™ 4 port

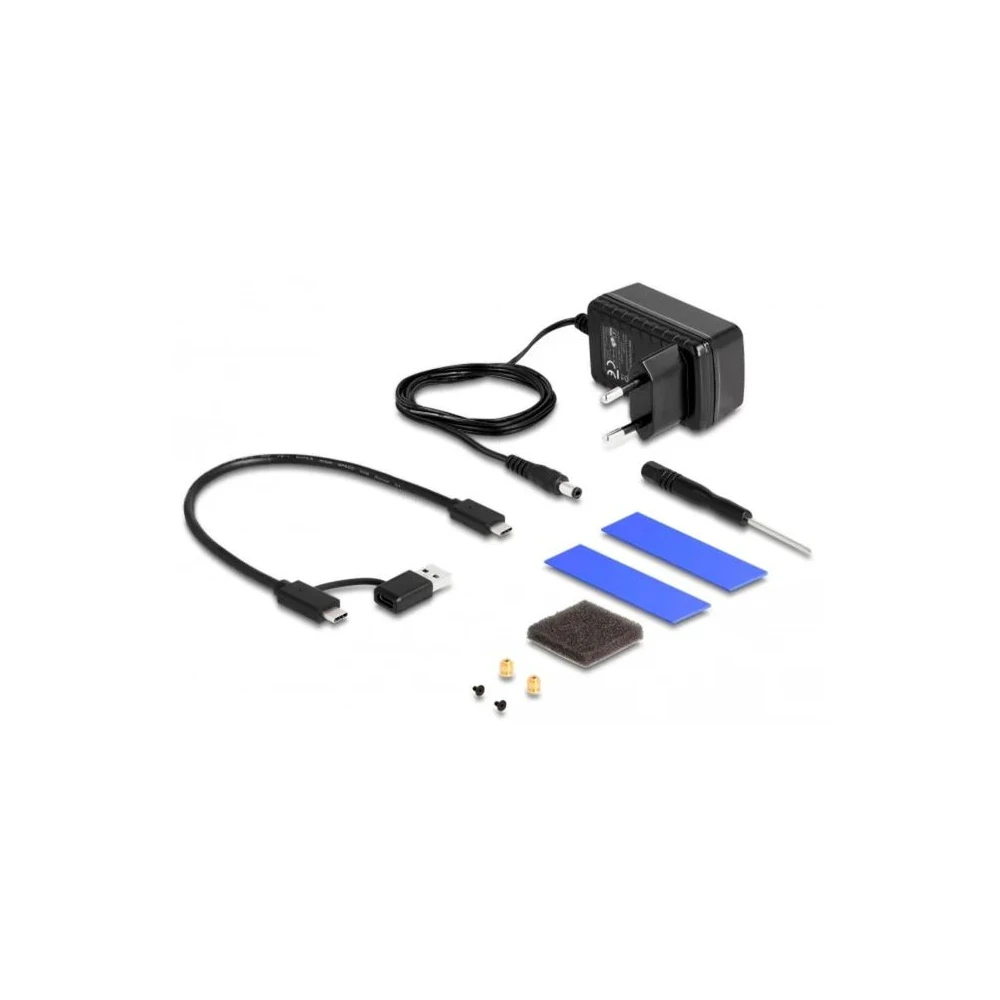

Package contents
- 2.5″ outer casing
- Cable USB-C™ male to USB-C™ male (with A-type USB male adapter), length approx. 30 cm
- 2 x heat conducting inserts
- Screwdriver
- M.2 mounting material
- Spacer foam
- External power supply 12.0 V / 2.0 A
- Instructions for use
