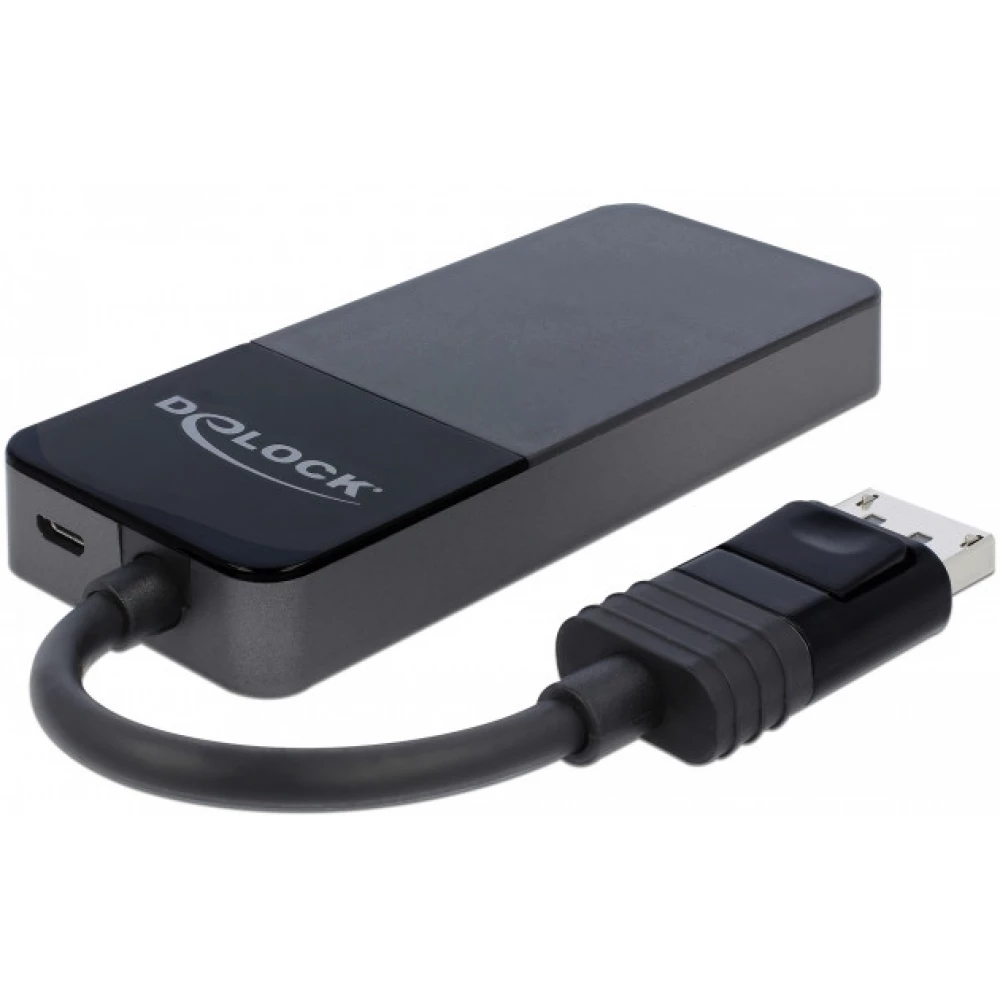

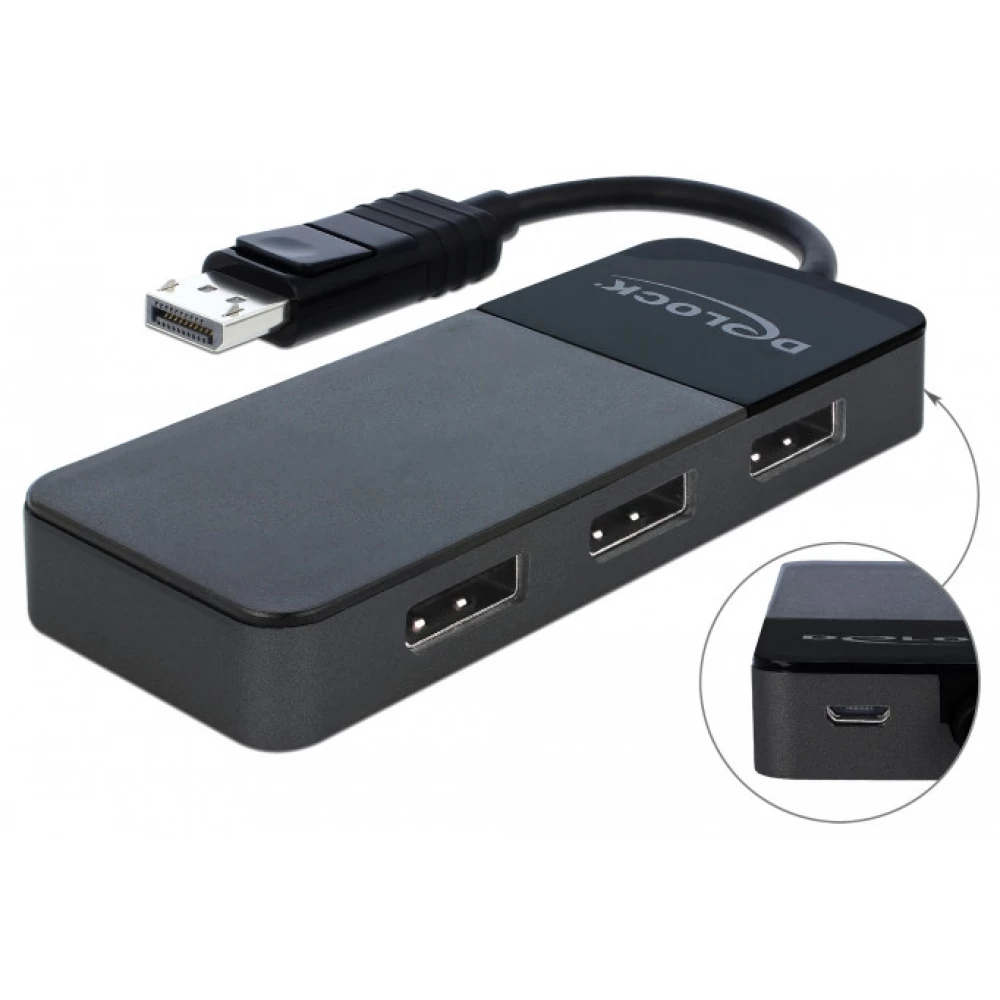

DELOCK DisplayPort 1.4 Splitter Black 10cm 87737

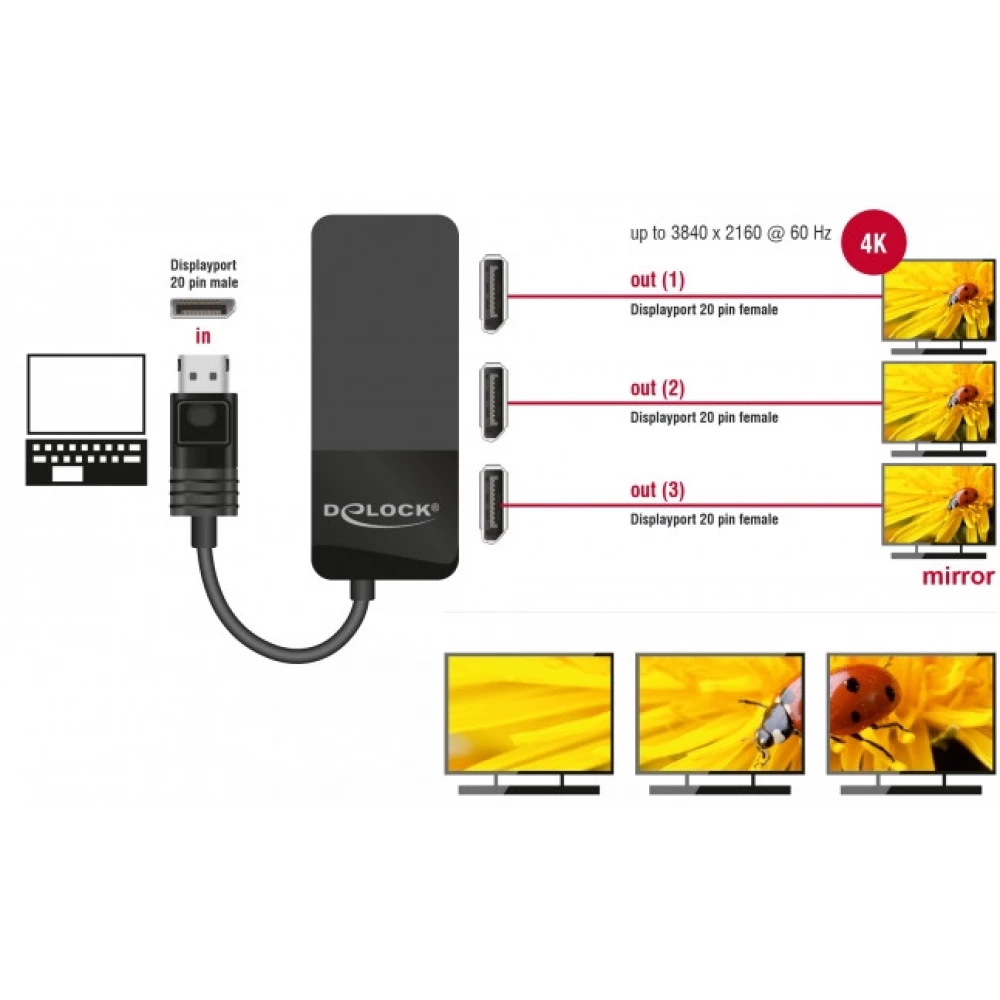

Delock's splitter receives a DisplayPort signal from a PC or laptop and distributes it to three connected displays. Thus, one DisplayPort connection can be used to operate three DisplayPort displays.

Multi-Stream Transport (MST)
The product supports an extended desktop configuration of an MST hub and DisplayPort. This makes it possible to connect multiple monitors into one large display.

Dual Mode DP++
Both outputs are dual-mode capable (DP++), so HDMI or DVI monitors can be connected with the appropriate adapters.

High resolution
Thanks to the higher data transfer rate of DisplayPort 1.4, a total of three screens can operate with 4K resolution (3840 x 2160).

- Connector:
- Input:
- 1 x DisplayPort plug

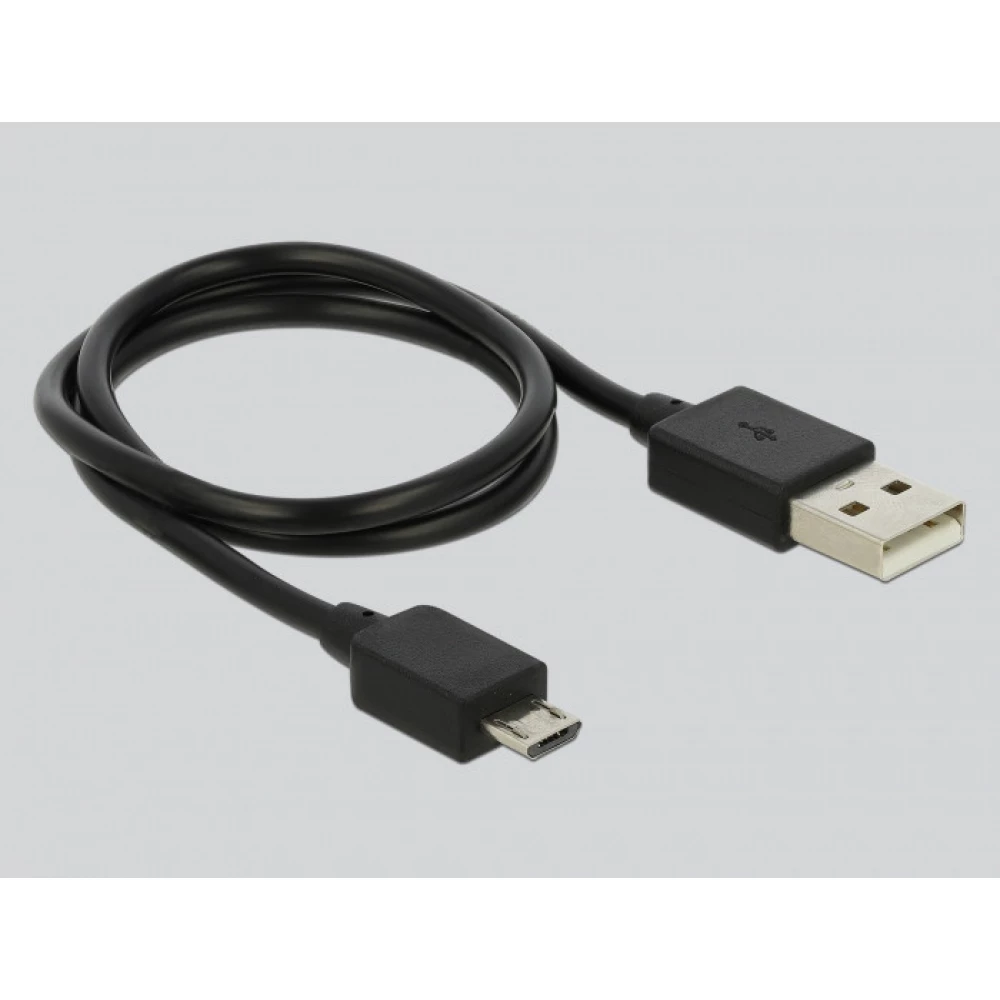

- 1 x USB Micro-B type sleeve (5 V power supply)
- Output:
- 3 x DisplayPort sockets
- Chipset: Synaptics
- DisplayPort 1.4 specification
- Active converter, transmission hub supporting single / multiple stream playback (SST / MST)
- Features: Mirrored or Extended (Windows only)
- Maximum resolution (depending on system and connected hardware)
- DisplayPort 1.4 Multi-Stream Transport (MST):
- 1 player: up to 7680 x 4320 @ 30 Hz
- 2 players: up to 3840 x 2160 @ 60 Hz
- 3 players: up to 3840 x 2160 @ 30 Hz + 1 pc. up to 3840 x 2160 @ 60 Hz
- DisplayPort output supports dual mode DP++
- Supports the use of Eyefinity / Single Large Surface (SLS).
- Supports the use of Display Stream Compression 1.2 (DSC).
- Supports the use of HDR
- Supports HDCP 1.4 and 2.2
- Transmission of audio and video signals
- Colour: Black
- Cable length without connector: approx. 12.5 cm
- Dimensions without cable (LxWxH): approx. 10.5 x 4.3 x 1.4 cm
