    DELOCK adapter Raspberry Pi GPIO pin fejléc Soros RS-232

    Description This adapter made by Delock allows you to connect a serial device via the 4-pin header connector (RX and TX) to the GPIO interface of the Raspberry Pi using the included cable. Then configure...
    Warranty
    We undertake an accessory warranty for the product, which according to the Civil Code is 2 years for consumers, otherwise 1 year.
    NOT ON STOCK
    The product is not available. Please click on the button to receive a notification if it is available again.

    Product description

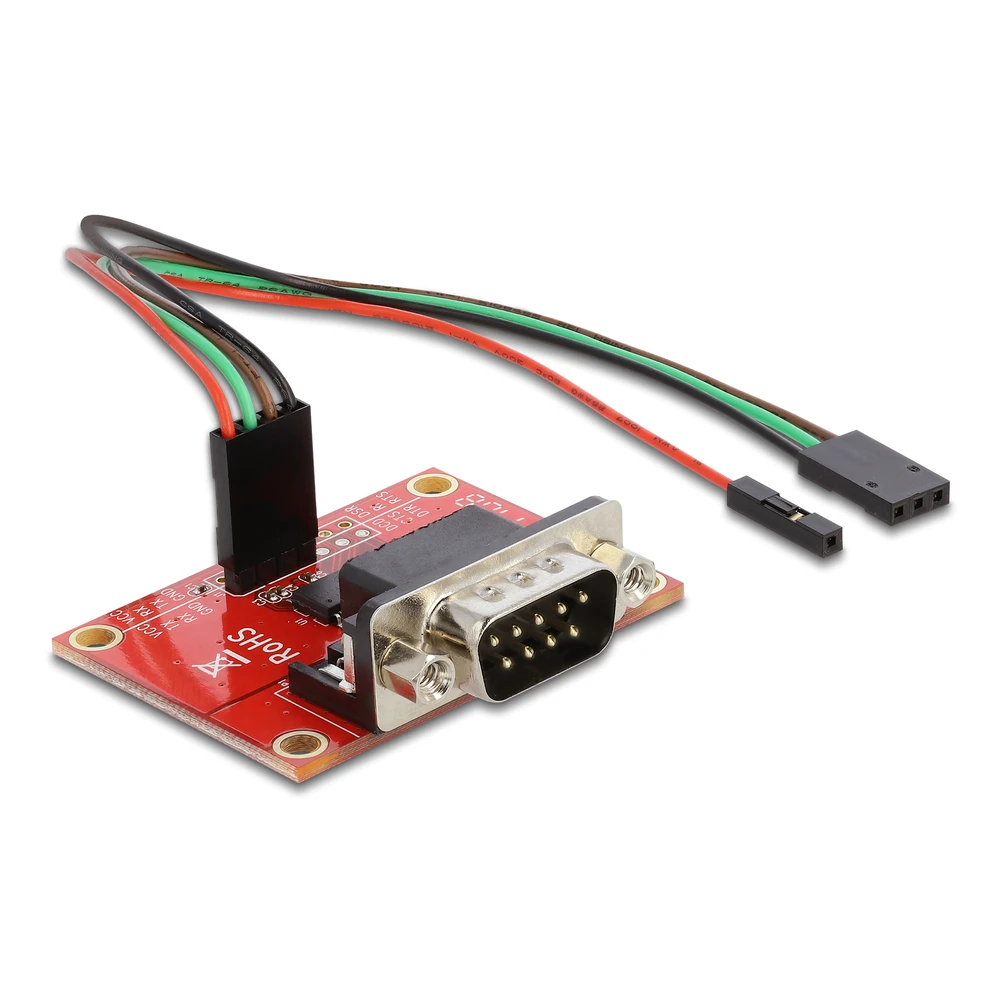

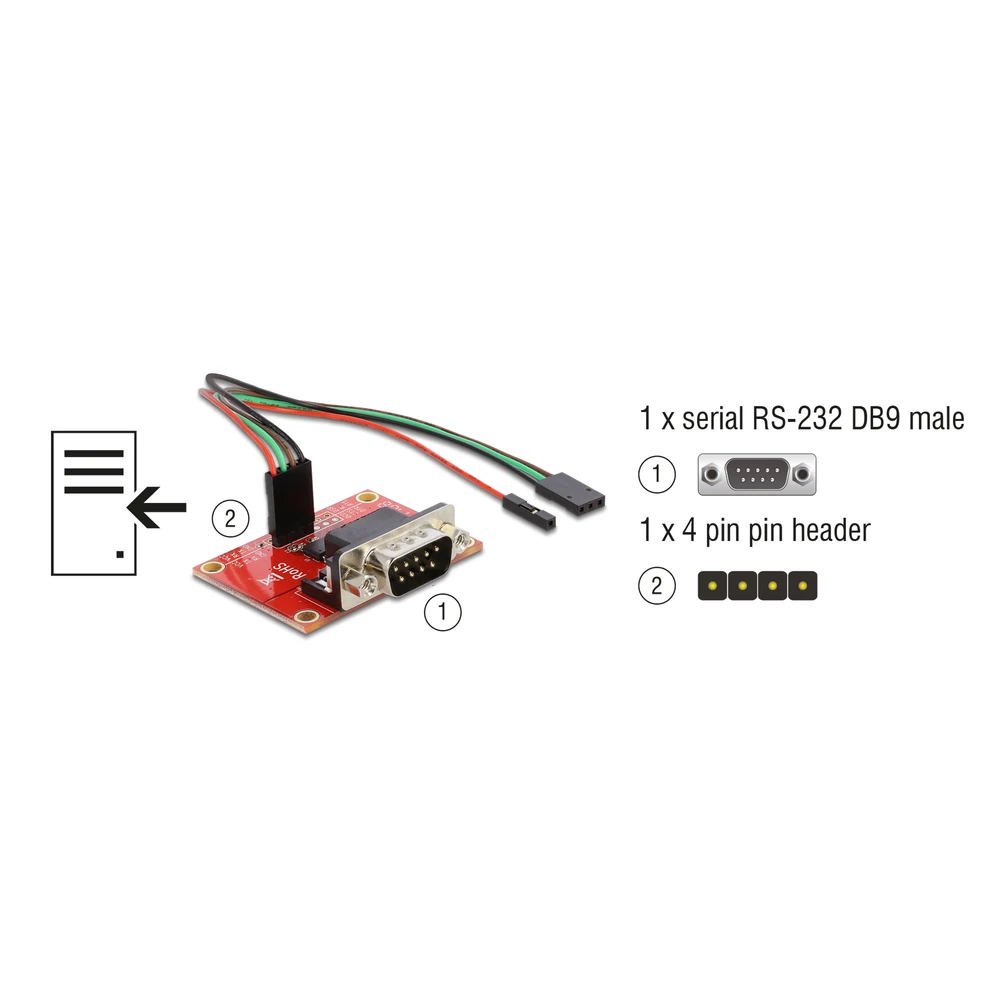

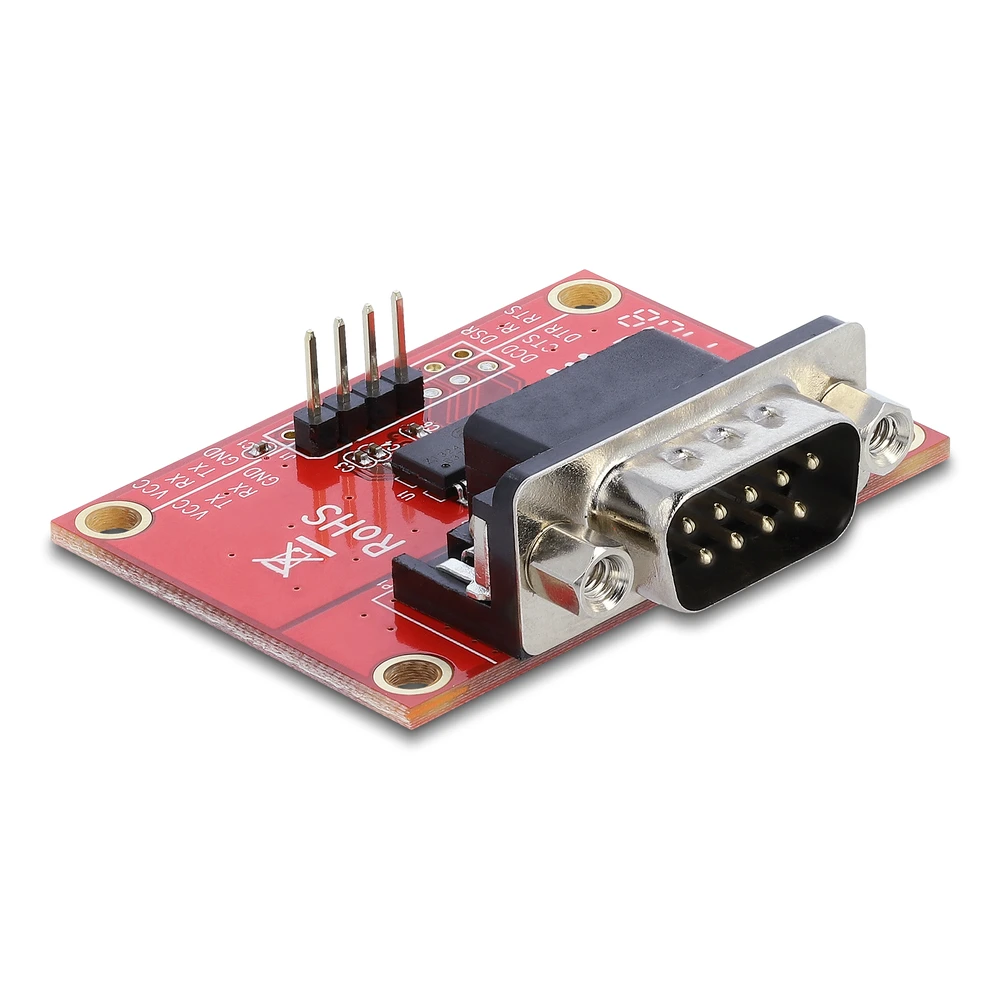

    Description This adapter made by Delock allows you to connect a serial device via the 4-pin header connector (RX and TX) to the GPIO interface of the Raspberry Pi using the included cable. Then configure your system as per your requirement. Specifications - Connectors: RS-232 connectors: 1 x Sub-D 9-pin male RS-232 1 x 4-pin header - Supported data transfer rate up to 230Kb/s - Level shifter from RS-232 3.3V to 5V on Raspberry Pi - Supported input voltage: 2.7V ~ 5.25V - Dimensions (HxWxD): approx. 48 x 43 x 16 mm - Operating system independent, no need to install a driver System requirements - One free pin header connector Package contents - Adapter - Cable pin header 4 pin > 5 pin Package - White box Manufacturer: Delock Width cm: 12 Length cm: 13 Height cm: 3.5
