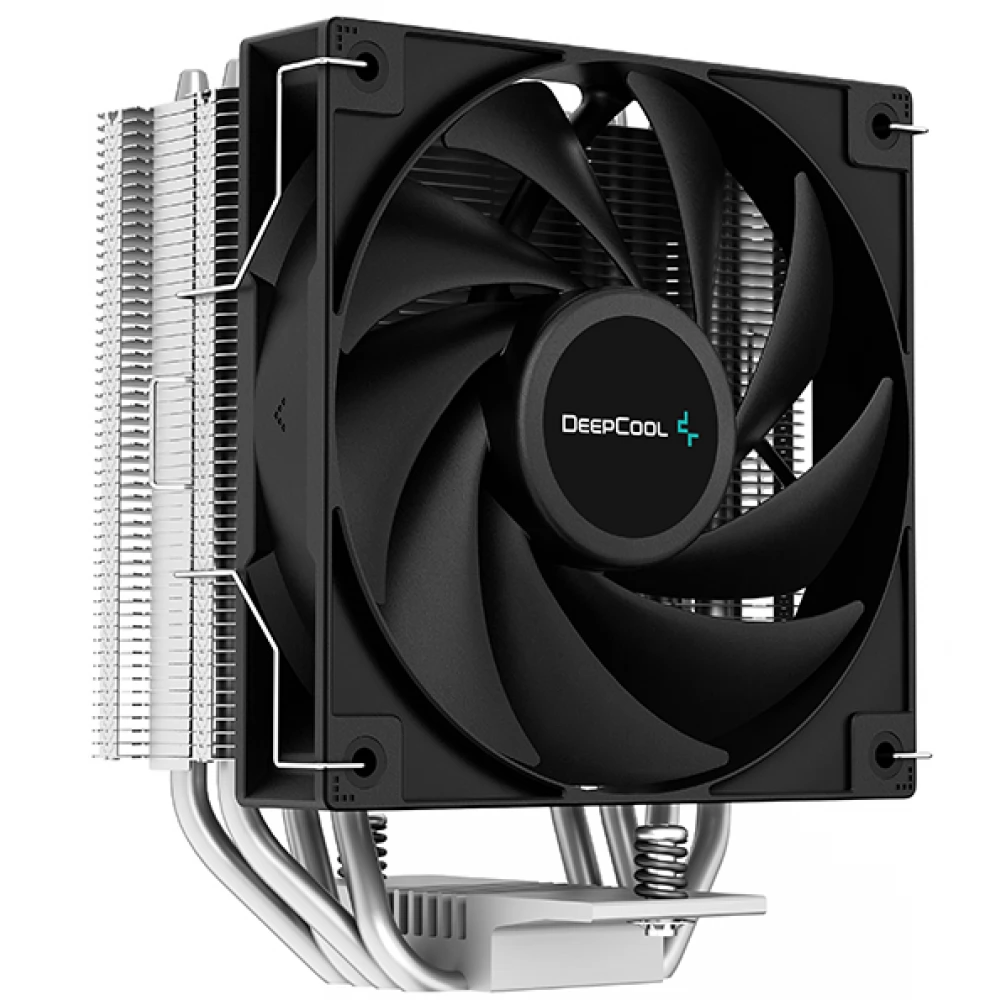

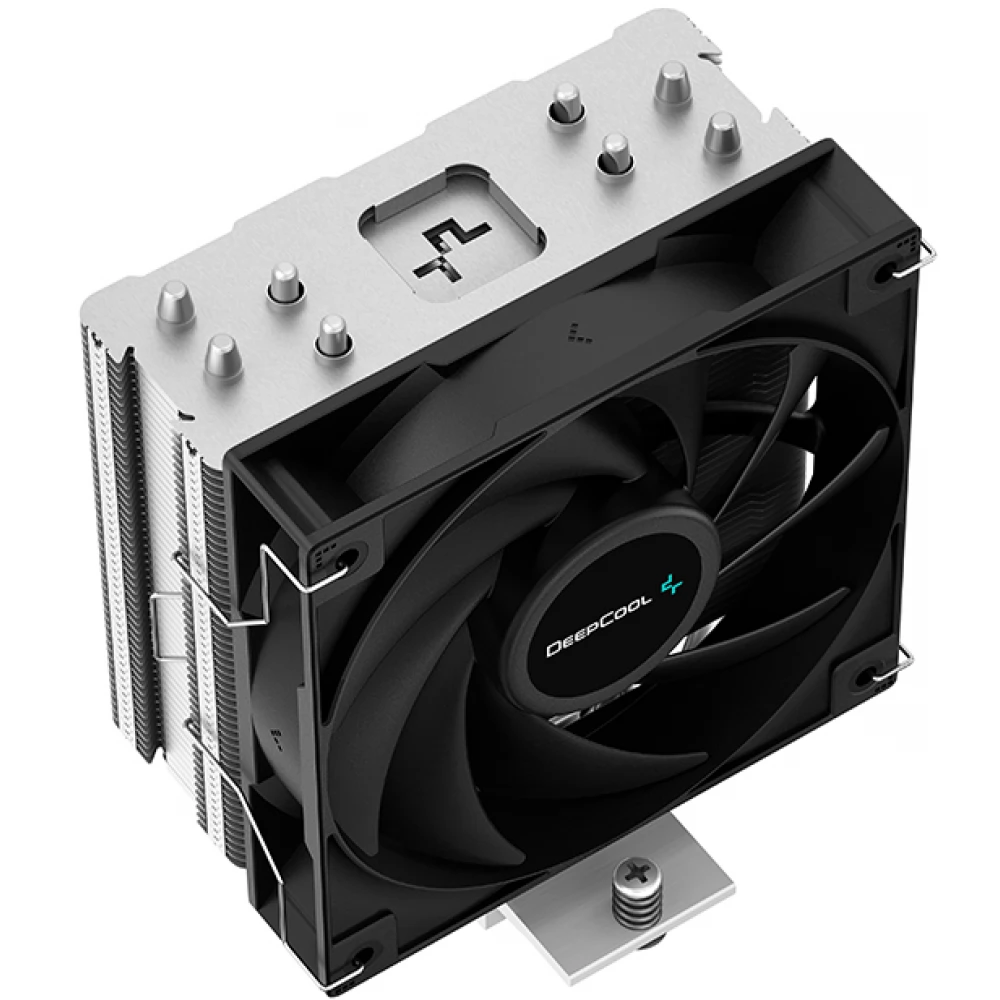

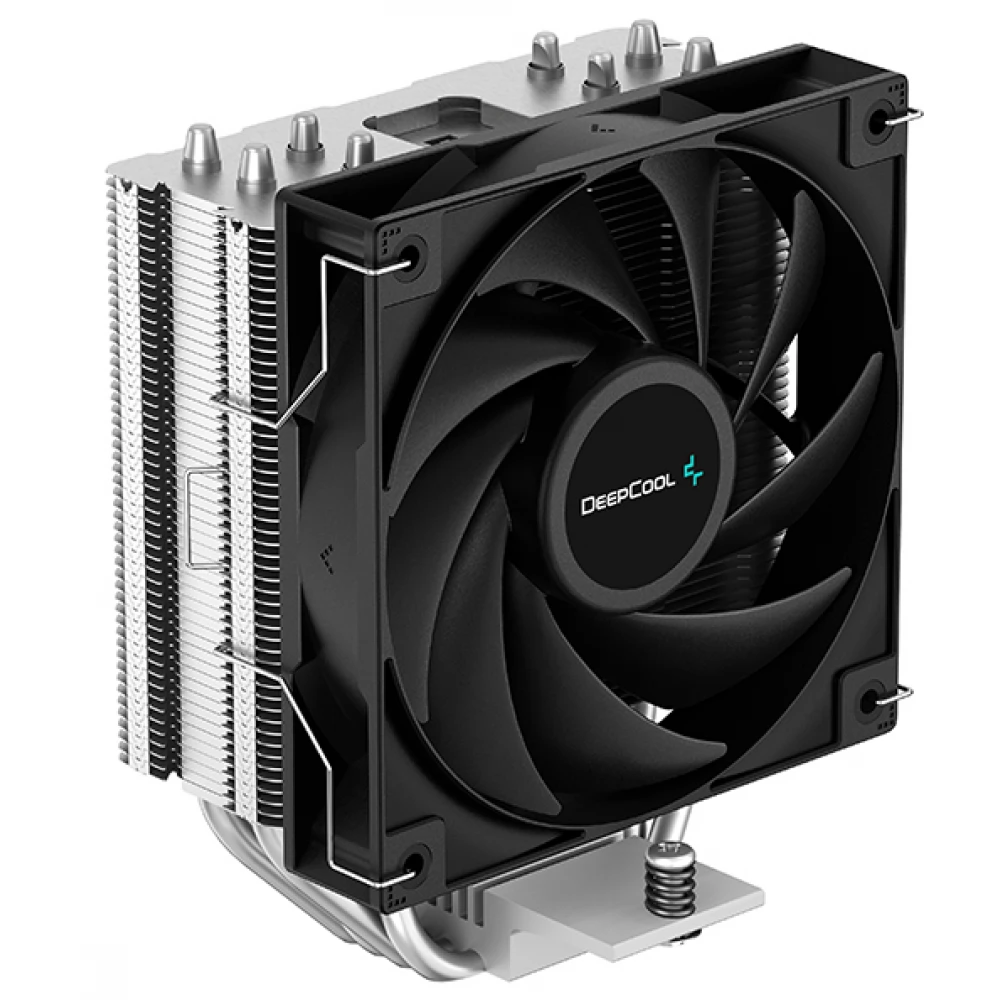

The DeepCool AG400 is a single-tower 120mm CPU cooler that builds on the tradition of high-quality cooling performance, but stripped down to a clean and efficient package.

Excellent thermal performance
Enjoy better system performance by staying cool with up to 220W of heat dissipation power, featuring four direct contact heat pipes that quickly dissipate heat away from the CPU.

Fan mounting system
When installing the AG400, the fan does not need to be disassembled during the process, saving time and energy.

Primary compatibility
The AG400 offers excellent hardware compatibility thanks to its compact design, 100% RAM space, and a slight offset for quick and easy installation. Its excellent thermal performance also enables compatibility with high processing loads.

Balanced two-way heat pipe technology
By optimizing the internal capillary structure and injecting the exact amount of liquid, the heat pipe achieves the best heat dissipation performance, regardless of whether the cooler is in a vertical or horizontal housing. This perfect ratio enables highly efficient phase change in the heat pipe and results in lower thermal resistance over a wide TDP range.

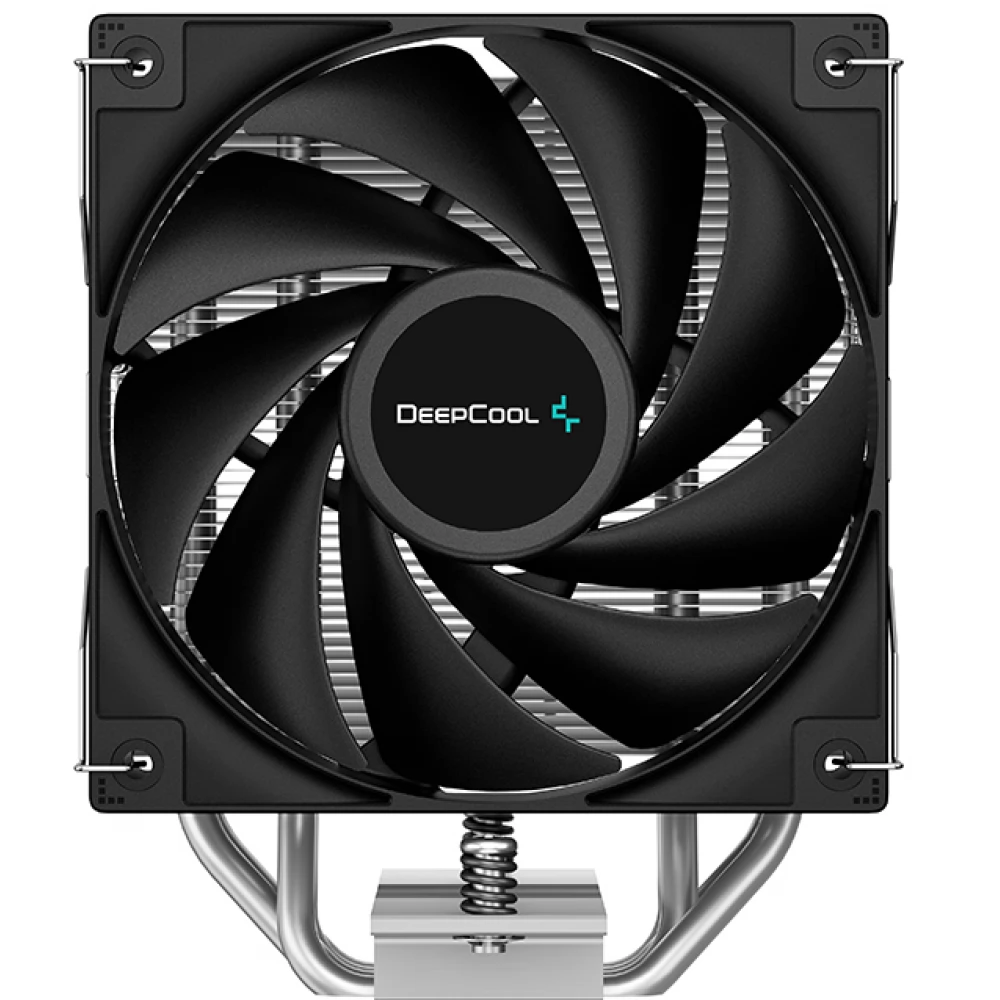

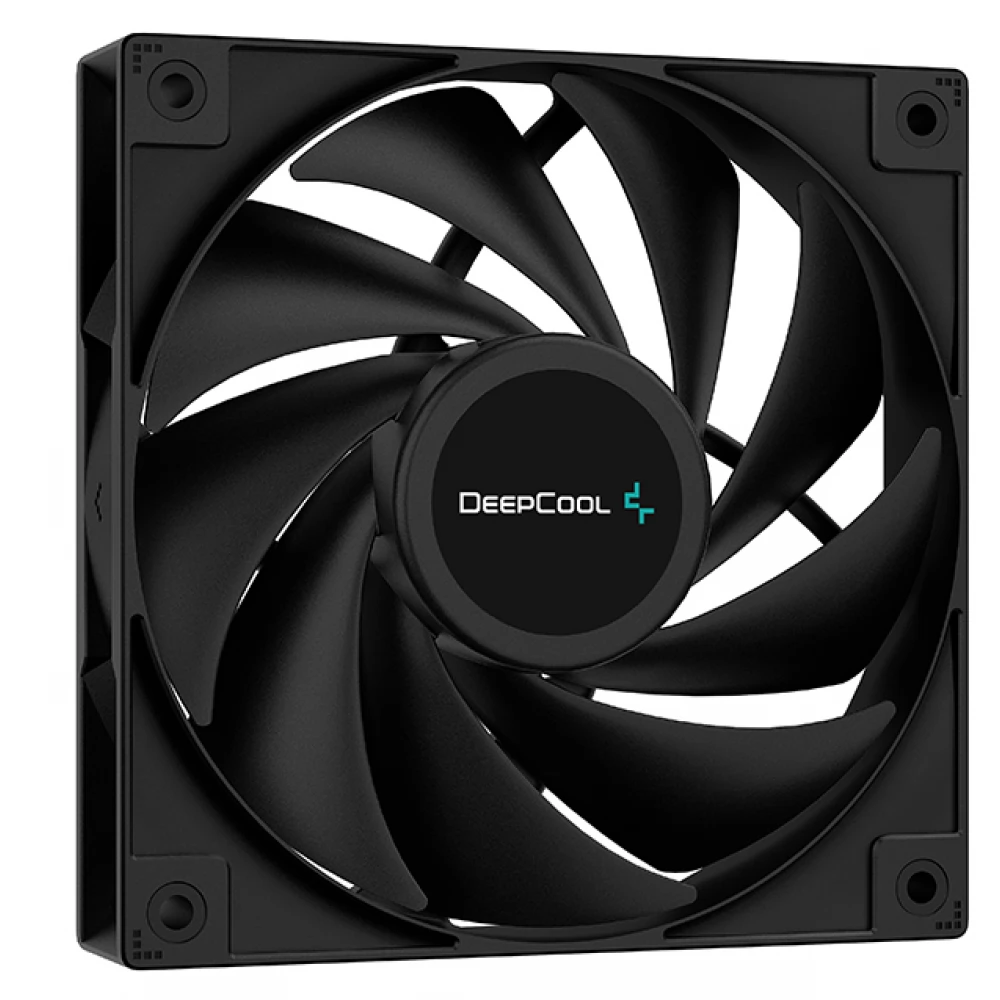

High efficiency fans
Find the optimal balance with automatic PWM support, which provides full performance under load, while quiet efficiency at idle.
• 500-2000 rpm
• ≤31.6 dB(A)
• 75.89 CFM

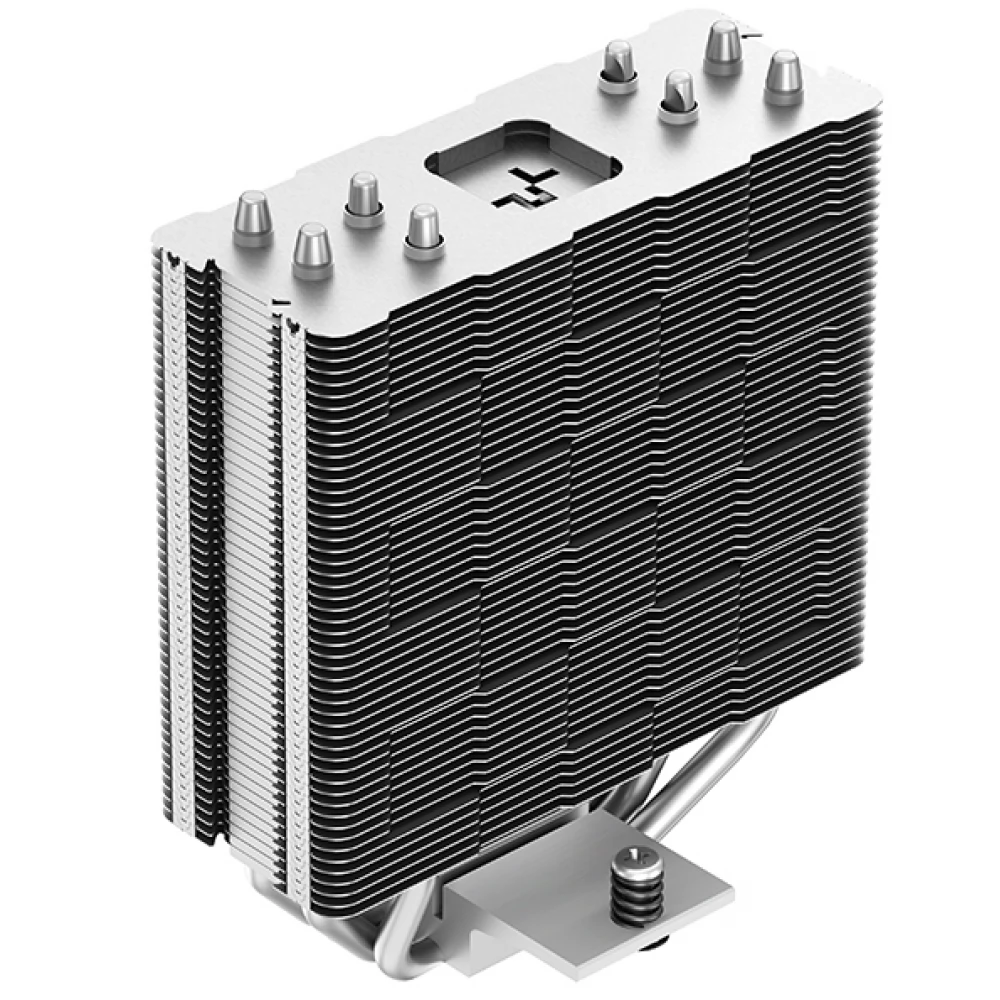

Array of matrix fins
The heatsink's high-quality aluminum fins are densely spaced for ideal heat dissipation and have a unique "checkerboard" design.

It's simple and safe

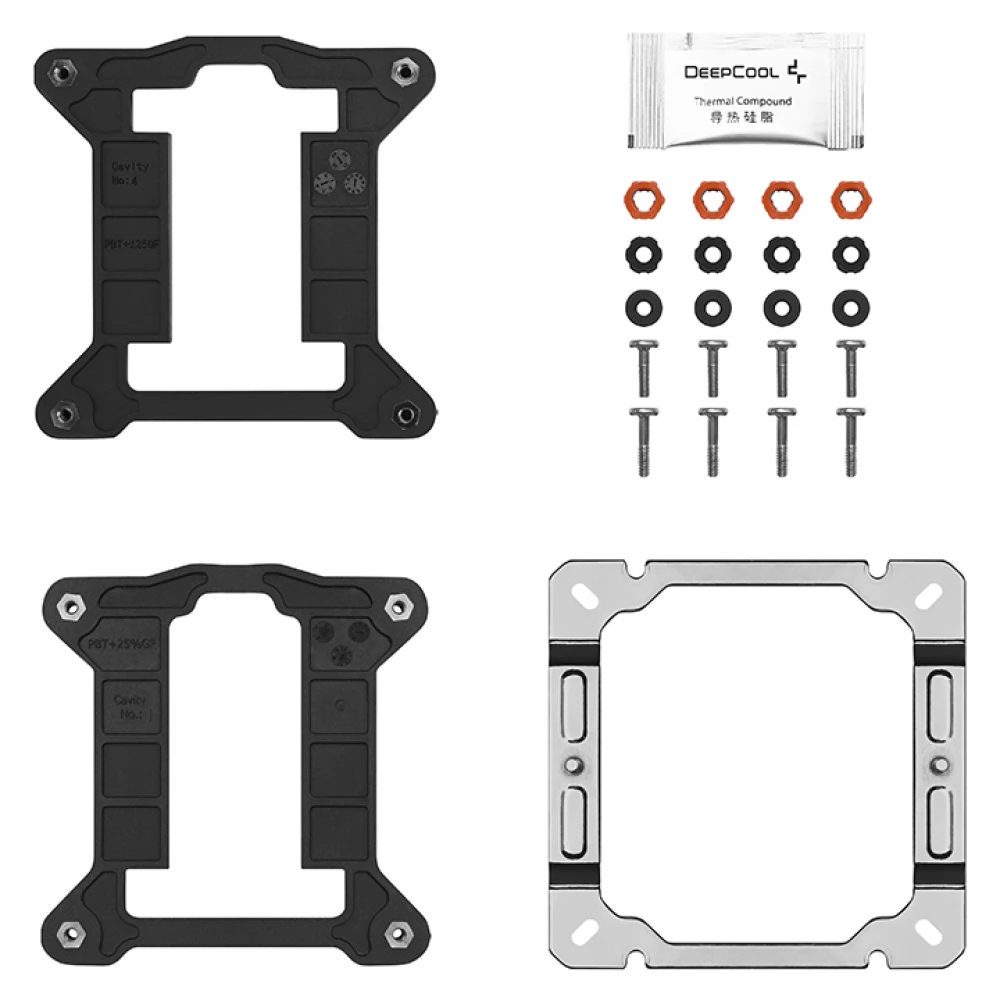

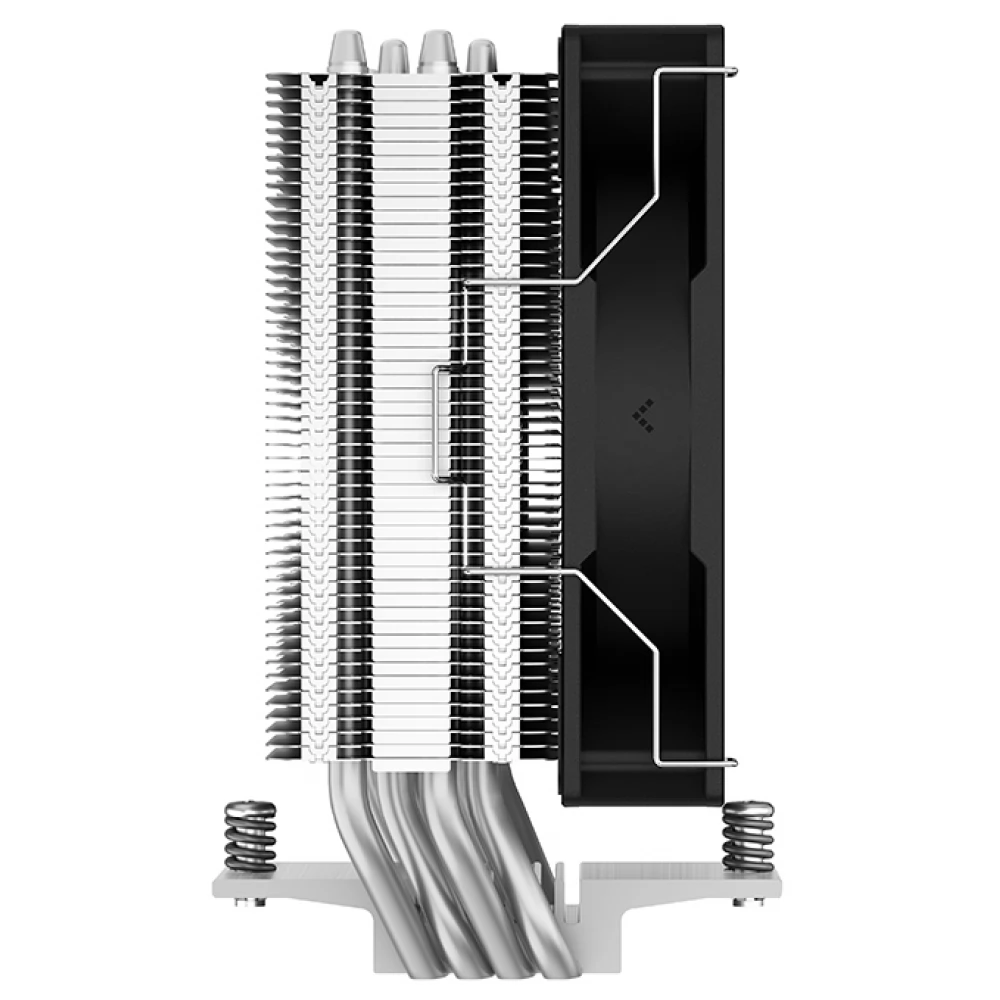

The included mounting brackets support both Intel and AMD platforms with a simple five-step installation process that provides high contact pressure. The offset design of the heat pipes ensures that the cooler can also be installed with the fan already connected.

Technical data
- Product dimensions (L × W × H): 125 × 92 × 150 mm
- Net weight: 614 grams
- Bearing type: Hydro bearing
- Cooling fin dimensions (L × W × H): 120 × 92 × 150 mm
- Heat pipe: Ø6 mm × 4 pcs
- Fan dimensions (L × W × H): 120 × 120 × 25 mm
- Fan speed: 500~2000 RPM±10%
- Fan airflow: 75.89 CFM
- Fan air pressure: 2.53 mmAq
- Fan noise: ≤31.6 dB(A)
- Fan connector: 4-pin PWM
- Fan nominal voltage: 12 VDC
- Rated fan current: 0.17 A
- Fan energy consumption: 2.04 W

In conclusion, the DeepCool AG400 is a high-quality cooling system that performs best during heavy workloads and games. It is quiet, efficient, easy to install and maintain, and has a stylish design.
