CYBERPOWER PR3000ERT2U

CyberPower PR3000ERT2U's rack-mountable design ensures power supply for home theater systems, multimedia devices, IT equipment, computers, workstations, NAS/storage devices, telecommunications devices, network devices and surveillance systems. The uninterruptible power supply adopts a linear interactive topology with automatic voltage regulation (AVR) and offers a stabilized pure sine wave to ensure high power quality.

The UPS has an output power factor of 1, which means it can connect to more critical loads than a conventional UPS. It also enables battery management technology to optimize battery life by balancing battery draw voltage. Two-phase battery charging can charge the battery quickly and safely. Hot-swappable batteries allow easy maintenance without power outages. The multi-function matrix LCD supports intuitive operation and quick configuration. The LCD panel can be rotated according to installation requirements.

- Line interactive UPS topology
- Energy-saving technology
- Active PFC compatible
- Pure sine wave output
- Night mode design
- Battery replacement without tools
- Battery management technology
- High output power factor
- Automatic Voltage Regulation (AVR)
- Overload protection
- Critical/non-critical load outputs
- Hot-swappable batteries
- Surge and spike protection
- EMI and RFI filtering
- LCD status indicator
- USB connection port
- Serial connection port
- Emergency Power Off (EPO) port
- PowerPanel Management software
- SNMP/HTTP remote monitoring capability (optional)

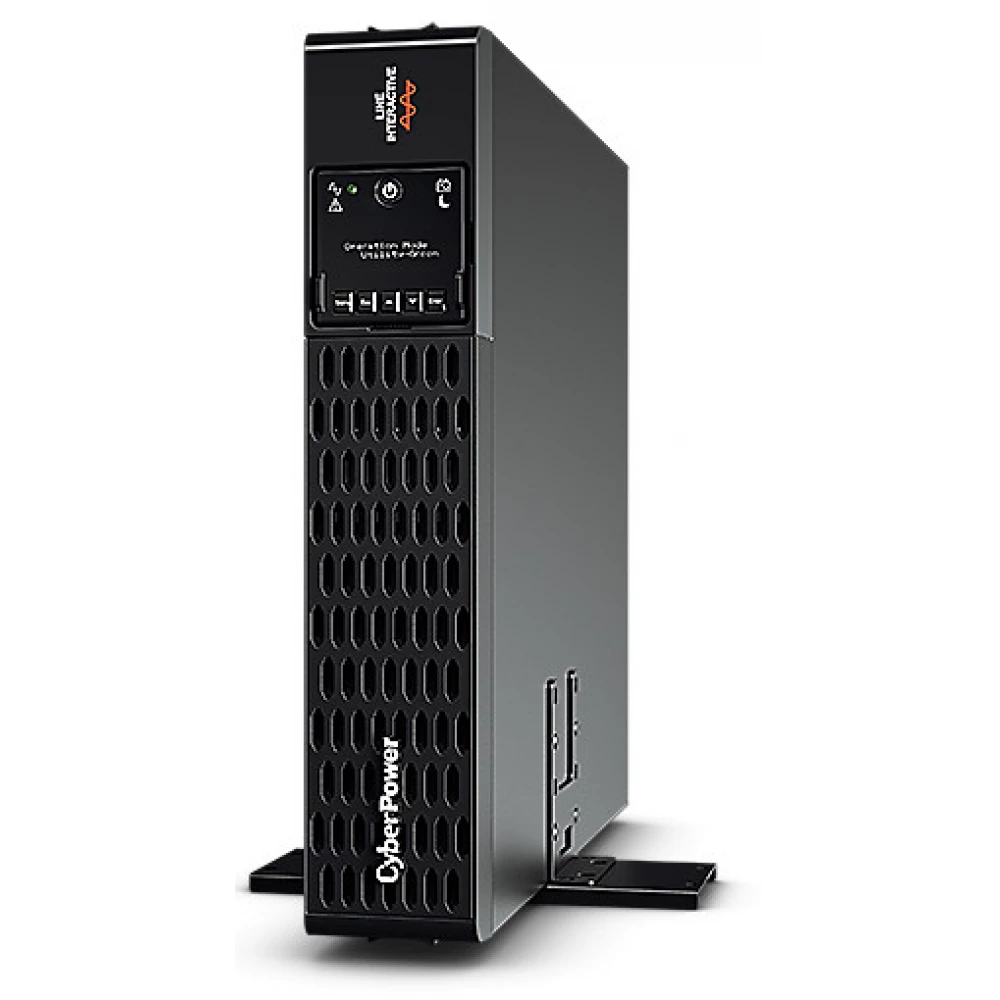

- Rack/Tower convertible configurations

Specifications
- Phase: Single phase
- UPS topology: Line interactive
- Energy-saving technology: GreenPower UPS bypass technology
- Energy Star certified
- Active PFC compatibility
- Generator compatibility
- Nominal input voltage: 220 V, 230 V, 240 V AC
- Input voltage range: 159 V ~ 288 V ac
- Adjustable voltage range: 151 V ~ 302 V ac
- Input frequency: 50 Hz ± 3%, 60 Hz ± 3%
- Input frequency detection: automatic detection
- Input connector type: IEC C20
- Detachable power cable plug type: IEC C20, Schuko, UK
- Network cable length: 2.4 m
- Capacity: 3000 VA/3000 W
- Battery waveform: pure sine wave
- Battery voltage: 220 V ± 5%, 230 V ± 5%, 240 V ± 5%
- Battery frequency: 50 Hz ± 1%, 60 Hz ± 1%
- Power factor: 1
- Automatic voltage regulation (AVR): Double Boost, Single Buck
- Overload protection: internal current limitation, circuit breaker

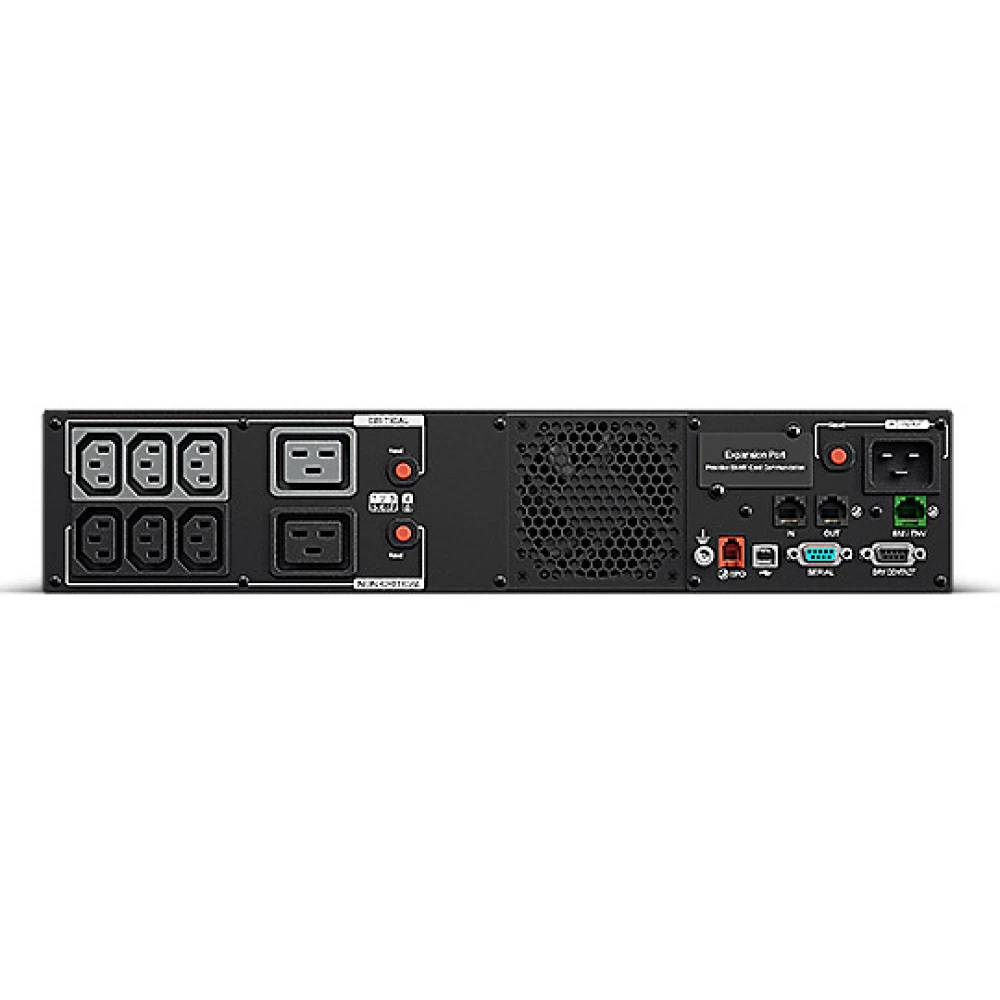

- Output type: 6 IEC C13, 2 IEC C19
- Critical load output: 4 units
- Non-critical load output: 4 pieces
- Typical transfer time: 4 ms
- Battery operating time: Half load: 6.3 minutes, Full load: 1.4 minutes
- Typical battery charging time: 3 hours
- Start on battery
- Built-in battery management module
- Battery replaceable by the user and during operation
- Battery type: Closed lead-acid
- Replacement battery pack: 1 RBP0129
- Surge suppression: 2430 J
- EMI/RFI filtering
- Network protection, RJ45: 1 input, 1 output
- LCD orientation: rotatable LCD panel
- LCD information display: Operation type, power status, battery status, charging status, error and warning, other information, event and log
- LCD setting and control: mode setting, alarm setting, input and output, battery setting, communication, language
- LED indicators: power on, line mode, battery mode, UPS error, night mode
- HID compatible USB port: 1 piece
- Serial port: RS232
- Dry contact with the relay
- Emergency Power Off (EPO) port
- Sound signals: battery mode, low battery, overload, overcharge, overheating
- Management cable: 1 USB cable, 1 serial cable, 1 EPO cable
- Power Management software: PowerPanel Business
- SNMP/HTTP remote monitoring: optional RMCARD205
- Design: Rack/tower
- Cover: Metal
- Colour: Black
- Rack mounting rail and tabs
- Size: 433 mm x 86.5 mm x 500 mm
- Weight: 32.3 kg
- Installed rack height: 2U
- Operating temperature: 0°C ~ 40°C
- Operating humidity: 0% ~ 95%
- Storage temperature: -15°C ~ +45°C
- Storage humidity: 0% ~ 95%
- Audible noise at a distance of 1 meter from the surface of the unit: 57.5 dBA
