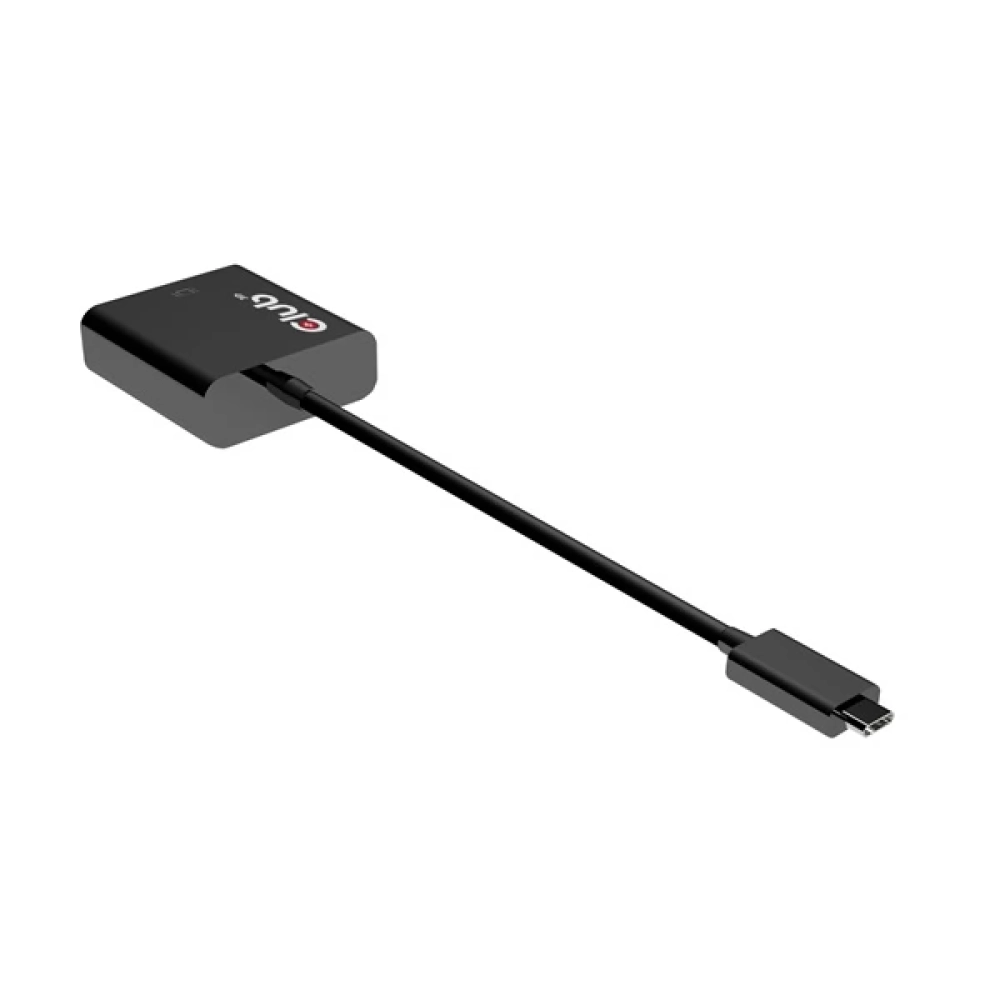

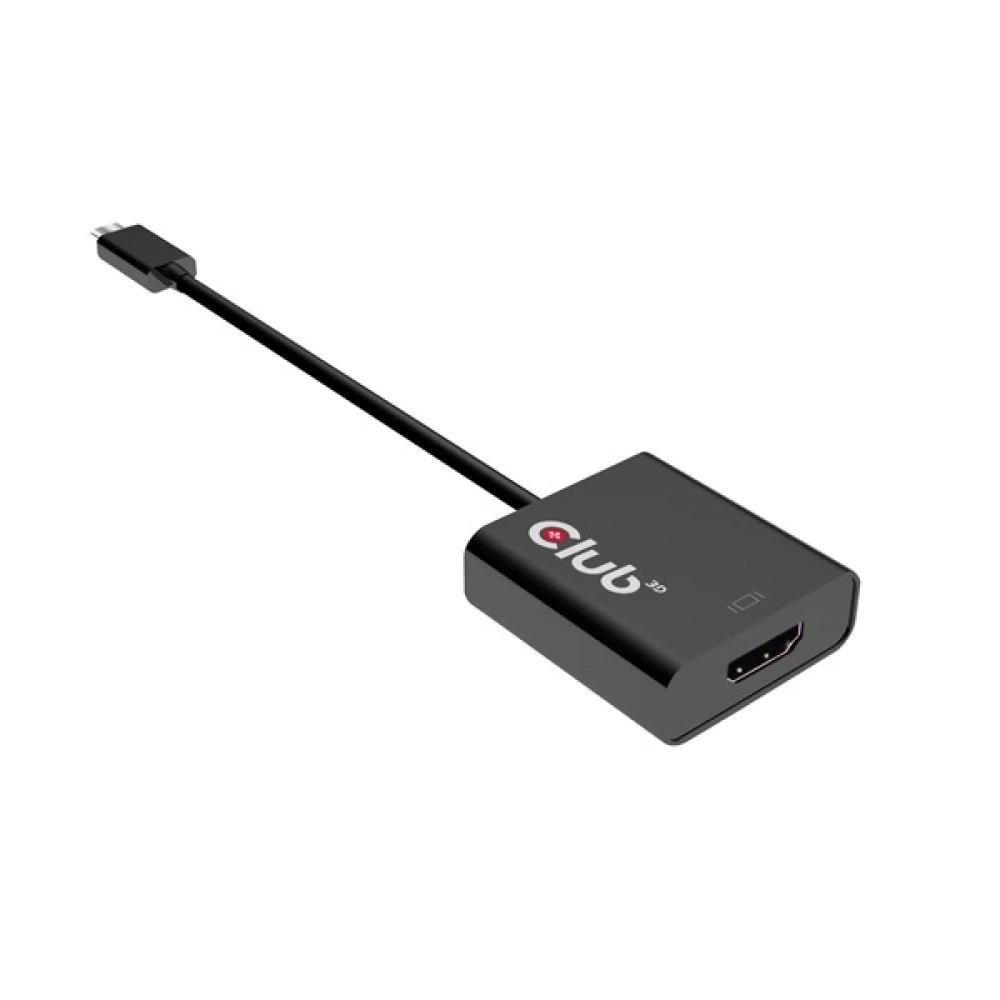

CLUB3D USB 3.1 Type C HDMI 2.0 Converter Black 10cm CAC-2504

USB 3.1 TYPE C - HDMI 2.0 UHD 4K 60Hz Active Adapter
CAC-2504-Club 3D CAC-25504 is an Active HDMI ™ signal converter. The USB 3.1 Type C - HDMI ™ 2.0 UHD 4K 60Hz HDR Active Adapter is the simplest solution for connecting USB 3.1 TYPE C Source Tools with HDMI ™ 2.0 with a compatible UHD monitor, television or projector. It supports HDR video quality to play deep color media content. DisplayPort ™ receives up to 5.4 Gbps per band for 4 lanes.

Supports 4K UHD resolution at 60 Hz.
The USB 3.1 Type C - HDMI ™ 2.0 UHD 4K 60Hz Active Adapter supports up to 4K @ 60Hz UHD resolution for a clear, sharp image. Supporting 60 frames per second provides exceptionally smooth video. Use adapter for games, watch videos or internet browsing from a USB 3.1 Type-C compatible source system (Ultra) on a high-resolution monitor or TV. The adapter, which supports up to 8 sound channels, provides high-definition of digital sound and image quality.

Compatible with all operating systems
The USB 3.1 Type C-HDMI ™ 2.0 UHD 4K 60Hz HDR Active Adapter supports all USB 3.1 Type-C source system with DisplayPort ™ Alternate Mode mode and operating systems including Apple OS X, Windows 8.1 and 10, and Google Chrome OS.

Please see your device's instructions to confirm your USB-C port specifications and operation.

Technical data
Model:
Product name: USB 3.1 Type C - HDMI ™ 2.0 UHD 4K 60Hz HDR Active Adapter
Product series: Adapter
Item number: CAC-2504
EAN Code: 8719214471026
UPC code: 841615101214
Features:
• Reversible C type USB connector
• DisplayPort ™ 1.4 receiver, up to 5.4 Gbps connection speed, HBR2/HBR/RBR
• Managing a video stream
- up to 600 MHz double pixel road and 16BPC
- RGB/YCBCR 4: 2: 2/4: 2: 0 pixel format
- horizontal extension of VESA CVT to CEA timings (according to DP ™ 1.4)
• DisplayPort ™ - HDMI ™ stereoscopic 3D transmission
- Frame sequential, cumulative top-down conversion
- Passing 3D formats
• Manage audio data stream
- LPCM and compressed sound code formats
- Maximum sound sampling frequency 192 khz x 8 channels or 768 khz x 2 channels
• HDCP support
- HDCP 1.3 - HDCP 1.4 Play feature
- HDCP 2.2 - HDCP 1.4 and 2.2 Play feature
• HDMI ™ transmitter
- meets 2.0 version of HDMI ™ specifications
- 600MHz Max TMDS Character Clock
- High Daynamic Range (HDR) supports both static and dynamic HDR.
- CEC Support - Awaiting, Tunnel
• Maximum video resolution and color depth on HDMI ™ output
- 4K 60Hz YCBCR 4: 2: 2, up to 12bpc
- 4K 60Hz YCBCR 4: 2: 0, up to 12bpc
- 4K 30Hz RGB/YCBCR 4: 2: 2, up to 12bpc
Note: To operate HDR, the source system must support DisplayPort ™ 1.4
Alternative mode and screen must support HDR and/or HDMI ™ 2.0 A or B.
Input:
Type C USB plug
Output:
HDMI ™ 2.0 Mother
OS Support:
Windows 8.1, 10, Apple OS X
Other information:
• Packaging size: 18 x 11 x 1.8 cm / 7.1 x 4.3 x 0.71 inches
• Weight of the Polystation: 10 gr.
• Product weight: 21 gr.
• Total weight: 31 gr.
• Adapter size: 180 x 37 x 15 mm.
• meets Rohs, FCC and CE EMI requirements
• Made in China

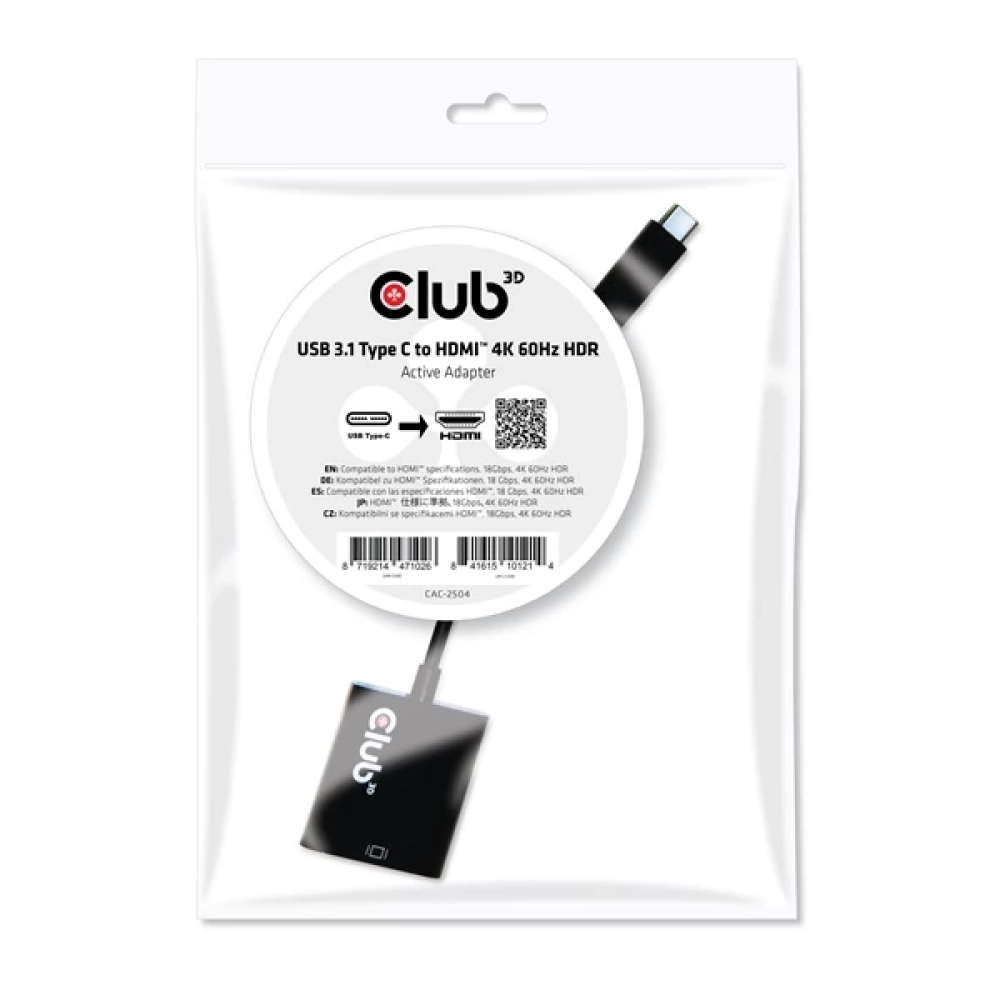

In the box:
Club 3D CAC-25504 USB 3.1 TYPE C HDMI ™ 2.0 UHD 4K 60Hz HDR Active Adapter
