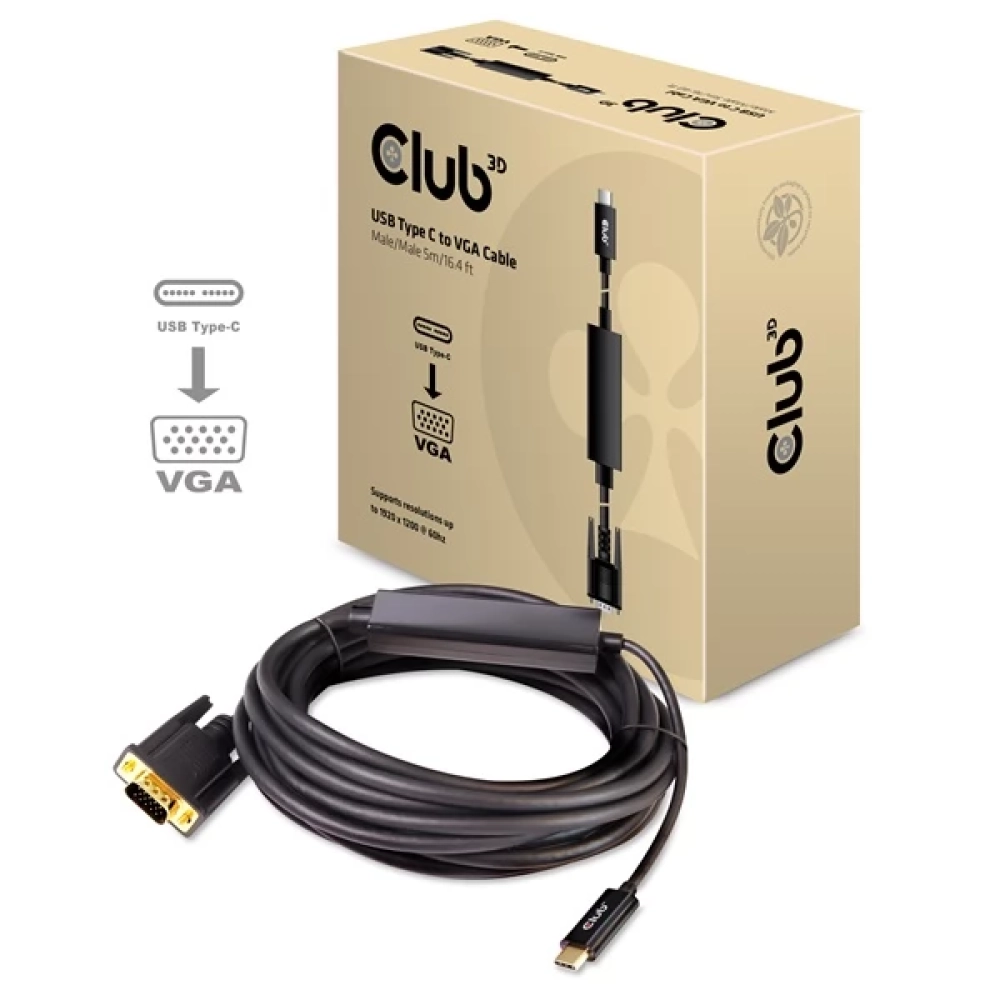

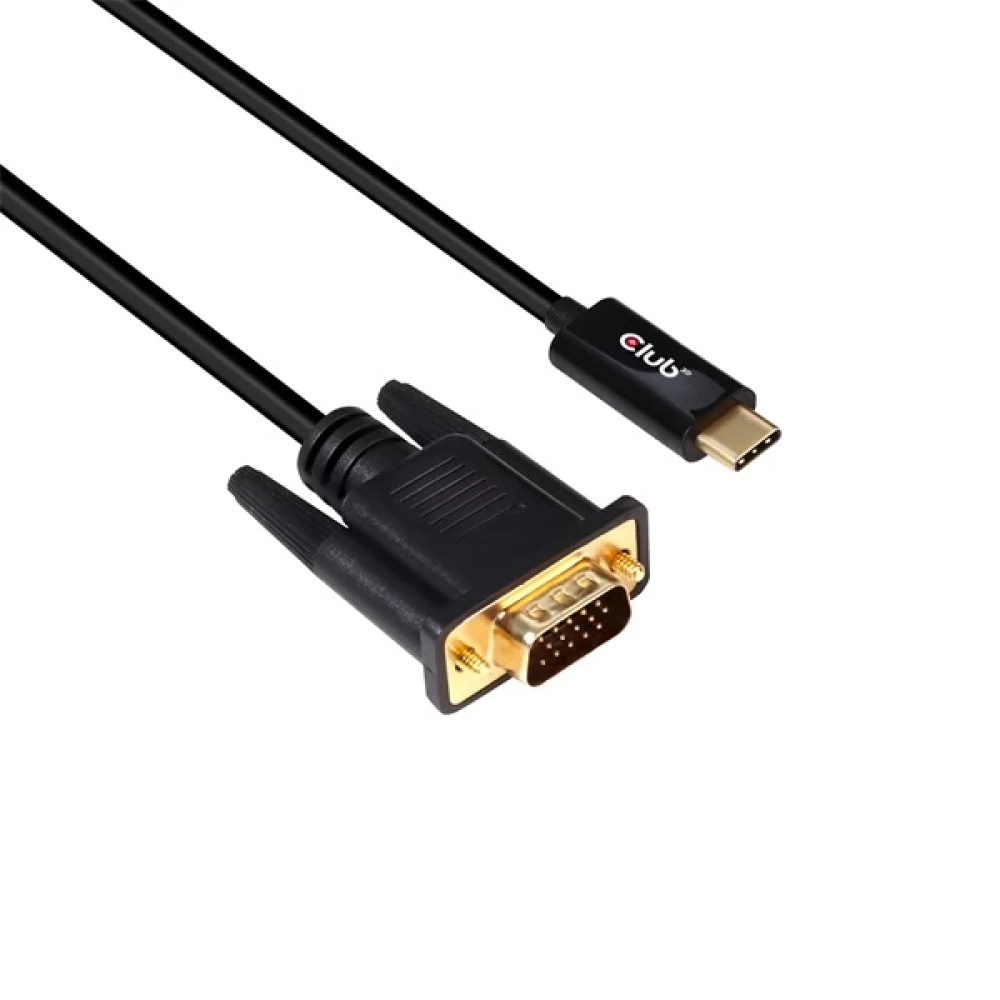

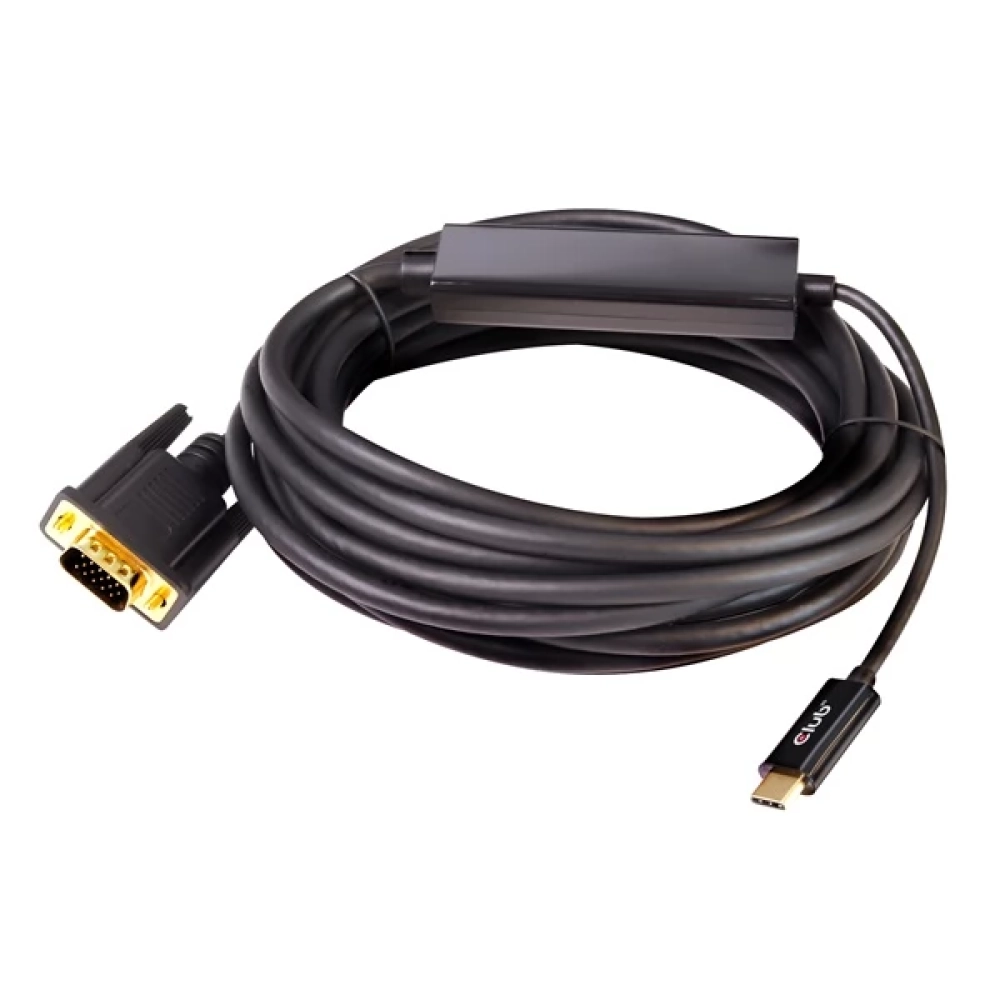

CLUB3D USB 2.0 Type C VGA/D-Sub Converter Black 5m CAC-1512

Type C USB-VGA Active Cable M/M 5M/16.40Ft
CAC-1512-Club 3D CAC-1512 allows you to connect your USB C computer to a VGA-supported monitor or projector. This is a single-solution cable and adapter reversible with USB C connector. It is necessary for your computer to support DisplayPort Alt mode via the USB C connector.

Allows the Widescreen Ultra Extended Graphics Array (Wuxga) in 16x10 with 1920x1200 pixels, which is a great solution in home, office or other workplace environment.

This USB C-VGA cable operates with USB C devices such as MacBook, MacBook Pro, Chromebook, Dell XPS, Asus Tablet and Razer.

Technical data
Product Name:
C-type usb-vga-cable plug/plug 5 m/16.40 feet
Product series: cables
Article number: CAC-1512
EAN Code: 8719214471231
UPC code: 841615101436
Features:
• Supports DP1.1 specifications
• Supports Mainlink 1lane HBR (high bit speed) with 2.7 Gbit/s and 2 lanes per band with 1.62 Gbit/s RBR (reduced bit speed)
• This cable has a USB power supply and consumes about 200 MW of energy for Wuxga Video Streaming
• Supports analog RGB power outputs
• Supports 3.3 V vsync and hsync outputs
• Pixel clock up to 240 MHz
• triple 8-bit digital analog converter (DAC)
• Supports 6, 8 bits per color
• Supports RGB formats
OS Support: All
In the box:
• Club 3D USB TYPE C-VGA Cable, plug/plug 5 m/16.40 feet
Input:
• Type C USB connector
Output:
• vga male
Other information:
• Box size: 14.5 x 14.5 x 6 cm.
• Product Weight (GR) 245
• Weight box (gr): 64
• Product Weight Box (GR): 309
• Cable length (m) 5
• Cable length (Ft) 16.40
• Cable height (cm) 1.4
• Cable width (cm) 3.5
• meets Rohs, FCC and CE EMI requirements
• Made in China
