The Club 3D CAC-1080 is a DisplayPort ™ 1.4 Signal HDMI ™ 2.0B output that supports HDR video so you can play deep-colored media content. The DisplayPort ™ receiver provides up to 5.4 Gbps bandwidth for 4 lanes per fiber, while the HDMI ™ output is perfectly in line with the specification of the HDMI ™ 2.0B version. It supports UHD resolutions up to 4096 x 2160p at 60Hz.
Color formats: Supports RGB/YCBCR colors with a 16 -bit depth until they fit into DisplayPort ™ and HDMI ™ bandwidth. The CAC-1080 supports the conversion of pixel coding from RGB or YCBCR 4: 2: 2 to YCBCR 4: 2: 0 and YCBCR 4: 2: 0 Transmission. In addition, HDR is supported up to 12-bit color depths at 4K 60Hz by converting the DP Link RGB/YCBCR 4: 2: 2 to HDMI ™ output by horizontal CEA timing in the YCBCR 4: 2: 0 format.
Please note that the source system must support DisplayPort ™ 1.4 for the operation of HDR and the screen must support HDR or HDMI ™ 2.0 A or B.

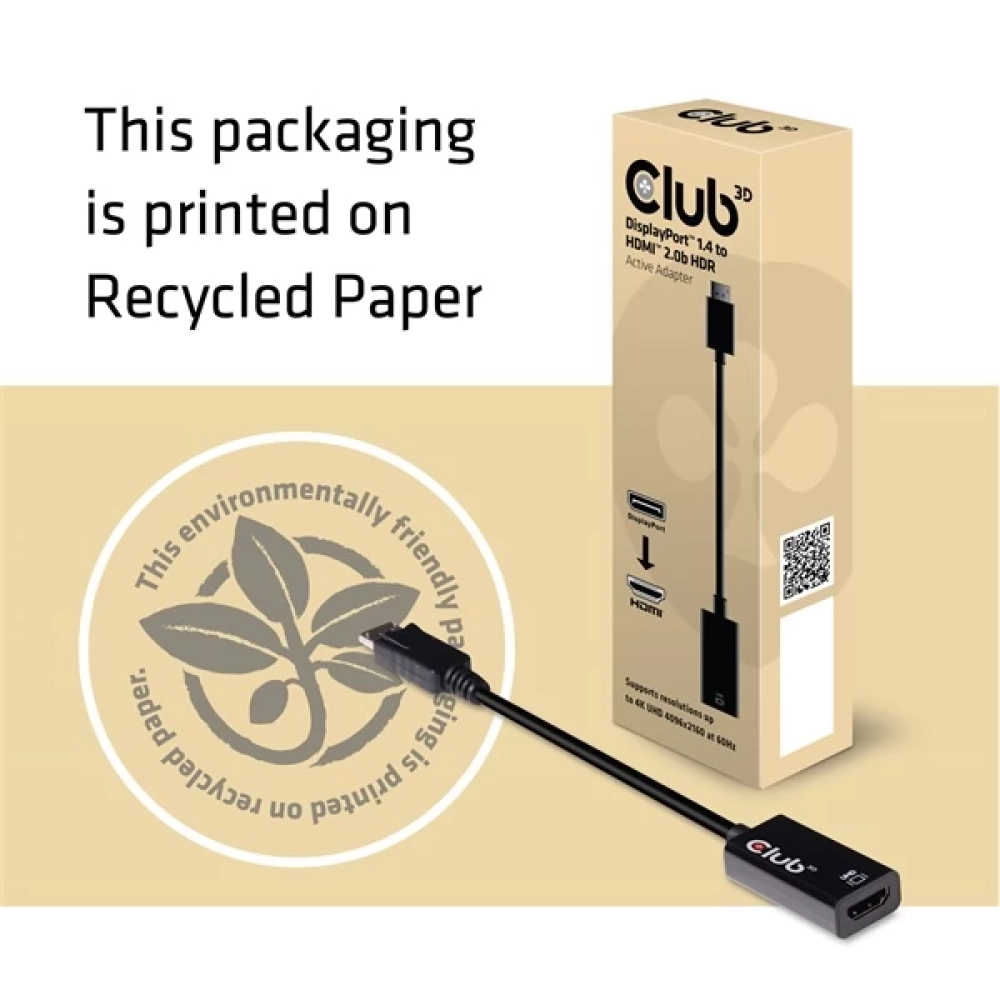

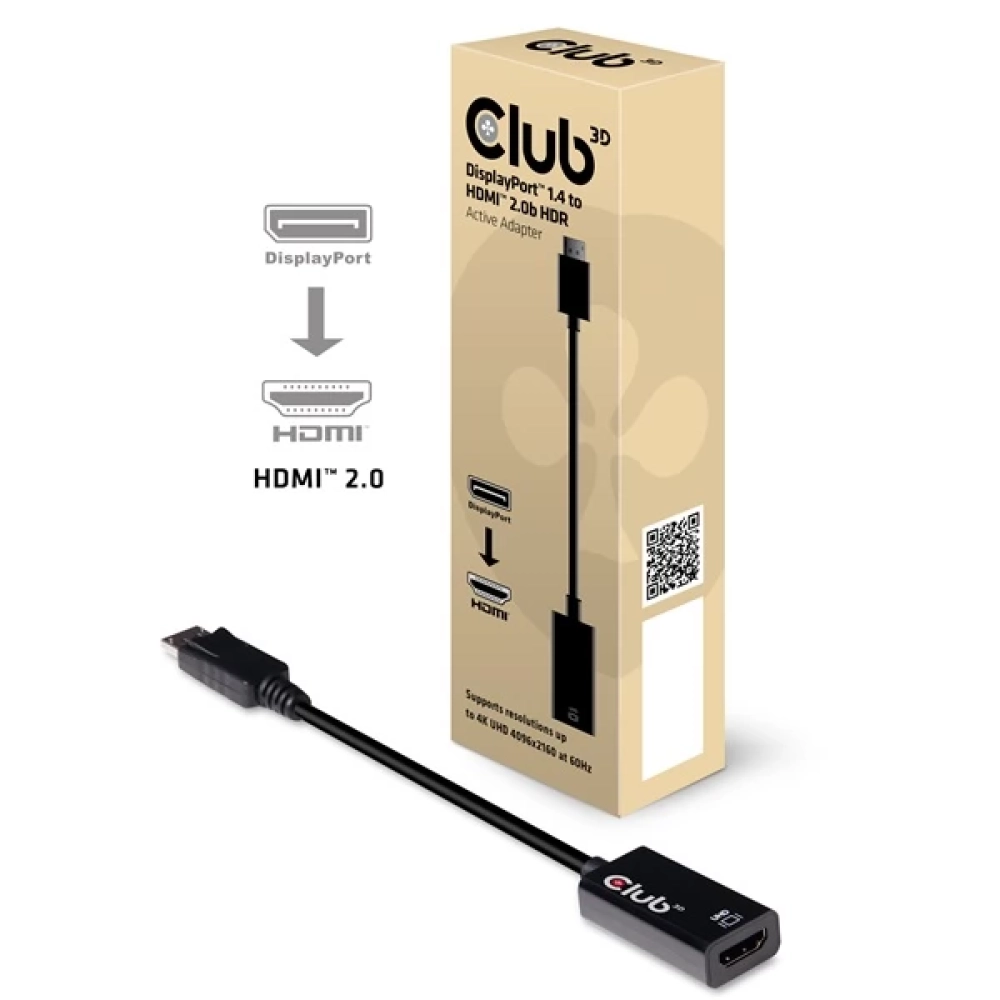

Contents of the box:

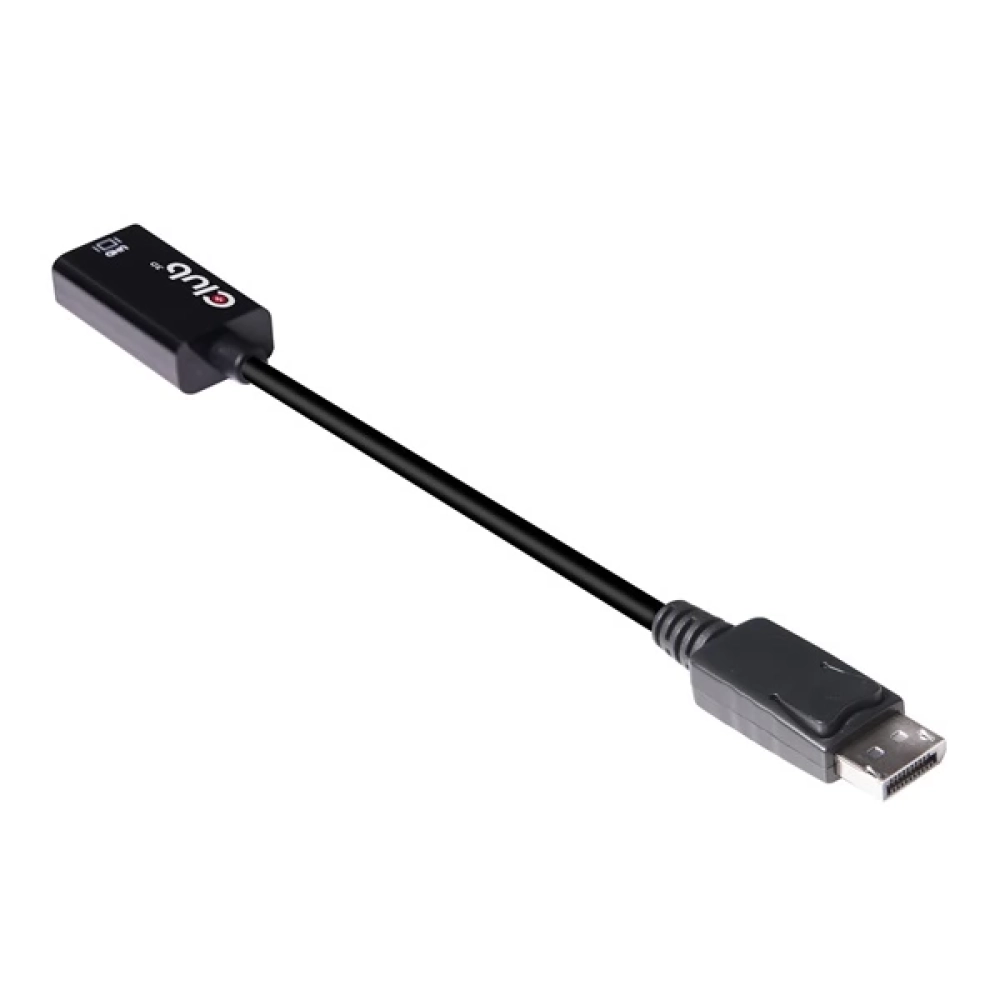

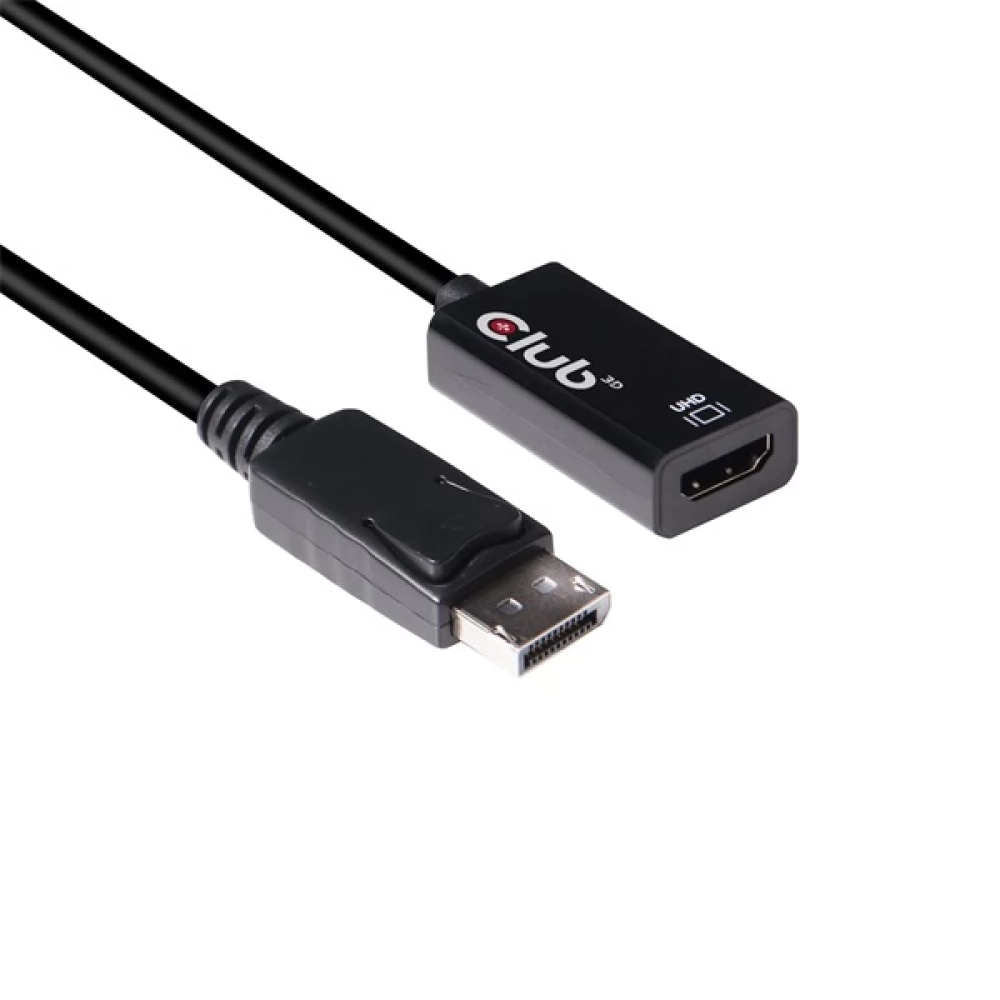

• Club 3D DisplayPort ™ 1.4 - HDMI ™ 2.0b HDR Active Converter
Input:
• DisplayPort ™ 1.4 male
Output:
• HDMI ™ 2.0B female
Other data:
• Box size: 20.2 x 6 x 3.5 cm

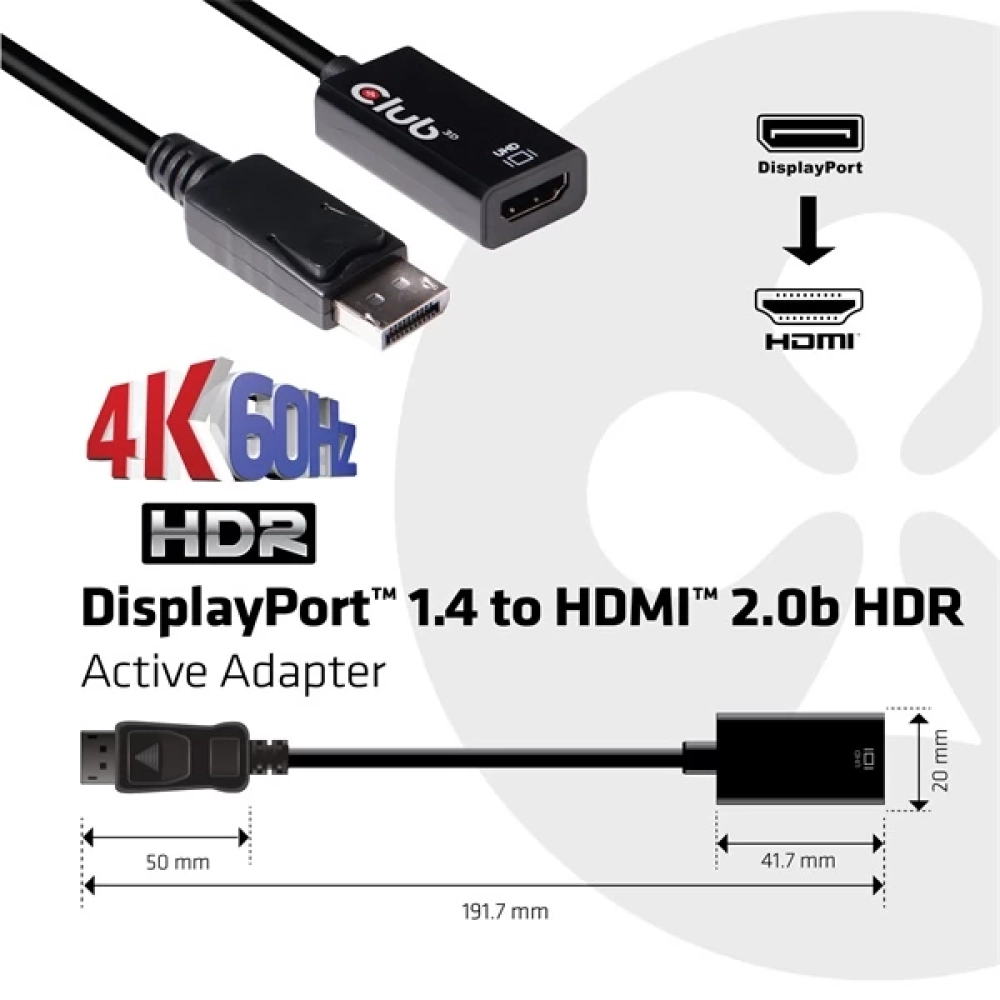

• cable: 191.7 x 20 x 11 mm
• Product weight: 32 gr
• meets the requirements of Rohs, FCC and CE EMI.
Further features:
• DisplayPort ™ 1.4 receiver with up to 5.4gbps bandwidth, HBR2/HBR/RBR
• Video stream treatment:
- Up to 600MHz double pixel on a 16 -bit pixel format.
- RGB/YCBCR 4: 2: 2/4: 2: 0 Pixel format
- Horizontal expansion of CEA timings (for DP ™ 1.4 Spec).
• Displayport ™ to HDMI ™ stereoscopic 3D Transmission:
- Stacked Top-Bottom Transformation that rearranged frames
- Transfer of additional 3D formats
• Audio Stream Treatment:
- LPCM and compressed sound code formats.
- Max Sound Sample Ratio: 192 kHz 8 channels or 768 kHz 2 channels.
• HDCP Support:
- HDCP 1.3 TO HDCP 1.4 Repeat function
- HDCP 2.2 TO HDCP 1.4 and 2.2 Repeat function
• HDMI ™ Tax:
- Compatible with the specifications of HDMI ™ 2.0B.
- 600MHz Max TMDS Character Clock.
- High dynamic range (HDR) support for both static and dynamic HDR.
- CEC Support - Snooping, Tunneling.
• Max. Video disorder and color depth on the HDMI ™ output:
- 4K 60Hz YCBCR 4: 2: 2, up to 12 bits
- 4K 60Hz YCBCR 4: 2: 0, up to 12 Bits
- 4K 30Hz RGB/YCBCR 4: 2: 2, up to 12 bits.
