CLUB3D DisplayPort 1.2/1.2a HDMI 2.0 Converter Black 10cm CAC-2070

DisplayPort 1.2 - HDMI 2.0 UHD Active Adapter

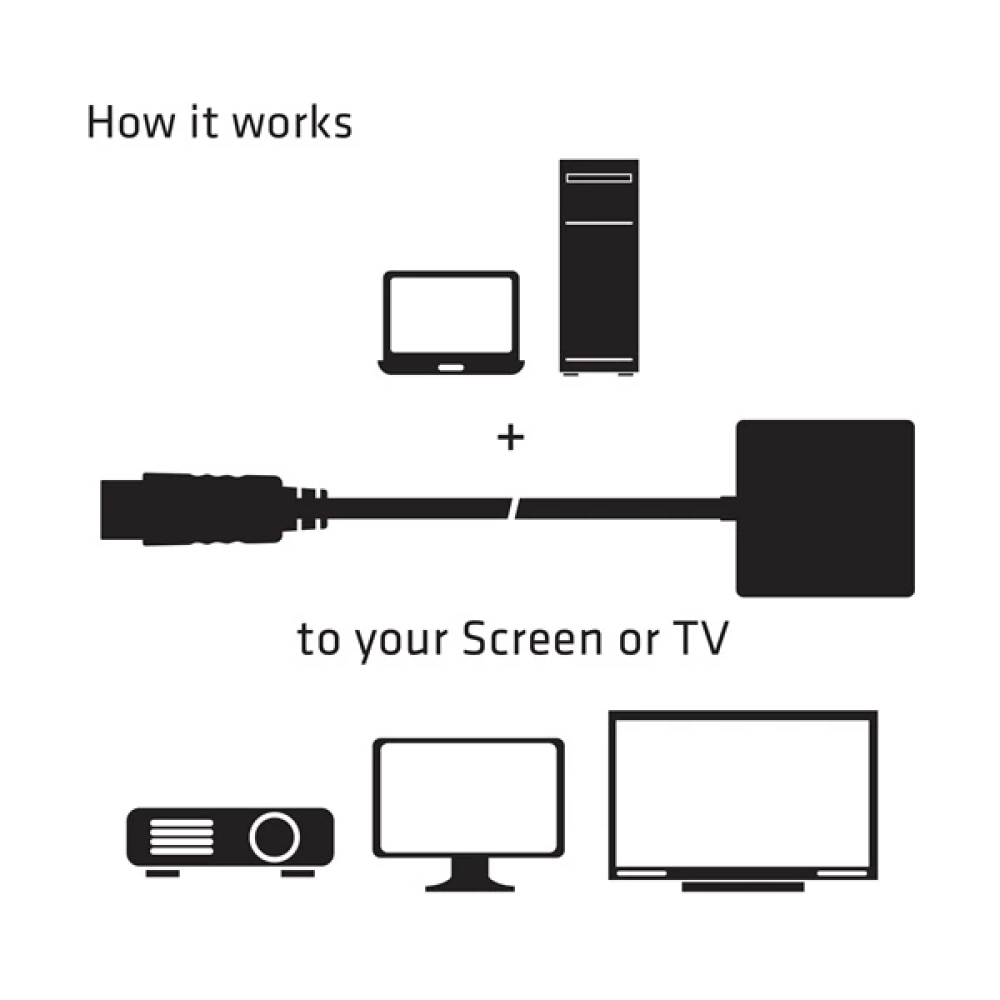

CAC-2070-Club 3D CAC-2070 is an active HDMI ™ 2.0 signal converter. DisplayPort ™ 1.2-HDMI ™ 2.0 4K 60 Hz UHD Active Adapter is the simplest solution for connecting the DisplayPort ™ 1.2 toy computer or laptop for HDMI ™ compatible 4K UHD television, monitor or projector. The adapter corresponds to the HDMI ™ 2.0 specification, which allows 6Gbps TMDS transmission per channel. The adapter interface has three bands for HDMI data, clock, HPD signal and power supply, so the total TMDS transfer rate is 18 Gbps.

Supports 4K UHD resolution at 60 Hz.
The DisplayPort ™ 1.2 - HDMI ™ 2.0 4K60Hz UHD Active Adapter supports up to 4K UHD 4096x2160p @ 60 Hz UHD resolution for a clear, sharp image. Support 60 frames per second provides exceptionally smooth video or gameplay. Use adapter for games, watch videos or browsing the Internet from DisplayPort ™ 1.2-compatible device in ultra high resolution. Adapter Ultra High Definition, which supports up to 8 sound channels, provides a digital sound and video. Ideal for anyone who wants to enjoy the 4K UHD/60 gameplay, but their system configuration lacks native HDMI ™ 2.0 output.

Technical data
Model:
Product name: Displayport ™ 1.2 - HDMI ™ 2.0 UHD Active Adapter
Product series: adapters
Article number: CAC-2070
EAN Code: 8719214470975
UPC code: 841615101160
Features:
• Compatible with DisplayPort ™ 1.2 specification for 1.62 Gbps, 2.7 Gbps and 5.4 Gbps. Effective (video) bandwidth 17.28 Gbps
• Compatible with HDMI ™ 2.0 specification, data speed up to 6 Gbps per channel, complete transmission speed 18 Gbps
• Supports full link training and link training
• Repeater HDCP 1.3 and HDCP 2.2
• Supports 24 -bit colors and 4: 4: 4 color sampling
• Inner YCBCR 4: 4: 4/4: 2: 2 Convert ability to YCBCR 4: 2: 0
• Supports UHD resolution up to 4096 x 2160p @ 60Hz and 1080p 3D
• Supports NVIDIA® Maxwell cards and Intel® HD 5xxx and new ones. Made for recent architectures.
OS Support:
Windows 10, 8.1
Apple os x
Input:
DisplayPort ™ 1.2 Male
Output:
HDMI ™ 2.0 Mother
Other information:
• Packaging size: 24 x 16 x 1.5 cm / 9.45 x 6.3 x 0.59 inches
• Polystock weight: 8 gr

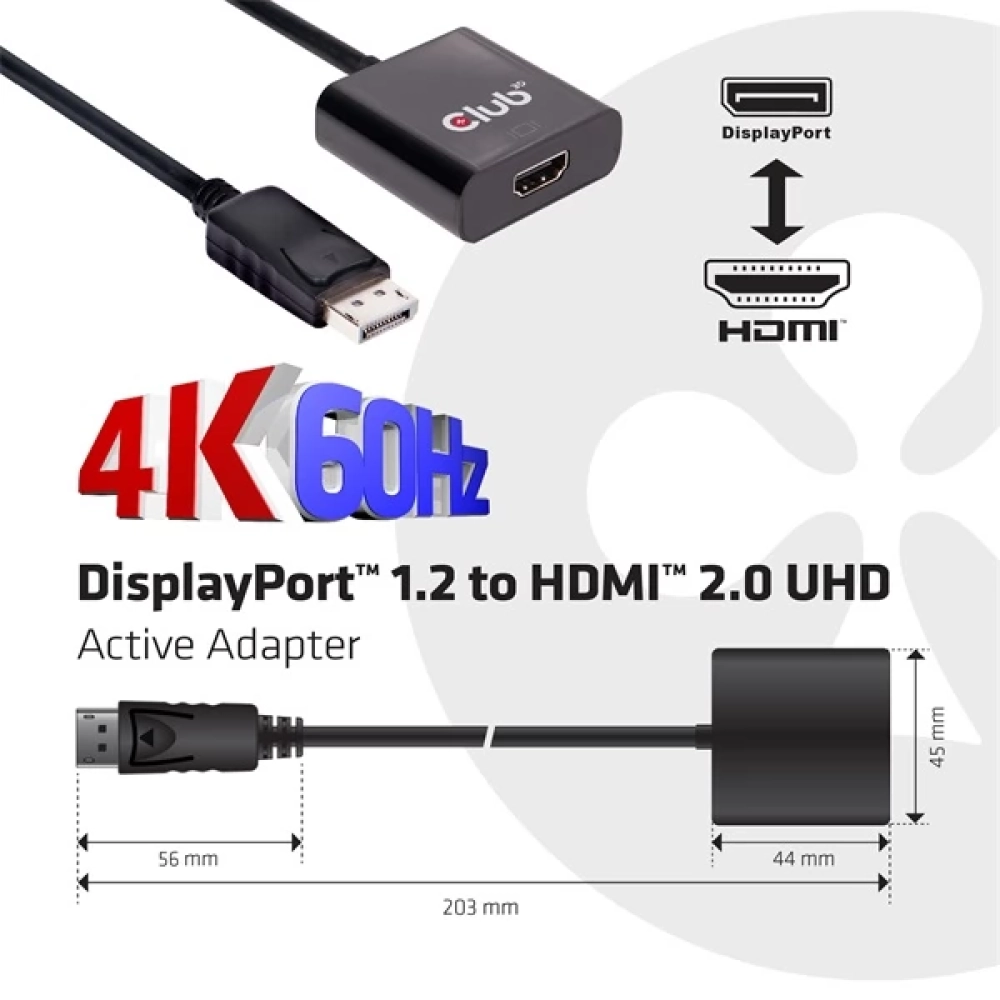

• Product: 210 x 44 x 14 mm
• Product weight: 32 gr.
• Product Weight with Police: 40 gr.
• meets Rohs, FCC and CE EMI requirements
• Made in China

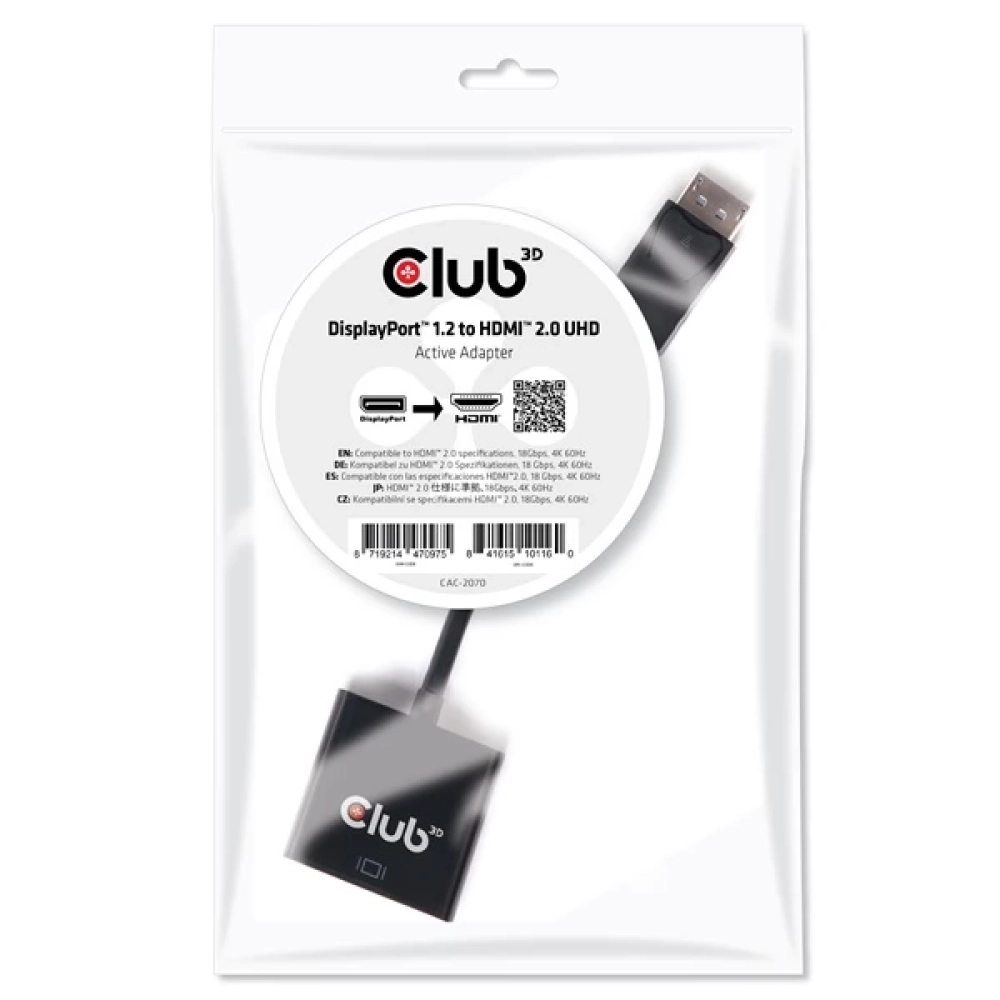

In the box:

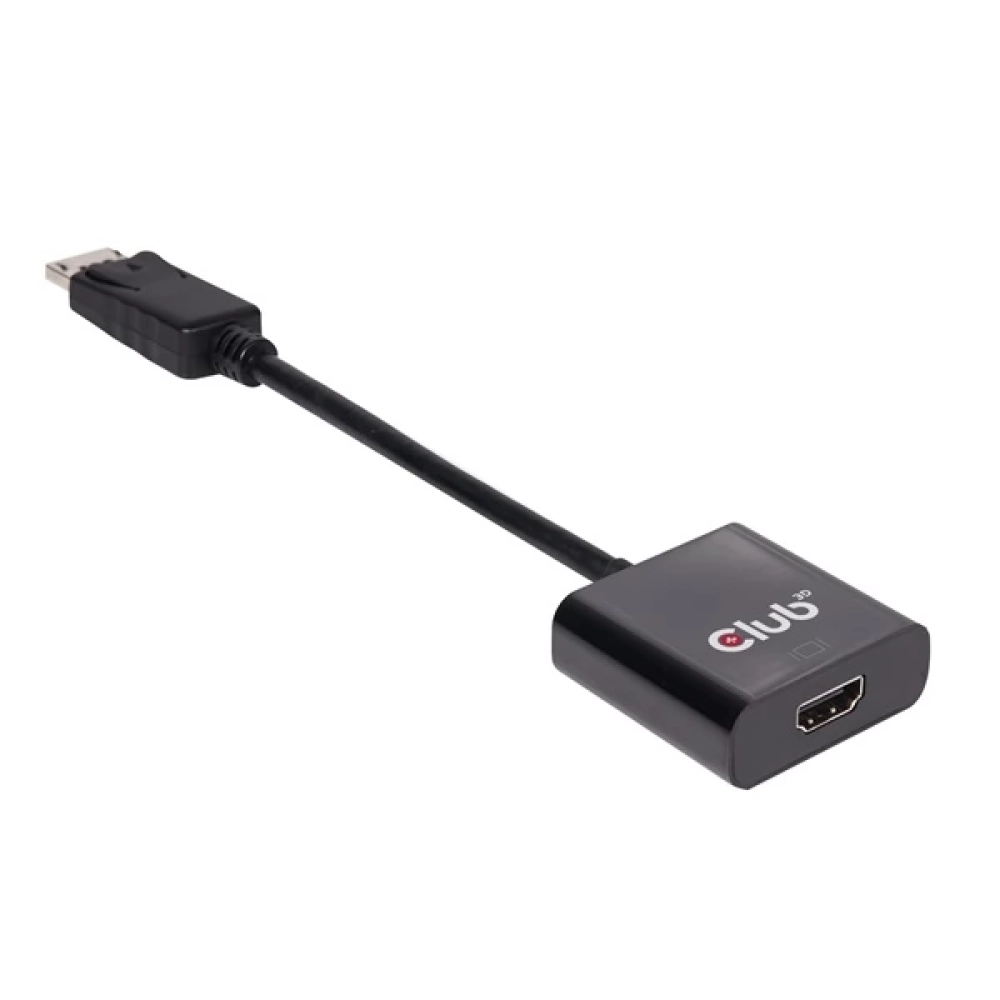

Club 3D DisplayPort ™ 1.2 - HDMI ™ 2.0 UHD Active Adapter
