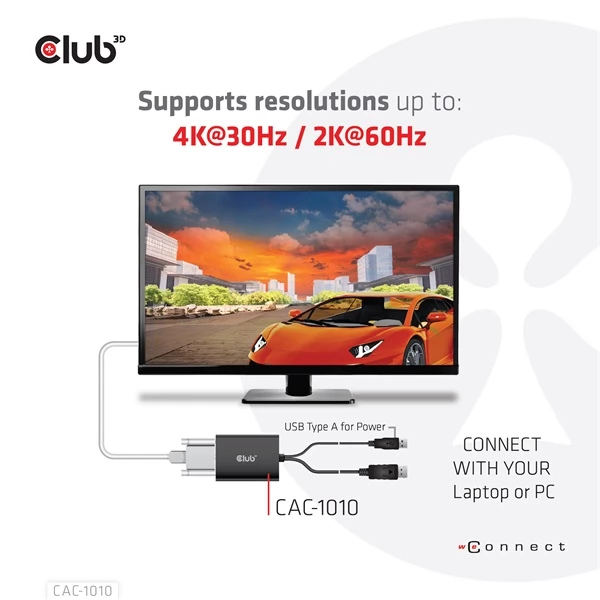

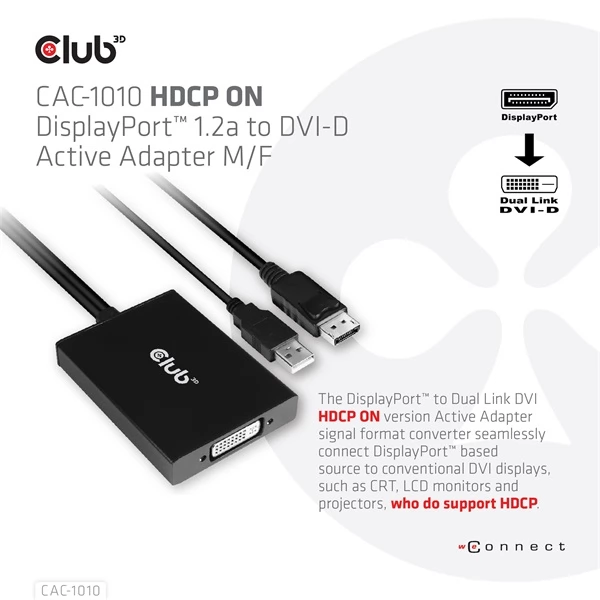

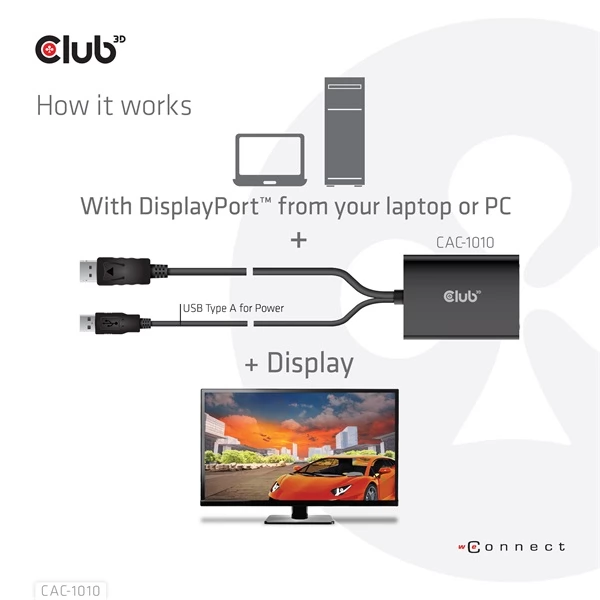

The Club 3D CAC-1010 DisplayPort ™ + USB Type A TO Dual link DVI is an active adapter is a signal transformer that smoothly connect the DisplayPort ™ based source with conventional DVI screens such as CRT, LCD monitors and HDCP compatible projectors. You can enjoy the maximum resolution of 2560x1440@60Hz on any HDCP display. Ideal for digital entertainment centers, conference presentations and corporate training.

Features:
• Supports DisplayPort ™ 1.2A input and dual link or single-link DVI output.
• Supports the highest resolution of Dual-Link DVI-D up to 3840x2160 @30Hz.
• Supports the highest resolution of one channel DVI up to 1920x1080 @60Hz.
• HDCP support.
• 330MHz clock support.
• DisplayPort ™ source and USB Type can be fed with the port.

Supported resolutions:
• Max. Resolution:
- 1920x1080 @60Hz for one channel DVI
- 3840x2160 @30Hz for dual-channel DVI-D

OS Support: All systems.

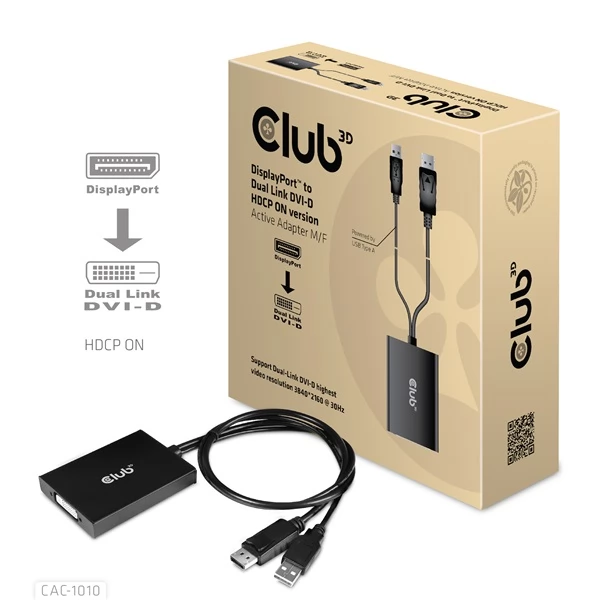

Package contents:
• 1x CAC-1010 DISPLAYPORT ™ TO DUAL LINK DVI-D HDCP ON Version Active Adapter M/F

Available interfaces:
Input:
• DisplayPort ™ Male
- USB Type for Male Power
Output:
• DVI Female (24+1)

Other information:

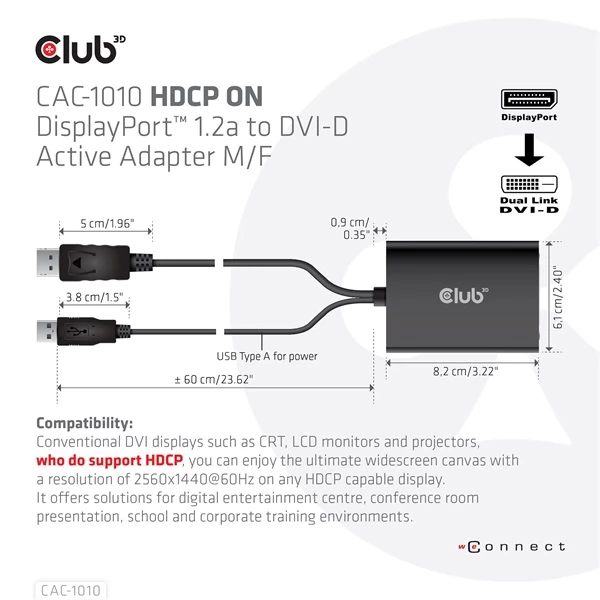

• Box size: 14.5 x 14.5 x 4.5 cm
• Adapter size: 1.4 x 6.1 x 8.2 cm
• Cable length: approx. 60 cm
• Device weight: 109 gr.
• Box weight: 64 gr.
• Total mass: 173 gr.
• Rohs, FCC, and CE EMI Requirements
