ACER H6560 white

With the Acer H6560, you can bring big games and blockbuster movies to life with 5200 lumens of brightness, FHD resolution, 1.3x zoom, integrated speakers and ISFccc calibration for a professional-level visual experience.

5200 lumen brightness

You can see crystal-clear, vivid images from afar in lecture halls, auditoriums or any larger venue with a brightness of up to 5200 lumens.

FHD resolution

The 100-inch image of pure beauty in 1080p Full HD resolution looks so realistic, you'll swear it's like looking out the window.

1.3x zoom ratio

Maximize space with a zoom ratio ideal for medium-sized meeting rooms.

Football mode

Gather your friends and enjoy the glory of your favorite sports on a huge screen. Soccer mode boosts colors so you can see the action clearly.

Acer ColorSafe II

Enjoy consistent, natural colors with ColorSafe II technology that controls dynamic RGB levels to prevent color loss.

Integrated speakers

What you hear will be as good as what you see thanks to the powerful built-in speakers.

ISFccc professional calibration

Get the most out of your projector images with professional calibration by an ISF certified technician[2].​

Automatic vertical keystone correction

Finding the right angle for your presentation is easier with automatic keystone correction that corrects vertical distortion.

Acer BlueLightShield™

Protect your eyes from unnecessary strain with Acer BlueLightShield™ technology.

Description:

Display/Image

- Projection system: DLP™
- Light source: Philips 240 W E20.7i
- Lifetime of light source: 5000 hours (standard), 10000 hours (ECO)
- Native resolution: 1920 x 1080
- Maximum resolution: 1920 x 1200
- Brightness: 5200 ANSI lumens (standard), 4160 lm (ECO), (Complies with ISO 21118 standard)
- Aspect ratio: 16:9 (native), 4:3 (supported)
- Contrast ratio: 18,000:1
- Image size: 31" (78.7 cm) ~ 300" (762 cm)
- Projection Ratio: 1.13 - 1.47 (1524mm @ 1500mm)
- Zoom ratio: 1.3x
- Lens: F = f/2.43~f/2.78, f = 16.90mm~21.61mm, Manual zoom, Manual focus
- Projection shift (half height): 116%
- Projection mode: Front, Rear, Front ceiling, Rear ceiling
- Vertical sync speed: 24 ~ 120 Hz
- Horizontal sync rate: 15-100 kHz

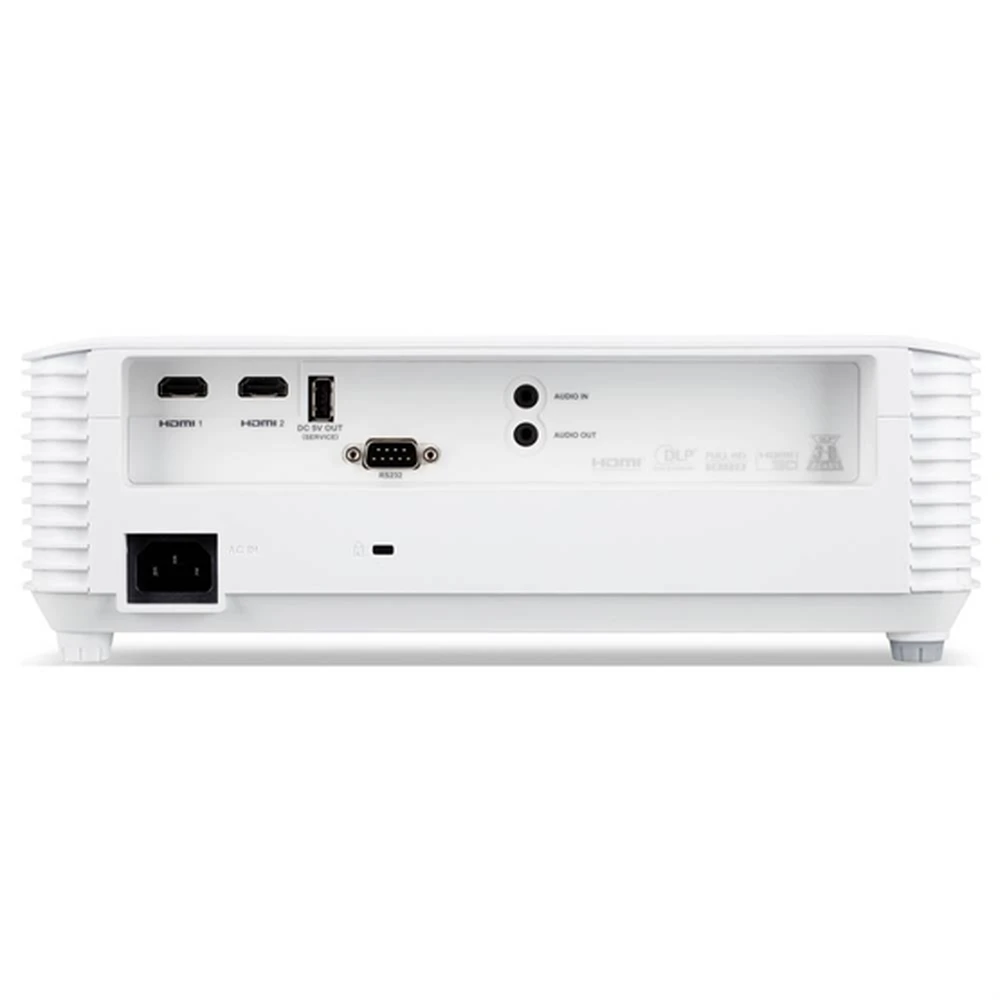

Connectors/Ports:

- HDMI: HDMI1.4b (HDCP 1.4) x 2
- Audio input: X1, 3.5 mm mini jack
- Audio output: X1, 3.5 mm mini jack
- S/PDIF
- USB Type-A output: X1, DC output (5V/1.5A)

Control and network

- RS232: X1, D-sub

General

- 3D support: DLP 3D Ready, HDMI 3D Ready, 144Hz 24p 3D
- Security: Security bar, Kensington lock
- Input delay: 16.7 ms @ 60Hz

Description of power supply

- Energy consumption: 290 watts (standard), 210 watts (ECO), 0.5 watts (standby)

Physical characteristics

- Installation: Can be installed on the ceiling
- Weight (approximate): 2.8 kg
