Mobile technology offers new players the opportunity to enter the business of networking. For fixed-line service providers, the mobile network mostly serves as a support to contribute to achieving higher customer satisfaction by optimizing bandwidth. The spread of mobile networks is a trend that all service providers must pay special attention to. Zyxel, the global leader in broadband connections, is always one step ahead of the trend and offers innovative solutions to the market.

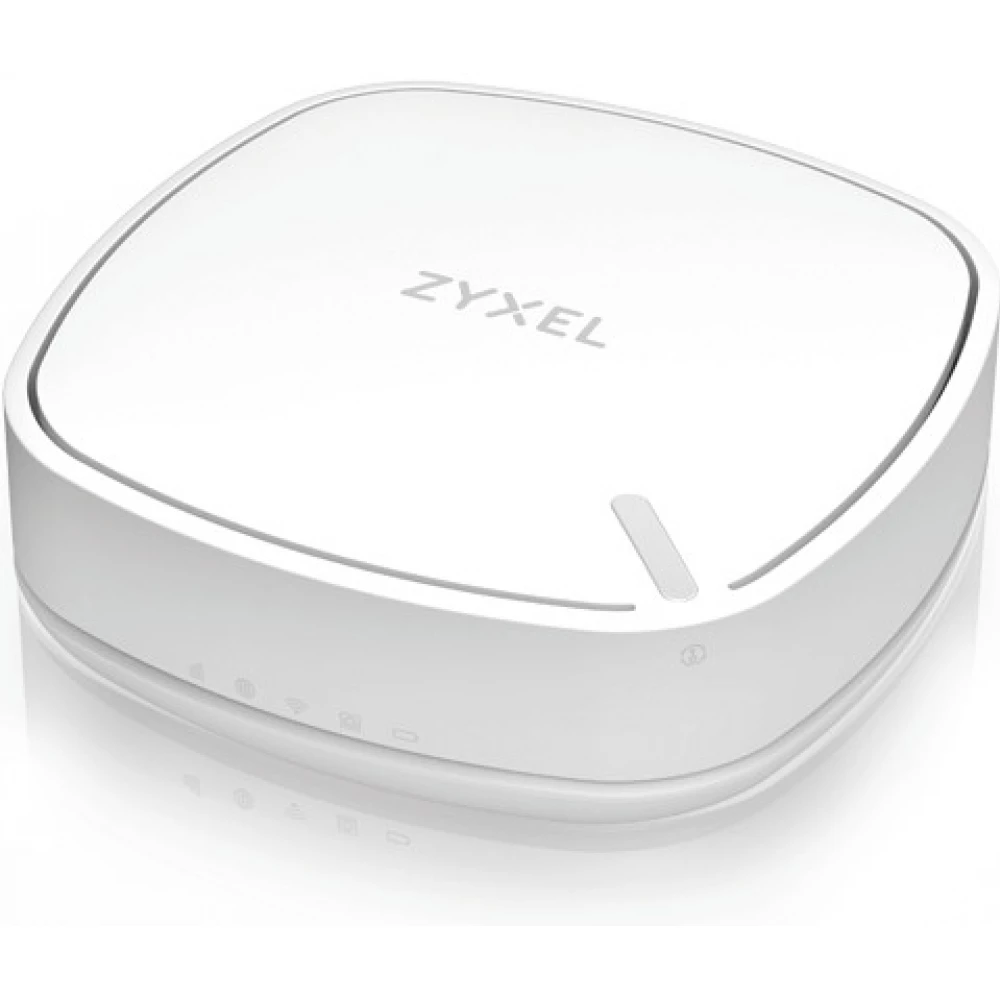

The Zyxel LTE3302 Series 4G LTE Indoor Router/IAD uses LTE — the extremely popular, latest mobile bandwidth technology — providing the highest possible data traffic, which can be up to 150/50 Mbps (DL/UL). With built-in bridge and router modes, the Zyxel LTE3302 Series fits any device/gateway to seamlessly, easily and widely integrate mobile technology with your equipment.

Maximum freedom of mobility
The Zyxel LTE3302 Series provides wireless connectivity and seamless switching between 4G LTE, DC-HSPA+, 3G, EDGE and GPRS, enabling the freedom to browse and access information at home and in the office without a wired connection anywhere there is LTE coverage.

Built-in bridge/router mode that fits most devices/gateways
For better network integration, Zyxel has incorporated both bridge and router modes into its LTE3302 Series. Users can take advantage of the built-in routing function in all applications. And the bridge mode is designed to work with the user's existing devices, for example with WiFi access points or gateways of small businesses and large companies.

Continuous Internet sharing
With the Micro USB port that can also be charged, it can also be used as a portable router when traveling, fishing, or watching a football match. Since high-capacity batteries or car chargers are now widely available, the Zyxel LTE3302 Series can continue to be used over time for continuous Internet sharing.

Non-stop connectivity with LTE 2. WAN for failover
Multi-WAN failover eliminates the risk of network outages based on single WAN technology. What's more, with the wireless LTE connection, you can maintain a second WAN option without a wired solution. If your gateway supports "multi-WAN failover", you just need to connect the Zyxel LTE3302 Series device to an existing gateway and set LTE to WAN failover.

Specifications
- IEEE 802.11 b/g/n, 300 Mbps
- 2 internal Wifi antennas up to 3 dBi
- 2 10/100 Mbps LAN ports
- 1 2FF format mini SIM card slot
- 2 SMA connectors for 4G/LTE/3G/2G connection
- Micro USB power supply (5 V/2 A)
- Optional removable lithium-ion polymer battery, 3.8 V, 2800 mAh
- Up to 4 hours of operating time (depends on the network environment)
- Size: 130 x 130 x 45 mm
- Operating temperature: 0°C ~ 40°C
- Operating humidity: 10% ~ 90%
- Storage temperature: -30°C ~ +70°C
- Storage humidity: 0% ~ 95%

LTE
- According to standard: 3GPP Release 9 category
- Supported frequency band: B1/2/3/5/7/8/20/28/38/40, LTE TDD 2300/2600 MHz, LTE FDD 2600/2100/1900/1800/900/850/800/700 MHz
- LTE/3G/2G internal antenna: 2 pcs
- LTE/3G/2G external SMA-F connectors: 2 pcs
- Speed: 150 Mbps download on 20 MHz bandwidth, 50 Mbps upload on 20 MHz bandwidth

UMTS/GSM
- Standard: DC-HSDPA/HSPA+ compatible
- Supported frequency: HSPA+/UMTS: B1/5/8 (2100/900/850 MHz), EDGE/GPRS/GSM: B2/3/5/8 (1900/1800/900/850 MHz)
- DC-HSPA+ download data transfer speed up to 42 Mbps
- HSUPA upload data transfer speed up to 5.76 Mbps
- UMTS data speed up to 384 kbps
- EDGE data speed up to 236.8 kbps
- GPRS data speed up to 85.6 kbps
