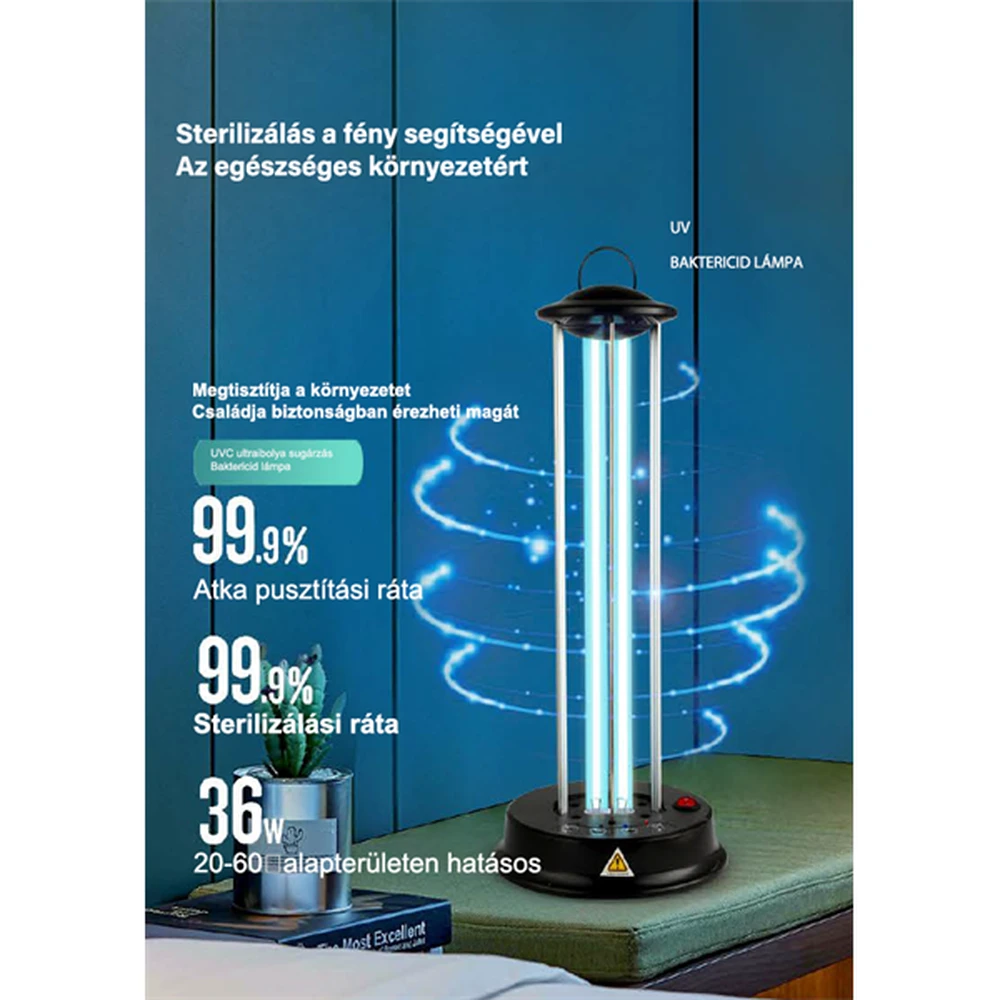

- Name: UV / UV + ozone generator disinfection lamp
- Model: YDUVL01
- Supply voltage: 220 - 240 V
- Power: 36 W
- Irradiated area: 20 - 60 square meters
- Size: 185 * 445 mm
- Lamp socket: 2G11
- Lamp material: Quartz glass UV lamp
- UV start delay: 50 seconds
- Spectrum: UV / UV + ozonizer
- Lifespan: 8000 hours
- Grounded.
- High permeability quartz glass tube
- Safety, shockproof design
- The disinfection time can be set in three steps: 30 MIN / 60 MIN / 120 MIN. After selecting the disinfection time, the disinfection lamp will automatically turn on after a 50-second delay (the warning alarm will sound at 40 seconds) and will automatically turn off after the disinfection cycle is complete.

Instructions:

1. Press the button to start, then select the desired disinfection time. After the 50-second delay, the purple indicator will light up.
2. After the disinfection cycle of the selected duration is completed, the UV lamp will automatically turn off.
3. The disinfection lamp also generates ozone, after disinfection, ventilation and opening the door, at least 40 minutes of waiting is required before entering the disinfected room.
4. Attention
1. Do not look directly into the UV light source and use away from people, pets, or plants, as strong UV radiation may cause skin redness, conjunctival irritation, and exhaustion. 2. Long-term exposure to ultraviolet radiation damages human skin and eyesight. Long-term inhalation of ozone damages the respiratory system. No one is allowed in the room during disinfection, and doors and windows must be closed. 3. Ozone is a particularly unstable gas. In general, it decomposes into oxygen within 30-40 minutes in the air. After using the disinfection lamp, wait at least 40 minutes before entering the room.
5. Additional information
1. UV + Ozone function
Ozone is a gas that effectively penetrates obstacles, providing more effective disinfection in places where ultraviolet radiation is insufficient, e.g. smaller dead spaces, in case of strong workplace odors and in combination with ventilation for at least half an hour
2. Ozone function
It can be used in places with strong, pervasive odors, such as newly painted houses, kitchens, bathrooms, near pets, restaurants, bars, hotels, etc. Ozone is used when people are not at home, so sterilization can be done even more thoroughly.
3. Virus-killing mechanisms of ultraviolet lamps using and not using ozone
The ozone lamp uses light with a wavelength of 185 nm. Since ozone has a strong oxidizing effect, it can be used to neutralize and destroy waste gases, soot, bacteria, viruses and microorganisms in places where UV irradiation does not lead to sufficient results. The ozone-free UV lamp uses light with a wavelength of 253.7 nm, which destroys bacteria, viruses and microorganisms on the surface of various objects.
