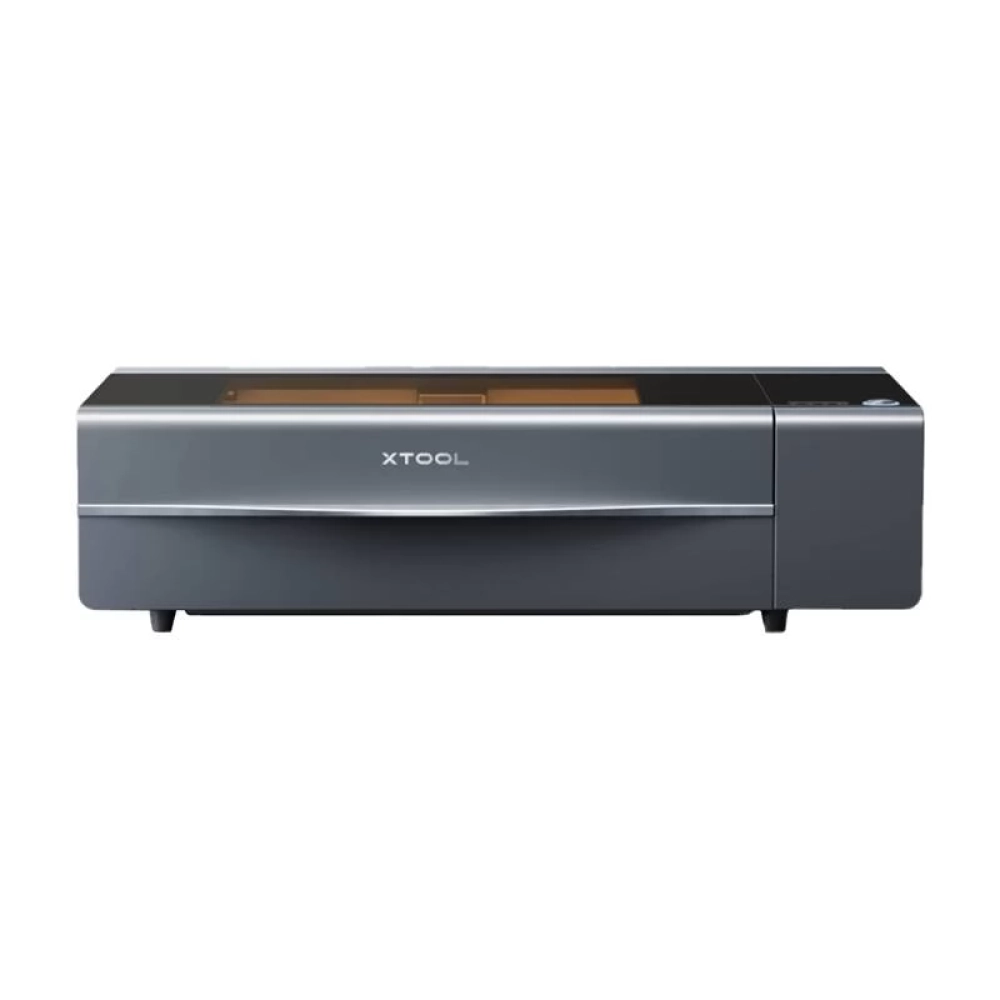

The xTool P2S is an advanced 2-in-1 laser engraver that combines a powerful 55-watt CO₂ laser with a range of features that make it an ideal tool for small businesses, artists and craftspeople. Thanks to the precise technology and ease of use, the device can work with many materials, including acrylic, wood, leather and even curved surfaces. The P2S is an excellent choice for those looking for a compact device with professional performance and versatility. In addition, the device comes with an xTool fire extinguisher kit to prevent unwanted accidents while working.

55 W power and fast operation
With a 55-watt CO₂ laser, the xTool P2S can cut materials at speeds of up to 600 mm/s, making it up to 500% faster than conventional diode lasers. Excellent for cutting materials such as 20mm clear acrylic or 18mm walnut in a single pass. Whatever the project, the engraver's performance and precision will get even the most demanding jobs done quickly.

AutoPassthrough™ technology for long materials
With AutoPassthrough™ technology, you can process materials up to 300 cm long. This is ideal for projects that require working with large sheets or long parts. The system ensures automatic and accurate material feeding, so there is no need for manual positioning.

Dual HD camera and precision positioning
Equipped with a dual 16 MP camera system, the xTool P2S provides exceptional positioning accuracy. This technology enables real-time viewing of the design and enables precise pattern placement on even the smallest objects. As a result, the risk of errors is minimal and each design is carried out with the utmost care.

Engraving on curved surfaces
3D Curve™ engraving technology enables smooth engraving on curved surfaces. Creating three-dimensional patterns on a wide variety of materials becomes easy and intuitive, opening up new possibilities for creative projects such as engraving unusual shaped bottles, mugs or ornaments.

Safety and ease of use
xTool P2S focuses on user safety with features such as automatic lock, emergency stop button and multi-level warning system. The closed design and the smoke filter system ensure safe operation even in small rooms. In addition, water cooling and an easy-to-use interface make the device user-friendly for both beginners and advanced users. In addition, the enclosed fire extinguisher kit helps in case the material catches fire.

An ideal business partner
The xTool P2S is combined with other devices in the xTool series, such as the F1 Ultra, to form the perfect set for efficient processing of larger jobs. With advanced features like AI for automatic design, you can easily customize your production, increasing the productivity and quality of your products.

Technical data
- Table size: 680 x 360 mm
- Work area: 600 x 305 mm
- Laser power: CO₂ laser with a power of 55 watts.
- Product size: 1000 x 639 x 268 mm
- Product weight: 45 kg
- Maximum working speed: 600 mm/s (X axis acceleration 6400 mm/s²)
- Max. workpiece height: With tray 64 mm, without tray 71 mm, with vertical base 215 mm
- Rotary engraving diameter: With stand 0-180 mm, without stand 3-50 mm
- Z-axis movement: 75 mm
- Ambient temperature: during operation 10-30°C If the temperature drops below 10°C, add antifreeze according to the instructions for use.
- Storage temperature: 10-45°C
- Air support: 200 kPa (two bottles)
- Exhaust fan: 233.3 CFM (twin blade, 14,000 RPM)
- Optical road sign: Included
- Daily maintenance: Quick-release fan button, magnetic filter filter, fault-tolerant laser mirror
- Water-cooled system: Capacity: 1.4 l
- Ranging system: LiDAR ranging system (processing accuracy：0.01mm)
- Camera type: Panoramic camera + close-up camera
- Number of pixels (effective): 16 MP×2
- Viewing accuracy: 0.3 mm
- Image resolution: 1000 DPI
- Focus mode: Autofocus
- Software: xTool Creative Space / Lightburn
- Connection: WiFi and USB
- File support: SVG / DXF / JPG / JPEG / PNG / BMP etc.
- Supported systems: Android / iOS / iPad / Windows / macOS
