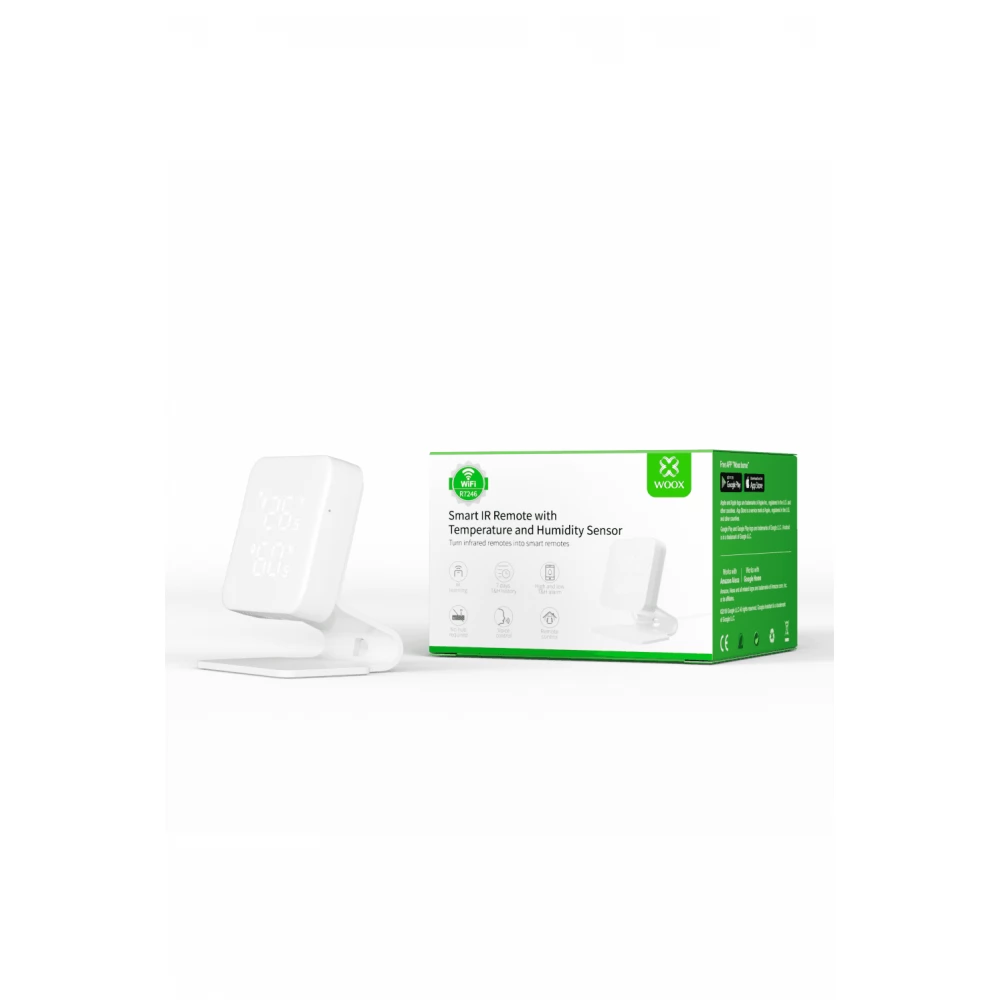

The R7246 is a compact, intelligent infrared remote control with built-in temperature and humidity sensor, ideal for a comfortable and healthy home. The infrared remote control function combines multiple infrared remote controls in a single smart device. Integrated temperature and humidity sensors measure the temperature and humidity data every 5 seconds and upload them to Woox Home. You can ensure that both humidity and temperature remain at a healthy level in your home or office, creating an intelligent and healthy environment.

The R7246 comes with an easy-to-install and stable console so you can place the R7246 anywhere on a flat surface. The package also contains a metal plate and a 3M adhesive tape, so when you want to glue the R7246 to a wall, device or other surface, you can do so without using the bracket.

The R7246 is powered by the supplied USB-C cable (150 cm), which can be plugged into a USB-C-AC AC AC adapter that can be connected to any network socket.

No subscriptions, no separate distribution

You can operate the Woox Intelligent Infrared Remote Controller with a built-in temperature and humidity sensor through your existing home Wi-Fi network without a separate distribution or paid subscription, and the setting is a child's play.

Amazon Alexa and Google Home Support

The Woox R7246 is compatible with the sound controls of Amazon Alexa and Google Home.

Features:

- easy-to-use Wi-Fi-based device
- Amazon Alexa and Google Home Based Sound Controlling Tools
- The world's largest infrared database: Remotec
- 3 in 1 multifunction tool for an intelligent and healthier environment

Technical data:

- Product dimensions: 70x70x18.5 mm
- Net mass: 220 grams
- power cord length: USB-C 1.5 m
- House Material: PC House + ABS Basic
- House color: white
- House flame resistance: UL94 V-2
- Protection (IP): IP20
- Number of infrared light beads: 6 pcs
- Main control chipset: GD32E230F8V6
- WiFi Module: CBU (2.4g WiFi + Bluetooth)
- WiFi Wireless Frequency: 2412 MHz ~ 2472 MHz
- Wireless standard: Wi-Fi IEEE 802.11 b/g/n
- BT wireless frequency: 2400 MHz ~ 2483.5 MHz
- BT version: 5.2
- Antenna reinforcement (DBI): 2.21 dbi
- Power Supply: DC 5V/1A
- Operating power consumption: 0.2 W
- Standby Power Consumption: 0.1 W (Display Displayed)
- The temperature point of the application is ± 0.3 ° C
- Display temperature point: 0.5 ° C is a minimum display unit
- Application humidity point: ± 3% relative humidity
- Display humidity point: 0.5% is the minimum display unit
- Detection time: perception every 5 seconds
- Infrared frequency: 0-455 khz
- IR control distance: horizontal direction ≤8m, direction relative to the device ≤10m (depending on the environment)
- IR learning distance: direction relative to device ≤30mm, angle ± 45 ° (depending on the environment)
- IR database: remote
- Operating temperature: 0 ° C ~ 40 ° C
- Operational humidity: 0 ~ 99% relative humidity (without condensation)
- Display brightness control: on / off switch
- Unit of temperature: ° C / ° F
- Temperature Alarm: Supported
- Humidity Alarm: Supported
- self -made mode: Supported
- Device connection: Power First time: "WiFi" light does not light up: "WiFi" light flashes, bad wifi network: "WiFi" red light flashes, online device: "WiFi" light is constantly illuminated, offline device: "WiFi"
-Infrared control: Emissions of Infrared Signal: White Light 1 Time Flashes, Infrared Learning: White Light Lights, Infrared Learning Successful: White Light Flashes 2 times, Infrared Learning Failed: White Light Flashes
