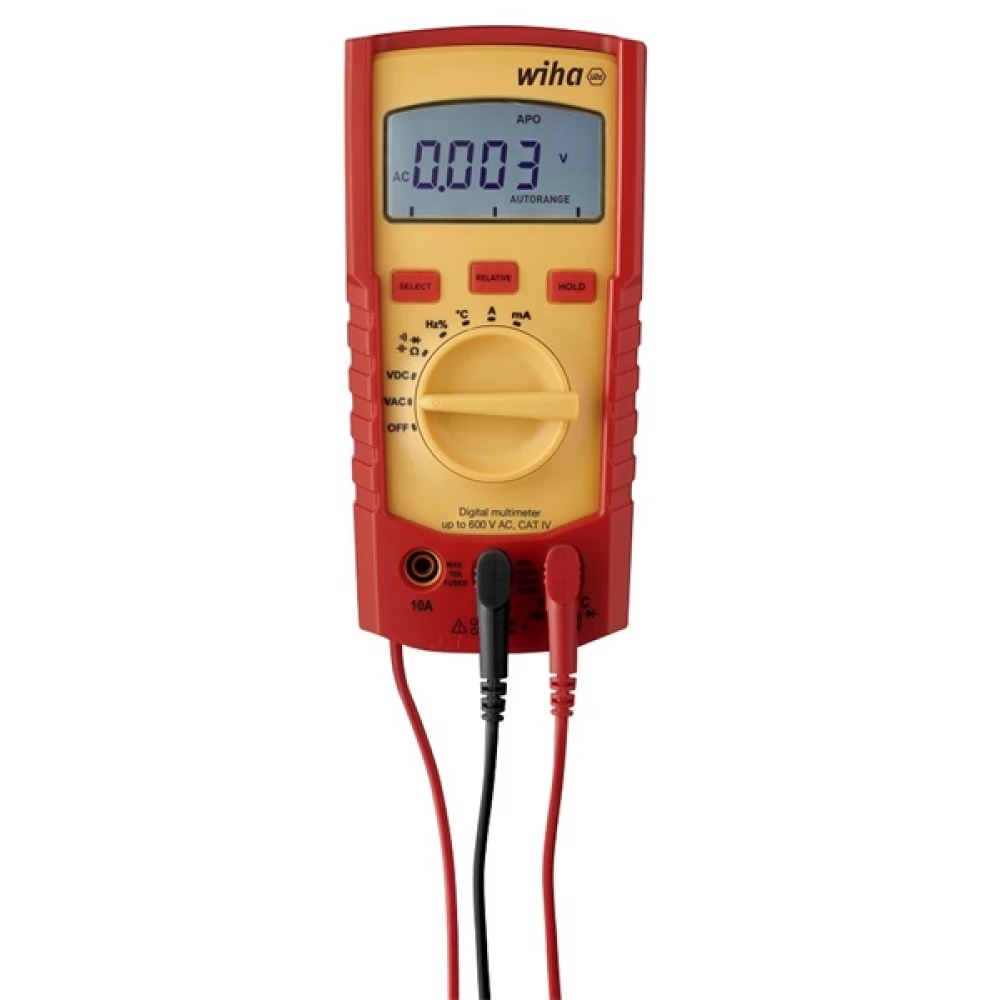

Are you looking for a digital multimeter that can measure the relevant measured variables of an electrician's everyday life? With the Wiha digital multimeter, you can be optimally equipped for a wide variety of measurements. Voltage, current, resistance, frequency, capacitance and temperature measurements can be made with this single device. Continuity and diode tests are also possible.

Thanks to the large LCD display, the measurement results can be read immediately and outside the measurement process with the Data Hold function. During the continuity test, an additional beep indicates current flow. Thanks to automatic measurement range selection, manual preselection of specific measurement ranges is no longer necessary. Measuring relative value offers an additional advantage. Storing previous measurement results and comparing them with future measurement results enables a variety of control options.

According to the measurement categories CAT III (up to 600 V) and CAT IV (up to 300 V), the Wiha digital multimeter provides maximum safety in the field of building engineering and directly for low-voltage equipment.

- Dimensions of the digital multimeter: 150 x 80 x 45 mm
- Measurement category: CAT III (up to 600 V), CAT IV (up to 300 V).
- Standard: EN 61010-1, EN 61010-2-033, EN 61010-031. IP40. CE and GS certified.
- Application: For multi-functional use in different places.

- Voltage V DC min max: 0 600
- Voltage V AC min max: 0 600
- Current A DC: 10
- Current A AC: 10
- Resistance (MΩ): 40 MΩ
- Capacitance (nF): 100 nF
- Frequency (MHz): 5 MHz
- Temperature measurement: -20-500°C
- Operating temperature: 0°C to 50°C
- Storage temperature: -10°C to 50°C
- Relative value measurement: yes
- Data HOLD: yes
- Acoustic signal: yes
- Selection of measurement range: automatically
- Battery level indicator: yes
- Battery: 2 x 1.5 V IEC LR03, AAA
- Display: 4,000 Digits
- Protection: IP 40
- Fuse: F 400 mA / 600 V ceramic 6.3 x 32 and F 10 A / 600 V ceramic 6.3 x 32
- Measurement category: CAT IV 300 V / CAT III 600 V
- Pollution degree: 2
- Altitude: 2000m
- Total length (mm): 150
