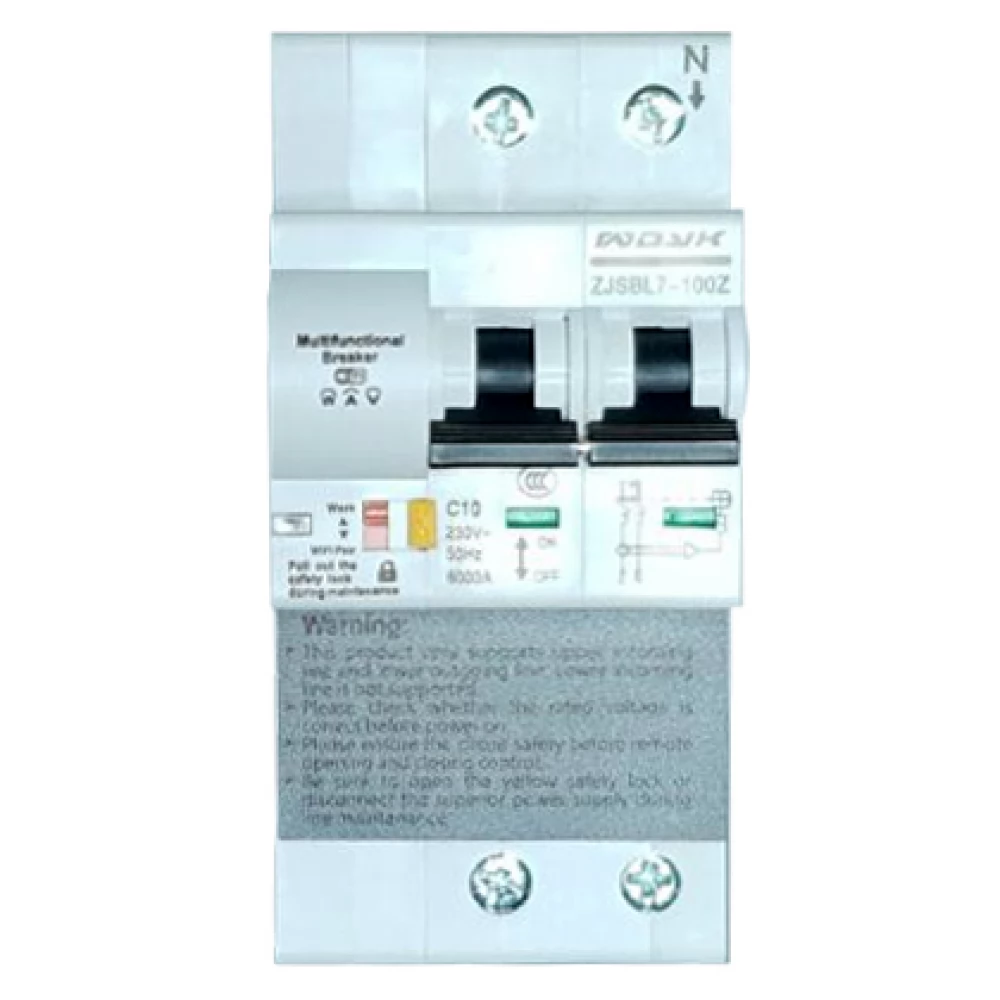

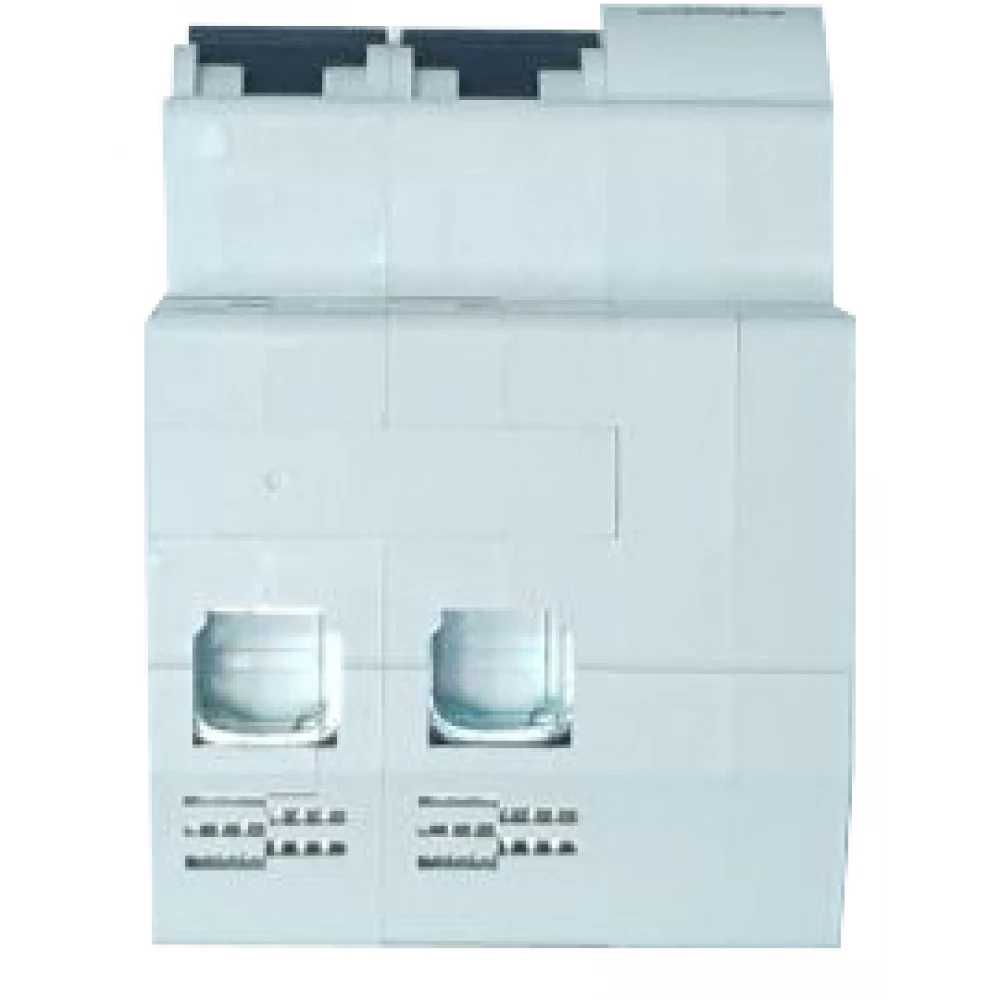

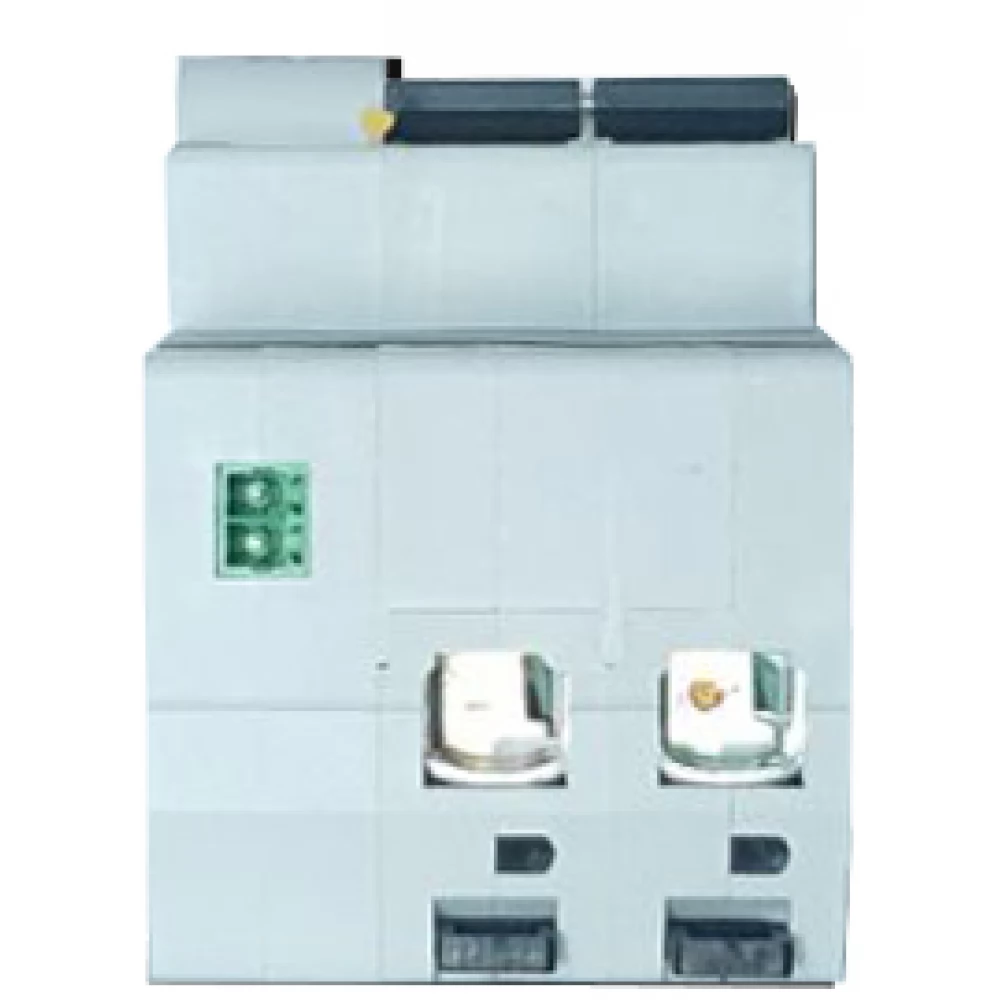

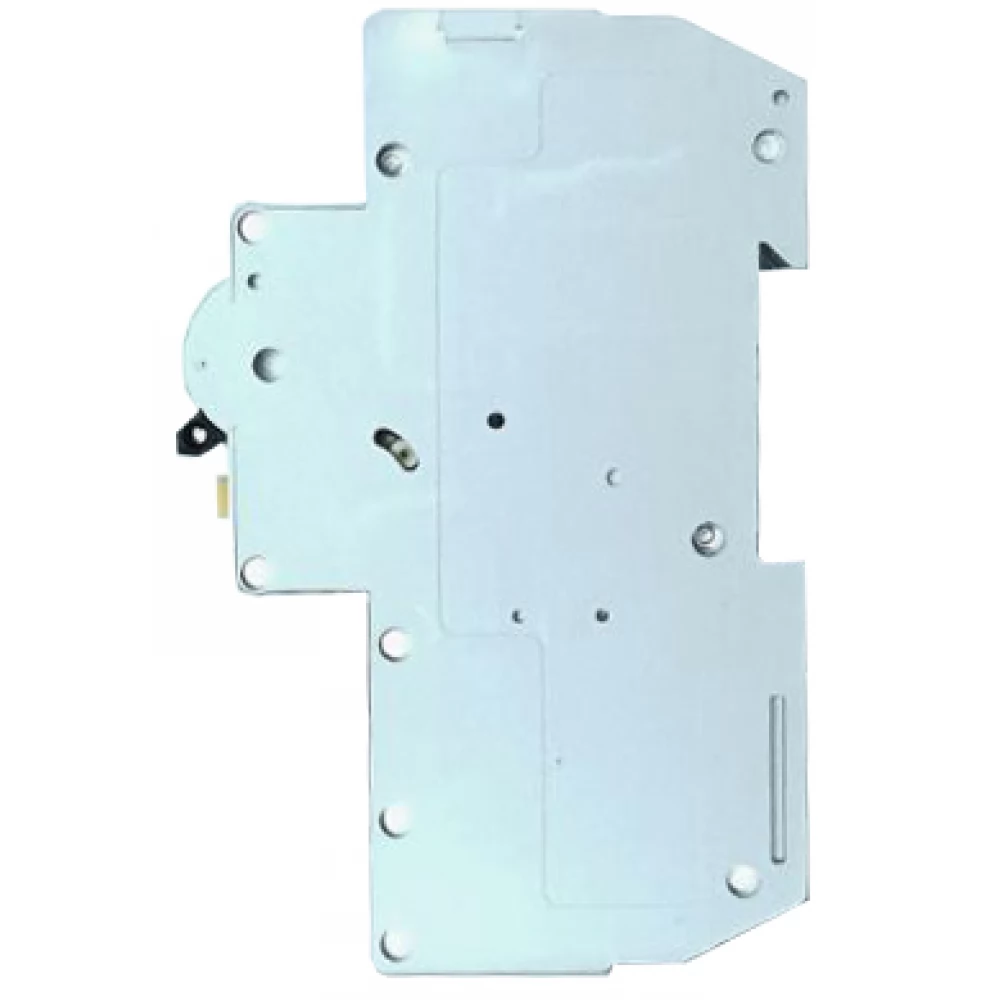

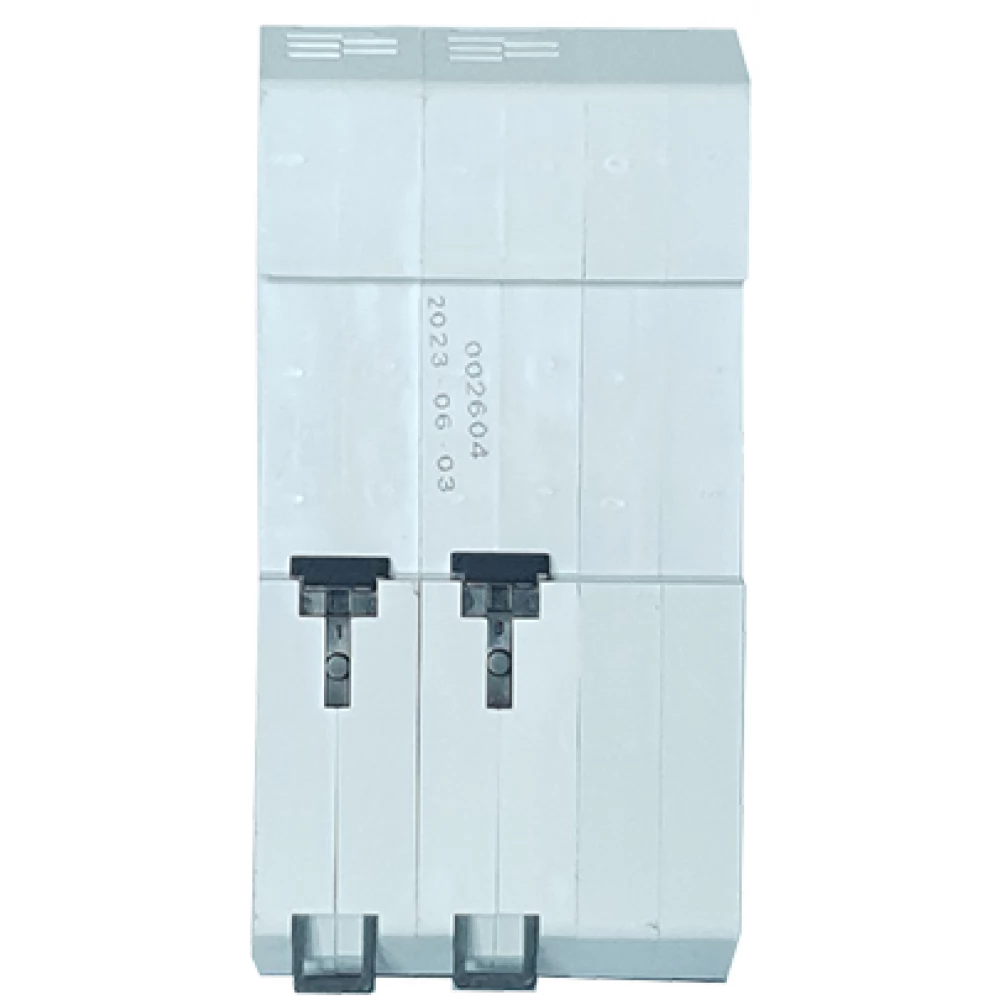

MCB POW 10A 1P+1N eWeLink-app compatible, Wi-Fi, two-pole circuit breaker with built-in consumption meter (max. 10A)

Sonoff / eWeLink-app compatible, Wi-Fi, remote-controllable via the Internet from a mobile phone, timed, 10A smart circuit breaker. It is connected directly to the Wi-Fi router and does not require a local central unit.

This is the two-pole version equipped with a power meter and surge protection function.

The WDYK MCB POW 10A 2P is a two-pole (1P+1N), single-phase, smart circuit breaker that can be placed on the DIN rail of an electrical cabinet, max. With a nominal capacity of 10A.

This is the two-pole product version, which interrupts both the phase and neutral wires.

This type is also equipped with a consumption meter, so it works not only as a classic circuit breaker, but also as a smart consumption meter.

The 10A power is the maximum physical capacity of the device, but it can be set in the eWeLink app to shut down the device in the event of any overvoltage, overcurrent or overpower, so it can also be used as a small circuit breaker with a lower power. Thanks to the overvoltage setting function, it can also be used for overvoltage protection to protect the controlled circuit.

The WDYK device is connected to the same eWeLink smart home platform via the Wi-Fi router as the Sonoff or SmartWise devices, so the devices of these brands can be well combined with each other. The smart circuit breaker connects directly to the Wi-Fi router, it does not need a local central unit or hub.

You can set a push message notification in the eWeLink app for switching on and off, so you can request a message on your phone when the circuit breaker is released. With the help of its built-in small motorized switch, it can be turned on and off remotely via the Internet, not just by hand on the device.

With the maintenance mode lock button on the circuit breaker, both smart functions and manual switching on can be disabled, so both local switching on and remote or timed switching on can be prevented during the maintenance of the electricity network.

Using the eWeLink App running on an iOS (Apple) or Android mobile phone with an Internet connection, you can remotely control the device and even set a timed switch on/off. Of course, the device also has a physical switch, similar to what is found on traditional circuit breakers. Remote access can be shared with other users.

The WDYK brand - like Sonoff and SmartWise devices - uses the eWeLink app, so it can be well combined with Sonoff's smart electrical devices.

Its consumption meter shows the current consumption, and daily and monthly statistics are also available in the mobile App. And with a consumption stopwatch, you can also measure the data from start to finish. The measured consumption data can also be downloaded to your mobile phone in CSV format. With the smart device, not only remote switching and timing can be solved, but it is also excellent for understanding and optimizing our electricity consumption.

It can be specified in the eWeLink app for the unit of electricity, so you can also display the consumption value.

It displays not only current consumption, but also current voltage and current data, overvoltage protection can be set (parameters can be specified individually).

Product features:

- Two-pole smart circuit breaker interrupts both the phase and the neutral wire
- Smart Wi-Fi circuit breaker, does not require a local hub, gateway or central unit.
- 'C' tripping characteristic
- Max. 10A, can be set to a lower value in the eWeLink app
- Measurement of current power consumption and display of current consumption in the App
- Measurement of power consumption for any period, power consumption stopwatch function, measures power consumption from start to stop
- Electricity consumption statistics daily and monthly total consumption statistics in the App (monthly breakdown, for the last 100 days)
- OPS (Overload Protection System) protects the controlled device from overload: the maximum current, maximum voltage, minimum and maximum power can be specified, the device is turned off when the specified limits are reached
- Hungarian-language mobile app Free iOS and Android mobile app: eWeLink, also in Hungarian
- Status query The mobile app shows the current status of the circuit breaker (on or off)
- Switching ON/OFF with remote control Wherever you are, from now on you can turn the small circuit breaker on or off remotely from the mobile phone app via the Internet
- Timing Several timing functions are available: setting a specific time, setting repeated times, countdown / timer, cycle.
- Timed switch-off, the device can also be set to switch off automatically after a certain time after each switch-on
- Can be shared with others You can also give others access to the remote control
- Device groups You can organize several circuit breakers into groups and turn them on or off in the app with one movement
- You can also organize rooms into rooms with Sonoff
