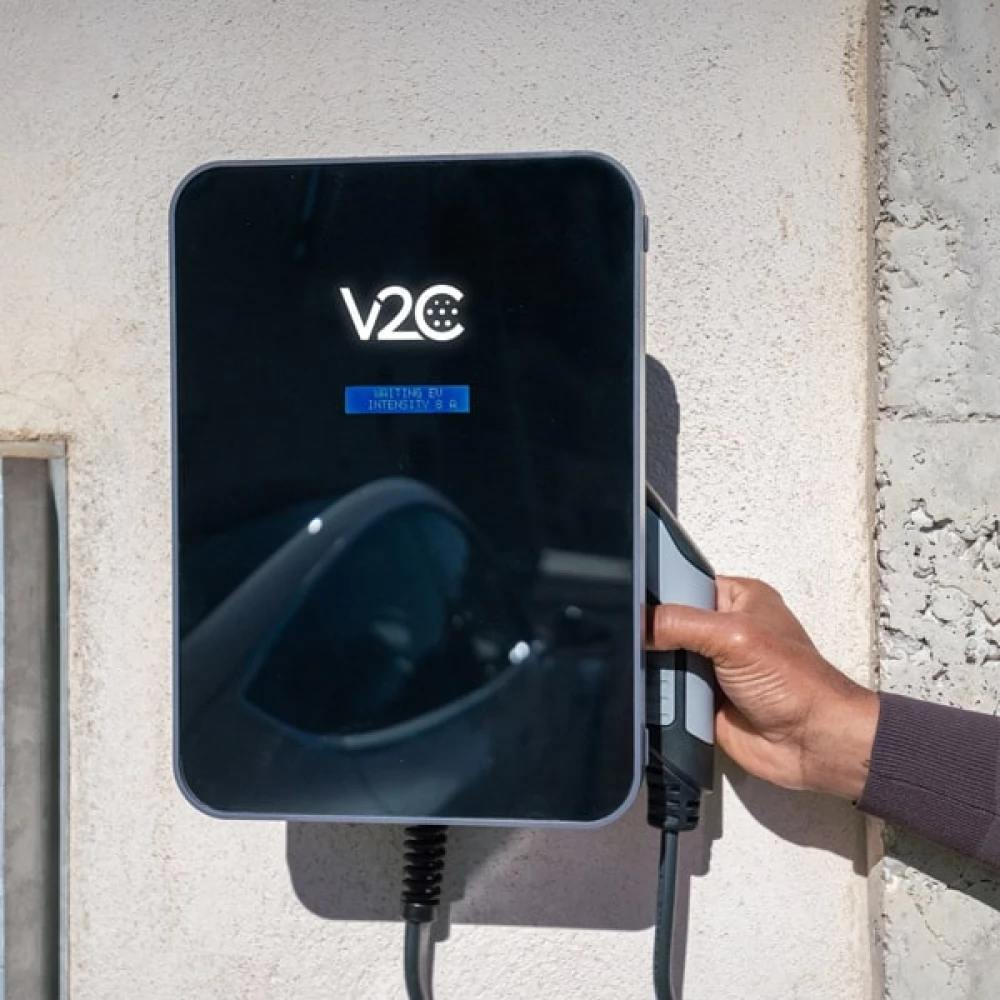

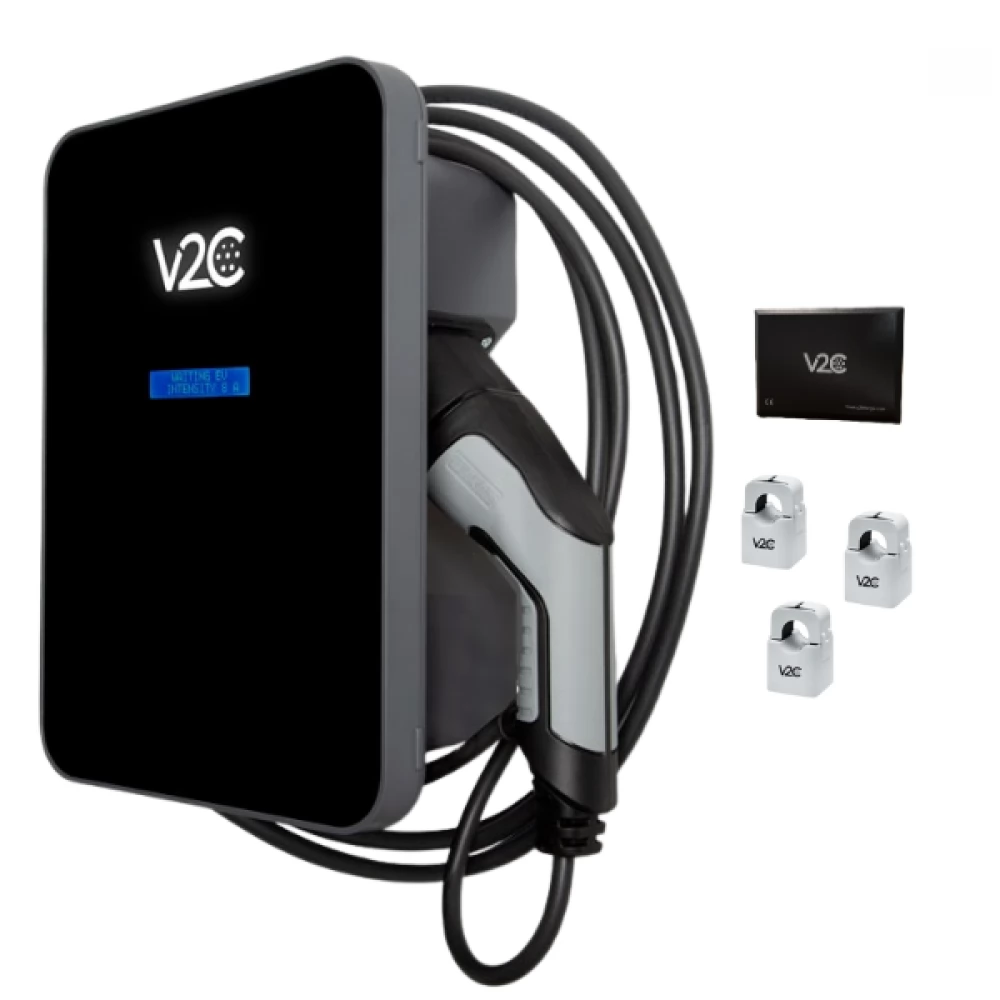

V2C Trydan Pro electric car mural charger (22 kW – 3x32A) (5m – Type 2)(DLB)

CHANGING OPERATIONS:

- WiFi, Bluetooth, Ethernet and optionally 4G connection through V2C Cloud
- Control Telegram Bot, Alexa and Home Assistant integration
- OCPP 1.6 json compatibility
- Direct, wireless connection with solar panels inverters:
- Goodwe, Fronius, Huawei, Ingeteam, Kostal, SMA, Solaredge, Solax, Victron, Shelly, WIBEEE

Charging control and energy use:

- Dynamic performance control based on real -time consumption
- Automatic network monitoring to avoid overload
- Automatic reboot after power failure
- Overload protection and built -in electrical security
- Direct charge with the extra energy produced by solar panels
- solar system integration with the most advanced photovoltaic technology

Charging settings and control:

- Real -time charge control and scheduling with V2C Cloud
- hourly programming for multiple periods
- Set up a maximum hourly power
- Statistical display of charging history
- Locking and unlocking a charger
- API access for developers
- Automatic software updates

Physical characteristics:

- Color: black
- Material: polycarbonate MVR
- Weight: 2.5 kg
- Cable length: 5 m
- Cable type: smooth
- Connecting Type: Type 2 cable 5 m
- Environmental data:
- Operating temperature: -25 ° C 50 ° C
- Storage temperature: -40 ° C 70 ° C

Display:

- RGB lighting according to the charge state
- First LCD display (2.6 ″)
- Electrical features:
- Network Type: 230V / 400V
- Maximum charging current: 32A (per phase)
- Maximum power: 22 kW
- Configurable current: 6-32 a
- Nominal frequency: 50Hz / 60Hz
- IP54 / IK10 Protection
- Residual current sensing: AC 30MA / DC 6MA
