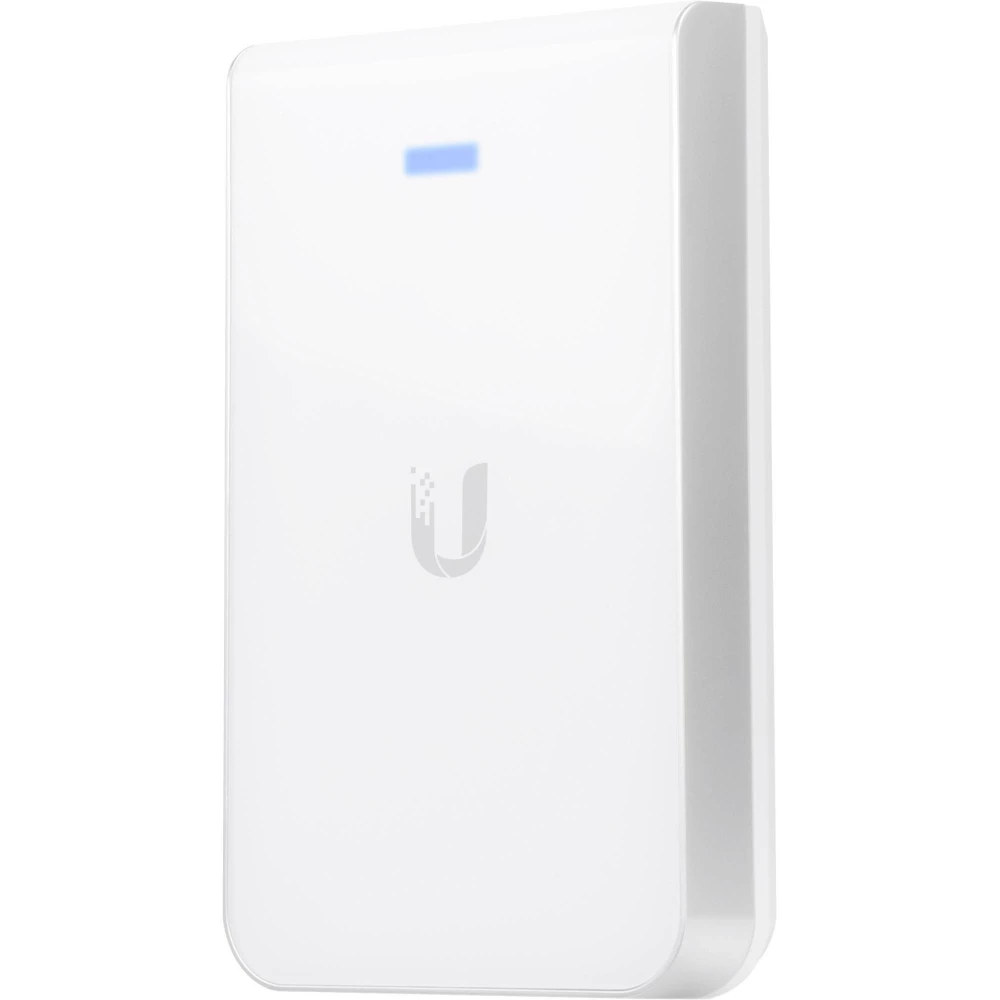

802.11ac Wi-Fi access point within the wall

Easier than you think
Ideal for new and ex-post equipment, the UniFi AC In-Wall, which converts an Ethernet wall connector into a two-band 802.11ac Wi-Fi access point with two gigabit Ethernet ports.

- scalable: Dedicated Wi-Fi per room
- Simple setting, supervision and control
- Fast: Two Radio, 802.11ac

The power of the poe
Turn on existing wires to a room Wi-Fi using the Uni Poe Switch series.

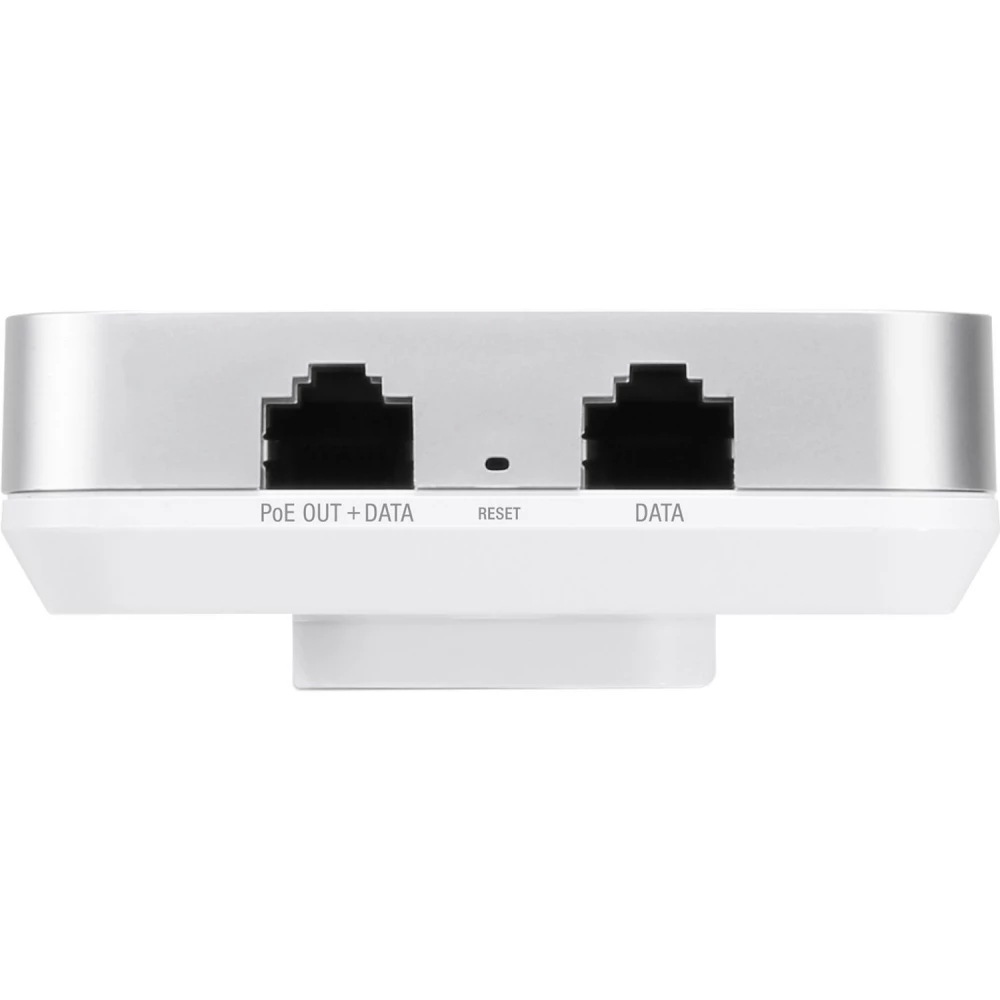

Versatile data and POE output
The Ethernet wall connector access point, Gigabit SWITCH and POE will be a source of power.
Wandering the workstation and feeding VoIP phone. Or nourish a Uni Switch 8 on more Ethernet ports.

Simple and scaling device management
The Uni controller provides a graphical user interface for simple configuration and supervision of UniFi Switch and other Uni tools.

- Simple setting: Download the app and set the device in 60 seconds.
- Know your network: You can easily track tools, customers and use data.
- Stay safe: keep an eye on your network safety.

Technical data
- Size: 139.7 x 86.7 x 25.75 mm
- Mass: 200 g
- 3 pieces of gigabit Ethernet port
- Power mode: 802.3at, POE+ Supported
- Power Supply: Uni Poe Switch (not accessory)
- Energy saving is supported
- Poe output: 48V through
- Maximum energy consumption: 7 W, 19 W (POE transition)
- 1 double -band antenna, single polarity, 2.4 GHz: 1 DBI, 5 GHz: 2 DBI
- Wi-Fi standards: 802.11a/b/g/n/r/k/v/ac
- BSSID: Up to 8 pieces per radio
- Installation: 1 piece mounted electric wall box (not accessory)
- Operating temperature: -10 ° C ~ +50 ° C
- Operating humidity: 5% ~ 95%
