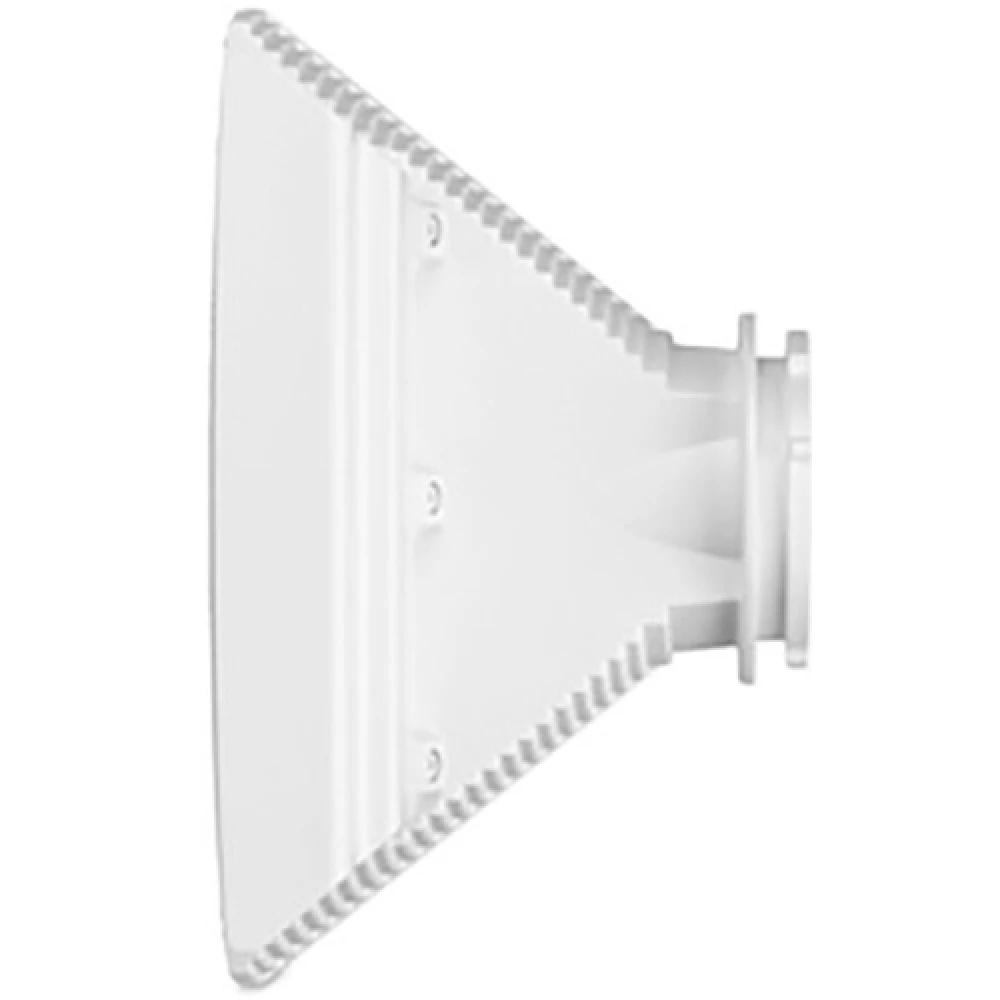

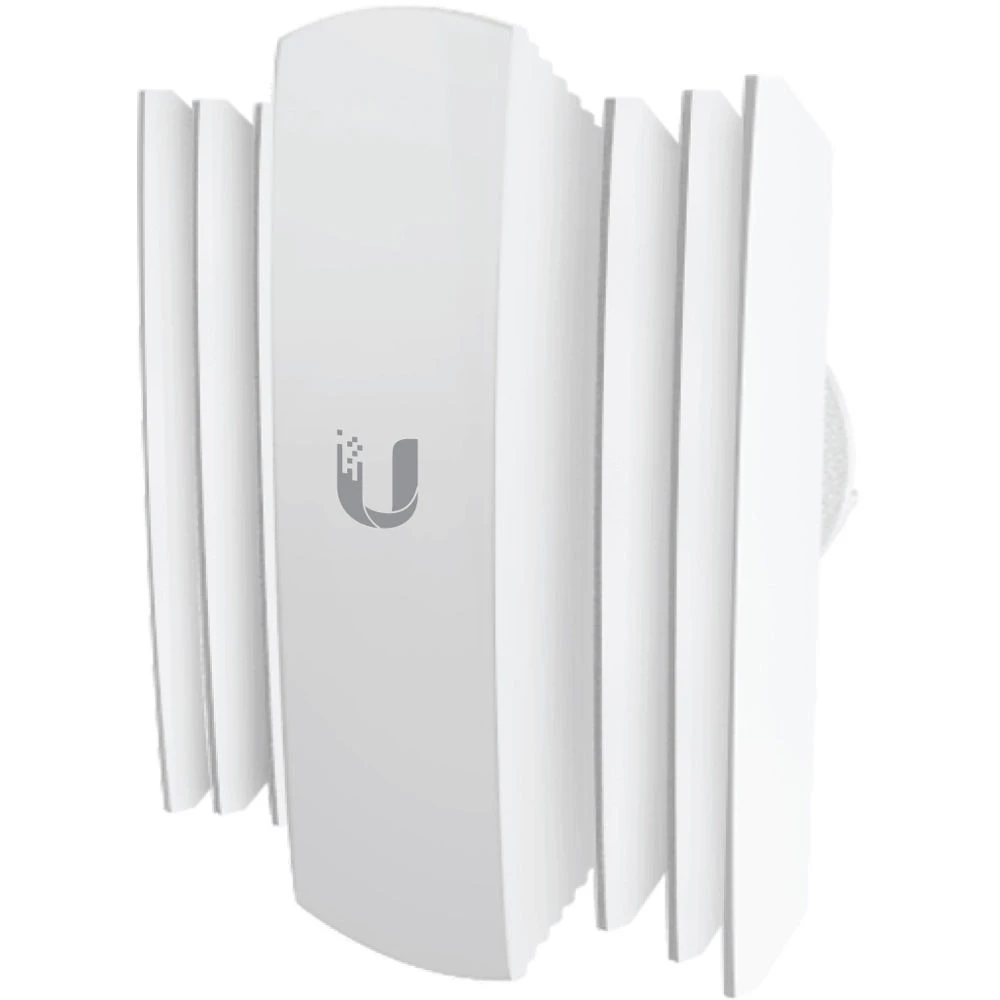

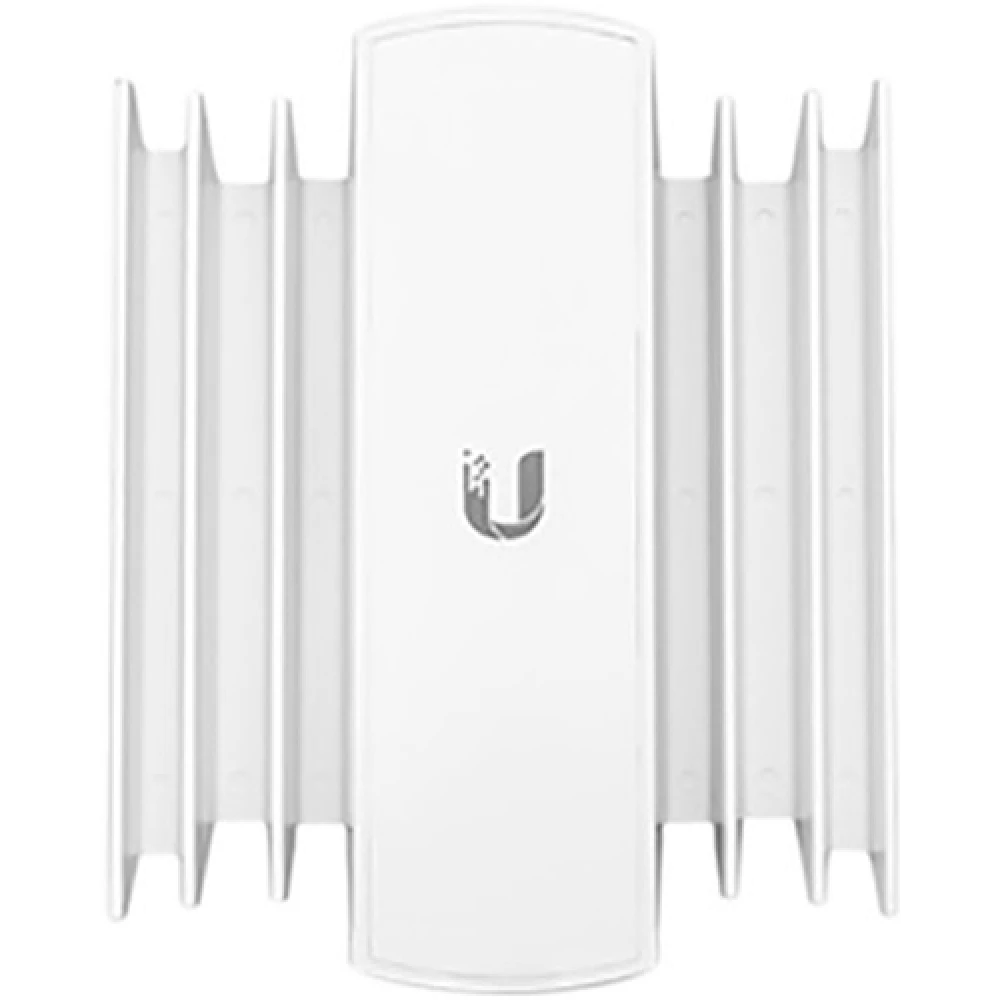

Horn antenna with a beam width of 5 GHz

Ubiquiti Networks launches new family of beamwidth isolation horn antennas.

With a range of different beam widths, the isolation antennas are interchangeable and feature high performance beam patterns ideal for a variety of installation needs. When used with airFiber LTU and airMAX radios, these antennas provide excellent installation performance without sacrificing gain.

Modular design
Isolation antennas are interchangeable and have high performance beam patterns for a variety of demanding installation needs. Combined with a PrismStation 5AC or airFiber LTU radio, the system gets maximum gain from the smallest footprint.

With flexible sectoring of the optional antenna beam widths, the horn antennas can be interchanged and improve the beamforming for the specific installation and environmental needs. Band horn antennas are designed to increase installation performance without sacrificing gain.

Horn antennas have precise radiation angles for specific beamforming, ranging from 30 to 90 degrees, so they can be widely used.

- The horn is designed for better beam shaping
- Improved collaboration performance
- One button press for easy antenna replacement

Asymmetric horn antennas
The 60 and 90 degree versions have naturally damped side lobes and extremely low back radiation. They offer the best front to back ratio in the industry and the lowest side lobe radiation. Asymmetric horn antennas are well suited for cluster-sector installations with high installation requirements.

Versatility
Horn antennas can be used with the following radios:
- AirFiber LTU
- IsoStation AC
- IsoStation M5
- PrismStation AC

Technical data
- Size: 152.1 x 186.8 x 113.2 mm
- Weight: 920 g
- Supported frequency range: 5.15 GHz ~ 5.85 GHz
- Gain: 13 dBi
- Horizontal beam width: 90°
- Vertical beam width: 90°
- Height beam width: 45°
- Maximum VSWR: 2:1
- Wind tolerance: 200 km/h
- Wind load: 46 N @ 200 km/h
- Polarization: double linear
- Cross polarization isolation: 17 dB
