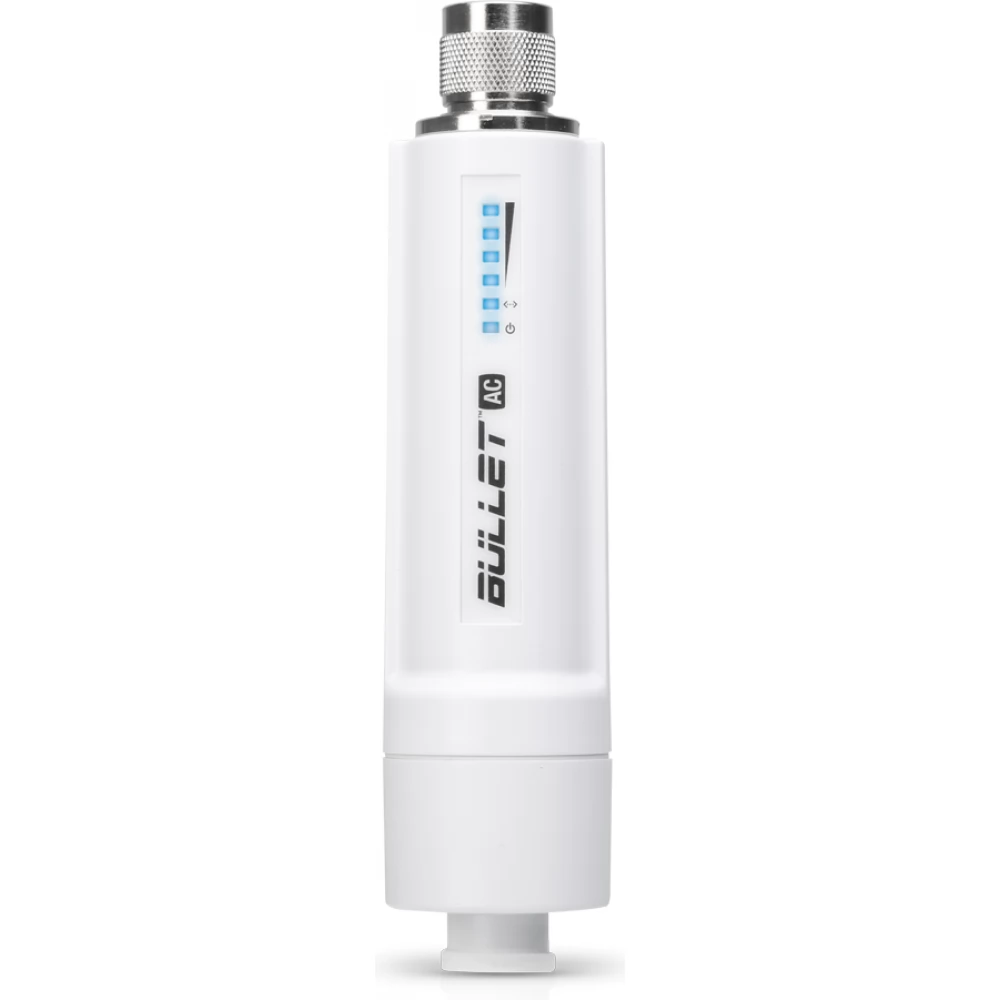

Dual-band airMAX ac radio with dedicated Wi-Fi management

The Bullet AC covers both the 2.4 and 5 GHz bands, covering a wide range of frequency bands that work well for both short and long distance connections.

Ubiquiti Networks has designed airMAX ac radios for high performance and easy installation. You have the option of deploying Bullet AC anywhere in the world, as it provides a high degree of flexibility in configuring the channel bandwidth (according to local country regulations).

Fully integrated radio
Launched in 2008, the Bullet design helped transform the WISP industry. Its unique design improves link performance and reduces installation complexity.

Carrier class transfer performance
Bullet AC provides up to 300+ Mbps of real TCP/IP throughput.

Durability outdoors to the end
The robust, weatherproof case withstands harsh outdoor conditions.

Performance breakthrough
airMAX AC products provide improved latency, noise protection, scalability and significantly higher performance.

Advanced software technology
Ubiquiti's airMAX technology provides outstanding performance in outdoor environments, proven by millions of installations worldwide. The TDMA airMAX protocol enables unprecedented scalability, high throughput and low latency in unlicensed multipoint networks.

Plug and Play integration
Connect the Bullet AC to any existing antenna with an N-type connector to create an airMAX base.

Zero variable installation
Bullet AC eliminates the need for RF cables and requires no special antenna or equipment. No radio cards/host issues, no RF cable quality concerns, no mechanical stability concerns, and no installation requirements. With Bullet AC, operators can just plug in and walk in.

The Bullet AC is a fully integrated radio that provides up to 300 Mbps of real TCP/IP transmission.

- Dual Band Frequency: The Bullet AC covers both the 2.4 and 5 GHz radio frequency bands, covering a wide range of frequencies that work well for both short and long distance connections.
- Output power: The B-DB-AC offers an output power of up to 22 dBm.
- Passive power supply over Ethernet (PoE): 24 V passive PoE function. Both power and data are sent to the Bullet AC via an Ethernet cable. Use a PoE adapter (not included) or an optional PoE switch.
- Weatherproof design: Bullet AC's durable casing can withstand nature's harshest outdoor elements.
- Plug and Play integration: Bullet AC installation requires no special tools or antennas. Simply plug it in and you're done.

Technical data
- Size: 190 x 46 x 46 mm
- Weight: 116 g
- Housing: Polycarbonate
- Network interface: Gigabit Ethernet port

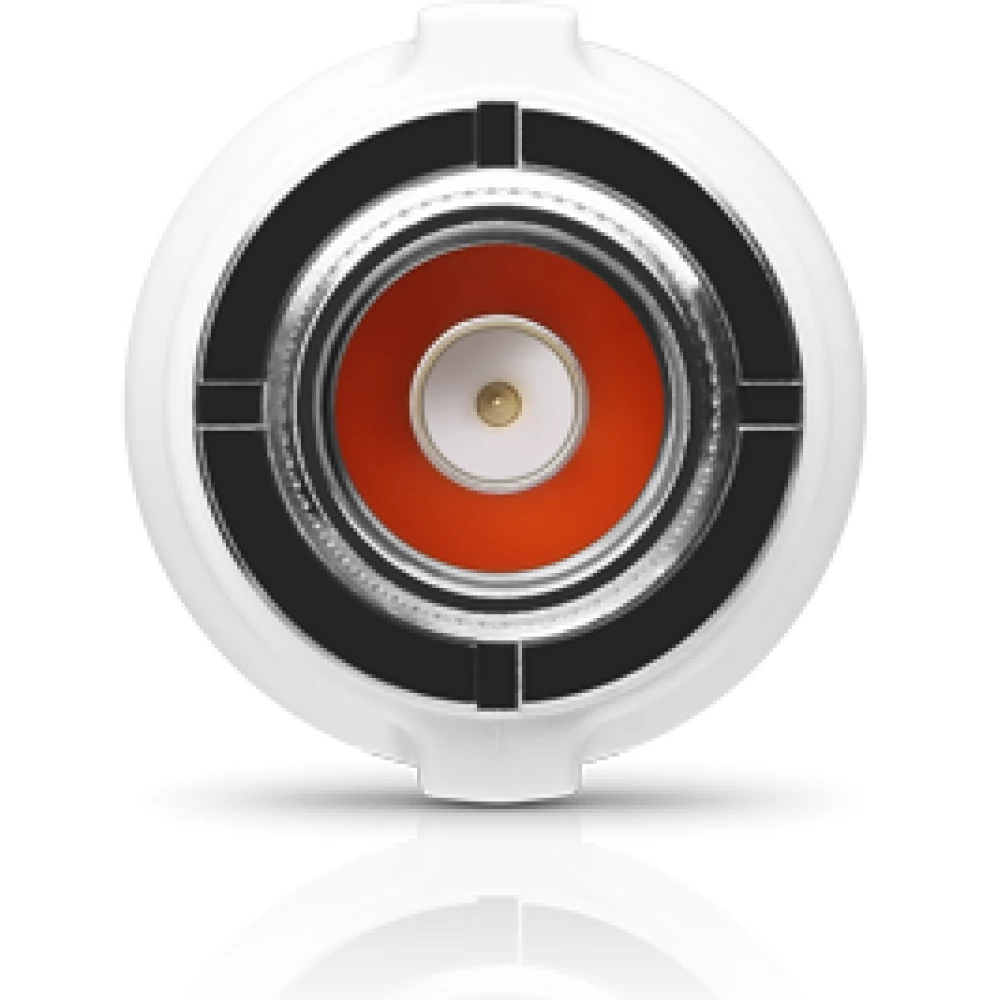

- Antenna connector: N-type
- Throughput: 2.4 GHz: 160+ Mbps, 5 GHz: 300+ Mbps
- Maximum power consumption: 8 W
- Output power: 22 dBm
- Power supply: 24 V DC, 0.3 A (minimum)
- Power mode: 24 V passive PoE
- ESD/EMP protection: ± 24 kV contact/air
- Operating temperature: -40°C ~ +70°C
- Operating humidity: 5% ~ 95%
