- Max 300 Mbps for 5 GHz wireless speed
- 23 dBi high gain directional 2×2 MIMO antenna and dedicated metal reflector, ideal for long distance use
- Excellent beam control, improved delay and noise cancellation
- Thanks to the innovative snap-on parts, it can be quickly assembled and thanks to the robust design, the CPE610 remains stable even in strong storms
- The durable IP65 weatherproof housing, 15 kV ESD and 6 kV lightning protection ensure usability in all kinds of weather
- TP-Link Pharos MAXtream TDMA technology improves transmission capacity and latency performance
- With the help of Pharos Control, system administrators can manage the system centrally
- AP/Client/Bridge/Repeater/AP Router/AP Client Router (WISP) operating modes
- Passive PoE provides flexible and convenient installation options

2×2 MIMO
MAXstream TDMA
23 dBi directional antenna and professional structural stability for long-distance outdoor Wi-Fi transmission

Professional 23dBi directional antenna for long distance wireless transmission

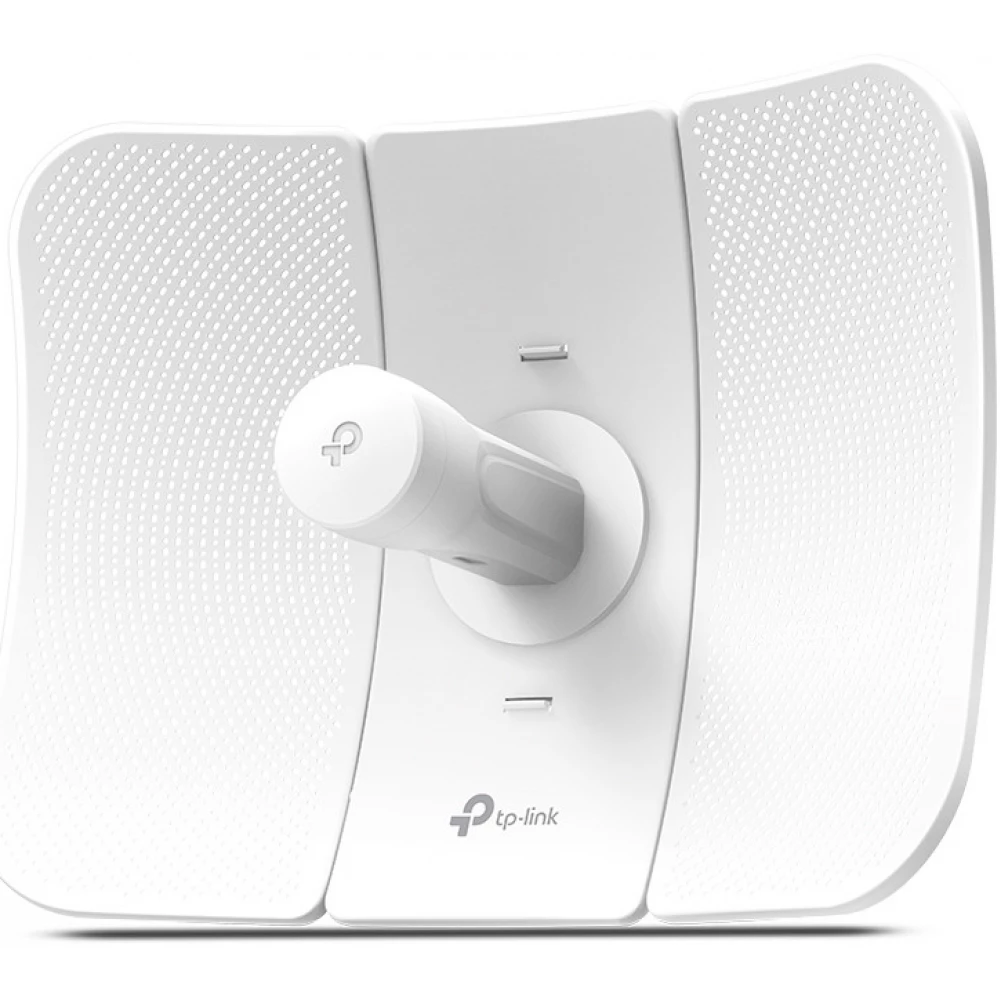

The 23 dBi high power directional 2×2 MIMO Cassegrain antenna and dedicated metal reflector - the CPE610 - provides excellent beam steering, improves latency and reduces noise. Thanks to its professional performance and user-friendly design, the 5 GHz 300 Mbps 23 dBi outdoor CPE610 is an ideal and cost-effective choice for operating outdoor wireless networks.

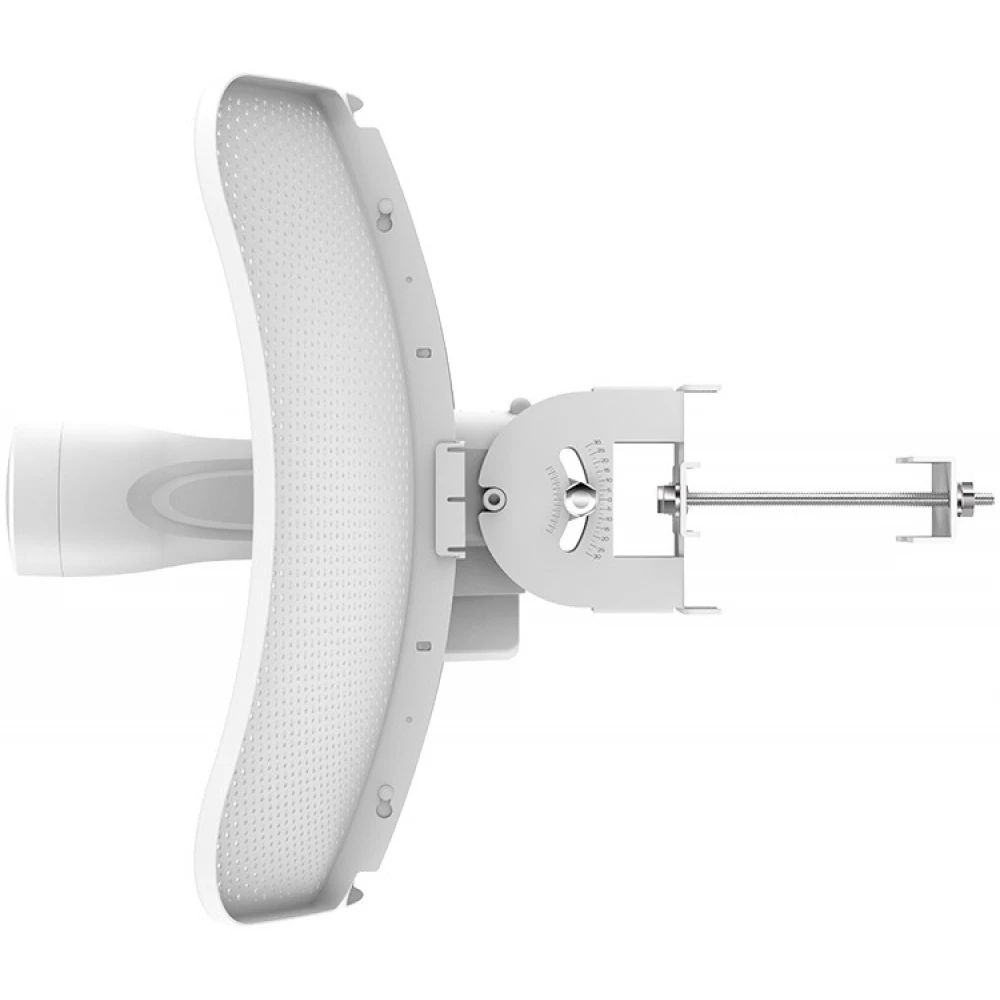

Stable structural design and flexible installation

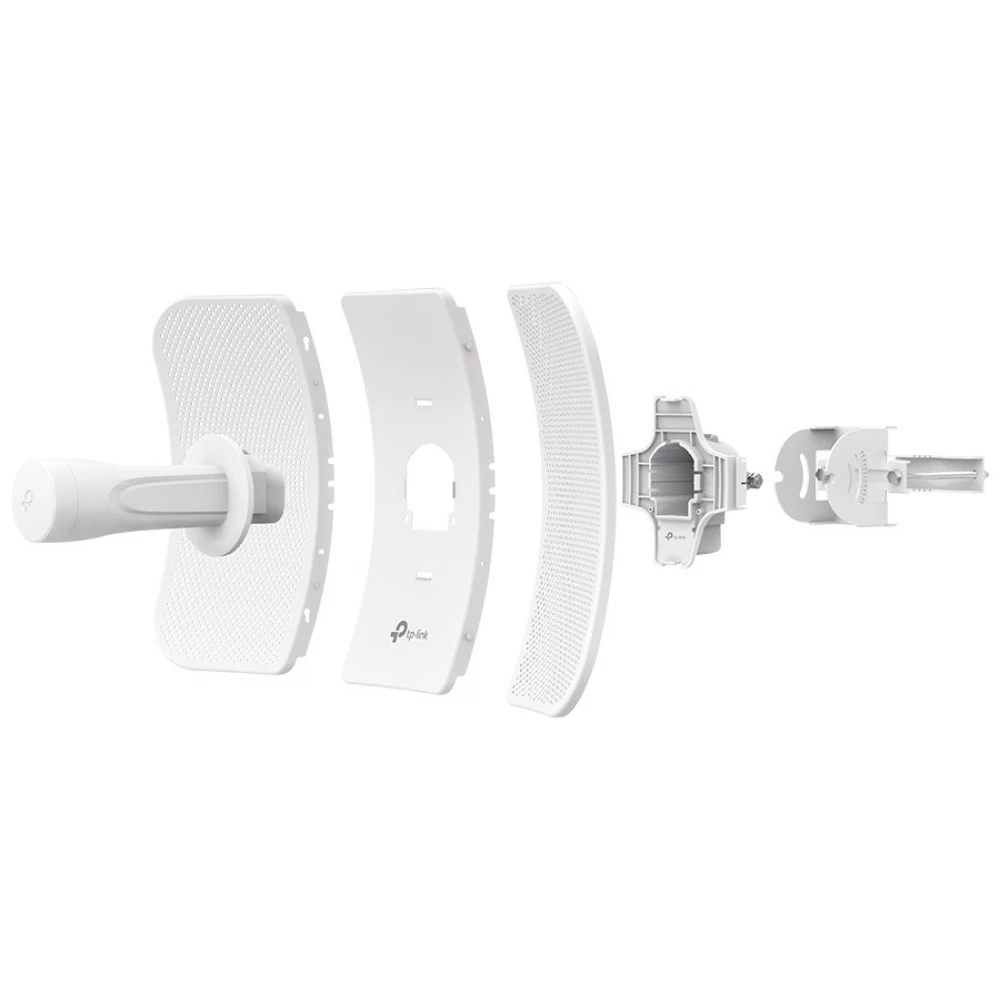

- Easy to assemble thanks to snap-on parts
- Installation options are flexible thanks to the possibility of being attached to the pole and the 3-way controllable design
- Thanks to the massive design, it remains stable even in big storms

Compact and light packaging
Small and light packaging makes it easy to transport, store and sell.

Pharos Control – Central Management system
The CPE610 comes with a central control system, which helps users easily and simply control all devices from a single computer. Options such as device detection, status monitoring, firmware update and network maintenance can be easily managed through Pharos Control.

Characteristics
- Max 300 Mbps for 5 GHz wireless speed
- 23 dBi high gain directional Cassegrain 2×2 MIMO antenna and dedicated metal reflector, ideal for long distance use
- Excellent beam control, improved delay and noise cancellation
- Thanks to the innovative snap-on parts, it can be assembled quickly and conveniently
- Thanks to the pole-mountable design and the possibility to adjust in 3 directions, it can be installed smoothly
- Thanks to its robust design, the CPE610 remains stable even in strong storms
- The durable IP65 weatherproof housing, 15 kV ESD and 6 kV lightning protection ensure usability in all kinds of weather
- TP-Link Pharos MAXtream TDMA technology improves transmission capacity and latency performance
- With the help of Pharos Control, system administrators can manage the system centrally
- AP/Client/Bridge/Repeater/AP Router/AP Client Router (WISP) operating modes
- Passive PoE provides flexible and convenient installation options
- You can enjoy the advantages of transport and storage thanks to the small and light packaging

Specifications
- CPU: Qualcomm 560MHz CPU, MIPS 74Kc
- RAM: 64 MB DDR2
- Flash: 8 MB
- 1 10/100 Mbps shielded Ethernet connector (LAN/PoE)
- Network power supply: Passive PoE, Voltage: 16 V ~ 27 V DC
- Size: 360 x 280 x 207 mm
- Antenna gain: 23 dBi
- Antenna radiation angle: 9° (to the side), 7° (height)
- Protection: 15 kV ESD Protection, 6 kV Lightning Protection
- Cover: Outdoor PC stabilized plastic
- Weather resistance: IP65, water and dust-free design
- IEEE 802.11a/n
- Frequency: 5.15 GHz ~ 5.85 GHz
- Radiation power: Max 29 dBm/790 mW (adjustable power from 1 dBm)
- Operating mode: AP/Client/Bridge/Repeater/AP Router/AP Client Router (WISP Client)
- Operating temperature: -40°C ~ +70°C
- Operating humidity: 10% ~ 90%
- Storage temperature: -40°C ~ +70°C
- Storage humidity: 5% ~ 90%

Package contents
- Outdoor wireless CPE
- 24 V/0.5 A Passive PoE Adapter
- Column mountable strap
- AC power connector
- Installation guide
