TELTONIKA RUT950U022C0 RUT950
Product description

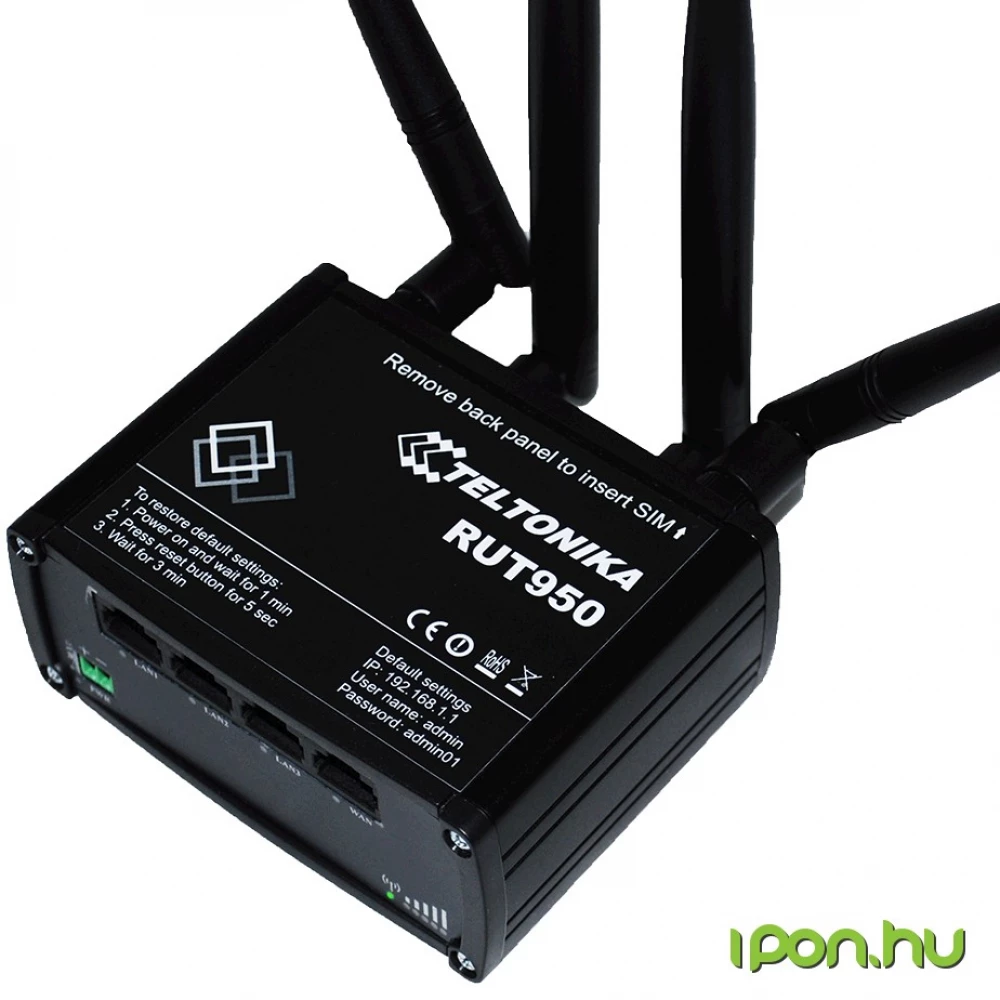

The RUT950 is a highly reliable and secure LTE router for professional applications. The router provides high-performance, mission-critical mobile communications. The RUT950 has connection redundancy through dual SIM transfer. The external antenna connectors allow you to connect the desired antennas and find the best signal position.
Technology
- 4G (LTE) – CAT 4 up to 100 Mbps
- 3G – up to 42 Mbps
- 2G – up to 236.8 kbps
- WiFi - up to 300 Mbps
- GPRS
- Ethernet – 4 ports
- SMS
- FDD-LTE: B1 (2100 MHz)/B3 (1800 MHz)/B7 (2600 MHz)/B8 (900 MHz)/B20 (800 MHz)/B28A
- WCDMA: B1 (2100 MHz)/B8 (900 MHz)
- GSM/EDGE: 900/1800 MHz
Hardware
- 2 SIM card slots
- 1 10/100 Mbps WAN port
- 3 10/100 Mbps LAN ports
- IEEE 802.11b/g/n Wi-Fi, N300
- Durable aluminum housing
- 2-pole industrial DC power supply
- Power over Ethernet (does not comply with the IEEE 802.3af - 2003 standard)
- 2 SMA mobile network antenna connectors
- 2 RP-SMA wifi antenna connectors
- Input voltage: 9-30 V DC
- Operating temperature: -45°C ~ +80°C
- Storage temperature: -45°C ~ +80°C
Firmware
- Remote setting via SMS
- Bridge mode
- Automatic and manual provider selection
- Static route
- PPPoE
- NTP
- Wireless Hotspot/Client/AP
- Ping and periodic restart
- Real-time graphs
- Backup WAN
- Mobile traffic counter
- Connection status display
- Setting save/reset
- VRRP
- IPSec
- GRE Tunnel
- OpenVPN
- PPTP
- SNMP/SNMP Trap
- sending/receiving SMS
- Status SMS
- SMS restart
- Enable/disable mobile network/Wifi/OpenVPN via SMS
- Web filtering
- Mobile on Demand
- Mobile data limit
- Settings profiles
- Event logging
- QoS
- Restore point
- Call tools
- SIM change
- Firmware OTA
- Event reporting via e-mail/SMS
- Network discovery with topology display
- Roaming ban
- SMS gateway
- OSPF
- Access control security
- SIM inactivity protection
- VLAN
- CLI
- Firewall
- IP/MAC filtering
- TR-069
- DHCP server
- Dynamic DNA
- RMS support
WiFi
- IEEE 802.11b/g/n WiFi standards
- 2×2 MIMO
- AP and STA modes
- 20 dBm max WiFi TX power
- SSID stealth mode and MAC-based access control
Package contents
- RUT950 router
- Euro power supply
- 2 LTE antennas (rotatable, SMA connector)
- 2 WiFi antennas (rotatable, RP-SMA connector)
- Ethernet cable (1.5 meters)
- Quick guide
- Packing box
