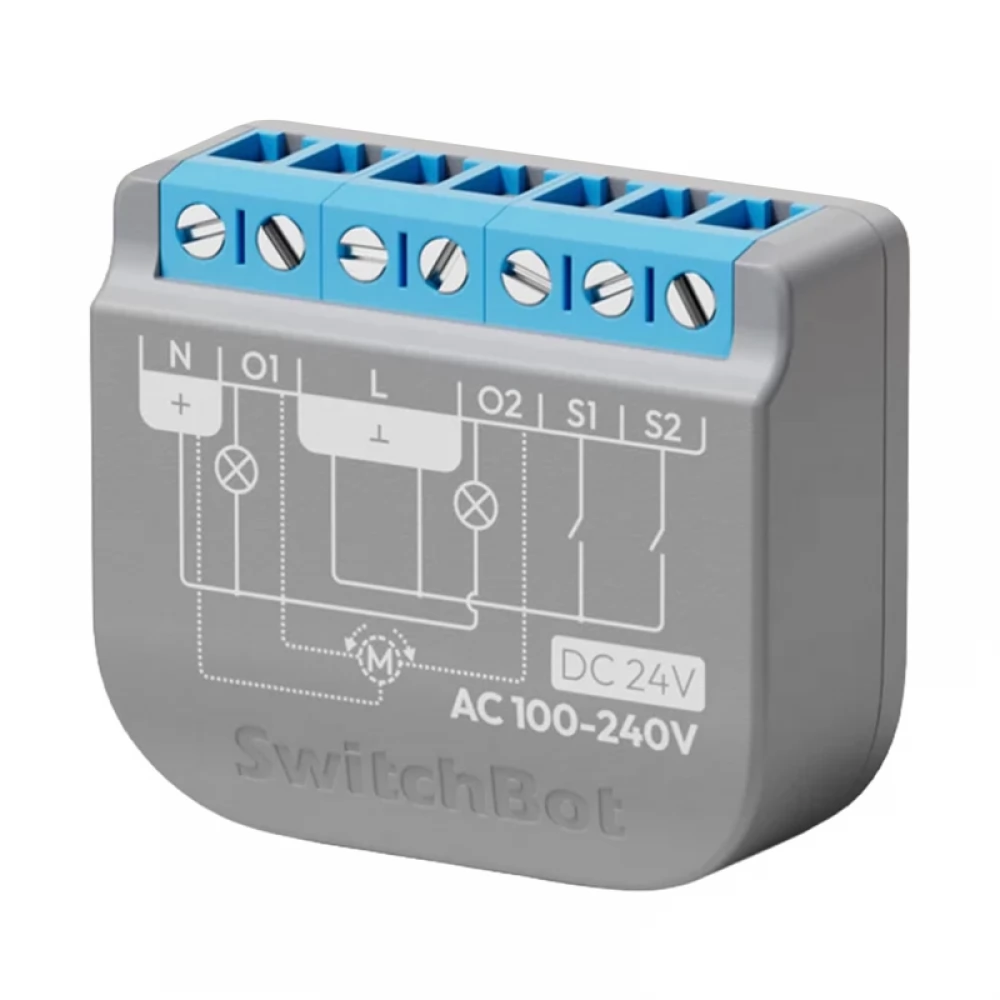

SwitchBot Relay Switch 2PM is the world's first smart relay with a built-in Bluetooth repeater and Matter support, connecting devices from different brands in a single ecosystem. Compatible with Alexa, Apple HomeKit, Google Home and SmartThings, you can conveniently control lighting, blinds, fans or heating - from anywhere. Its compact design (42 × 36 × 16 mm) enables easy installation in an electrical box without modifying the wires.

Modernization without renovation

The Relay Switch 2PM, installed behind a conventional switch, transforms standard circuits into intelligent solutions without renovation. Installation takes just a few minutes, and you can control your lights and devices from an app or by voice. The device supports both Wi-Fi and Bluetooth connections, and the Matter protocol enables direct connection to the most popular voice-based assistants without an additional hub.

Energy consumption monitoring

The model also offers energy measurement on two independent channels. The SwitchBot app shows detailed graphs of power, current, voltage and total energy consumption so you can optimize costs and manage your home energy efficiently. The data is stored free of charge for 2 years, facilitating long-term analysis.

Flexible control and automation

By supporting different switch types - Toggle, Momentary, Detached and Edge - the device offers complete installation flexibility. You can create automatic scenarios, such as turning on the lights when the door is opened, lowering the blinds at sunset, or controlling the heating based on the sensors of the SwitchBot Meter Pro.

High level of security

The SwitchBot Relay Switch 2PM is distinguished by its robust construction and V0 fire protection class. The protection system automatically shuts off the power supply in the event of overload or overheating above 100°C, and restores the previous operating state after the error is removed. This ensures that the electrical equipment remains safe at all times.

Integrated SwitchBot ecosystem

The device supports 100-240 V AC and 24-30 V DC with a maximum current of 16 A (10 A per channel) and a shutter mode for intelligent control of curtains and blinds. The relay can integrate up to 10 SwitchBot Bluetooth devices such as Lock Pro locks, Curtain 3 shutters or Meter Pro sensors to create a connected, comprehensive smart home system.

Description:

- Manufacturer: SwitchBot
- Model: Relay switch 2PM
- Dimensions: 42 × 36 × 16 mm (±0.5 mm)
- Weight: 27g (0.9oz)
- Material: PC
- Power supply: AC 100-240 V 50/60 Hz, DC 24-30 V
- Maximum output current (AC): 16 A (10 A per channel)
- Max. output current (DC): 10 A
- Number of channels: 2
- Connection methods: Wi-Fi + Bluetooth Low Energy
- Bluetooth range: Up to 10 m (indoors) / 30 m (outdoors)
- Wi-Fi range: Up to 30 m (indoors) / 50 m (outdoors)
- Installation method: Recessed installation
- Safety features: Automatic shutdown in case of overload or overheating (over 100°C)
- Roller shutter mode: Activated
- Garage door mode: Not supported
- Integration: Material, Alexa, Google Home, Apple HomeKit, SmartThings
- Processor: ESP32
- Maximum number of supported Bluetooth devices: 10
- Certificates: FCC, CE, RoHS
