The smart pendant and shutter controller SR‑ZG9081A is ideal for those who want to make their existing motorized blinds or shutter motors smarter at home with bidirectional (up-down) control, step control and percentage position management offered by the module. Its compact dimensions (42x38x16mm) enable easy integration behind switches or in junction boxes. It supports many shading types, is suitable for moving curtains, controlling shutter and awning motors, or even controlling a motorized projection screen and lighting in a movie theater. When controlling blinds and shades, the module allows users to keep the light conditions and temperature at an optimal level by lowering the blinds in the summer heat. Thanks to the calibration function, blinds and shades can be controlled with even percent accuracy.

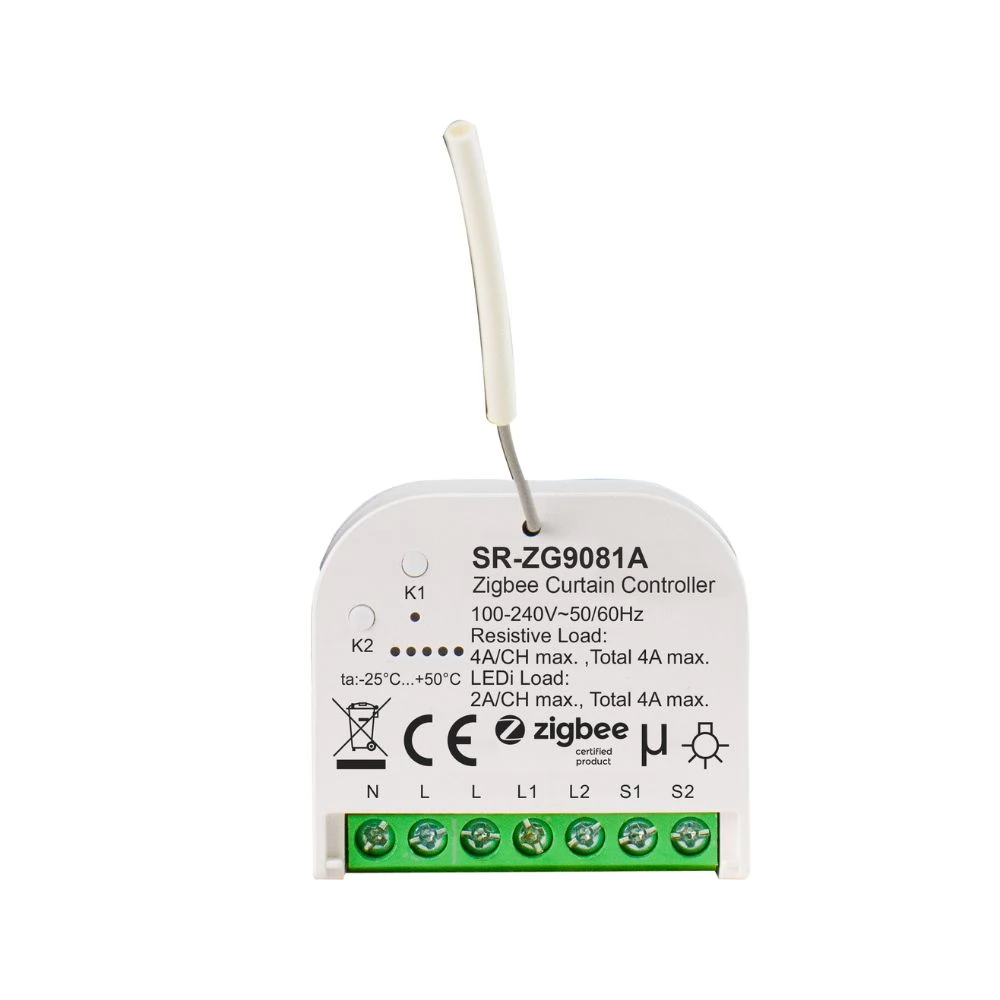

The SR‑ZG9081A is a compact, wall-mountable control unit that seamlessly integrates into a Zigbee 3.0 mesh network. It is suitable for controlling various types of blinds - for example blinds, reluxa, curtains - and has two switch inputs, which can be configured as desired depending on the switch type. Control is via compatible Zigbee smart home hubs. Thanks to its small size and IP20 protection, it can be easily installed in a standard wall box.

Main product features

- Zigbee 3.0 compatible device that can be integrated into a reliable mesh network.
- Blind control supports different types of blinds, such as blinds, reluxa and curtains.
- Can be controlled with a smart home system via compatible Zigbee 3.0 centers.
- Mesh range with a typical indoor viewing angle of more than 50m.
- Mini size can be easily installed in a standard wall box.
- IP20 protection suitable for indoor use.

Smart home protocols and platform compatibility

- Protocol: Zigbee 3.0 mesh network
- Local control: switch inputs can be momentary or toggle switches
- Factory platform: works with almost all Zigbee 3.0 compatible smart home centers (e.g. Home Assistant, SmartThings, Zigbee2MQTT)
- Cloud platform integration: via a Zigbee hub, e.g. Google Home, Alexa can be used
- IFTTT: possible via a Zigbee hub
- Integration: Zigbee2MQTT support,
- Voice control: Alexa, Google Assistant supported via Zigbee hub

Smart functions

- Switch input configuration for manual or network control of blinds
- Control via Zigbee compatible gateways
- Mesh network reliability and long range (more than 50m in line of sight)
- Small size, easy installation in standard boxes
- TouchLink installation and pairing: Works without a separate ZigBee coordinator.

Electrical functions

- Input / output voltage: 100–240V AC
- Maximum load capacity: 4A
- Circuit management: motor control with switch inputs,
- Switch inputs: 2 switch inputs (configurable depending on the type)

Other features

- Compact size: 42×38×16mm
- Easy installation: can be installed in a standard wall box
- Water resistance: IP20
- Range: indoors >50m

Description:

- Manufacturer: Sunricher
- Article number: SUN-REL-SR-ZG9081A
- Factory part number: SR-ZG9081A
- Bar code: 5999572033408
- Communication protocols: Zigbee
- Color: White

Installation / operation

- Operating power supply: 230V AC (L + N)
- Operating ambient temperature: 0°C-45°C
- IP protection: IP20

Controlled (/measured) circuit

- Number of output circuits: 2
- Rated voltage: 230V AC
- Nominal current: Max. 4A

Electrical properties

- Local / manual switching: Yes
- Input for external switch: 1 switch input
- Impulse/ toggle switch: Yes
- Interlock / toggle switch mode: Yes: by default
- Overload protection: Yes
- Overheating protection: Yes

Supported protocols

- Ethernet / wired network (RJ-45): No
- Wi-Fi: No
- Zigbee: Yes: Zigbee 3.0
- Z-Wave: No
- Thread: No
- RF / radio control: No
- Bluetooth: No

Remote control, smart control

- Web (browser) admin interface: Depending on the hub/gateway
- Cloud mode: Depending on the hub/gateway
- Local network mode: Depending on the hub/gateway
- Matter standard compatible: No
- MQTT: Zigbee2MQTT

Smart functions

- Timed: Depending on the hub/gateway
- Notification functions: Yes
- History / Event log: Yes

Other

- Dimensions: 3.8 × 4.2 × 1.6 cm
