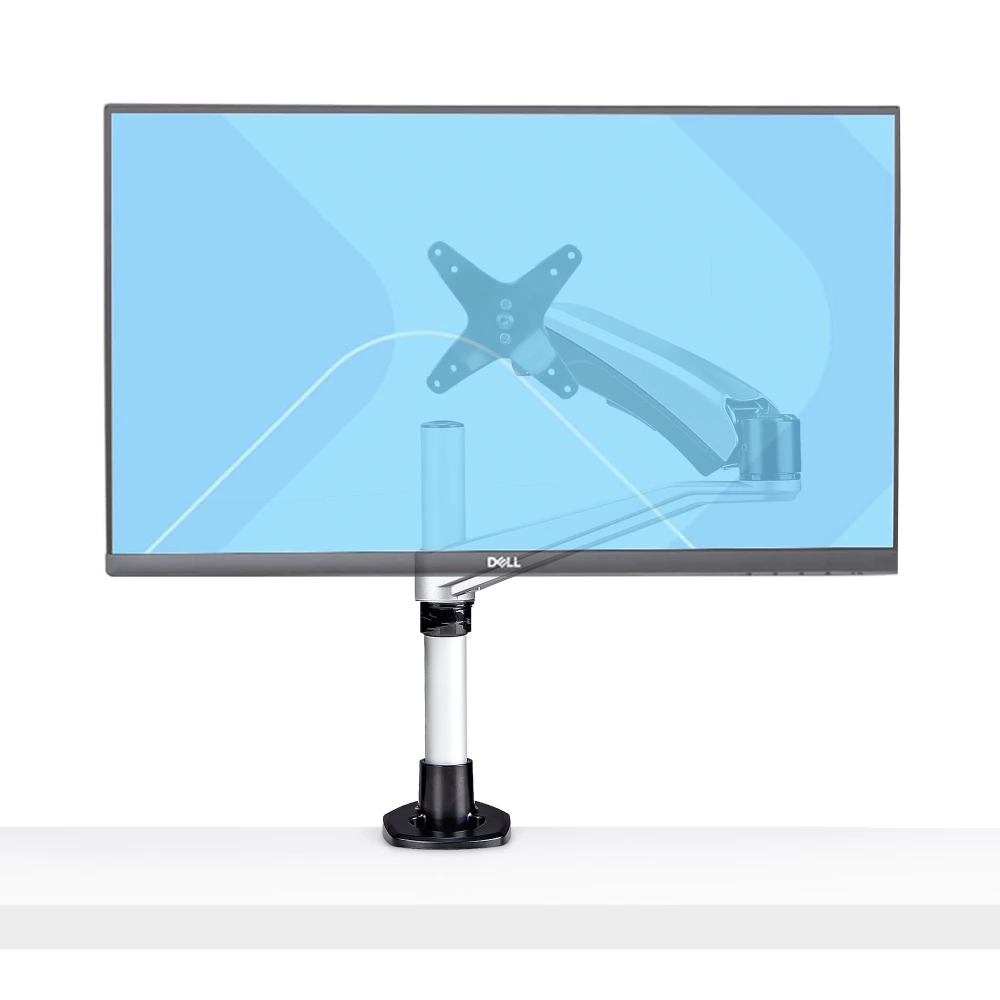

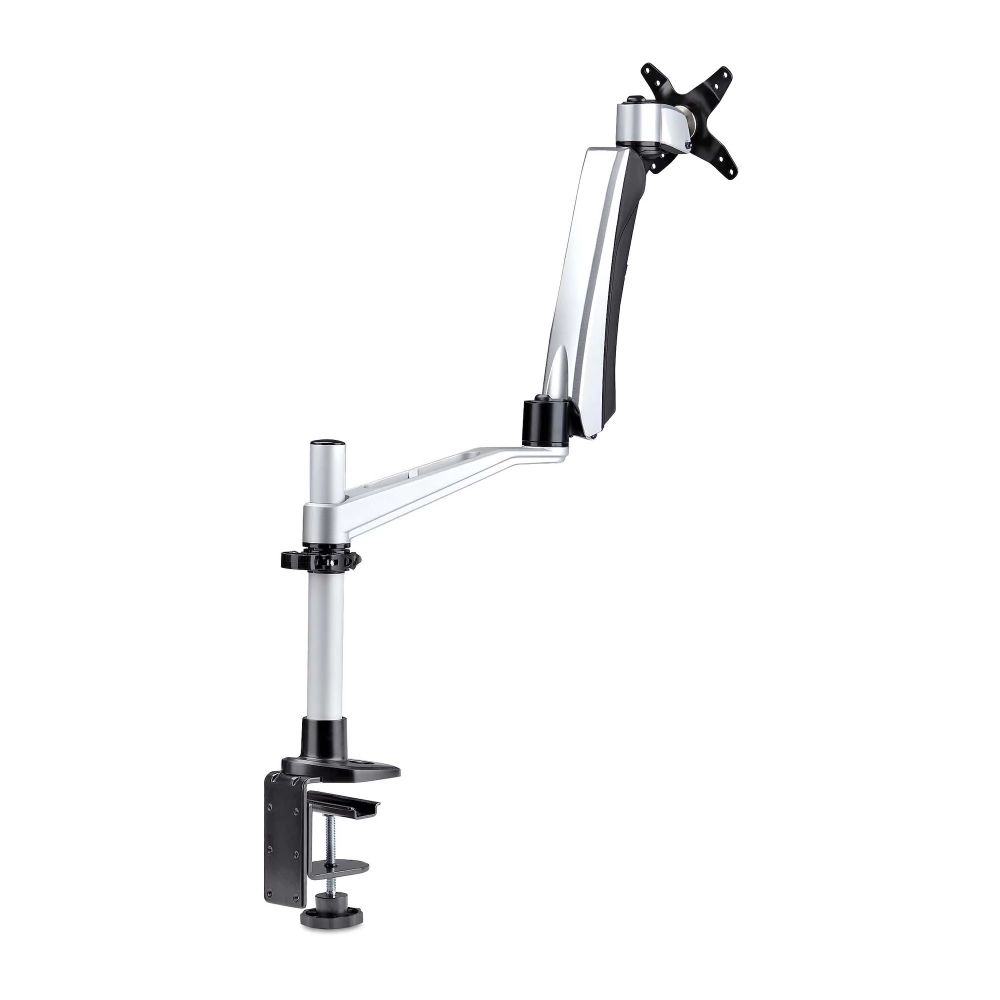

This desktop monitor holder is capable of supporting a 27 -inch 16: 9 or 30 -inch 21: 9, creating an ergonomic area to increase productivity. The mechanical spring lever allows multiple adjustments to meet various ergonomic needs.

Height adjustment with a single smooth gesture

The spring lever allows you to adjust the height to up to 10.6 inches (270 mm) with a light, single touch. Adjust the height of the arm along the 10.2 inches (261 mm) rod. The arm can reach up to 22.2 inches (590 mm) from the rod.

Installation

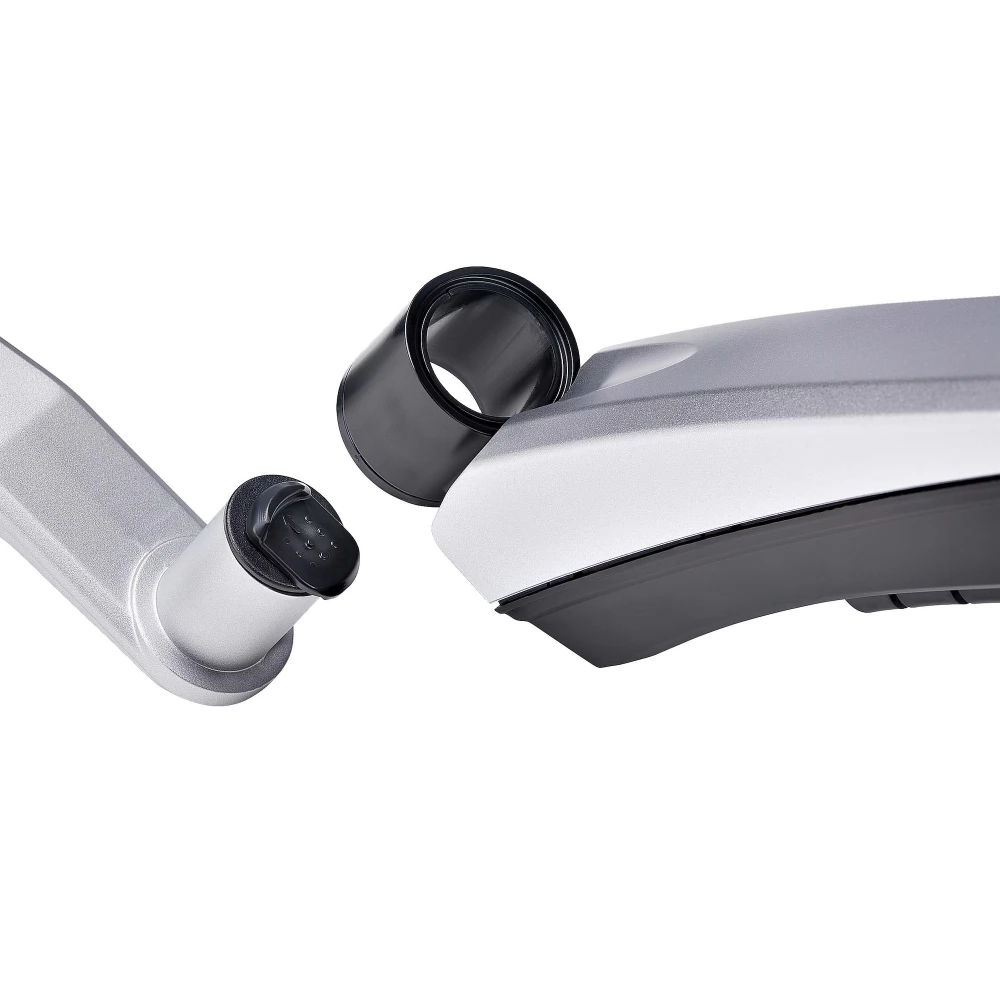

Fast, toolless sliding and click design makes assembly quick and easy. The pre -assembled desktop clamp and rod can be easily secured to the table by hand to save the full installation time.

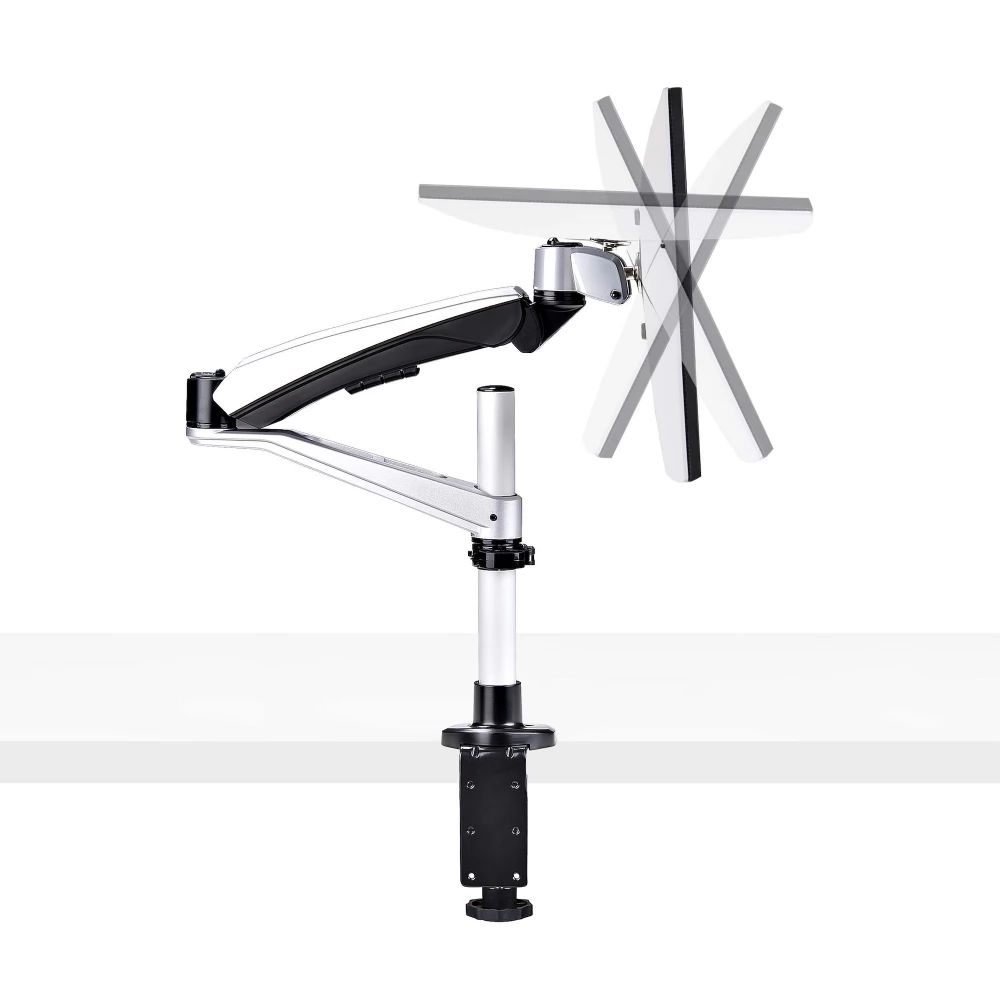

Range of motion

The articulated lever allows you to set a tool on the VESA disk +/- 180 ° horizontal rotation, 105 ° decision, 240 ° scanning and 360 ° screen rotation for standing or lying orientation. This flexibility allows users to customize the screen for maximum productivity and comfort.

Permanent construction

Thanks to the construction of steel and aluminum, the premium monitorkar has a load capacity of 9 kg (£ 19.8). Cast aluminum arms with mechanical springs have undergone a 10,000 -cycle test and have a 10 -year warranty for a long life.

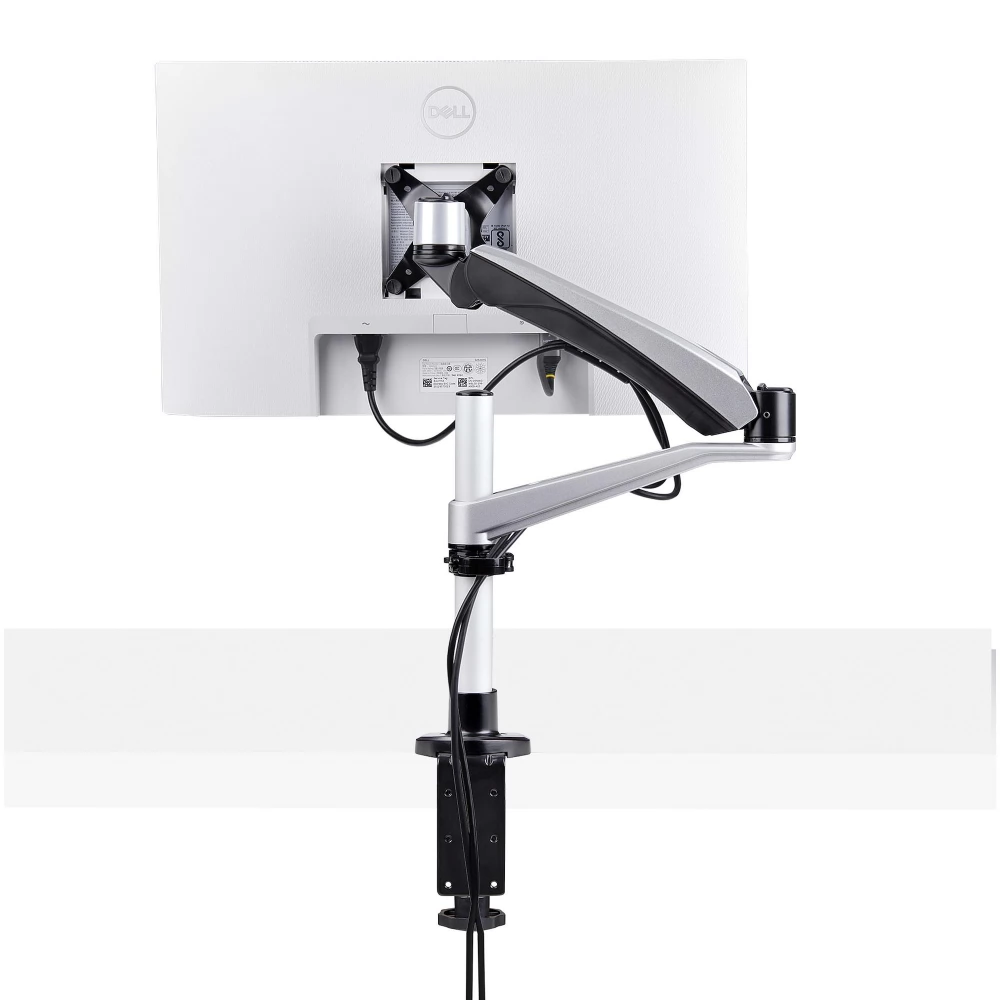

Cable layout

To maintain an orderly work area, there is a cable arranger channel at the bottom of the adjustable lever, which hides the cables, reduces mess and contributes to the arranged layout. The cable clamp on the bar also helps maintain an orderly work area.

Technical data:

Hardware

- can be mounted on a wall: no
- cable arrangement: Yes
- Accessory tools: Yes
- Hinged: Yes
- Number of supported displays: 1

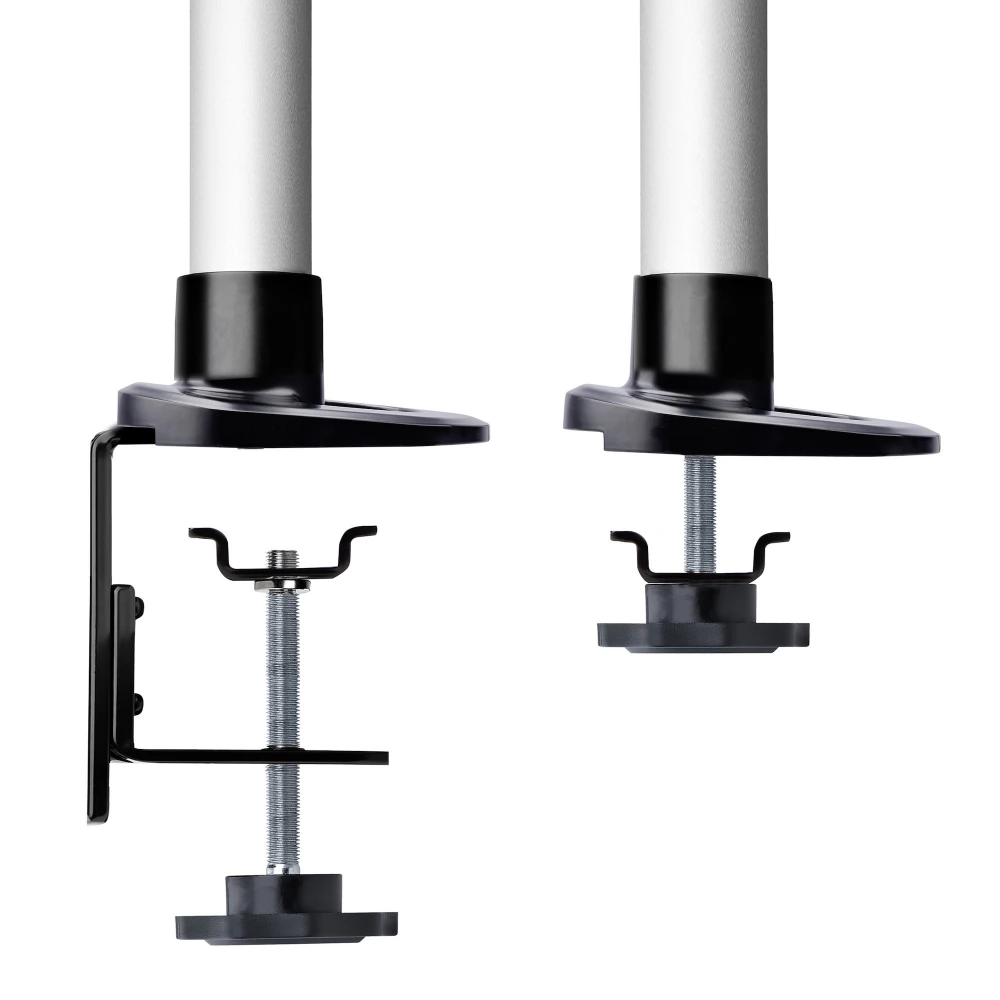

- Fixing options: desktop and ring clamp
- Vesa bore sample (s): 75x75 mm, 100x100 mm
- Fixing surface thickness: table clamp: table thickness 0.7 4.3 inches (20 x 110 mm), ring diameter: 0.4 inches 2.3 inches (10 x 60 mm)

Performance

- Maximum height: 302 mm
- load -bearing capacity (per display): 9 kg
- Minimum display size: 17 "
- Maximum display size: 30 "
- fits in with a curved display: no
- fits for ultra -wide displays: Yes
- height adjustment: yes
- Minimum height: 270 mm
- minimal arm length: 80 mm
- Maximum arm length: 590 mm
- Display tilt: +90 ° / -15 °
- Display rotation: +/120 °
- Rotate / Pivot: +180 ° / -180 °
- Display rotation: +90 ° / 90 °
- Anti -theft: No

Physical characteristics

- Color: black
- Product height: 36.1 cm
- Product length: 10.3 cm
- Product weight: 3.6 kg
- Product width: 67.4 cm
- Material: aluminum, steel and plastic

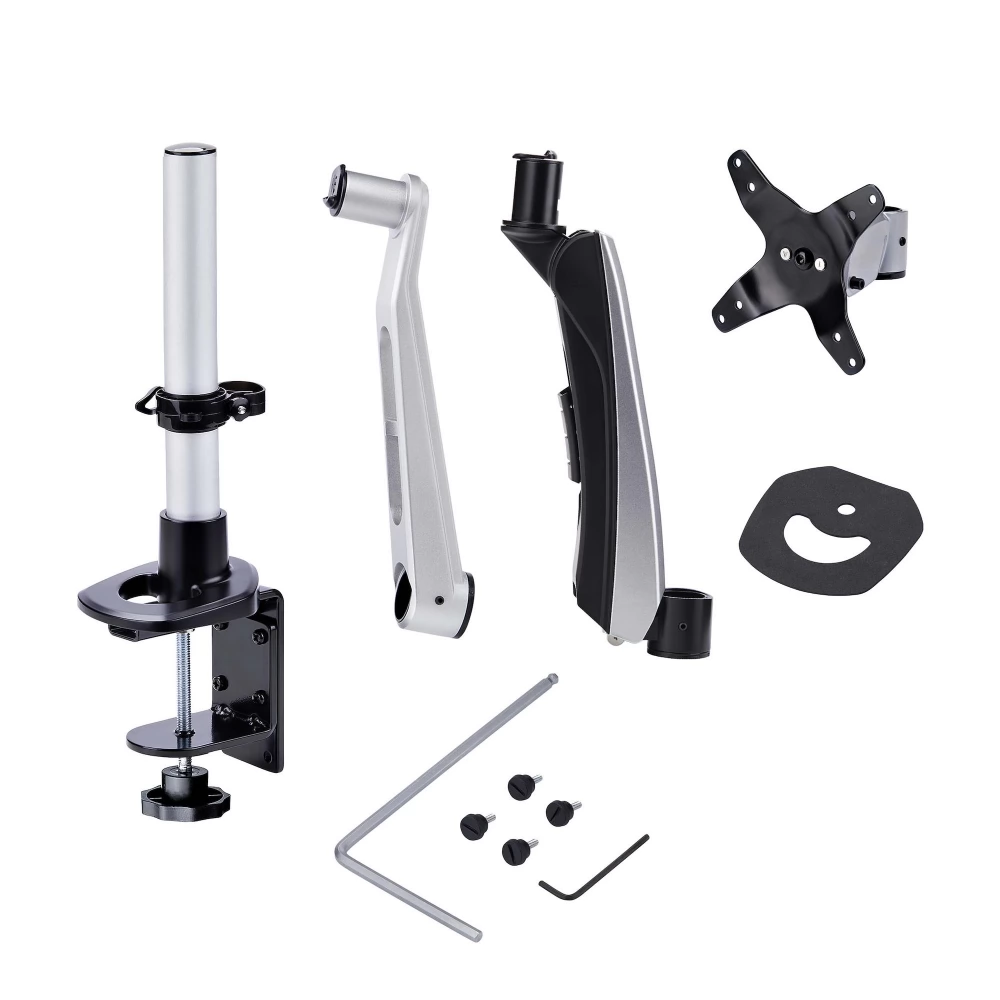

The contents of the box

- 1 spring lever
- 1 rotation lever
- 1 rack recording assembly
- 1 VESA monitor holder
- 1 cable director link
- 1 Allen key
- 4 monitors winged screws
- 1 sole pad
- 1 user manual
