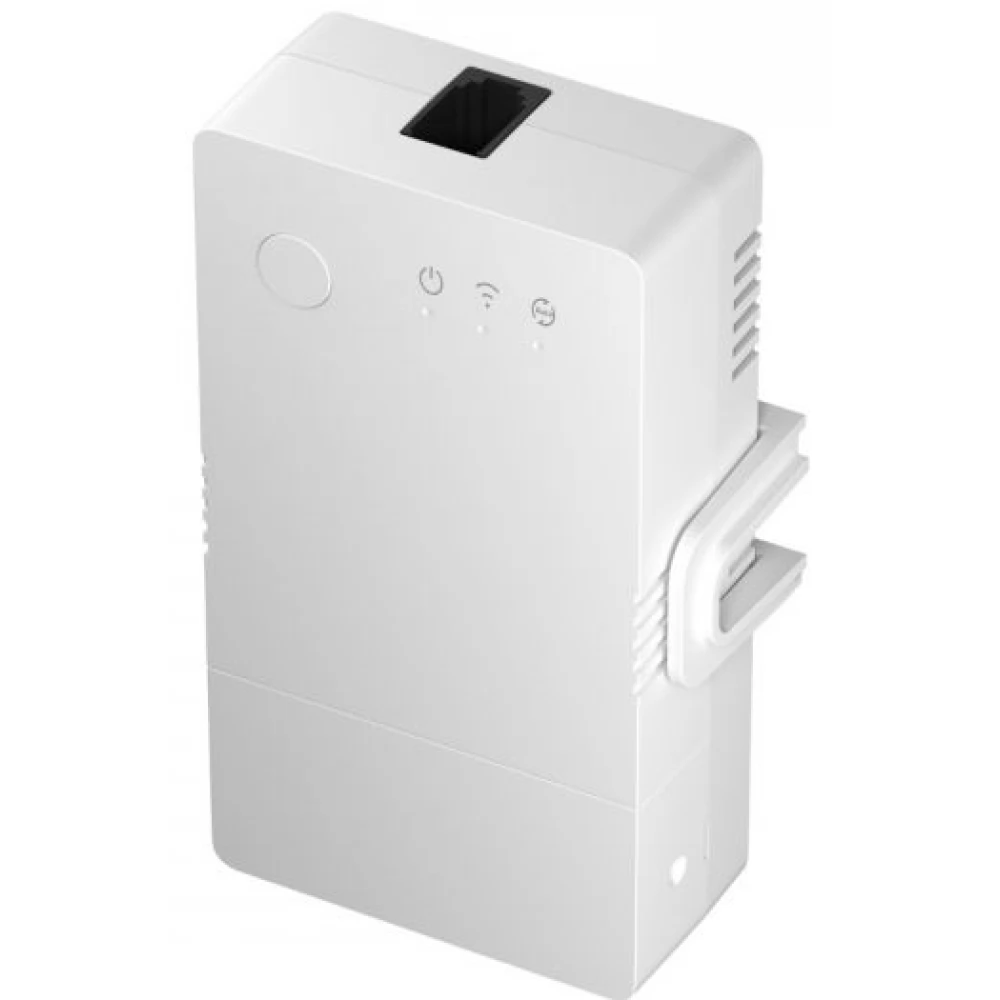

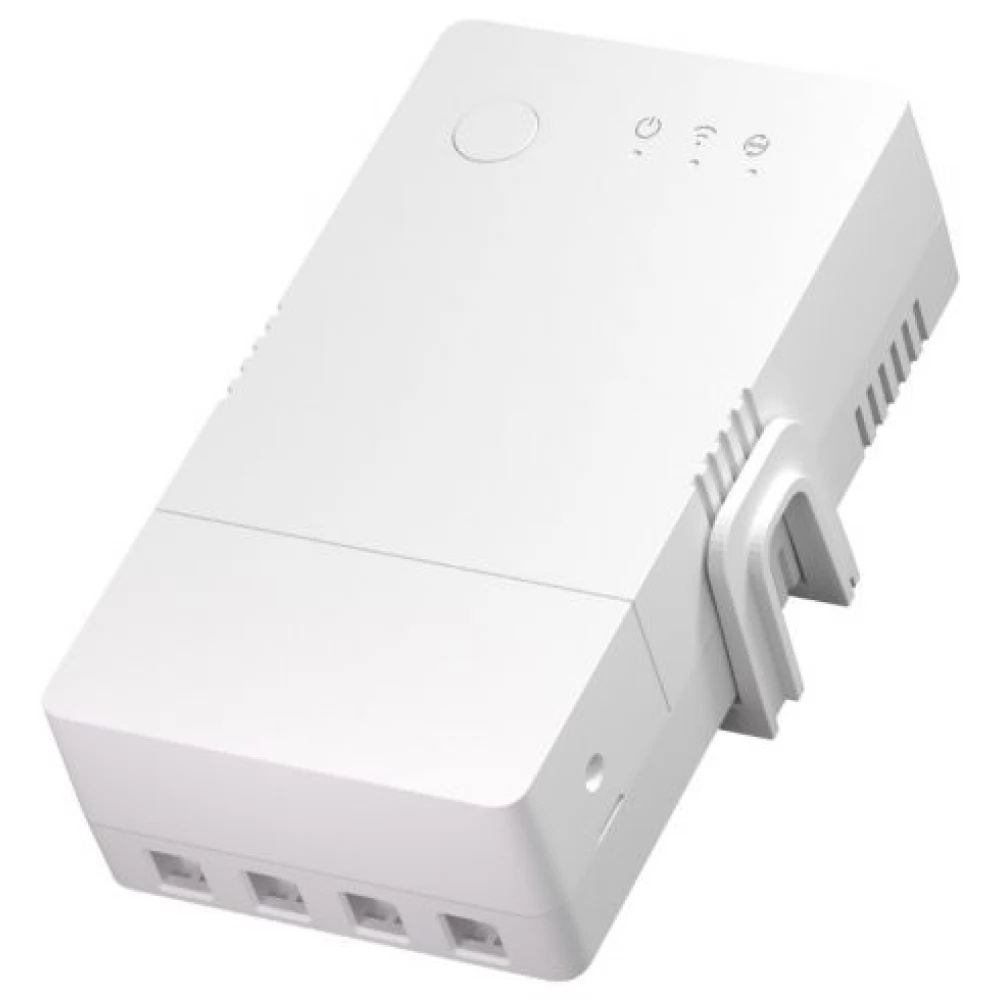

TH16 Origin (R3) WiFi smart relay, with thermometer input, for 230V (16A) switching (THR316)

The Sonoff THR316 is the new TH Origin R3 product version of the Sonoff TH smart relay family, released in the summer of 2022, which, like its predecessor, the Sonoff TH10/TH16, is a WiFi, timed smart relay that can be controlled remotely from a mobile phone via the Internet, which is 230V (max 16A).

A wired thermometer, humidity sensor and soil moisture sensor can also be connected to it, it can also be switched automatically based on the measured temperature / humidity / soil moisture data. Instead of the jack plug of the previous R2 version, the R3 version is now equipped with an RJ9 socket.

One of the new features of the R3 version is that it records the measured data in the cloud, and in the app, the retroactive evolution of 6 months of historical data can also be viewed on a graph.

Compatible with the following sensors:

- Sonoff SI7021 temperature and humidity sensor,
- Sonoff AM2301 temperature and humidity sensor;
- Sonoff DS18B20 waterproof stick thermometer,
- Sonoff MS01 soil moisture sensor.

The WiFi relay can be turned on/off MANUALLY from the eWeLink app, and it can also be switched to AUTOMATIC mode, in which the off and on temperature/humidity/soil moisture values ​​can be entered for several times of the day/period. For temperature-based automatic ON/OFF switching, you can enter data with a precision of decimal degrees Celsius.

Using the eWeLinkApp running on an iOS (Apple) or Android mobile phone with an Internet connection, you can remotely control the switch and set a timed on/off. Of course, the device also has a physical push button switch. The possibility of remote access can also be shared with family members. A perfect solution for the smart control of household electrical devices, which do not need to work constantly, but must be switched on/off intermittently (e.g. aquarium circulator or aerator). With its use, you can comfortably turn on the desired devices from afar before you get home, and you can also conveniently schedule the switch-off to save energy and costs.

The relay is also an ideal choice for controlling fans, electric heaters, electric infrared heaters, radiators, humidifiers, dehumidifiers, air conditioners, irrigation systems, greenhouses and aquariums. When used together with a sensor, thanks to its WiFi remote control, the current temperature and humidity values ​​of other locations and buildings can also be observed from afar, and it can also operate automatic heating and humidifier/sterilizer according to the limit values ​​specified in the mobile phone app.

Product features:

- Hungarian-language mobile app Free iOS and Android mobile app: eWeLink, also in Hungarian;
- Status query The mobile App shows the current status of the relay (on or off);
- Data history The mobile App shows half a year's worth of measurement results on a graph;
- Switching ON/OFF with remote control Wherever you are, from now on you can switch the relay (and devices connected to it) on or off remotely from the mobile phone app via the Internet.
- Timing Several timing functions are available: setting a specific time, setting repeated times, countdown / timer, cycle.
- Real-time temperature and humidity display (in app) when SI7021 temperature and humidity sensor is connected
- Real-time temperature display (in app) when connecting a DS18B20 waterproof thermometer
- Real-time soil moisture display (in app) when connecting the MS01 soil moisture sensor
- Pulse switching: the relay can also be set for pulse switching, i.e. for short switching of a given length (e.g. typically 0.5 or 1 second)
- Can be shared with others You can give access, e.g. family members or others for remote control
- Groups, rooms You can organize Sonoff and SmartWise smart devices into groups and rooms in the eWeLink app
- Smart control (Scene) Using the Smart Control / Scene eWeLink app function, you can also create conditional controls between different Sonoff / SmartWise devices. For example, you can connect a Sonoff S26 outlet based on data from a temperature or humidity sensor connected to a THR316 relay;
- Compatibility Can be connected to Amazon Alexa, Google Assistant and Google Nest for voice control
- Sonoff and its sister brand SmartWise devices are compatible with each other, they both use the eWeLink factory app.
- The eWeLink app is now available in Hungarian!

Description:

- Weight: 0.129 kg
- Dimensions: 9.8 × 5.4 × 3.1 cm
- Alternative switching / crossover switching: No
- Connection: 230V AC (phase and zero)
- Bluetooth: Bluetooth for pairing only
- Cloud mode (with factory firmware): Default mode is eWeLink cloud-connected operation
- Dimmable / Brightness adjustable: No
- Can be mounted on a DIN rail: Yes
- History: It also stores sensor data in the factory cloud and 6 months of data can be viewed in the app, yes: power-on/off history is
