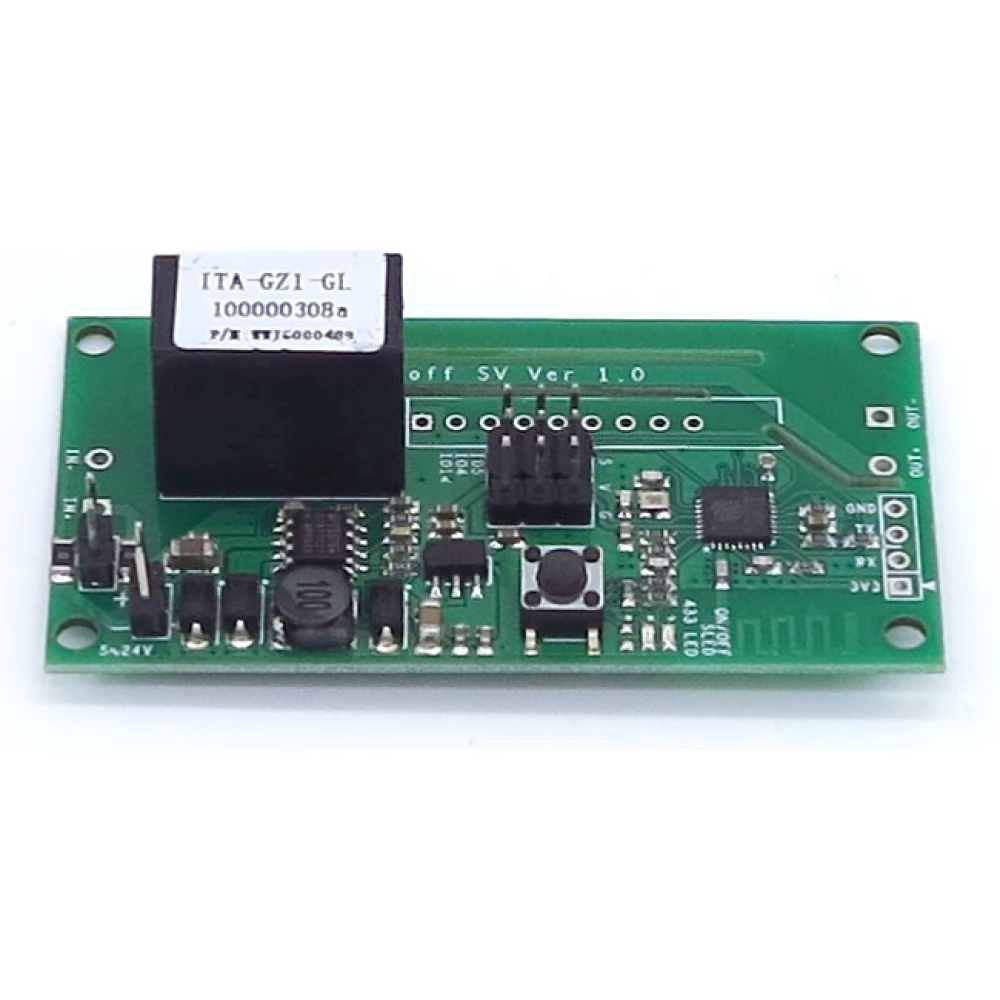

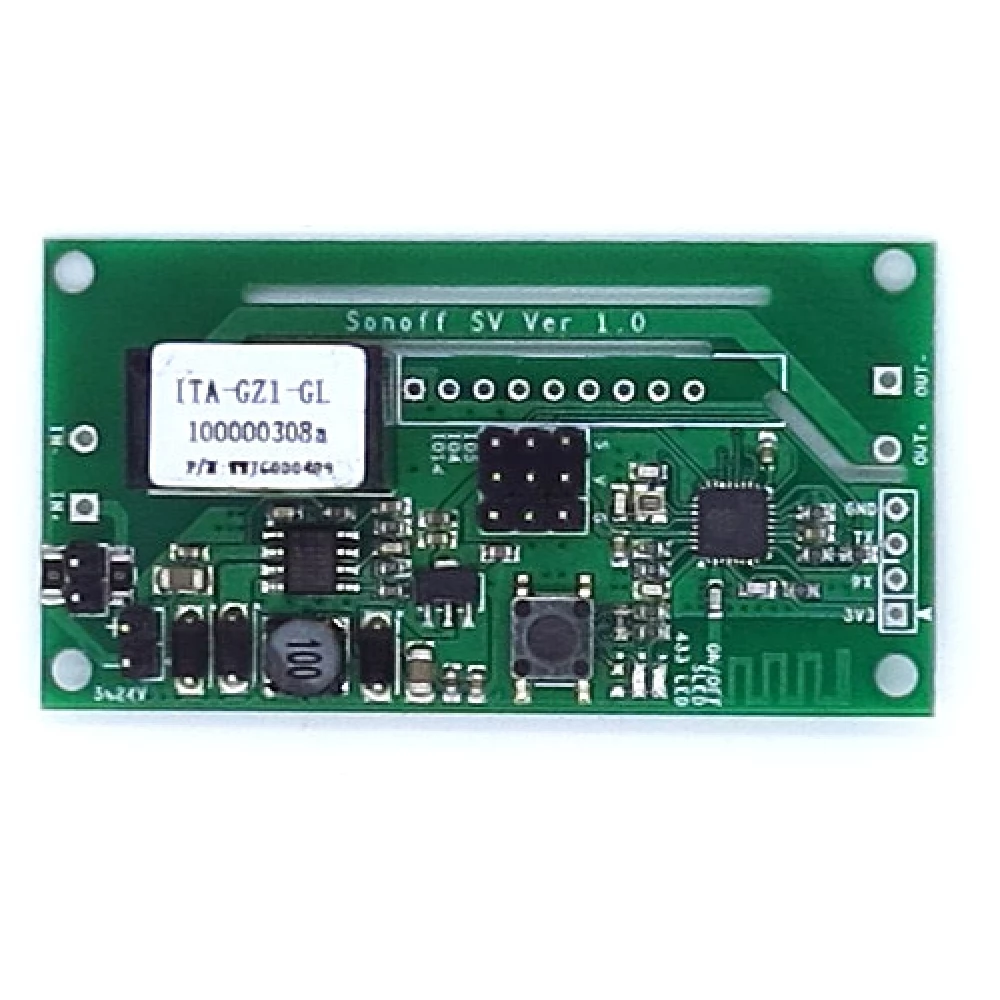

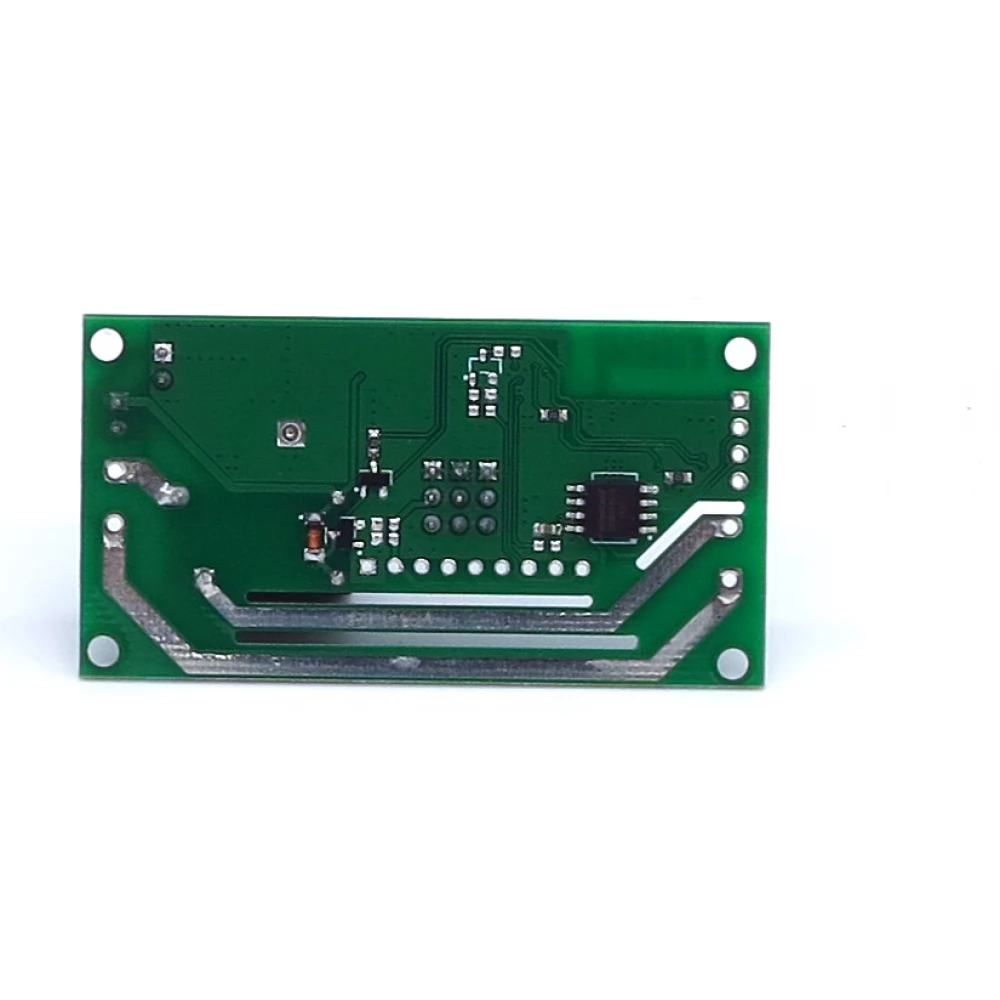

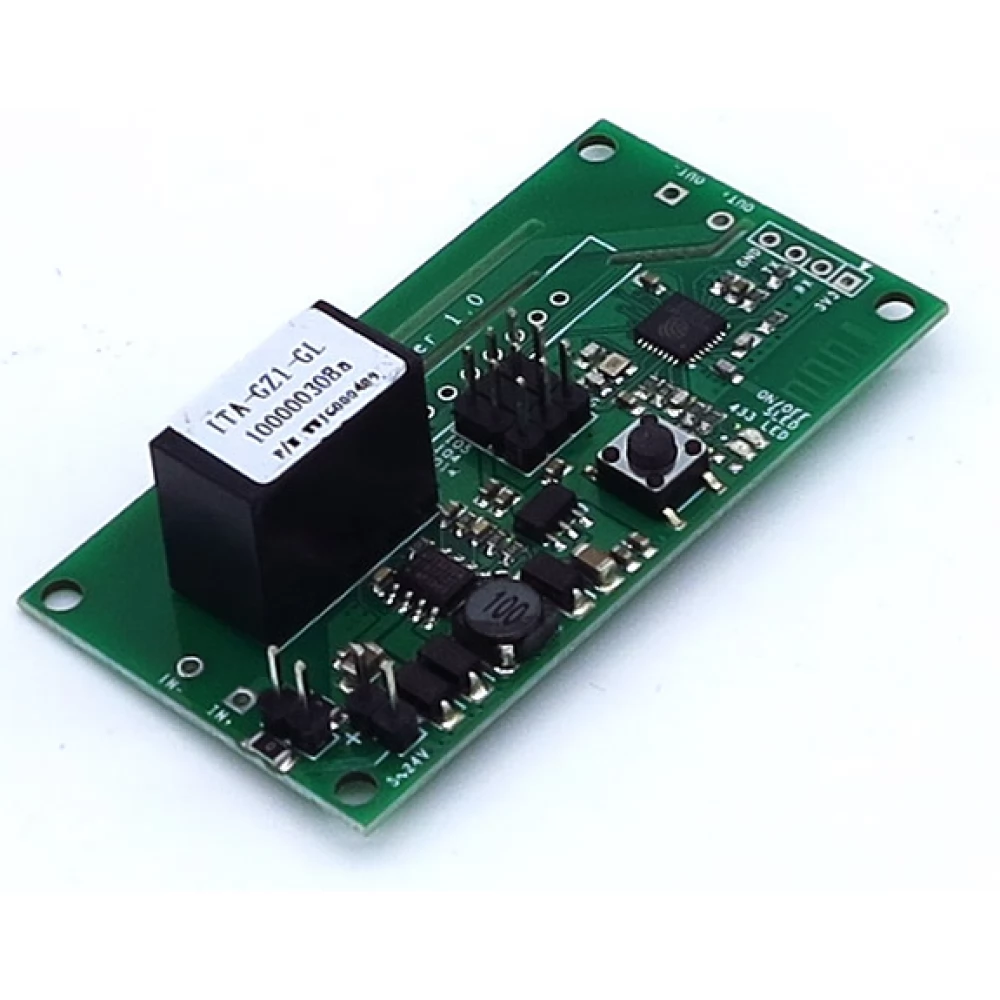

SV Safe Voltage 5V-24V, WiFi, remote controllable via the Internet, relay module

Sonoff SV Safe Voltage is one of Sonoff's smaller WiFi smart relays. The relay operates from a 5V-24V DC power supply, and on the controlled/switched side, either a voltage equal to the relay's power supply voltage is connected, or by disconnecting it, it can control even 0-30V DC or 90-2560V AC, so its use is quite versatile.

Unlike other Sonoff relays (or SmartWise 5V-32V similar relays), it is not equipped with a screw terminal or spring connection point to fix the wires, you have to solder to fix the wires, and unlike the mentioned - also eWeLink compatible - SmartWise relays, the Sonoff SV cannot NO Not even for /NC switching.

Like other Sonoff relays, by default this one also connects to the Sonoff / eWeLink cloud and makes itself available to its owner via the Internet, accessible and controllable on Android and iOS in the eWeLink smartphone app.

The possibility of remote access can also be shared with family members.

Product features:

- Small relay can be installed anywhere due to its small size: 65 x 34 x 12 mm
- A DC supply voltage between 5V-24V is required for its operation.
- Either the 5V-24V DC supply voltage is controlled on the switched circuit, or an independent 0-30V DC / 90-250V AC voltage can be connected to it in disconnected mode.
- WiFi module The relay has a WiFi module and is connected to the network via the home/office WiFi network, or to the factory eWeLink Cloud in the default cloud mode.
- Remote ON/OFF switching Wherever you are, you can now turn the voltage-free circuit on or off remotely
- Mobile App Free iOS and Android mobile App: eWeLink
- Status query The mobile app shows the current status of the switch relay (on or off)
- Timing Several timing functions are available: setting a specific time, setting repeated times, countdown / timer.
- Can be shared with others You can give access, e.g. family members for remote control
- Device groups You can organize your devices into groups and turn several devices on or off with one click
- Compatibility Can be connected to Amazon Alexa, Google Assistant and IFTTT for voice control
- The eWeLink app is now available in Hungarian!

Description:

- Weight: 0.015 kg
- WiFi standards: 802.11 b/g/n (2.4GHz)
- Local network mode (with factory firmware): yes, if the connection with the eWeLink cloud is lost, limited functions
- Remote control modes: Wi-Fi
- Alternative switching / crossover switching: no
- Web (browser) admin interface: switch on/off (subscription, Premium function)
- Control circuit: 5V-24V DC, 90-250V AC (max. 10A), max. 30V DC
- Overheating protection: no
- Surge protection: no
- Product type: smart WiFi switch relay
- Can be switched by voice control: compatible with Amazon Alexa and Google Assistant
- Supported integrations: Amazon Echo, Echo Dot, Amazon Tap, Google Home, Google Nest, IFTTT (the IFTTT integration is a subscription, Premium function), REST API
- Color: without external protective coating
- RF / radio control (433.92MHz): no
- REST API support (with factory firmware): no
- MQTT support (with factory firmware): no
- Consumption meter: no
- History: yes: on/off history in the app
- Device operating supply: 5V-24V DC
- Notification functions: eWeLink app notification for smartphone
- Dimmable / Brightness adjustable: no
- Cloud mode (with factory firmware): eWeLink cloud-connected operation is the default mode
- Input for external switch: no
- Connection: must be connected to a 5V-24V DC power supply, power supply not included
- Number of circuits: 1
- Manufacturer: Sonoff
- Can be timed: yes, 8 offline timers stored on the device (cycle control is also supported), all additional timers can be run from the cloud in online mode
- Manufacturer smartphone app: yes, free app: eWeLink (Android, iOS)
- WiFi connection: yes
- MCRPDC code: RDC25
- Product type: switching relay
- Can be mounted on a DIN rail: no
- Physical on/off button: no
- Can be controlled online: yes
- Switch / switch relay: yes
- Operating power supply: DC (below 60V)
- NO/NC switching: no
- Zigbee connection: no
