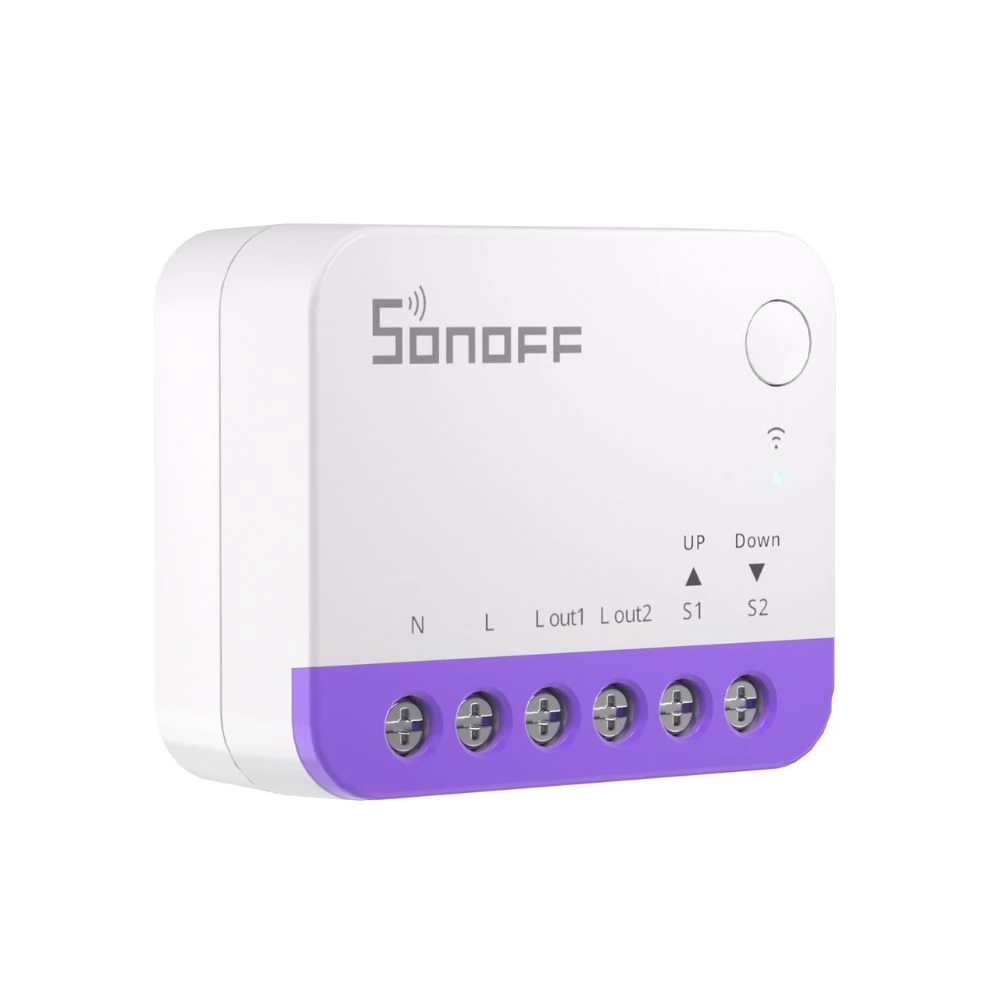

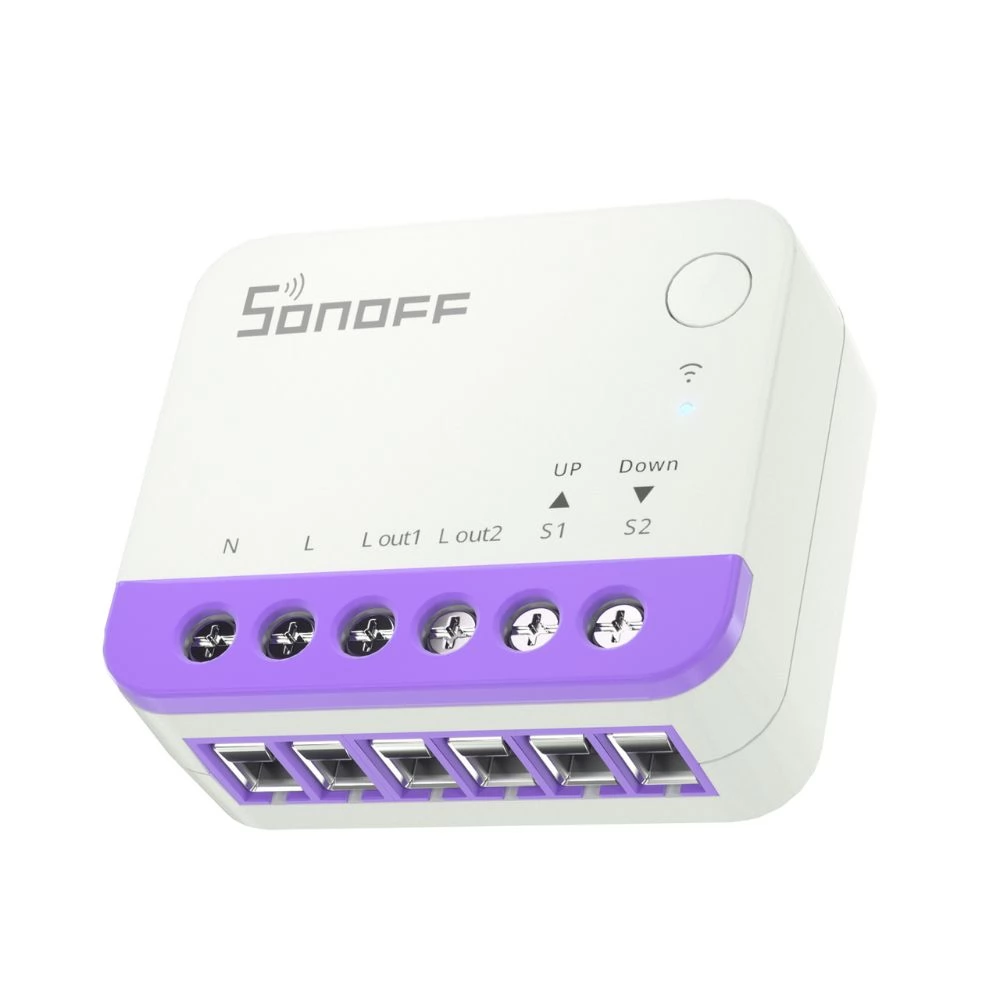

Sonoff Mini-RBS is ideal for those who want to smart their existing motor shades or shutters in their homes with the module with two-way (up and down) control, step control and percentage management. Its compact dimensions (33 x 39.5 x 16.8 mm) allow light integration behind switches or in a tensile box. It supports many types of shading, suitable for curtain movement, controlling shutters and awning engines, or even controlling a cinema for a motorbike screen. In the case of shutters and shading, the module allows users to keep light conditions and temperature optimal by lowering the shutter in summer heat. Thanks to the calibration function, shutters and shades can be controlled with a percentage accuracy.

Its specialty is the compact size-it fits into European standard 80mm wall boxes-as the Sonoff Mini-RBS is significantly smaller than the previous similar Sonoff Dual R3, so it can be comfortably installed behind wall switches.

The mini module supporting the Wi-Fi + Bluetooth protocol is not only compatible with the usual Ewelink App, but also operates smoothly with platforms such as Apple Homekit, Google Home, Alexa and Home Assistant thanks to the Matter Smart Home standard, so it is practically any smart home system.

When used with an Ewelink application and a cloud platform, the Sonoff - white and gray - wireless R5 switches and the S -MATE2 wireless Bluetooth module can also be paired with the Ewelink -Remote (Bluetooth) gateway. This not only can be connected to button wired switches, but also controls from wireless switches.

Main features

- smart control for electric shutters, curtains, awnings
- Fits in a standard EU fitting box, even behind a wall switch
- compatible with most motor shades (up to 1A load)
- Wi-Fi-based remote control with Ewelink's mobile app
- Matter Support: Native compatibility with Apple Home, Google Home, Alexa, Home Assistant and Smartthings.
- Scheduled operation of sunrise, bedtime or arriving home
- Position Control Percentage: Easy to adjust the degree of openness of the shutter.
- Schedule: timing for daily routines.
- Calibration: Reduces hardware inaccuracies, extending engine life.
- Supports max. 1A AC engines.

Smart home protocols and platform compatibility

- Protocols: Wi -Fi (802.11 b/g/n 2.4GHz).
-Local remote control: Physical external switches can be connected to S1/S2 inputs (up/down) and compatible with Sonoff Ewelink-Remote (Bluetooth) compatible wireless devices (R5 switch, S-MATE2 module), so it can be controlled with wireless switches
- Factory platform: Ewelink (iOS, Android).
- Matter compatibility: Apple Home, Google Home, Alexa, SmartThings position control via Matter.
- Cloud services: Google Home, Alexa, Smartthings Integration by Ewelink.
- Third party: IFTTT (via Ewelink, requires premium subscription)).
- Integration options: Home Assistant Ewelink Plugin or Sonofflan.
- Voice Control: Alexa, Google Assistant, Siri with Fast Commands (Ewelink/Siri Shortcut).

Smart features

- Position query and percentage setting (0-100%) remotely via Matter/Ewelink app.
- Shutter up/Moving and stopping
- Schedule opening and closing timing.
- Engine calibration (teaching open and closed position).
- Smart scenes eg. At the morning sunrise, it can be completely up in the evening in Ewelink.
- Voice Control "Hey Google, Open The Shutter" etc.

Electricity functions

- power supply: AC 100-240V, 50/60Hz; Motor load: max. 1a.
- Zero tube is required: yes.

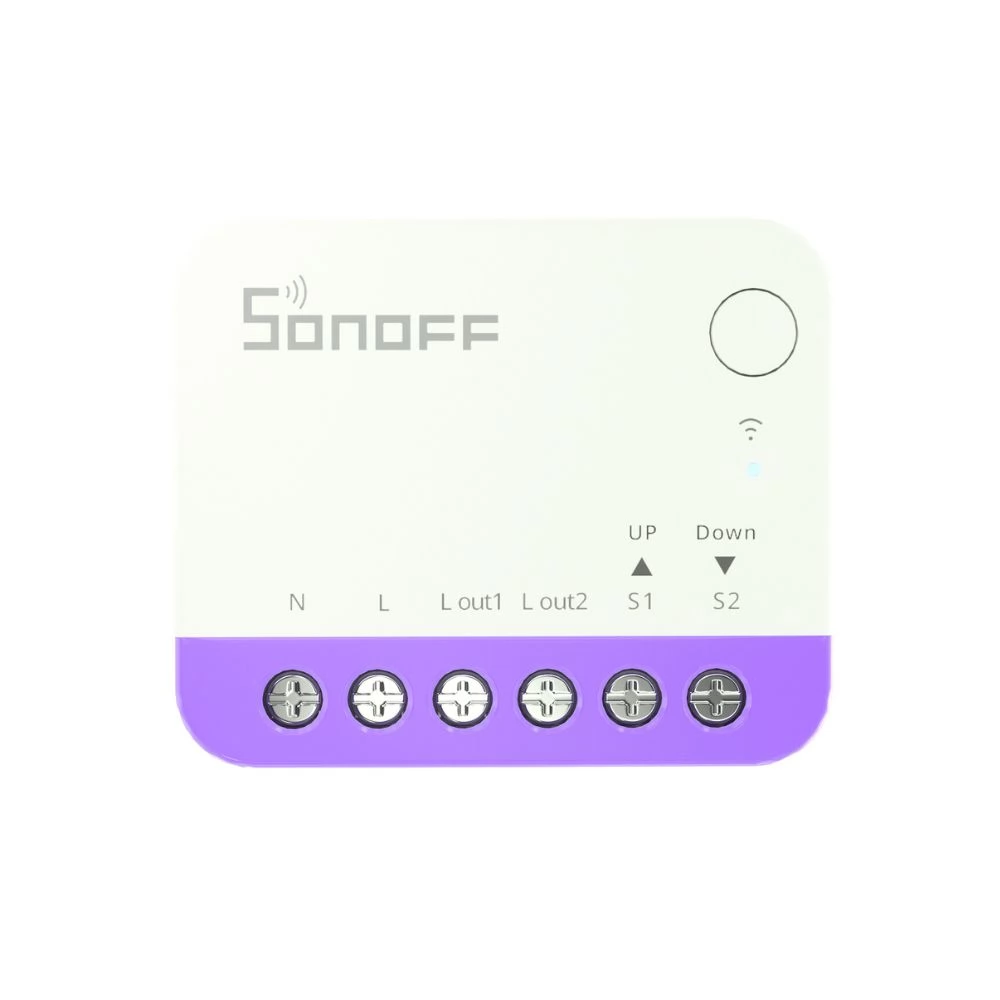

- Outputs: Two -directional outputs "Lout1" and "Lout2" for the engine up/down.
- Able to measure: energy, voltage and current monitoring.
- External switch input: Support S1/S2 button or two -position switches.
- Recommended wire size: 18-14 AWG solid or twisted copper wire
- Easy installation: connection to an existing shutter motor and wall switch, can be installed in a standard EU recessed fitting box

Other data

- Model: Sonoff mini-rbs
- Controlling chip: ESP32
- Dimensions: 39.5 x 33 x 16.8 mm
- Operating temperature: -10 ° C 40 ° C
- Operating humidity: 5-95% RH (without condensation)
- Life span:> 10 000 switching cycles
- Certificates: TUV, CE, FCC, Rohs, overload protection.

Description:

- Manufacturer: Sonoff
- Factory article number: mini-rbs
- Color: white

Operation / Operation

- Operating power supply: 230V AC
- Operating ambient temperature: 10 ° C-40 ° C
- Operating Environmental Humidity: 0% -95% RH
- IP protection: IP20

Controlled (/measured) circuit

- Consumption measurement: no
- Number of poles on: 1p
- Nominal voltage: 230V AC
- Nominal current: 1a /circuit

Electricity properties
