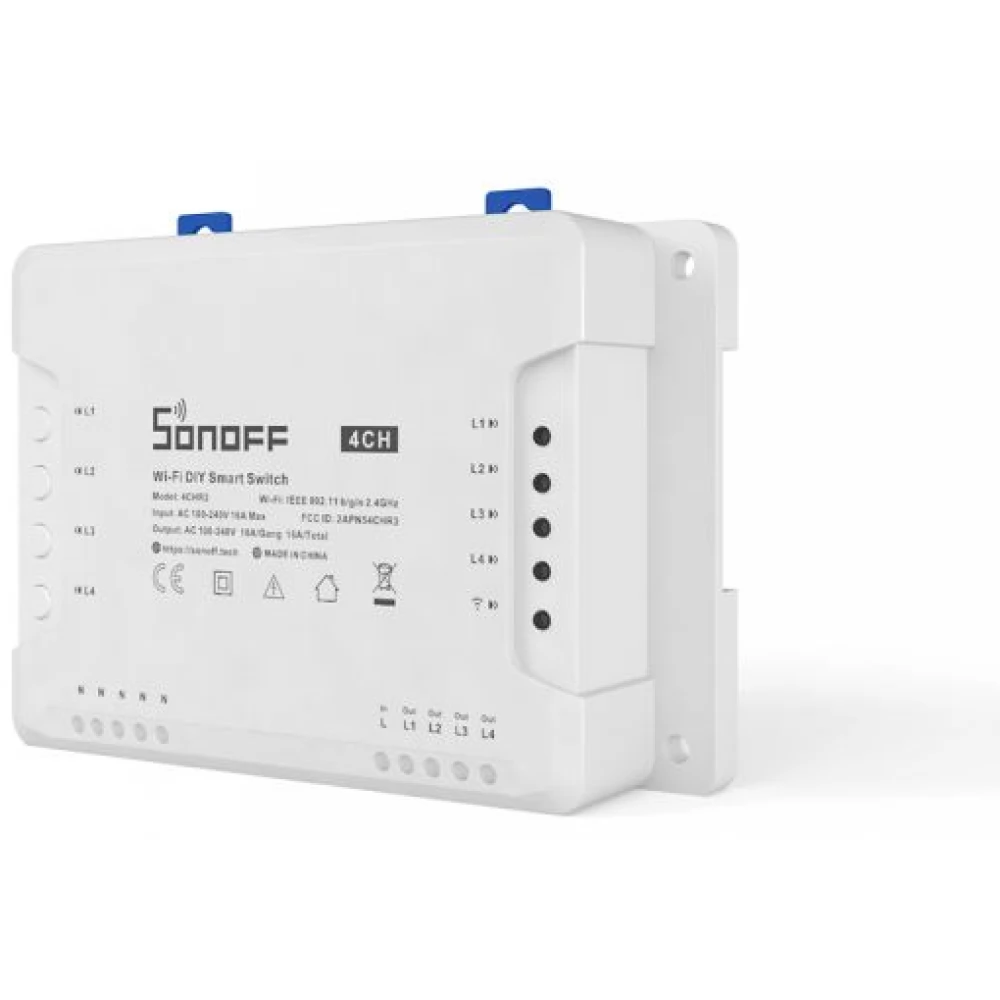

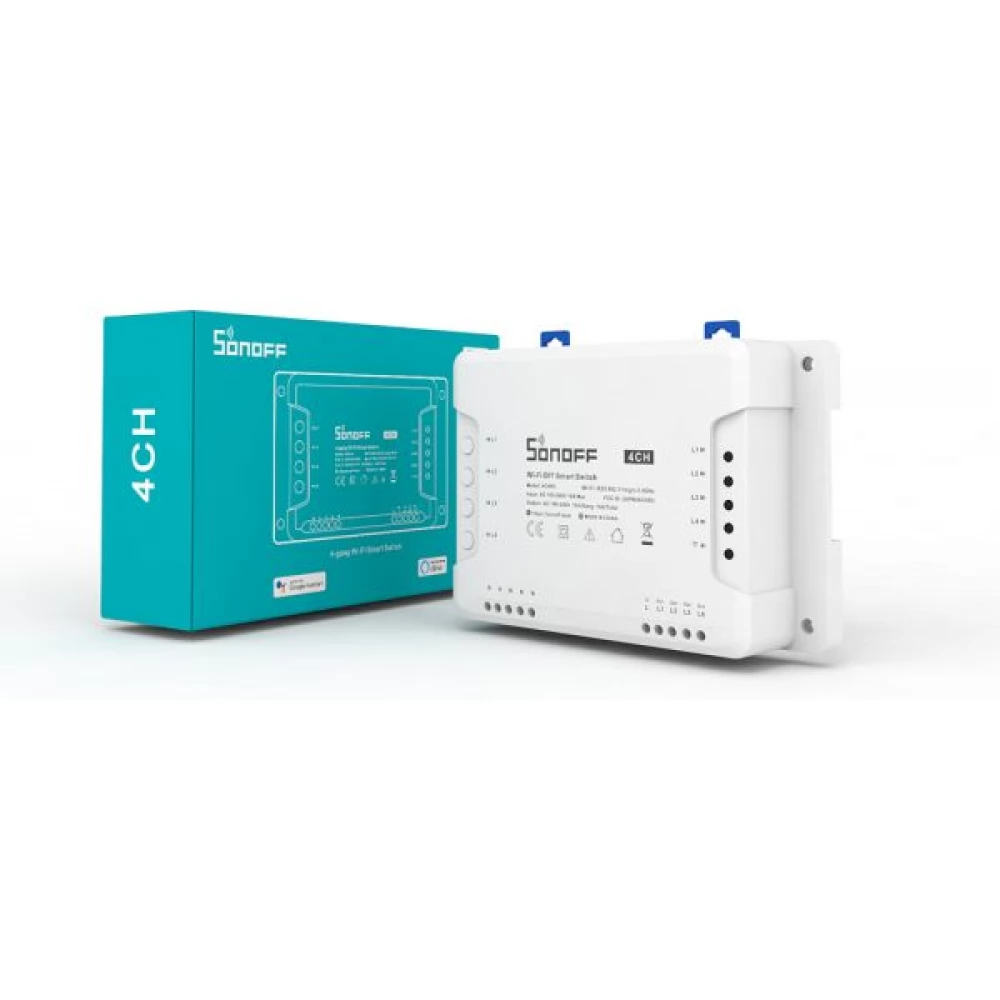

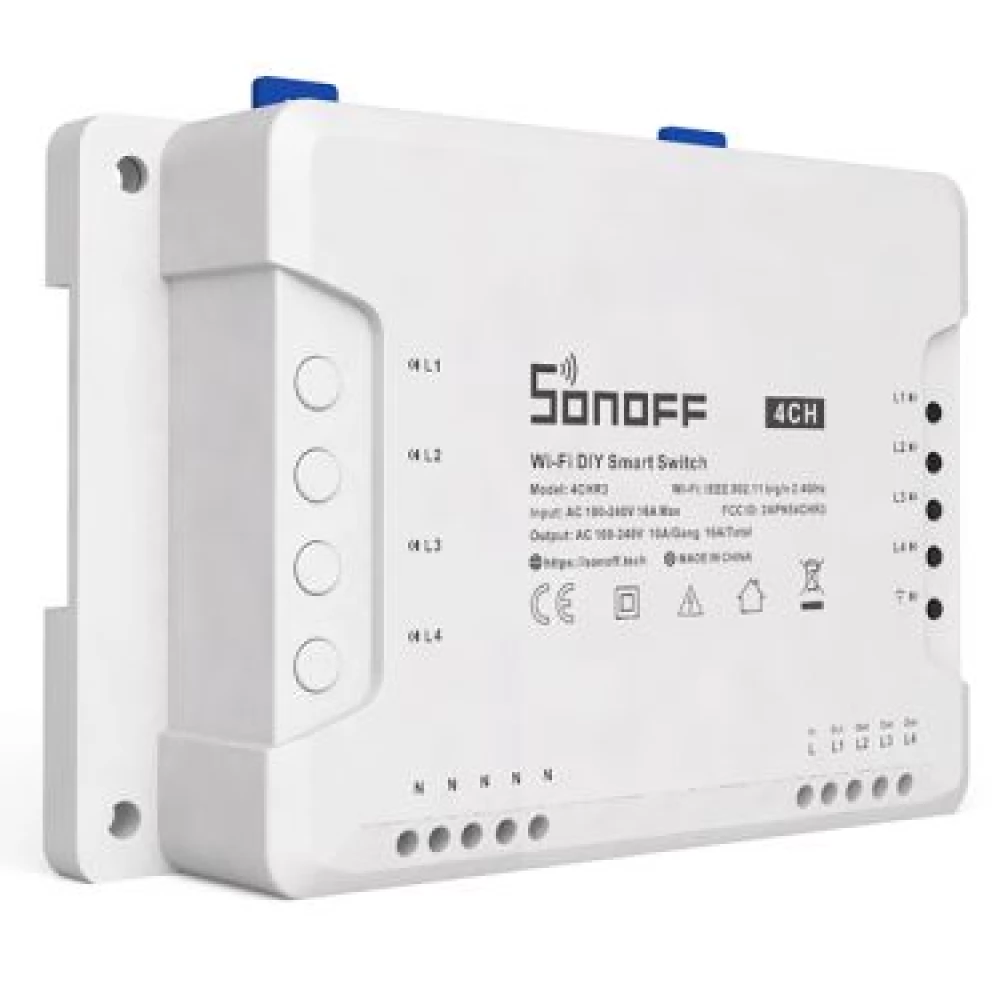

Sonoff 4CHR3 is the "R3" generation of Sonoff's four-circuit smart switching relay, which is capable of switching 230V AC phases belonging to the same phase on its four circuits.

Using the built-in WiFi chip, the product connects to the cloud via the local WiFi router and can be remotely controlled and timed via the Internet. It is not equipped with an RF receiver, so it CANNOT be remotely controlled with RF remote controls and wall switches.

It is widely used to control 4 independent 230V AC circuits (lighting, connectors, other consumers). It is not suitable for voltage-free switching, but an interlock for controlling the motors is available.

With the help of an App running on an iOS (Apple) or Android mobile phone with an Internet connection, you can control the switch remotely and set a timed switch on/off. The possibility of remote access via the app can be shared with others. A perfect solution for the smart control of household electrical devices, which do not need to work constantly, but must be switched on/off intermittently (e.g. aquarium circulator or aerator). With its use, you can comfortably turn on the desired devices from afar before you get home, and you can also conveniently schedule the switch-off to save energy and costs.

The four channels can also be switched to the so-called interlock mode, in which when one circuit is switched on, the other 3 circuits are switched off by the relay, so it can also be used to control 230V AC rotary motors in this mode!

The Sonoff 4CH version is only suitable for connecting the 230V used for the operation of the relay to the controlled circuit of the 4.

Like its predecessor, the Sonoff 4CH R3 can also be mounted on a standard DIN rail in an electrical cabinet.

Differences between 4CH R3 and 4CH Pro R3 relays:

- For the operation of the 4CH R3 relay, only a 230V AC supply can be provided, the 4CH PRO R3 can also operate from 9V-23V DC
- The 4CH R3 relay is a single-phase 230V AC relay, and the 4CH PRO R3 has four independent NO/NC relays, each of which can switch AC / DC / voltage-free circuits as desired.
- The 4CH R3 relay is only equipped with a WiFi chip, in addition to WiFi, the 4CH PRO R3 also has a 433MHz RF receiver, thanks to which it can be controlled remotely from an RF remote control and wireless RF wall switches.

Product features:

- Switching ON/OFF by remote control Wherever you are, you can now switch on or off the electrical devices connected to the relay remotely.
- Four circuits are supported by four relays in one, four circuits are independent of each other, 230V AC switching within one device
- Can be fitted to the DIN rail of an electrical cabinet.
- The four circuits can be controlled separately from the mobile app
- Only suitable for 230V AC connection.
- Pulse switching mode is also supported using the auto-off / inching function that can be set between 0.5 seconds and 1 hour
- It can also be switched to locking mode, in which the relay switches off the other 3 circuits when one circuit is switched on, so it can also be used to control 230V AC rotary motors
- There are also physical push buttons on the relay for manual switching of the four circuits.
- RF receiver is not included.
- Mobile App Free iOS and Android mobile App: eWeLink
- Status query The mobile app shows the current status of the switch relay (on or off)
- Timing Several timing functions are available: setting a specific time, setting repeated times, countdown / timer.
- Can be shared with others You can give access, e.g. family members for remote control
- Device groups You can organize your devices into groups and turn several devices on or off with one click
- Smart control / Scenes By connecting to temperature, humidity or other external sensors, you can even control the on/off automatically
- Compatibility Can be connected to Amazon Alexa, Google Assistant, IFTTT and Google Nest for voice control.
- The eWeLink app is now available in Hungarian!

Description:

- Weight: 0.228 kg
- Dimensions: 14.5 × 9.0 × 3.4 cm
- Alternative switching / crossover switching: no
- Can be controlled online: yes
- Cloud mode (with factory firmware): eWeLink cloud-connected operation is the default mode
- Dimmable / Brightness adjustable: no
- Manufacturer smartphone app: yes, free app: eWeLink (Android, iOS)
- MCRPDC code: RDC20
- Operating supply: AC (110V-) 230V (phase and neutral)
- Remote control modes: Wi-Fi
- Mountable: it can also be attached to the wall with a screw
- Device operating supply: 100V-240V AC
- Physical on/off button: yes, 4 buttons
- Consumption meter: no
- Can be switched by voice control: compatible with Amazon Alexa and Google Assistant
- Switch / switch relay: yes
- Local network mode (with factory firmware): yes, if the connection with the eWeLink cloud is lost, limited functions
- Impulse/ toggle switch: yes
- History: yes: on/off history in the app
- Can be timed: yes, 8 stored on the device also work offline
