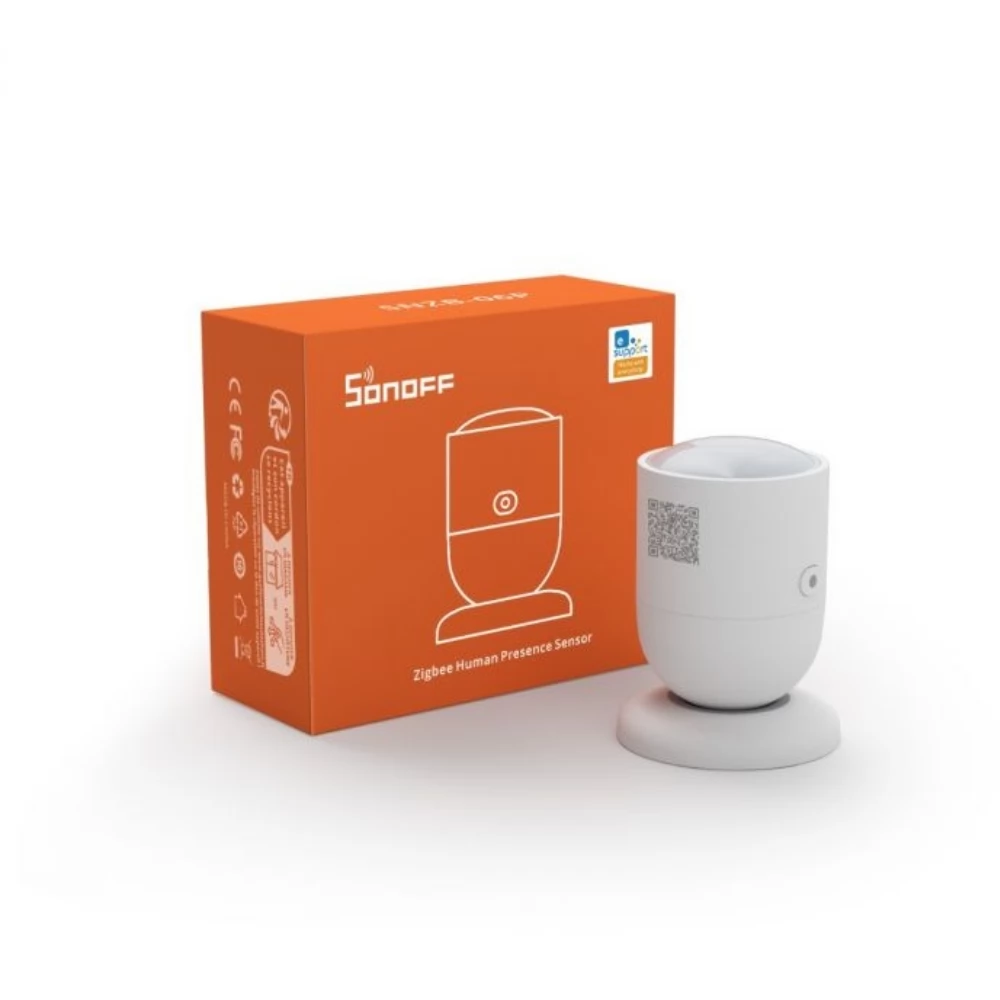

SONOFF SNZB-06P is a presence detector based on 5.8 GHz microwave technology. Unlike motion sensors, it not only indicates when we are moving, so it can also detect when we are standing or sitting. It can be used to avoid, for example, unwanted switching off of lighting when there is someone in the monitored zone but not moving.

It is compatible with the Sonoff Zigbee Bridge Pro using the eWeLink app, and with many other Zigbee 3.0 standard Zigbee gateways. Note: the functions provided by the sensor may differ for different Zigbee gateways.

It requires a USB C power supply (5V DC) via an adapter for its operation, the power supply is included in the product packaging.

Installation:

The equipment min. For installation at a height of 2 m, it is a prerequisite for proper operation. The radial detection distance of the radar is approximately 4 meters.

Overview:

- 1. Presence sensor
- 2. magnetic base that can be attached to the wall
- 3. Function button (pairing and reset)
- 4. Status LED (operation status feedback)
- 5. USB-C connector

What's in the box?

- Presence sensor
- Magnetic base
- Power supply (5V adapter)
- Charging cable (USB-C)

Compatible with the following Zigbee gateways:

Sonoff Zigbee Bridge (Obsolete), Sonoff ZBBridge-P (Zigbee Bridge Pro), SmartWise Zigbee Bridge Pro, Sonoff NSPanel PRO (Grey, White), Sonoff iHOST (2GB Version / 4GB Version), ZBDongle-P (Obsolete), ZBDongle-E
Compatible third-party gateways: Amazon Gateway Model: Echo Plus 2, Echo Show 2.

Specification:

- Manufacturer: Sonoff
- Color: White
- Plug&Play installation: Yes
- Type: SNZB-06P
- MCU: EFR32MG22
- Power supply: USB Type-C 5V (1A)
- Communication range: in an indoor environment max. 30m
- Protocol: Zigbee 3.0（IEEE802.15.4）
- Net weight: 31g
- Size: 44.2mm x 44.2mm x 59mm
- Color: White
- Cover material: ABS+PC
- Rating: IP20 (indoor)
- Operating temperature: -10°C ~ 60°C
- Operating humidity: 0~90% RH, (without condensation)
- Certification: CE/FCC/ISED/RoHS

Installation / operation

- Operating power supply: 5V DC
- Connection: with 5V DC power supply (accessory)
- Fixing / mounting: Magnetic base that can be fixed with a screw
- Operating ambient temperature: 20°C-60°C
- Operating ambient humidity: 0-90%
- IP protection: IP20

Supported protocols

- Wi-Fi: No
- Zigbee: Yes, Zigbee 3.0
- Thread: No
- RF / radio control: No
- Bluetooth: No

Remote control, smart control

- Cloud mode (with factory firmware): depending on Zigbee Bridge
- Implementation standard: EN IEC 62368-1
