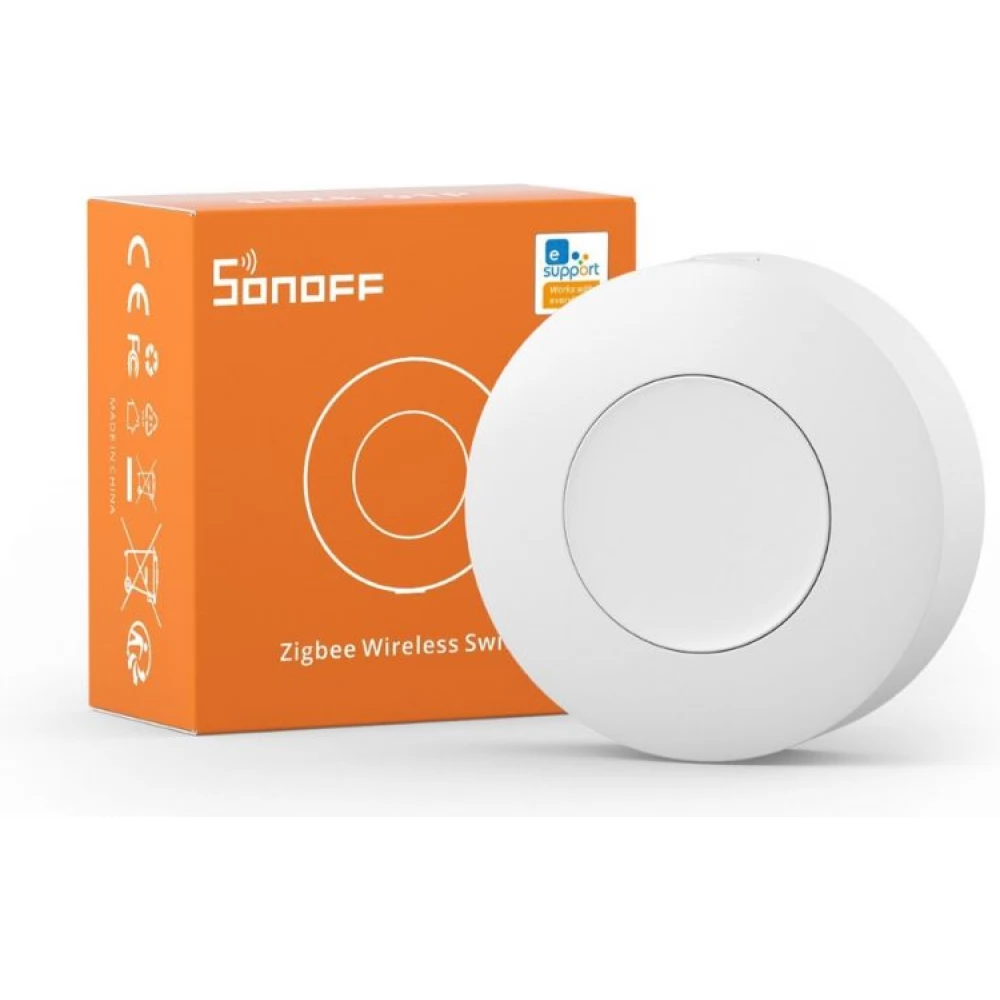

The SNZB-01 is the Zigbee switch button or Zigbee remote control of Sonoff - the 2023 product of the smart home device manufacturer - a smart home device using the Zigbee 3.0 protocol. With this remote control and a Zigbee gateway, we can integrate it into any Zigbee or eWeLink system, e.g. WiFi devices as well.

For example, by communicating via a Sonoff Zigbee Bridge Pro or SmartWise Zigbee Bridge Pro, it transmits data to the eWeLink cloud and we can control other Sonoff or SmartWise WiFi and eWeLink devices with it.

The product contains a metal base that can be fixed with a screw, to which the device can be attached with the magnet placed in the sensor, but the package also contains double-sided adhesive.

Due to the nature of Zigbee technology, pairing with each Zigbee device is a snap, much faster than WiFi pairing.

Three types of pressing of the wireless button (single, double and long press) can be set to start different controls.

Product features:

- Zigbee technology provides a long range for data transmission, and mesh technology can increase it even further.
- Compatible, for example, with the Sonoff Zigbee Bridge Pro gateway and other standard Zigbee devices
- When used together with Sonoff Zigbee Bridge Pro, it can also control Sonoff and SmartWise smart devices with WiFi
- The button is very small, only 4.5 cm in diameter and 1.77 cm thick
- Works with 1 CR2477 (3V) battery, which is not included in the product.
- The eWeLink app is now available in Hungarian!

Description:

- Manufacturer: Sonoff
- Factory article number: SNZB-01P
- Product type: Zigbee button / remote control
- Color: White

Installation / operation

- Operating power supply: CR2477 battery (3V)
- Connection: Wireless remote control, battery operated
- Fixing / installation: Magnetic base that can be fixed with a screw, can be fixed in any place with double-sided adhesive tape
- Operating ambient temperature: Indoor

Electrical properties

- Local / manual switching: 1 button, yes

Supported protocols

- Wi-Fi: No
- Zigbee: Yes
- Z-Wave: No
- RF / radio control: No
- Bluetooth: No

Remote control, smart control

- Can be controlled remotely via the Internet: Yes, it is connected to the Internet via a Zigbee Bridge
- Manufacturer smartphone app: EWeLink app (for Sonoff Zigbee Bridge), SmartThings app (for SmartThing hub)
- Cloud mode (with factory firmware): depending on Zigbee Bridge
- REST API support (with factory firmware): No

Smart functions

- Notification functions: depending on Zigbee Bridge
- History: Depending on Zigbee Bridge

Other

- Dimensions: 4.5 × 4.5 × 1.77 cm
